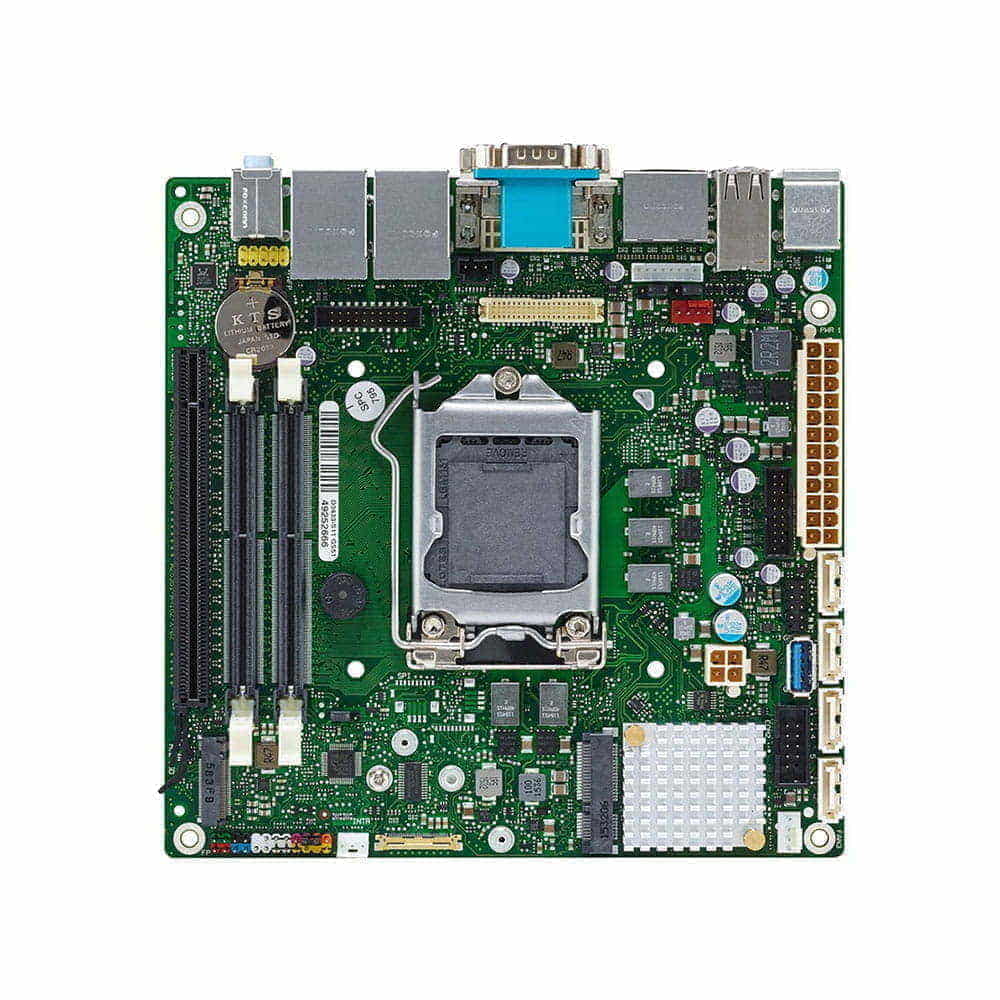

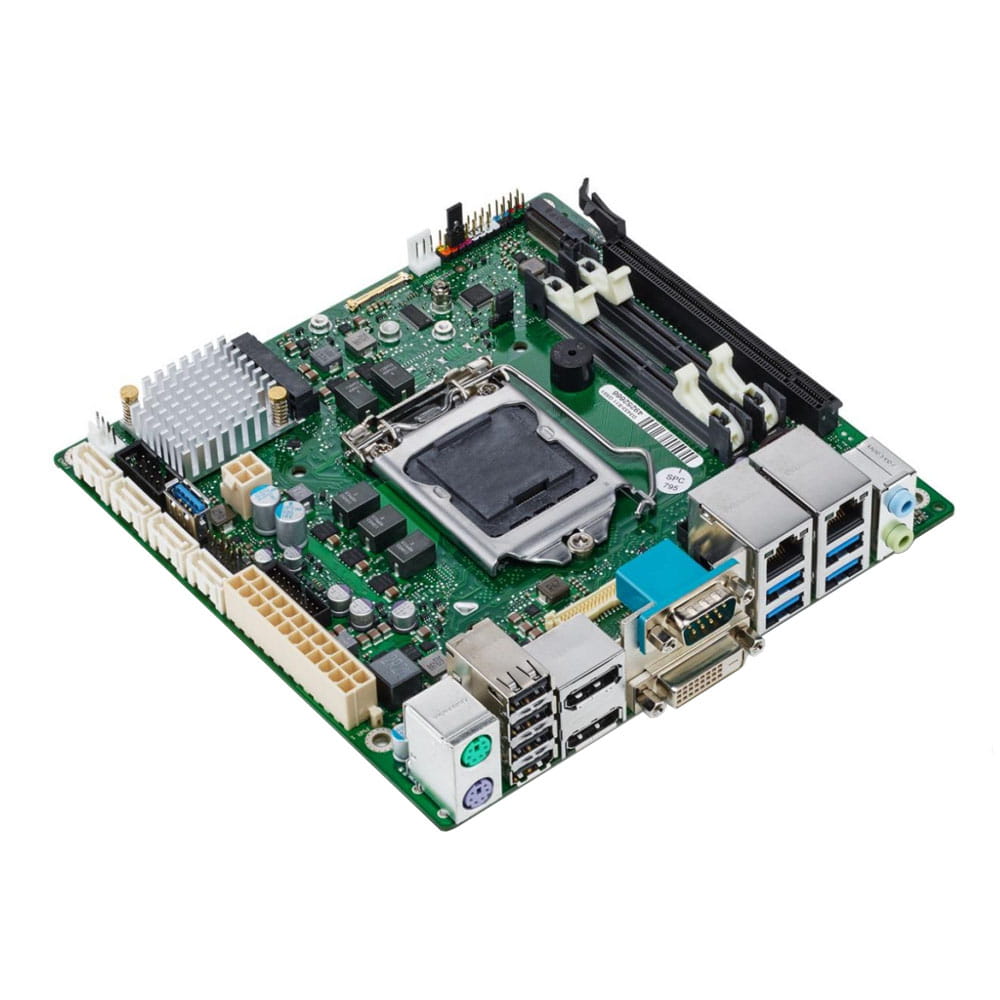

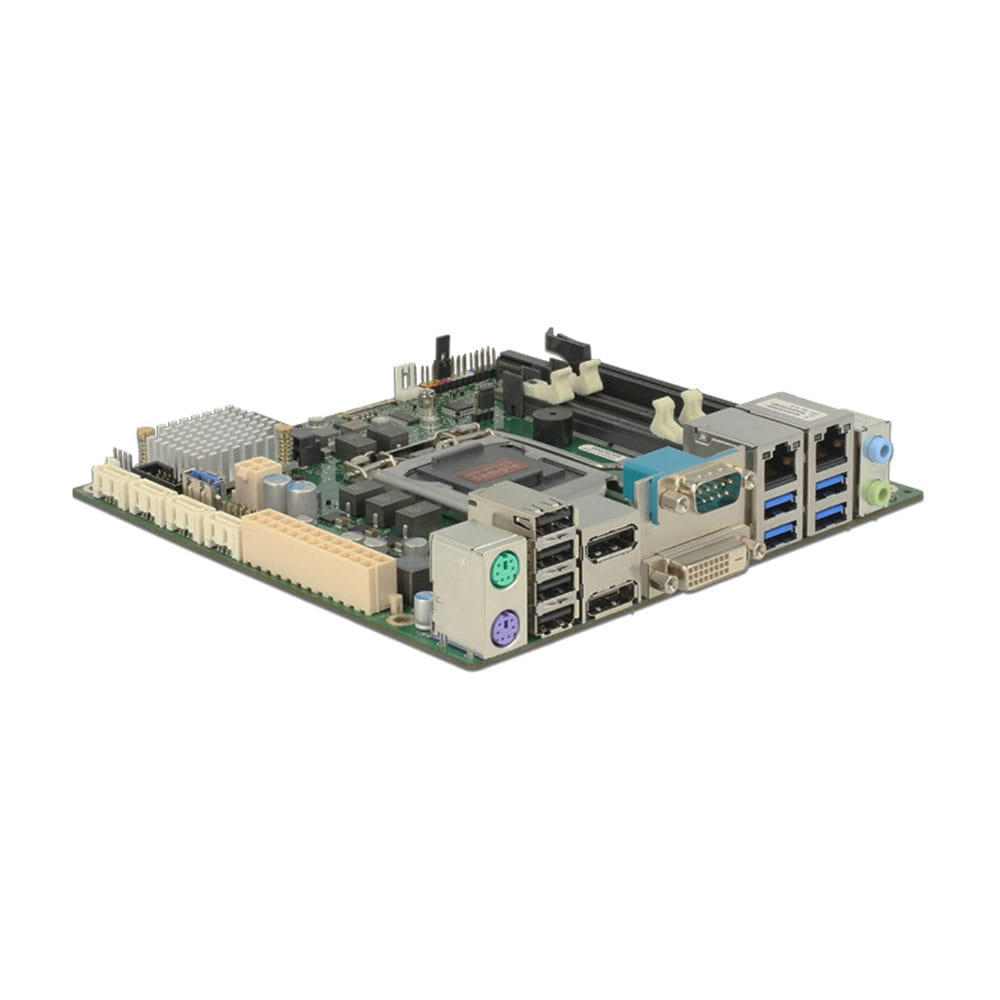

Fujitsu D3433-S2. Socket 1151. Mini-ITX. - SoDIMM DDR4
- Mini-ITX.
- Intel® Q170 Express Chipset.
- LGA1151.
- Intel® 6th Generation Core™ i7 / i5 / i3 Processors.
- max. 65W TDP.
- Supporting Intel® iAMT 11.0 / vPro 2015 (CPU support required).
- Dual Channel DDR4 2133 SDRAM SO-UDIMM (two sockets), max. 32 GB; Non-ECC.
- Intel® HD Graphics (integrated in processor e.g. HD510/530).
- DVI-D, Dual DisplayPort V1.2, eDP and Dual Channel LVDS support.
- 1x PCI Express x16 (Gen. 3; PCIe-Lane-Split x16/x8, x8/x4,x4) and 1x Mini-PCI Express.
- 2x Intel GbE LAN (incl. Teaming Support).
- Infineon TPM V2.0.
- 8 Bit GPIO Port & multichannel Audio.
- USB 2.0: 4x external / 1x intern.
The FUJITSU Mainboard D3433-S Mini-ITX of the Industrial Series is equipped with the highly performant Intel® Q170 Express Chipset and supports the 6th generation of Intel® Core™ Processors.
It offers highest functionality on a small-sized surface with Intel® iAMT 11.0 and vPro 2015 manageability, 2x LAN and BIOS configurable PCI Express Lane.
Highlights...
* Mini-ITX format.
* Intel® 6th Generation Core™ i7 / i5 / i3 Processors.
* Supporting Intel® iAMT 11.0 / vPro 2015 (CPU support required).
* Dual Channel DDR4 2133 SDRAM SO-UDIMM (two sockets), max. 32 GB; Non-ECC.
* DVI-D, Dual DisplayPort V1.2, eDP and Dual Channel LVDS support.
* 1x PCI Express x16 (Gen. 3; PCIe-Lane-Split x16/x8, x8/x4,x4) and 1x Mini-PCI Express.
* Infineon TPM V2.0.
* 8 Bit GPIO Port & multichannel Audio.
* USB 2.0: 4x external / 1x intern.
