Alphacool Front I/O-Panel USB 2.0.

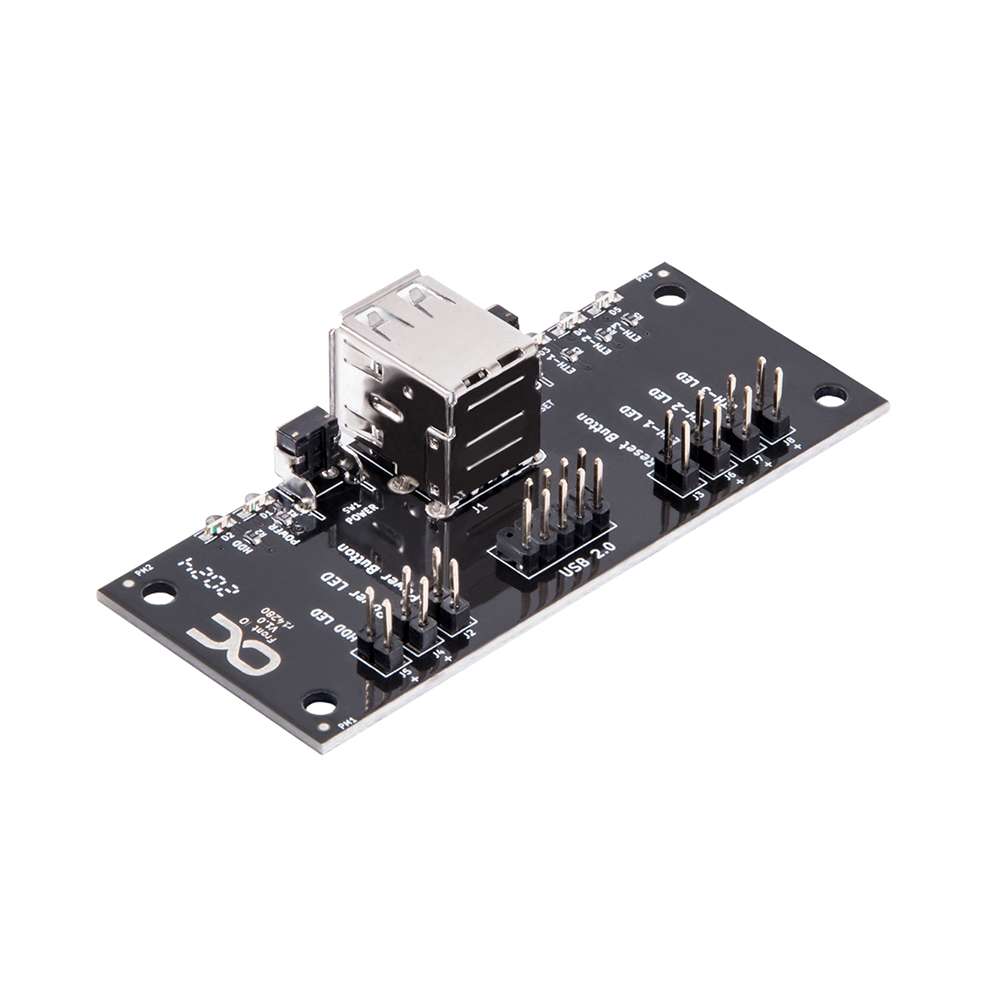

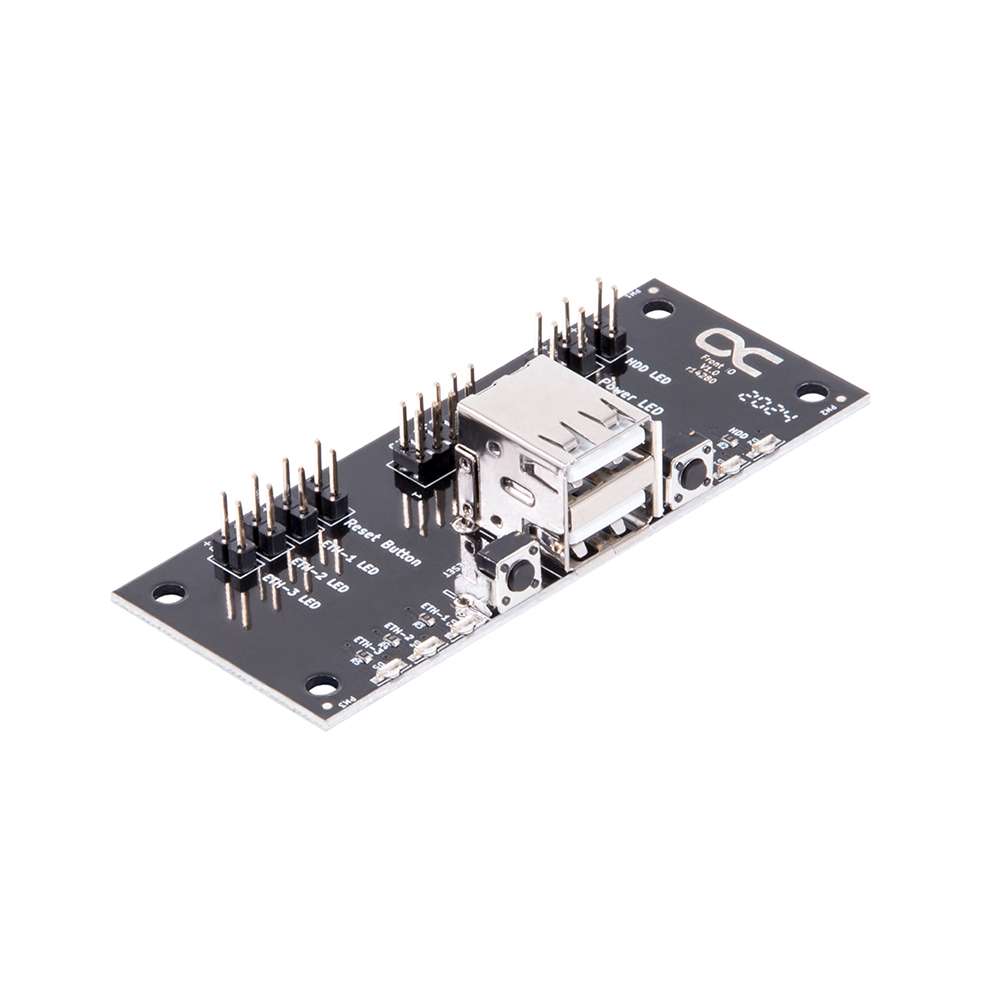

The Alphacool front I/O panel for Alphacool server cases in 1 to 4U format offers two USB 2.0 ports in addition to the power and reset switch. The board also offers several status LEDs to constantly monitor server rack functions. These include, of course, one status LED for the hard drive and power and three status LEDs for the network connection. On the board there are 2-pin connectors for all the LEDs and the power/reset switch. Three connectors for the network LEDs, one connector each for the power and reset switches, and of course one connector each for the HDD and power LEDs. The board is fixed with 4 screws. The mounting holes have an inner diameter of 3.5 mm. The distances between the mounting holes, measured from the center point, are 74 mm x 24 mm.

Alphacool I/O front panel patch cables fit Alphacool I/O front panels for server racks. The cable set consists of a total of 8 cables with a pure cable length without connector of 80 cm. There are seven 2-pin cables for the network LEDs, the power and reset switches, and the hard drive LED. One cable serves as a USB 2.0 connection cable with the typical 9-pin connector.

Main features...

* Female USB connector cable.
* Length: 80cm.
* Net weight: 57g.
