Trendnet TI-IG30. Inyector PoE+ Gigabit.

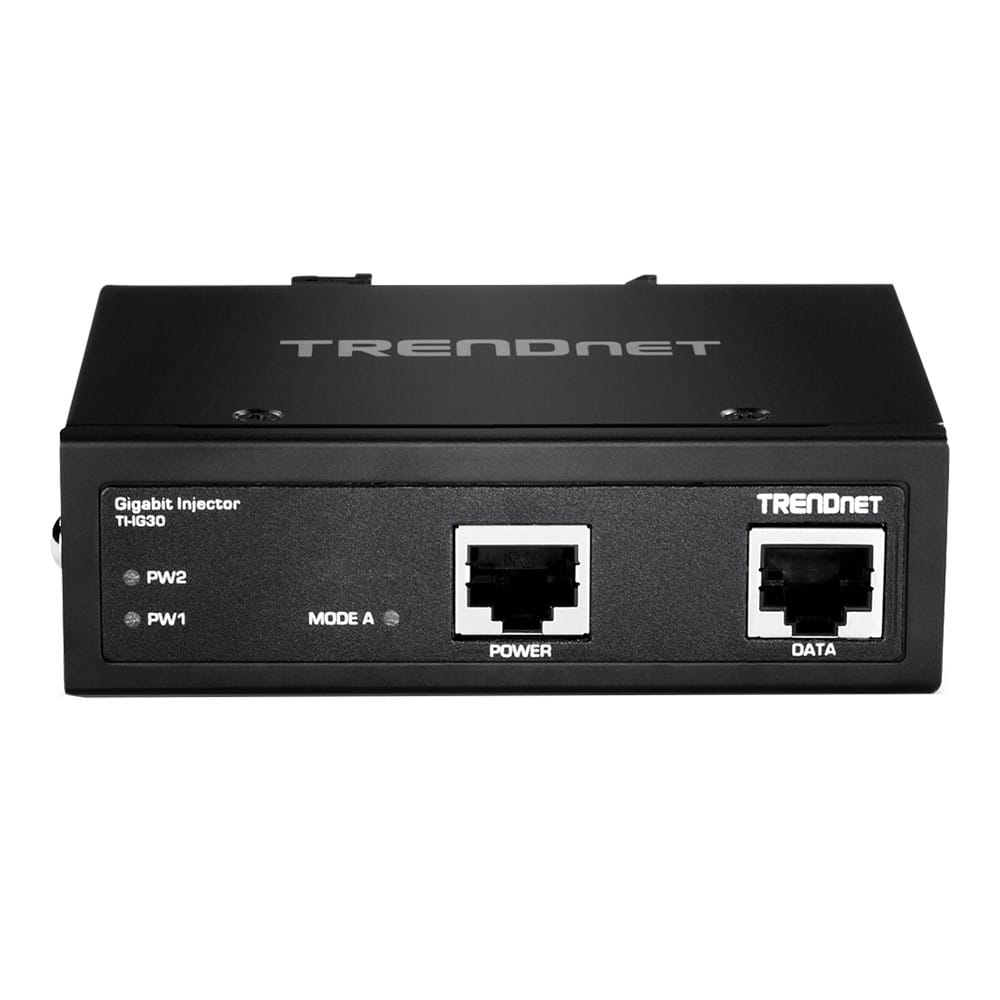

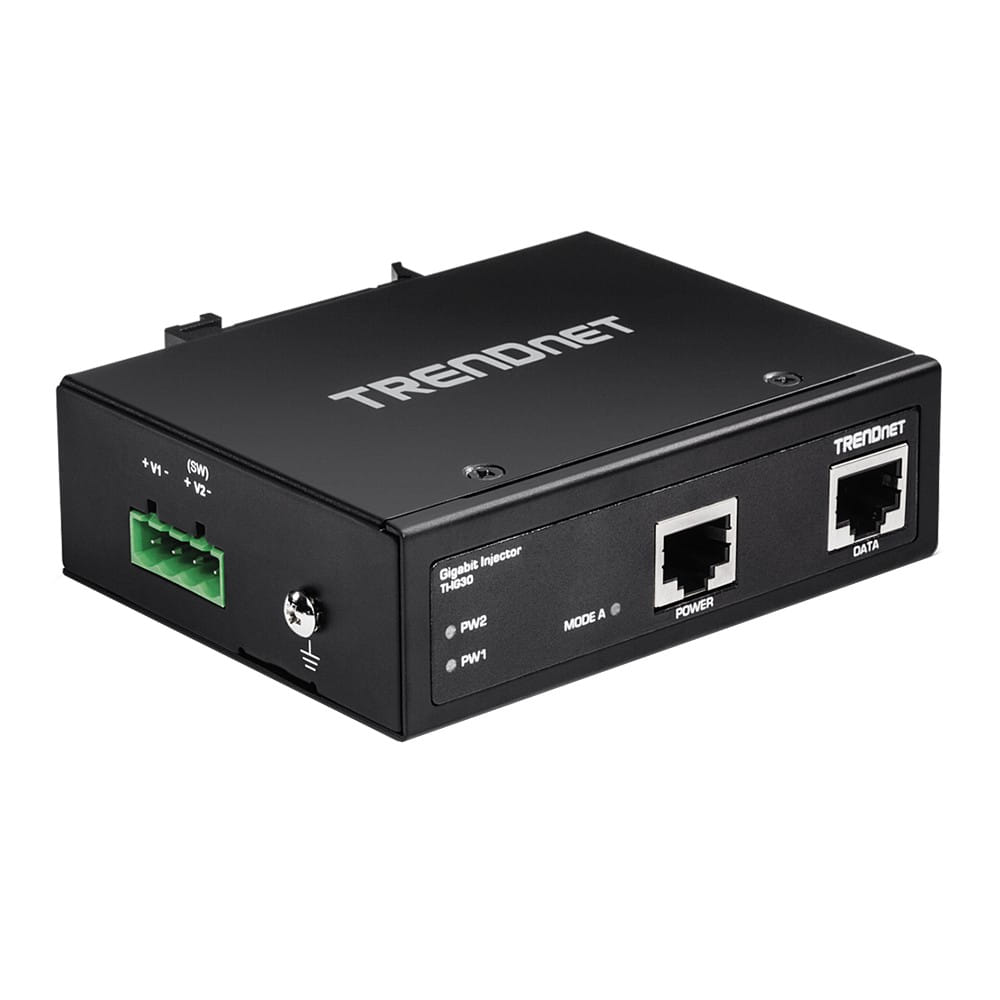

The TRENDnet TI-IG30 is a robust industrial PoE + Gigabit injector with rugged components and IP30 rating for extreme industrial environments. Connect the TI-IG30 to a non-PoE Gigabit switch, and then deploy an Ethernet cable of up to 100 meters (328 feet) to network a high-power PoE, PoE +, or PoE + device. Redundant dual current inputs (current source sold separately: TI-S12048) with overload protection support zero dead time installations. DIN-rail and wall mounting materials included.

Supplies power to a PoE device (up to 15 W) and PoE + (up to 30 W). Dual redundant current inputs with overload protection (current source sold separately: model TI-M6024).

One Gigabit Ethernet port and one Gigabit PoE + Ethernet port. Extends a PoE network connection by up to 100 meters (328 feet).

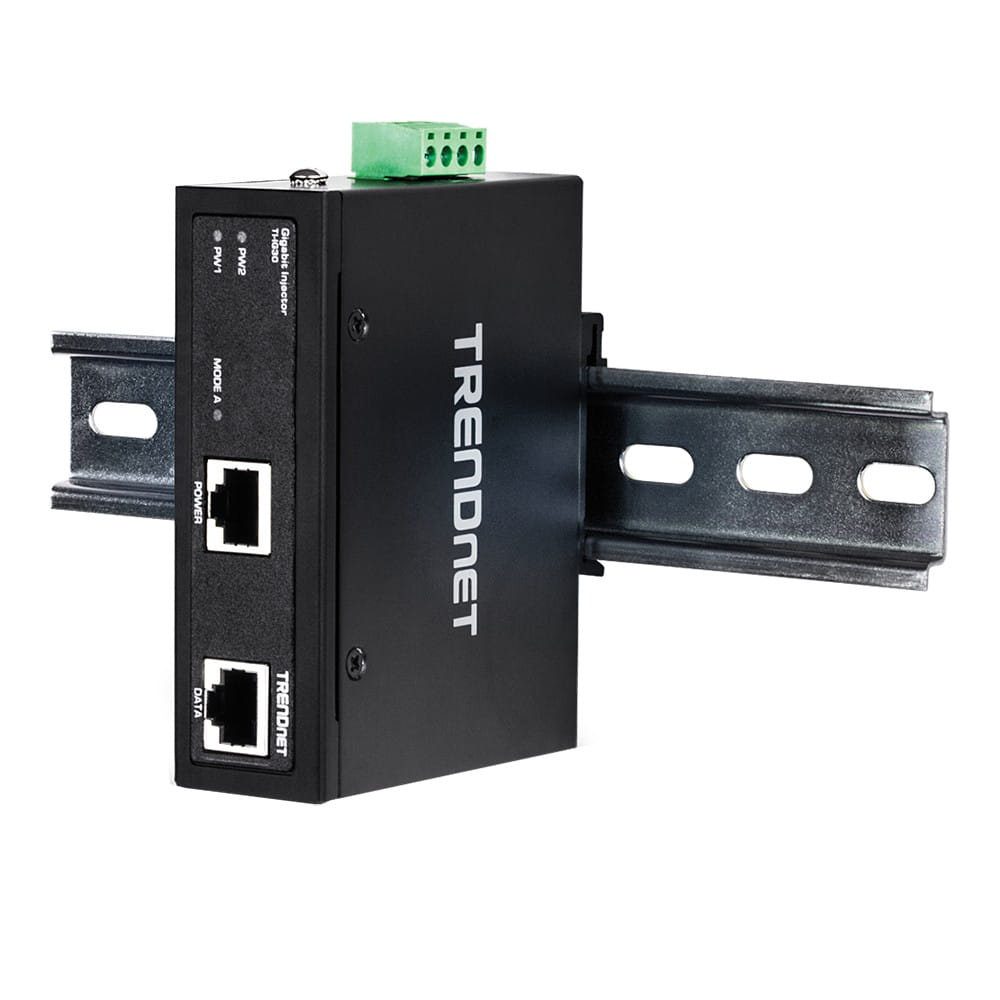

IP30-rated metal housing and integrated DIN-Rail and wall-mounting hardware.

Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards. Classified for Information Technology Equipment (ITE) (EN55022 / 24) and Industrial, Scientific and Medical (ISM) Equipment (EN55011). Classified for shocks (IEC 60068-2-27), free fall (IEC 60068-2-32) and vibrations (IEC 60068-2-6).

Highlights ...

* Rugged PoE + Gigabit injector with IP30 rating.
* High power PoE +.
* Network a PoE device located up to 100 meters (328 feet) away.
* Extreme operating temperature range, -40 to 75 ° C (-40 to 167 ° F).
* Dual redundant current inputs with overload protection.

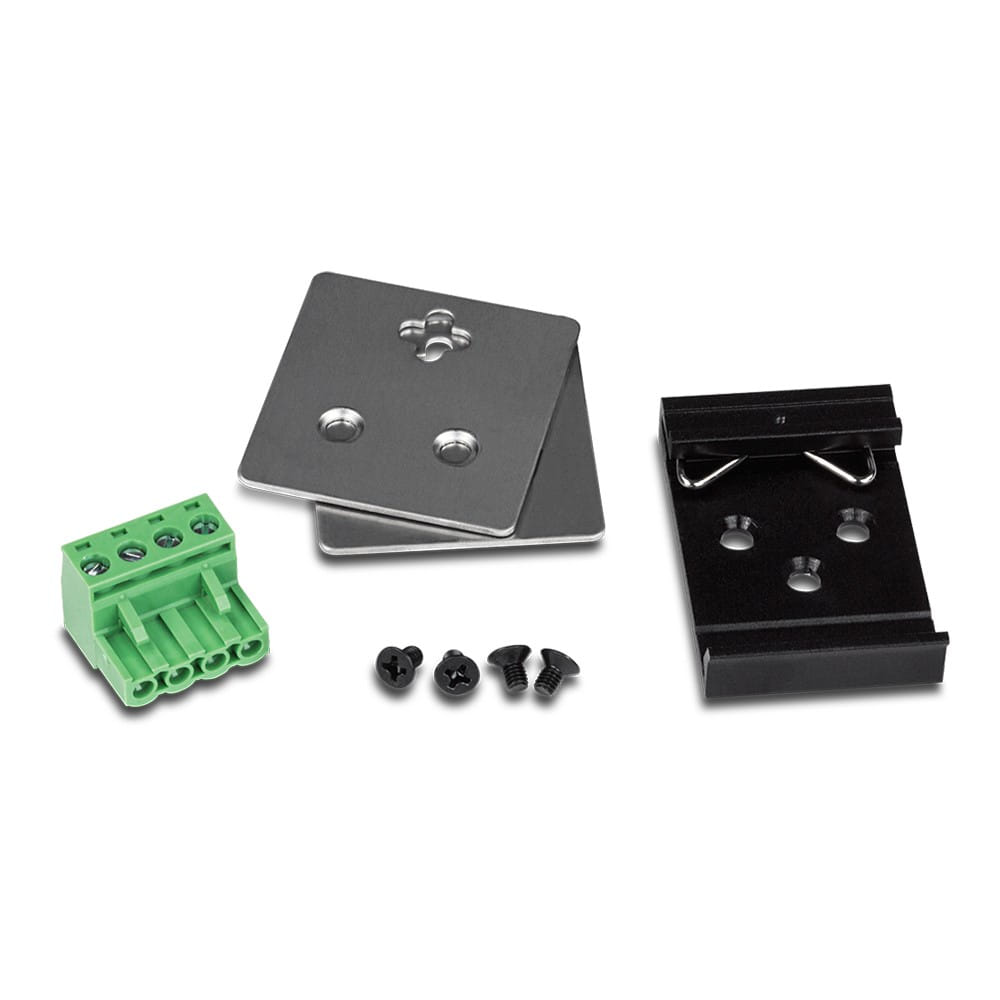

* Contains DIN-rail and wall mounting materials.
* The power supply is sold separately (model TI-S12048).
