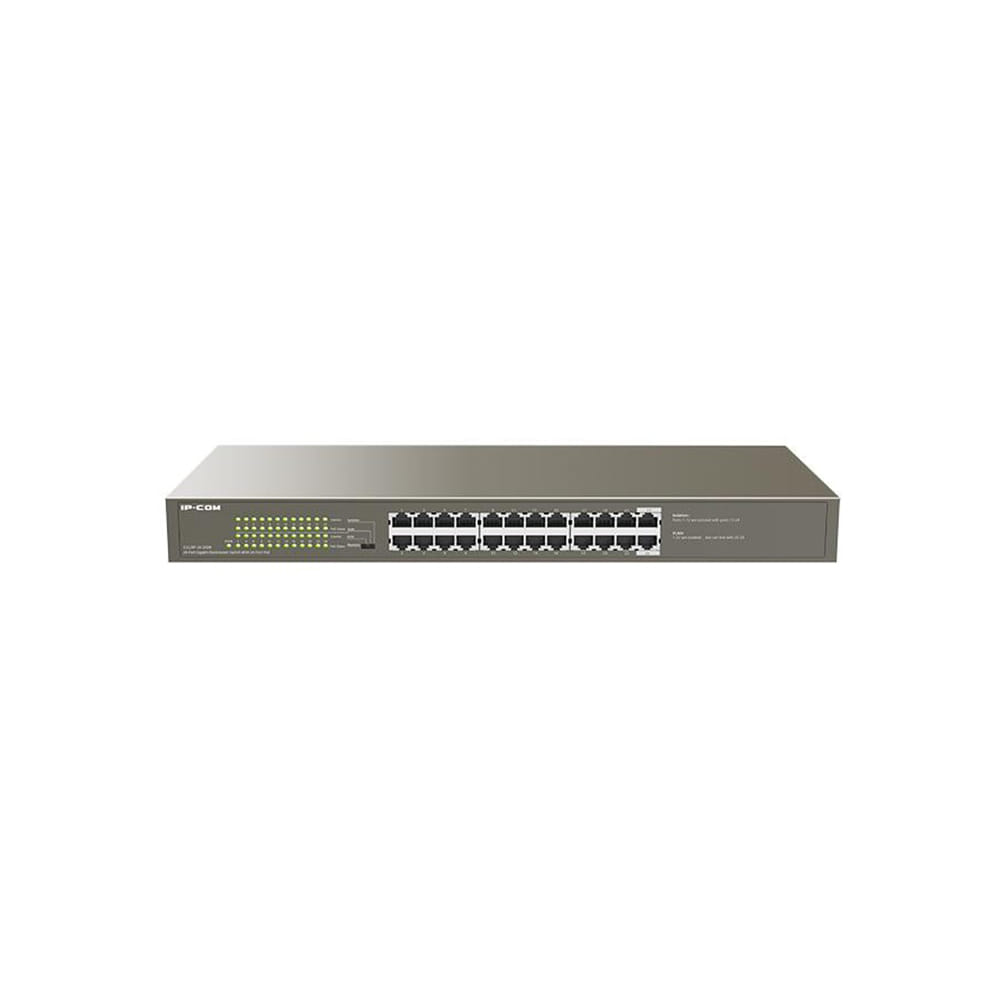

Tenda G1124P-24-250W Switch 24 puertos

In real-world projects, APs and cameras are often installed outdoors or in an elevated location, increasing the possibility of lightning striking cameras and PoE-powered switches. The result is that individual devices are damaged when the result is light, and even the entire local area network is damaged. Tenda TEG11 series switches are professionally designed for lightning protection: 6KV lightning protection for ports and power , and have two levels of protection design respectively, which effectively suppresses the lightning current of the network cable and the power supply, equivalent to adding a security wall to the entire network monitoring system. The test standard is much higher than the national CCCrequest.

CCTV, Standard, VLAN, and Isolation modes of operation are offered. CCTV: In this mode, the port cache is optimized and PoE ports 1-8 have higher priority over the other ports. All ports on the switch can communicate with each other. If there are multiple IP cameras connected to the switch, it is recommended to enable this mode and connect the uplink port of the switch to the uplink device that connects the monitoring computer. This ensures greater fluency in monitoring video playback.

Standard - The switch functions as a common unmanaged switch and all ports on the switch can communicate with each other. VLAN: TEG1124P-24-250W ports 1 to 22 are isolated from each other, but can communicate with ports 23 and 24 (uplink ports) respectively. Solid DIP switch to isolate ports to prevent broadcast storms and defend DHCP spoofing.

Isolation: ports 1 to 12 and ports 13 to 24 of the TEG1124P-24-250W belong to two different VLANs. This mode can be used to isolate the monitoring network and the wireless network so that they do not interfere with each other.

We highlight ...

* 6KV leek lightning protection.
* Maximum PoE output power 225w.
* Cache optimization.
* One-key VLAN.
