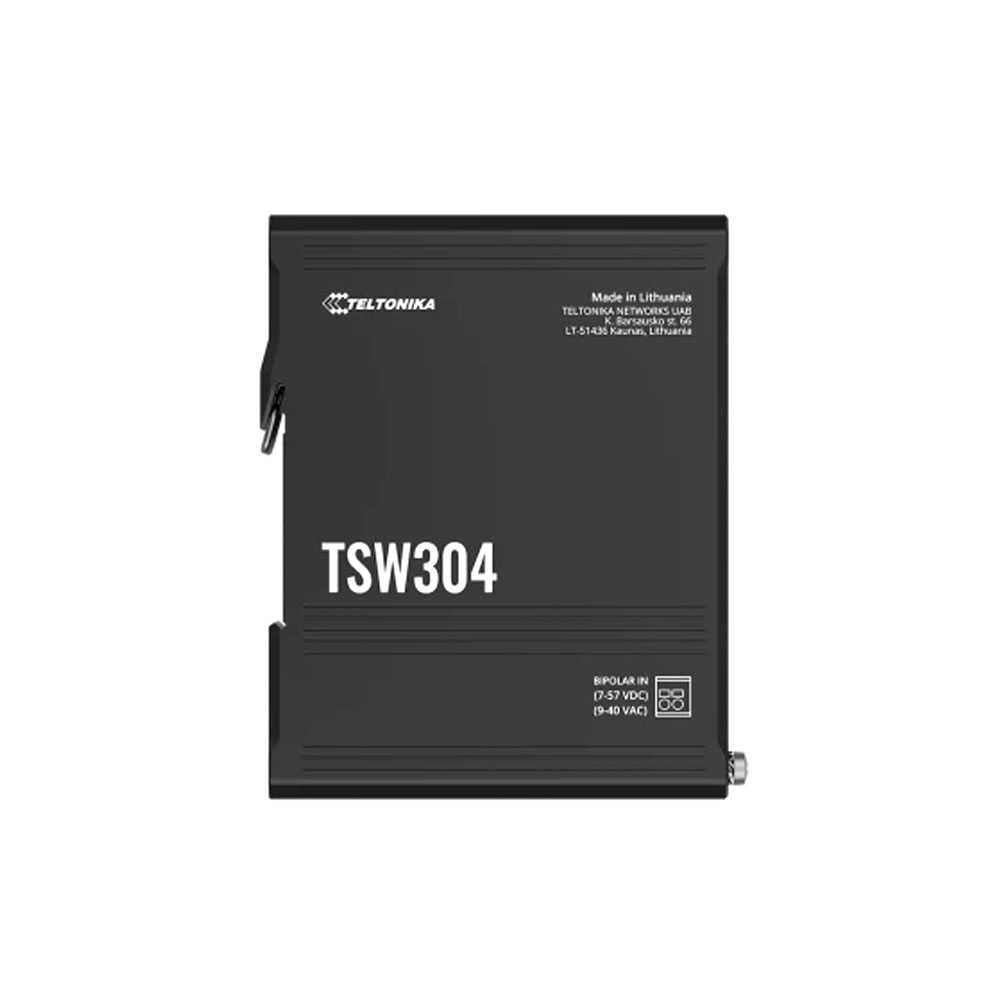

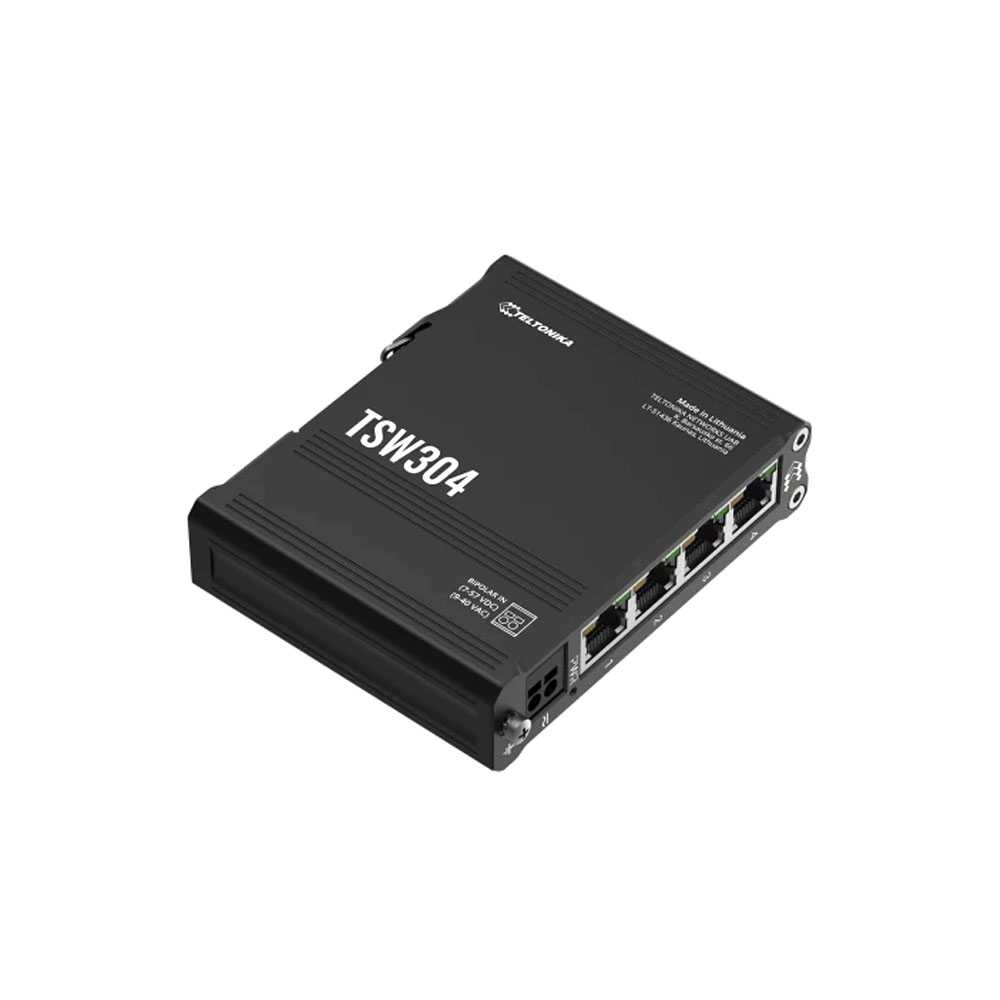

Teltonika TSW304. Switch DIN-Rail PoE 4 Puertos.

The Teltonika TSW304 is a compact and efficient industrial Ethernet switch, designed to provide stable, high-speed connectivity in demanding environments. Equipped with 4 Gigabit Ethernet ports (10/100/1000 Mbps) and support for automatic MDI/MDIX crossover, it enables seamless communication between devices, optimizing network infrastructure.

This model supports passive PoE power via the ETH1 port, in Mode B (9 - 30 VDC), allowing it to be integrated into industrial systems without relying on IEEE 802.3af/at/bt standards. Its low power consumption (<1.44 W at maximum load) makes it an ideal choice for low-power applications and stand-alone systems.

Manufactured with a rugged, IP30-certified aluminum housing, the TSW304 is designed to operate in extreme conditions, withstanding temperatures from -40°C to 75°C and relative humidity from 5% to 95% non-condensing. Its compact and versatile design allows for DIN rail, wall or flat surface mounting (requires additional kit).

If you are looking for a compact, efficient and robust industrial switch, the Teltonika TSW304 is the ideal solution for applications in automation, transportation, telecommunications and industrial networks.

Key Features...

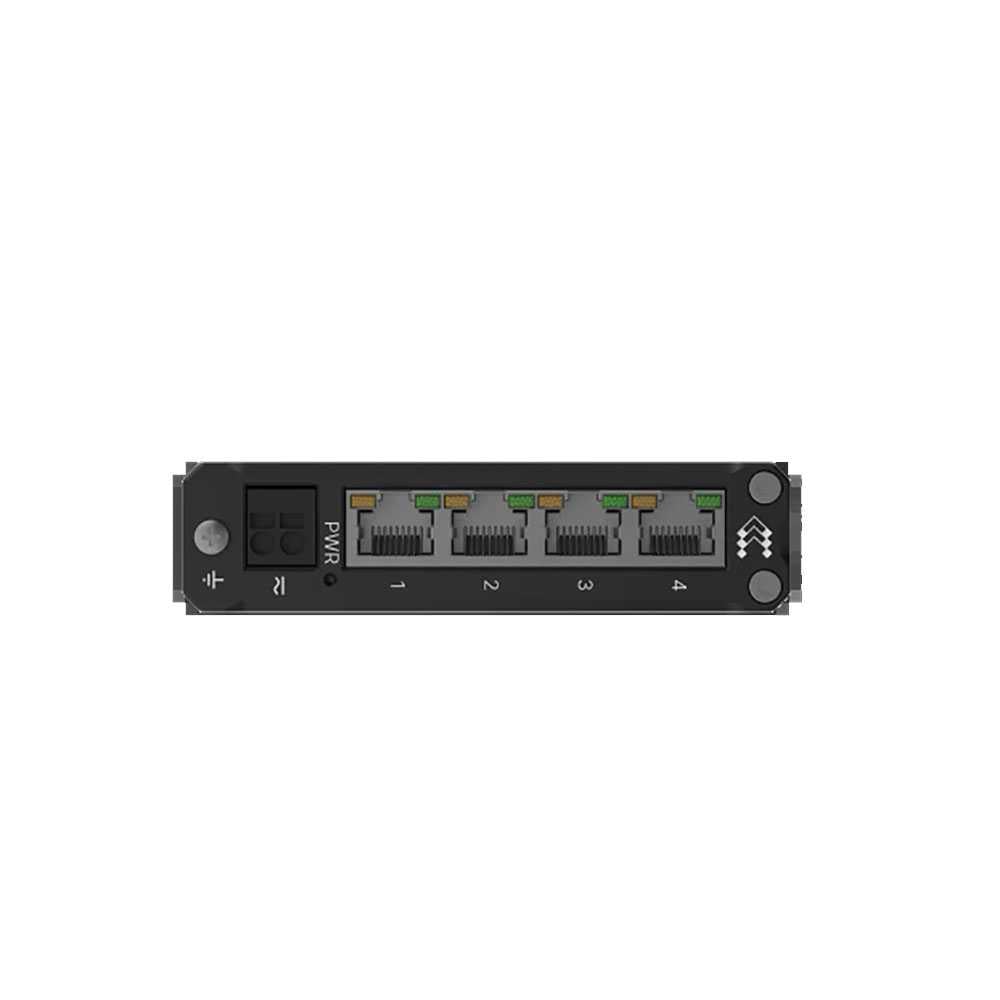

* 4 Gigabit Ethernet ports (10/100/1000 Mbps) with auto MDI/MDIX.
* Passive PoE support on ETH1 port (Mode B, 9 - 30 VDC).
* Non-blocking 8 Gbps bandwidth, with a 2K-entry MAC address table.
* Support for jumbo frames up to 9216 bytes for improved data transmission efficiency.
* Low power consumption, with 0.26 W in idle and 1.44 W at full load.
* Robust aluminum housing and IP30 certification, designed for industrial environments.

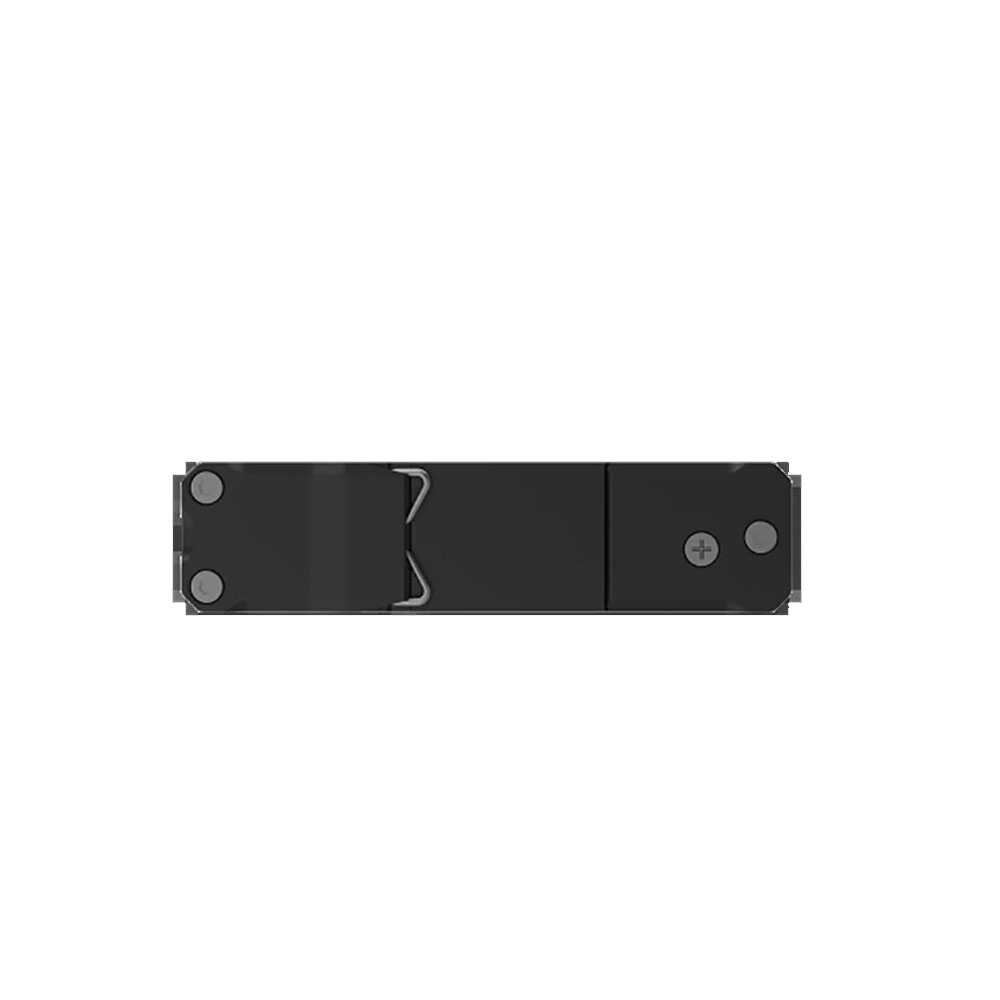

* Versatile mounting options: built-in DIN rail, wall or flat surface (additional kit required).
* Operating temperature range of -40°C to 75°C, ideal for extreme conditions.
