Teltonika TSW114. Switch DIN-Rail PoE 5 Puertos.

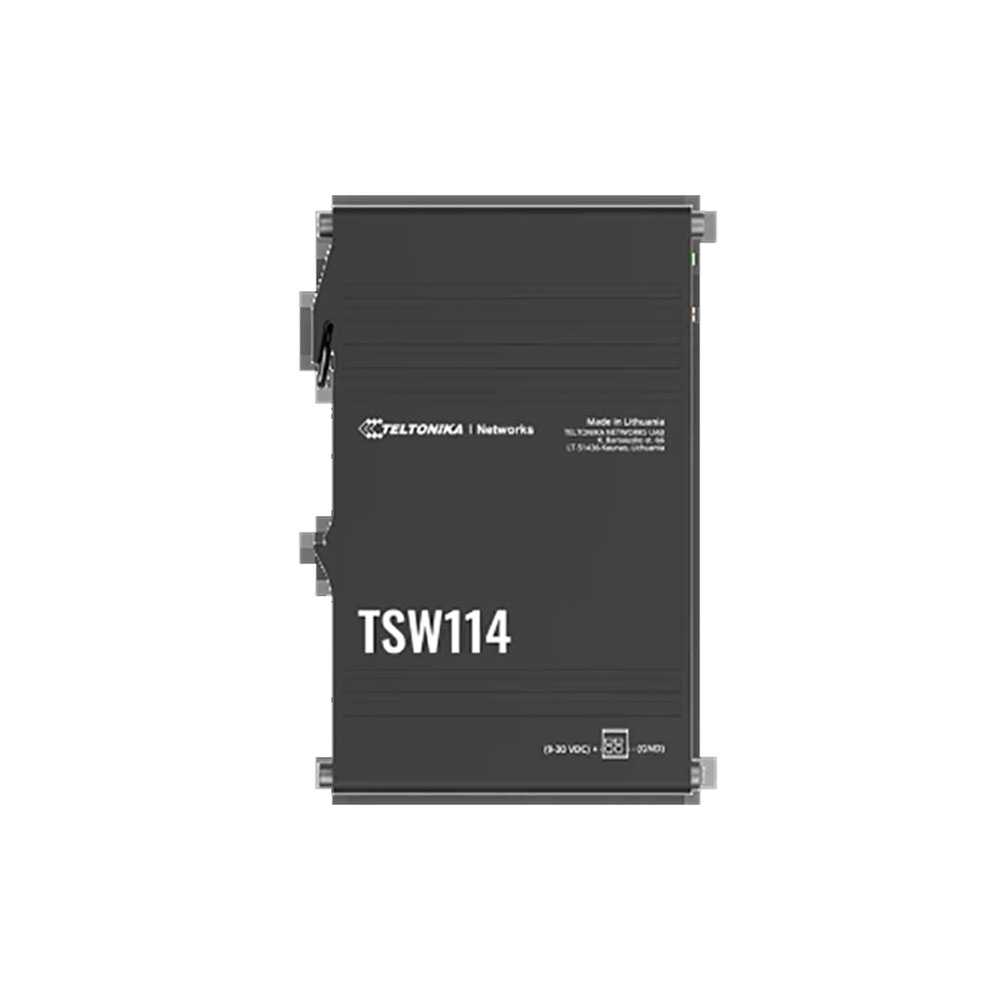

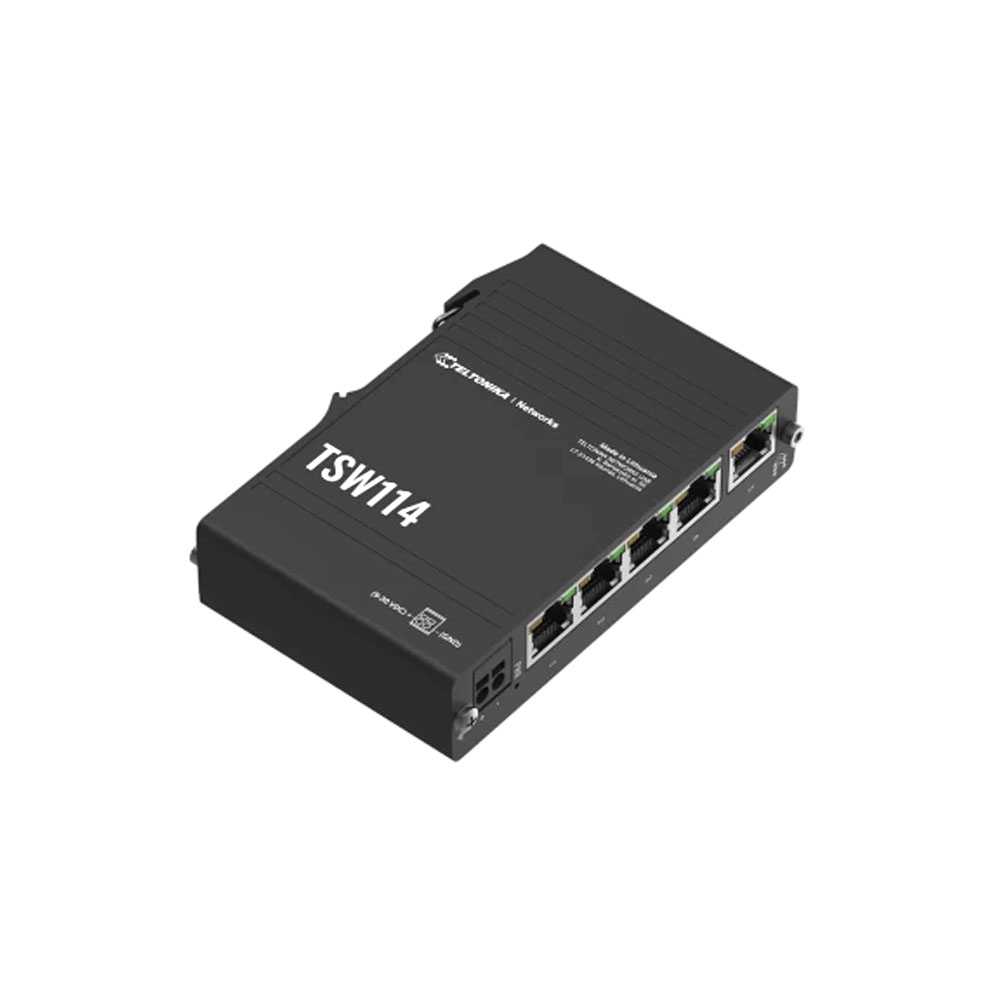

The Teltonika TSW114 is a compact, high-performance industrial Ethernet switch designed to deliver reliable and efficient connectivity in demanding environments. With 5 Gigabit Ethernet ports (10/100/1000 Mbps) and MDI/MDIX auto-crossover support, it ensures stable and fast data transmission, adapting to various industrial and commercial network applications.

This model supports passive PoE power via the ETH1 port (Mode B, 9-30 VDC), allowing it to be integrated into infrastructures without the need for additional adapters. Its low power consumption (0.3 W in idle and 2.3 W at maximum load) makes it an efficient and sustainable solution for environments requiring energy optimization.

Built with an anodized aluminum housing, the TSW114 offers great strength and durability, withstanding extreme operating temperatures from -40°C to 75°C and humidity from 5% to 95% non-condensing. Its versatile design includes an integrated DIN rail bracket and options for wall or flat surface mounting (requires additional kit).

If you are looking for a robust, efficient and easy-to-install industrial switch, the Teltonika TSW114 is an excellent choice. Its reliable connectivity, low power consumption and support for passive PoE make it ideal for multiple applications in industrial networks, transportation and telecommunications.

Key Features...

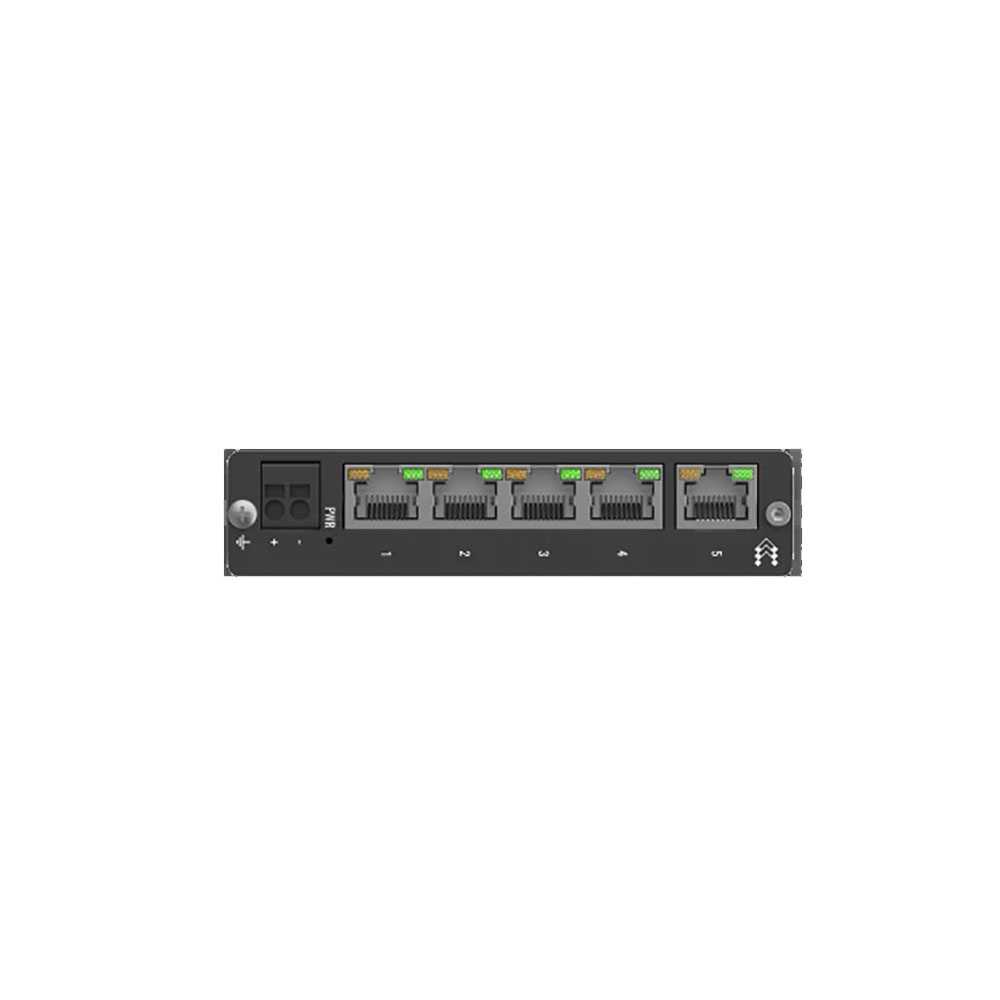

* 5 Gigabit Ethernet ports (10/100/1000 Mbps) with automatic speed detection.
* Passive PoE support on the ETH1 port (Mode B, 9 - 30 VDC).
* 10 Gbps non-blocking bandwidth and 2K-entry MAC address table.
* Low power consumption, with only 0.3 W in idle and 2.3 W at maximum load.
* Rugged anodized aluminum construction and IP30 certification for industrial environments.
* Integrated DIN rail mount, plus wall or flat surface mounting options.
* Operating temperature range of -40°C to 75°C, ideal for extreme conditions.
