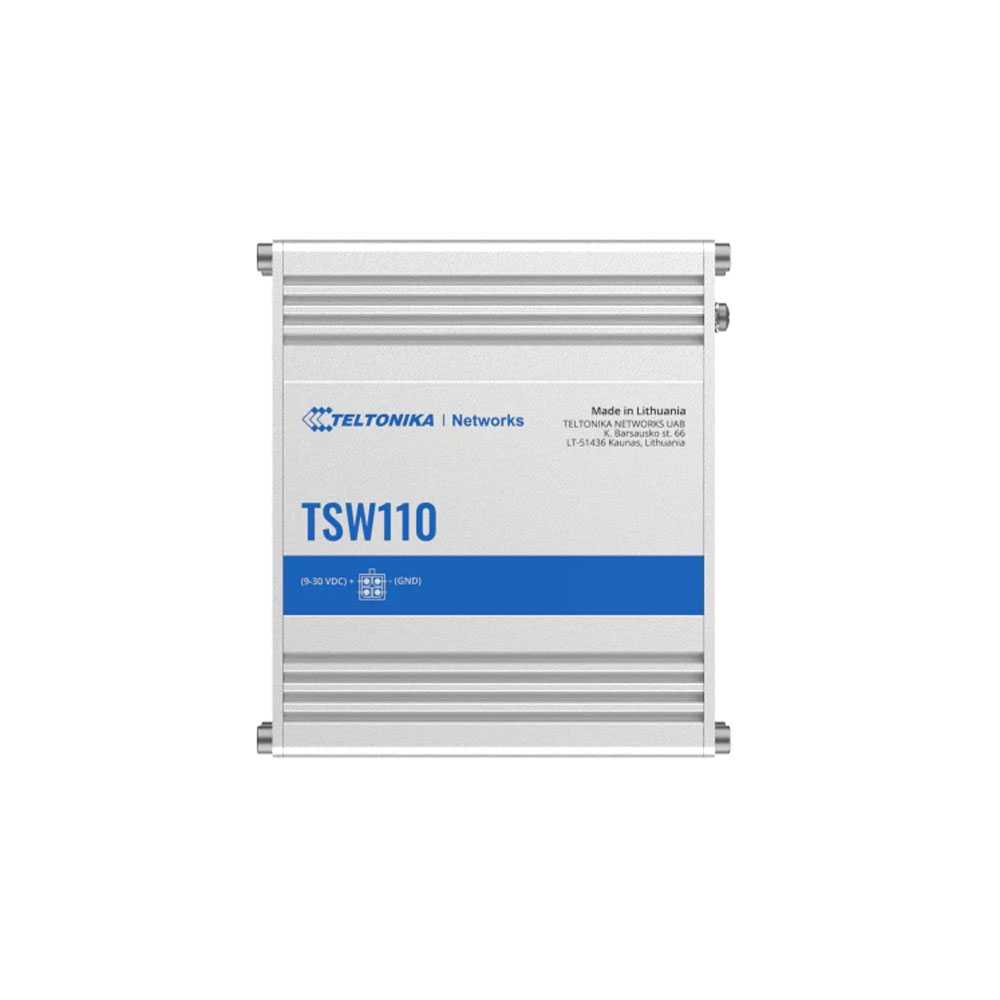

Teltonika TSW110. Switch DIN-Rail PoE 5 Puertos.

The Teltonika TSW110 is a compact and efficient industrial Ethernet switch, designed to provide high-speed connectivity in demanding environments. With 5 Gigabit Ethernet ports (10/100/1000 Mbps) and support for MDI/MDIX auto-crossover, it ensures stable and uninterrupted communication for industrial, transportation and telecom networks.

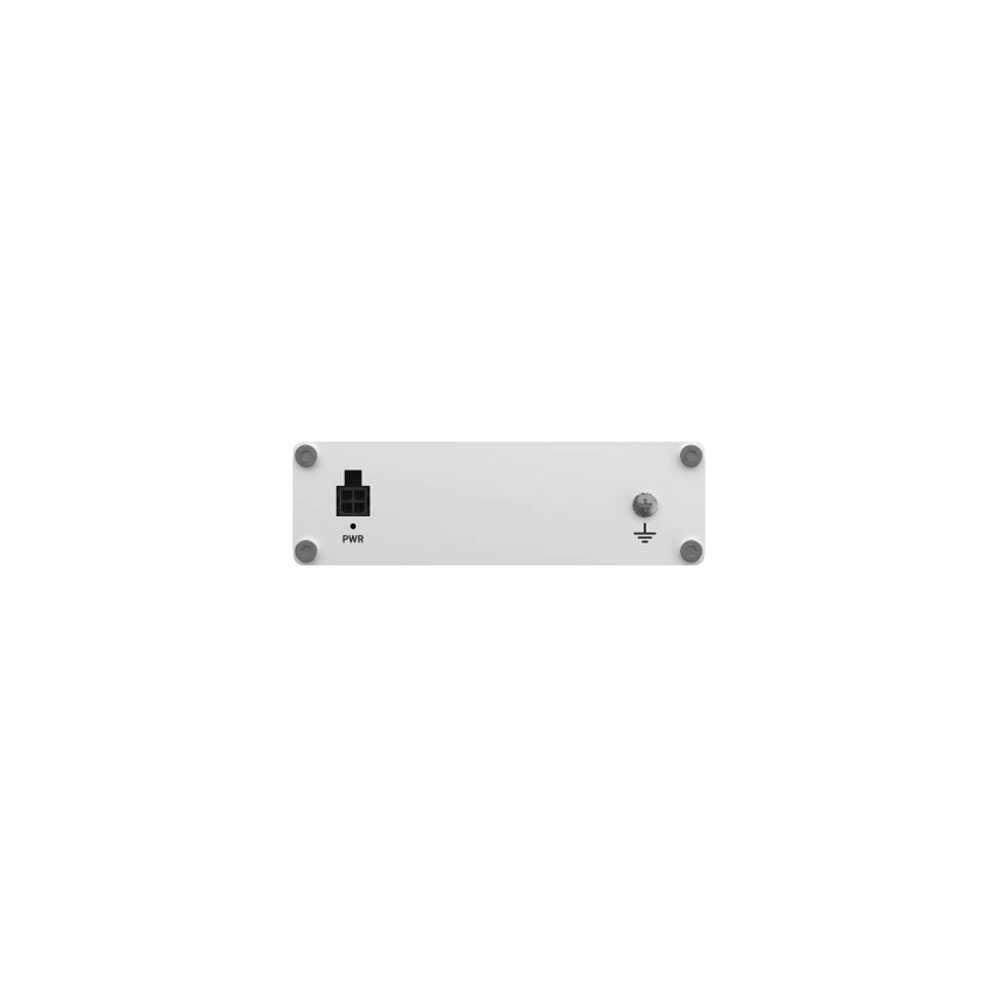

This model offers flexible power supply via an industrial 4-pin DC connector (9-30 VDC) and supports passive PoE via the ETH1 port (Mode B, 9-30 VDC), allowing it to be easily integrated into various infrastructures without relying on conventional PoE standards. Its low power consumption (< 1.8 W) makes it ideal for low-power applications and stand-alone systems.

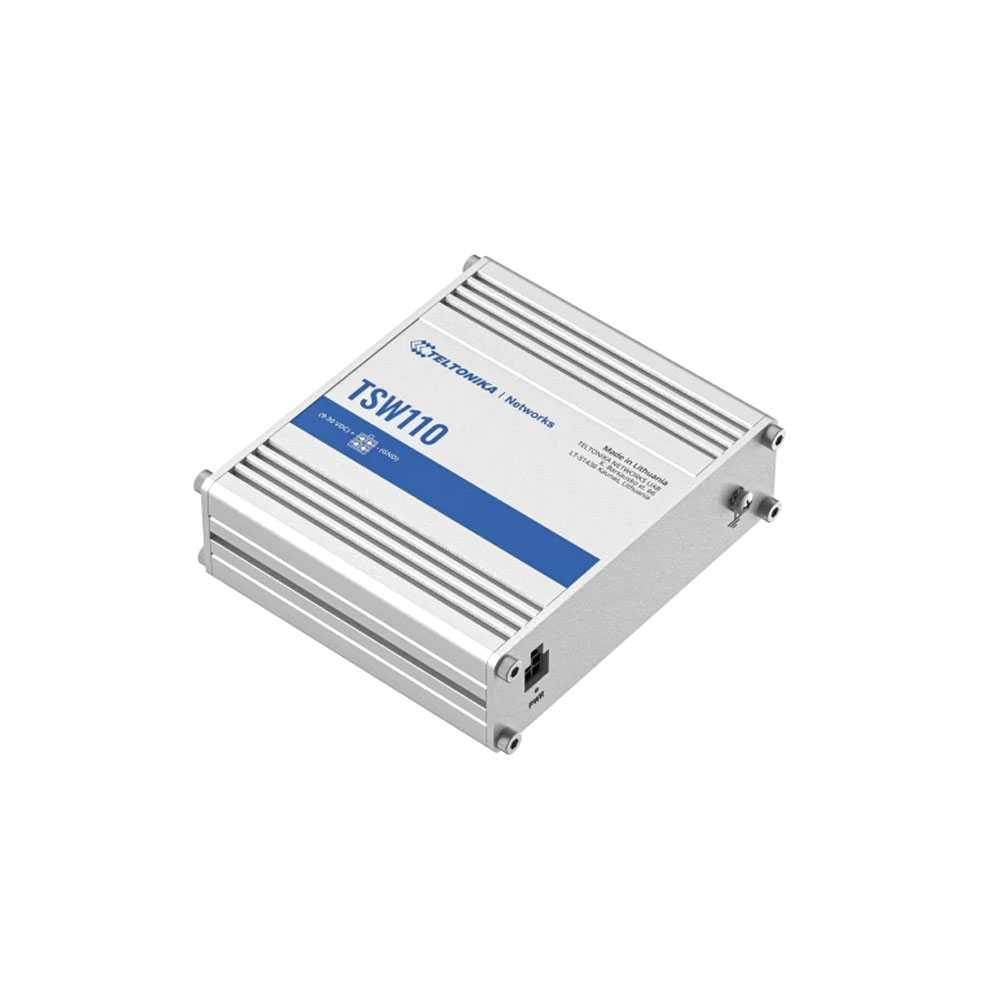

Built with a rugged aluminum housing, the TSW110 is designed to operate in extreme conditions, withstanding temperatures from -40°C to 75°C and relative humidity from 5% to 95% non-condensing. Its compact design and versatile mounting options make it perfect for DIN rail, wall or flat surface installations.

If you are looking for an unmanaged industrial Ethernet switch with high performance and support for passive PoE, the Teltonika TSW110 is the ideal choice. Its durability, energy efficiency and ease of installation make it a reliable solution for multiple professional applications.

Key Features...

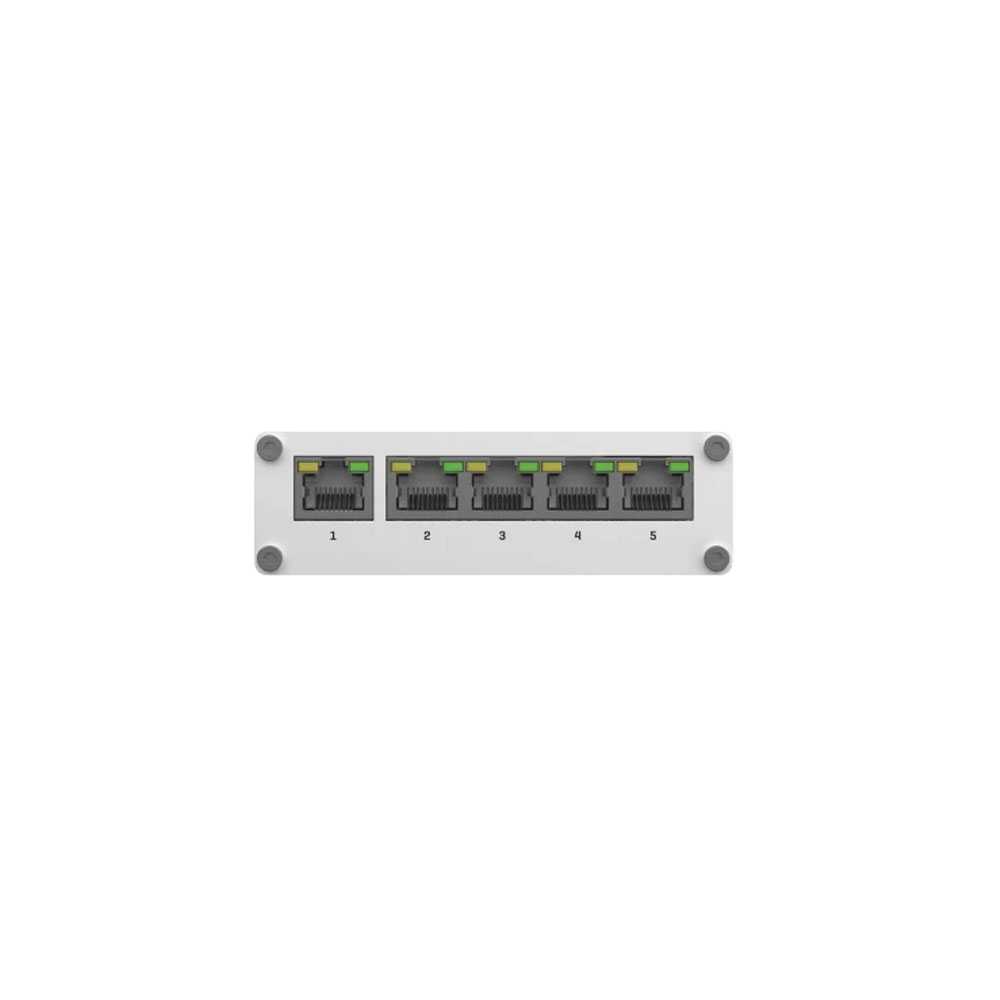

* 5 Gigabit Ethernet ports (10/100/1000 Mbps) with auto MDI/MDIX.
* Passive PoE support via ETH1 port (Mode B, 9 - 30 VDC).
* High processing capacity, with a non-blocking bandwidth of 10 Gbps.
* Support for jumbo frames up to 9216 bytes for increased data transmission efficiency.
* Robust aluminum housing and IP30 certification, designed for industrial environments.
* Low power consumption (< 1.8W) for efficient and sustainable operations.
* Operating temperature range of -40°C to 75°C, ideal for extreme conditions.
