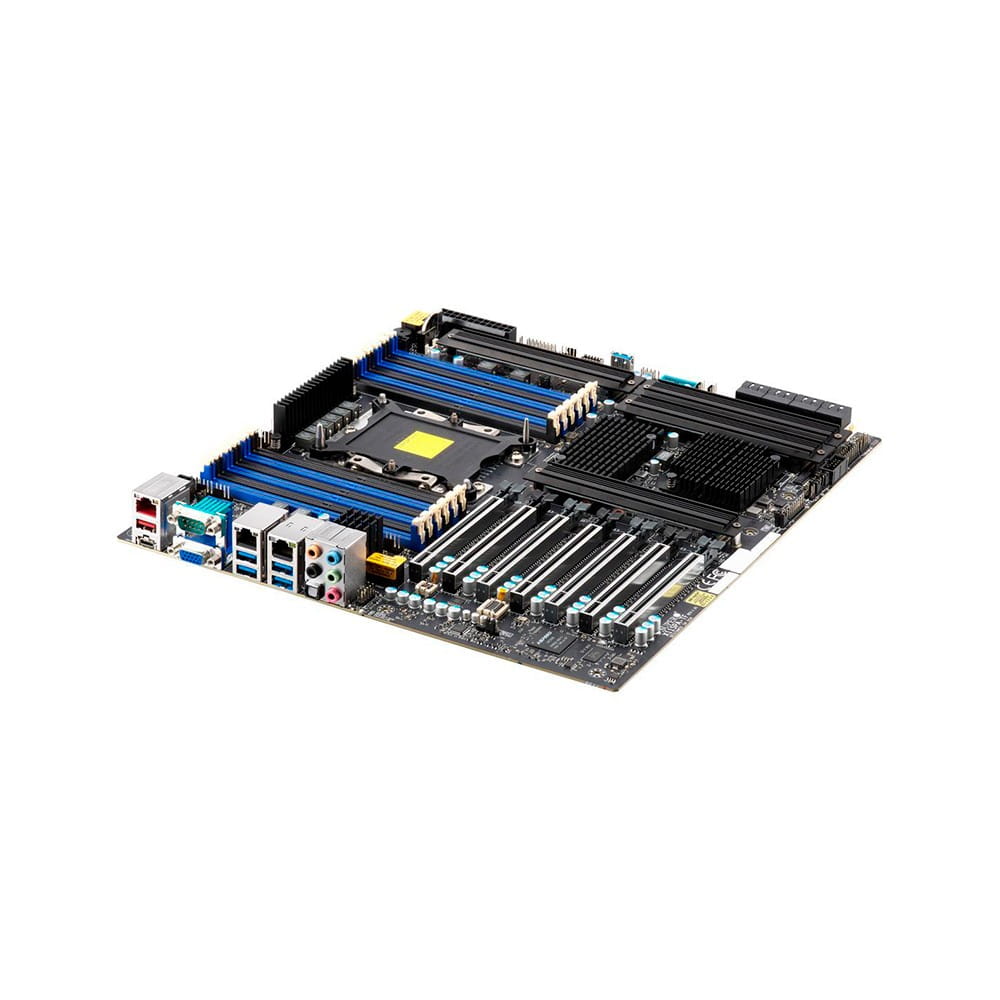

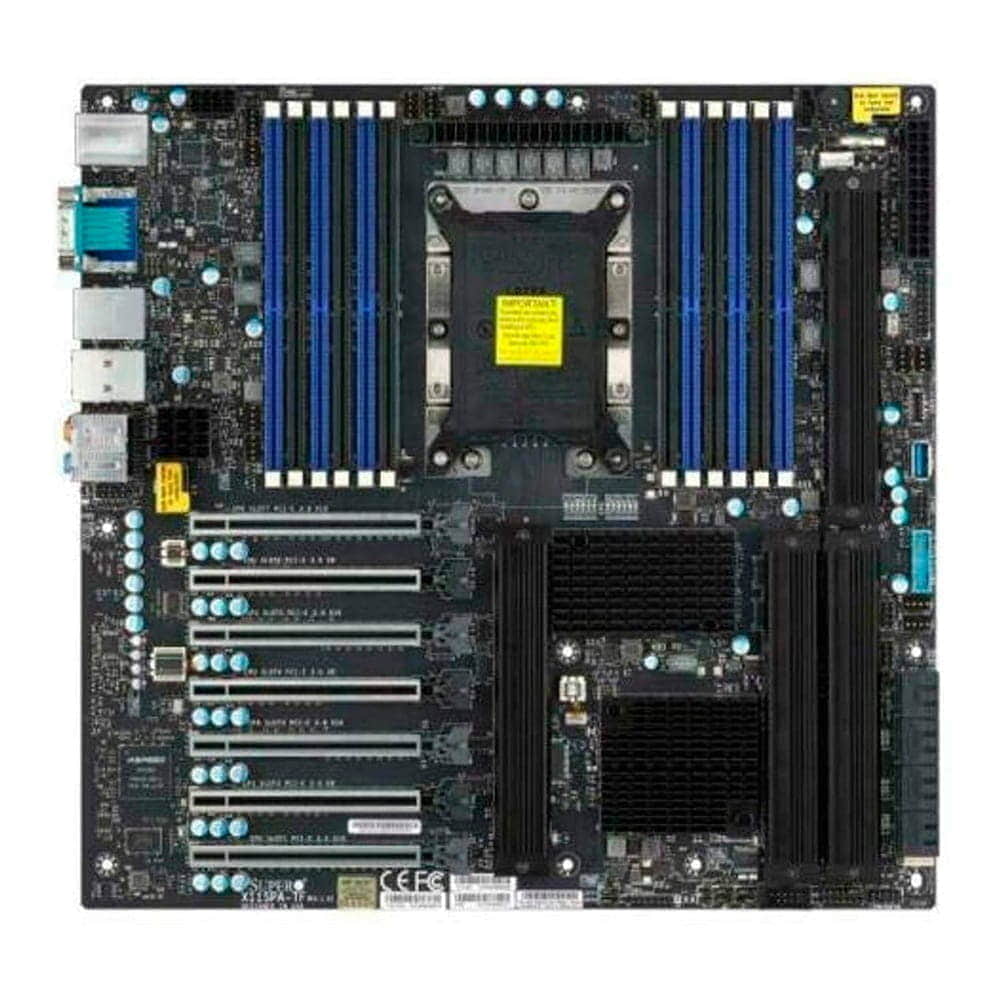

Supermicro X11SPA-T. Socket 3647. E-ATX. BULK.
- Support for 2nd Gen Intel Xeon Scalable Processors and Intel Xeon W-32xx Processor, supporting CPUs up to 205W TDP.
- Impressive memory capacity with up to 3TB 3DS ECC RDIMM, DDR4-2933MHz and up to 2TB 3DS ECC LRDIMM.
- Intel C621 Chipset.
- Extensive expansion options with 4 PCIe 3.0 x16 and 3 PCIe 3.0 x8, plus M.2 support with RAID 0 & 1.
- Intel C621 controller for 8 SATA3 ports (6 Gbps) with RAID 0,1,5,10 support.
- Various network options including a LAN with Intel Ethernet Controller I210-AT and another with Aquantia AQC107 10G Ethernet Controller.
- Integrated graphics with 1 ASPEED AST2500 BMC port and dedicated VGA connector for IPMI.
Discover the Supermicro MBD-X11SPA-T motherboard, meticulously designed to meet the needs of the most demanding professionals. Equipped with the powerful support of 2nd Gen Intel Xeon Scalable and Intel Xeon W-32xx processors, this board is an engineering masterpiece, delivering unprecedented performance. Its unique ability to support up to 3TB of 3DS ECC RDIMM and DDR4-2933MHz memory, as well as up to 2TB of 3DS ECC LRDIMM in 12 DIMM slots, makes this board a leading choice for high-performance workstations.
The Supermicro MBD-X11SPA-T stands out for its expansion versatility with 4 PCIe 3.0 x16 and 3 PCIe 3.0 x8 slots, plus M.2 support with RAID 0 and 1. This ensures exceptional flexibility for storage and graphics configurations, allowing users to maximize their performance. The board also incorporates an Intel C621 chipset, ensuring outstanding stability and efficiency in all aspects of its operation.
In terms of connectivity, this motherboard does not disappoint. It features a single LAN with Intel Ethernet Controller I210-AT and an additional LAN with Aquantia AQC107 10G Ethernet Controller, providing robust options for network connections. Additionally, it includes a dedicated VGA for IPMI, expanding remote management and system monitoring capabilities. With 8 SATA3 ports provided by the Intel C621 controller and support for RAID 0,1,5,10, the MBD-X11SPA-T is an ideal solution for those looking for a perfect mix of performance and reliability.
The Supermicro MBD-X11SPA-T motherboard represents the pinnacle of workstation technology, ideal for professionals seeking exceptional performance, extensive expandability and unmatched connectivity. If you're ready to take your workstation to the next level, choose Supermicro MBD-X11SPA-T and experience the power and versatility that only this motherboard can offer. Get it today and transform your computing experience!
Main features...
* Support for 2nd Gen Intel Xeon Scalable Processors and Intel Xeon W-32xx Processor, supporting CPUs up to 205W TDP.
* Impressive memory capacity with up to 3TB 3DS ECC RDIMM, DDR4-2933MHz and up to 2TB 3DS ECC LRDIMM.
*Intel C621 Chipset.
* Extensive expansion options with 4 PCIe 3.0 x16 and 3 PCIe 3.0 x8, plus M.2 support with RAID 0 & 1.
* Intel C621 controller for 8 SATA3 ports (6 Gbps) with RAID 0,1,5,10 support.
* Various network options including a LAN with Intel Ethernet Controller I210-AT and another with Aquantia AQC107 10G Ethernet Controller.
* Integrated graphics with 1 ASPEED AST2500 BMC port and dedicated VGA connector for IPMI.
