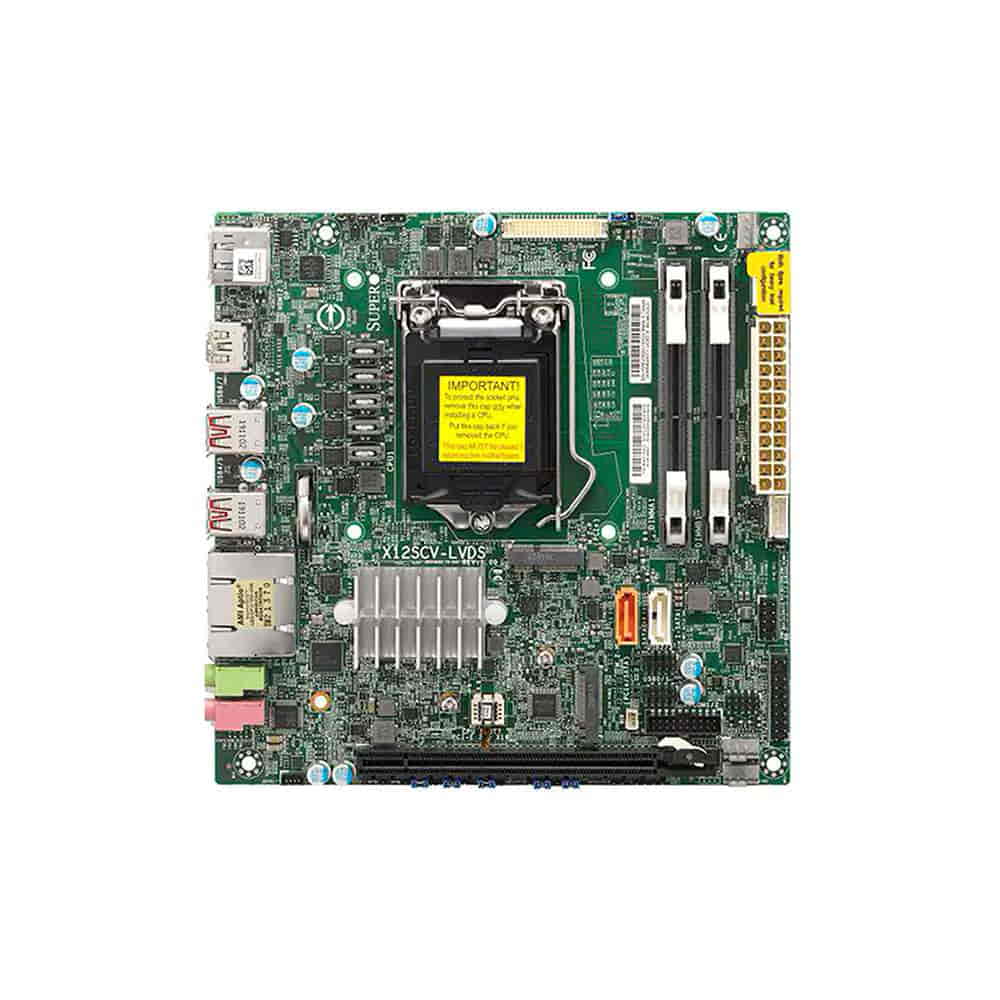

Supermicro MBD-X12SCV-LVDS. Socket 1200. Mini-ITX. BULK. - SoDIMM DDR4

The Supermicro MBD-X12SCV-LVDS is a Mini-ITX motherboard designed for embedded systems and applications that require high efficiency and performance in a compact form factor. Compatible with Intel® Xeon® W-1200 processors and the 10th and 11th generation Intel® Core™ i9/i7/i5/i3 series, this motherboard supports a wide range of CPUs, ensuring powerful and stable performance. Equipped with the Intel® W480E chipset, it provides advanced features and support for modern technologies that facilitate system management and connectivity.

With two SO-DIMM slots supporting up to 64GB of 2933MHz DDR4 memory, the X12SCV-LVDS ensures smooth performance for multitasking applications. Additionally, it includes multiple expansion options, such as one PCIe 3.0 x16 slot and two M.2 slots (one M-Key PCIe 3.0 x4 and one E-Key CNVi/PCIe 3.0 x1/USB), allowing for flexible configuration based on specific requirements. of the user.

Main features...

* Processor: Support for 10th and 11th generation Intel® Xeon® W-1200 and Intel® Core™ i9/i7/i5/i3 (LGA-1200 socket).
* Chipset: Intel® W480E.
* Memory: Up to 64GB of DDR4 in 2 SO-DIMM slots, ECC and non-ECC compatible.
* Expansion: 1 PCIe 3.0 x16, 1 M.2 M-Key PCIe 3.0 x4, 1 M.2 E-Key CNVi/PCIe 3.0 x1/USB.
* Connectivity: Dual LAN (Intel® PHY I219LM and Ethernet Controller I210-AT).
* Storage: 2 SATA3 (6Gbps) ports with RAID 0. 1 support.
* Graphics: Support for three independent displays through 2 HDMI ports, 1 DisplayPort and 1 LVDS port.
* Additional Features: Support for remote management and enhanced viewing capabilities.
