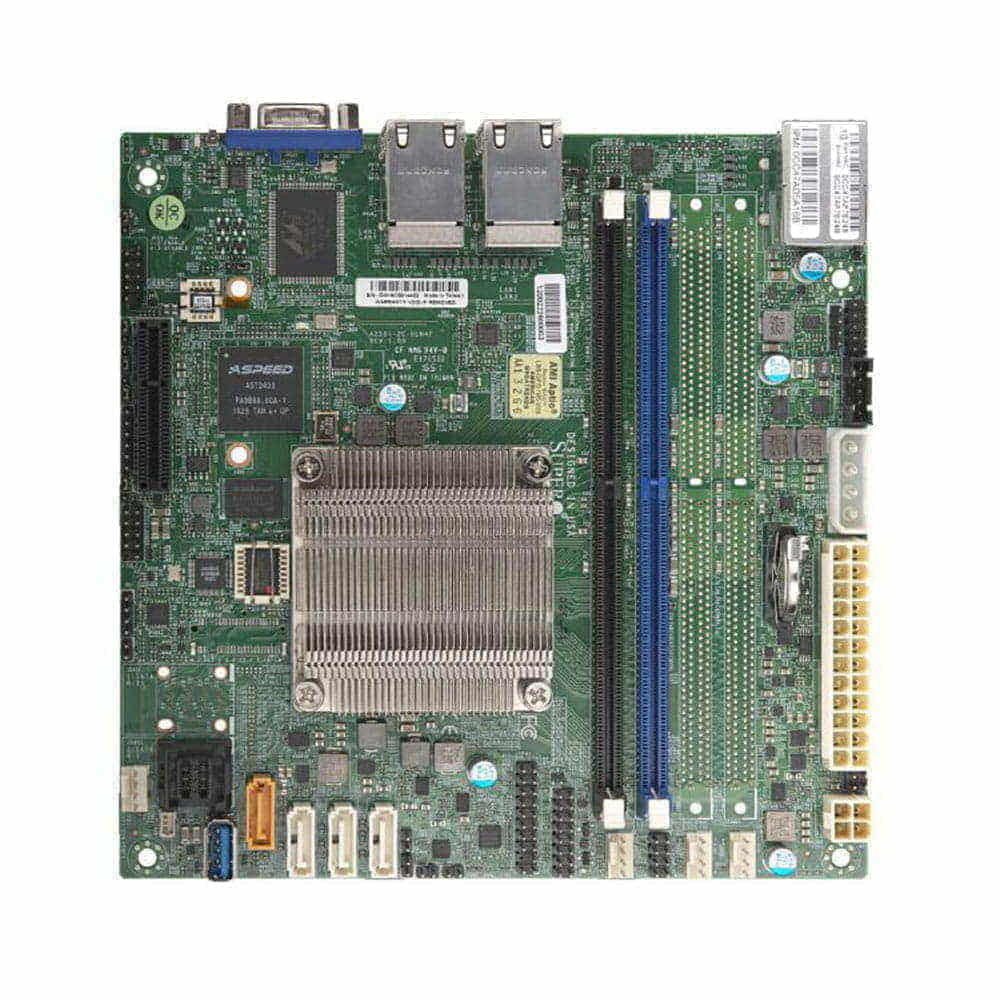

Supermicro A2SDI-2C-HLN4F. Intel Atom C3338. Mini-ITX. - DDR4

Pn. MBD-A2SDI-2C-HLN4FEan. 0672042268443

Mini-ITX Format.
Up to 128 GB UDIMM DDR4 ECC in without buffer.
Hasta 32GB memoria No ECC ddr4-1866Mhz in two DIMM slots.
Processor Intel Atom® Processor C3338.
Expansin Slots: PCI-E 3.0 x4 (in slot x4 ) El total de PCI-E configurable via BIOS (0,2 o 4)- Total PCI-E and SATA port up to 8.
4 LAN GbE ports.

The Supermicro X11SSH-TF motherboard has a Micro-ATX form factor so it is focused for servers.

Compatible with a high range of processors of both 6th and 7th Generation Intel, as well as processors from the Intel Xeon family, you can adapt your needs to your configuration with this versatile board, in addition to ensuring compatibility with ECC memories that allow detecting possible errors on your server.

The wide possibilities to make RAID (0, 1, 5, 10) allow you to manage all the information with total security in your data and with excellent performance at all levels.

Engineered with performance, reliability, manageability and long component life, Supermicro single processor motherboards are the perfect solution for a variety of server, workstation, and embedded applications.

Highlights...

* Form Factor: Mini-ITX
* Chipset: Intel FCBGA1310
* processor: Intel Atom® Processor C3338 embedded.
* Number of slots DIMM: 2 memory types compatible s: DDR4-RDIMM y DDR4-UDIMM. Maximum internal memory: 128GB y 32GB respectivamente.
* Built-in graphic adapter model:: Aspeed AST2400.
* Type of ethernet interface: Gigabit Ethernet.
* BIOS types: AMI UEFI.

Technical specifications

Physical Stats		Expansion Slots
Form Factpr	Mini-ITX	PCI-E	1 PCI-E 3.0 up to x4 (in x4 slot) *Number of PCI-E lane is configurable via BIOS setup: 0, 2, or 4. Total combined PCI-E lanes and SATA ports is up to 8.
Dimensions	17.02 x 17.02 cm	System BIOS
Processor/Cache		Bios Type	AMI UEFI
CPU	Intel Atom® Processor C3338	Bios features	UEFI 2.4 SMBIOS 2.7.1
Cores / Cache	2 Nucleos,2 Hilos / 4 mb.	Administración
System Memory		Software	IPMI2.0, KVM with dedicated LAN, NMI, SuperDoctor® 5, Watchdog
Memory Capacity	Up to 128GB Registered ECC RDIMM and DDR4-1866MHz Up to 32GB Unbuffered ECC/non-ECC UDIMM, DDR4-1866MHz, in 2 DIMM slots	Power Configurations	ATX Power connector +12V DC Power Input CPU thermal trip support for processor protection Power-on mode for AC power recovery
Memory Type	2400/2133/1866/1600MHz (Operating speed up to 1866MHz)	PC Health Monitoring
DIMM sizes	GB, 8GB, 16GB, 32GB, 64GB	Voltage	+12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, 4 -fan status, 4 fans with tachometer monitoring, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, System temperature, VBAT
Memory Voltage	1.2 V	LED	UID/Remote UID
On-Board Devices		Temperature	CPU thermal trip support
Chipset	System on Chip	FAN	4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control, Support 3-pin fans (w/o speed control), System level control, Thermal control tachometer fan connectors
SATA	Up to 8 SATA3(6 Gbps) ports via SoC. *Number of SATA ports is configurable via BIOS setup: 4, 6, or 8. Total combined PCI-E lanes and SATA ports is up to 8.	Other Features	12V DC or ATX Power Source, 4-pin 12v DC power connector, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, Innovation Engine, RoHS, SDDC, System level control, UID, WOL
Network Controllers	Quad LAN with Intel® C3000 SoC 1GbE	Operating Environment
Audio		Operating Temperature	0°C ~ 60°C (32°F ~ 140°F)
Graphics	Aspeed AST2400 BMC	Non-Operating Temperature	-40°C - 85°C (-40°F - 185°F)
Input / Output		Operating Relative Humidity	10% ~ 85% (non-condensing)
		Non-Operating Relative Humidity	10% ~ 95% (non-condensing)
LAN	RJ45 Gigabit Ethernet LAN ports
USB	4 USB 2.0 ports (2 rear + 2 headers), 1 USB 3.0 ports ( + 1 Type A)
Video Output	1 VGA port
Serial Port	1 COM Port (1 header)
TPM	TPM Header
