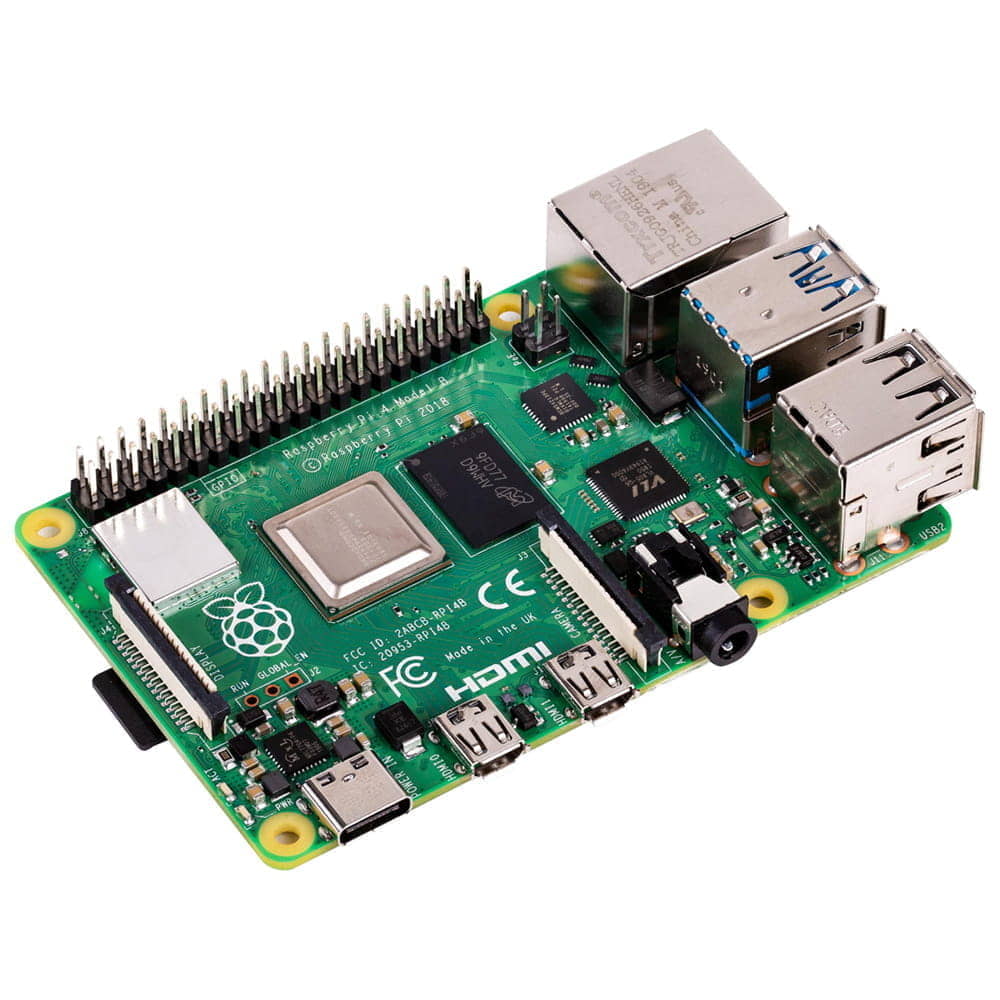

Placa Raspberry Pi 4 Model B 1.5GbHz + 4Gb LPDDR4

The Raspberry Pi 4 model B is the latest product of the popular Raspberry Pi brand. It offers unprecedented increases in processor speed, multimedia performance, memory and connectivity compared to the previous generation Raspberry Pi 3 B + model, while maintaining backward compatibility and the same power consumption.

For the end user, the Raspberry Pi 4 model B provides desktop performance comparable to that of basic x86 computer systems.

The main features of this product include a high-performance 64-bit quad-core processor, support for dual display at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decoding up to 4Kp60, 1GB of RAM, Dual band wireless LAN (2.4 / 5.0GHz), Bluetooth 5.0, Gigabit Ethernet, USB 3.0 and PoE capability (via a complementary HAT PoE).

The dual-band wireless LAN and Bluetooth connectivity have modular compliance certification, which allows the board to be designed in final products with significantly reduced compliance tests, improving both cost and time to market.

Its design makes it suitable for embedded design and development, hobby and education, IoT (Internet of Things), communications and network applications, among others.

Highlights ...

* Broadcom BCM2711 SoC, Cortex-A72 quad core (ARM v8) 64-bit at 1.5GHz.

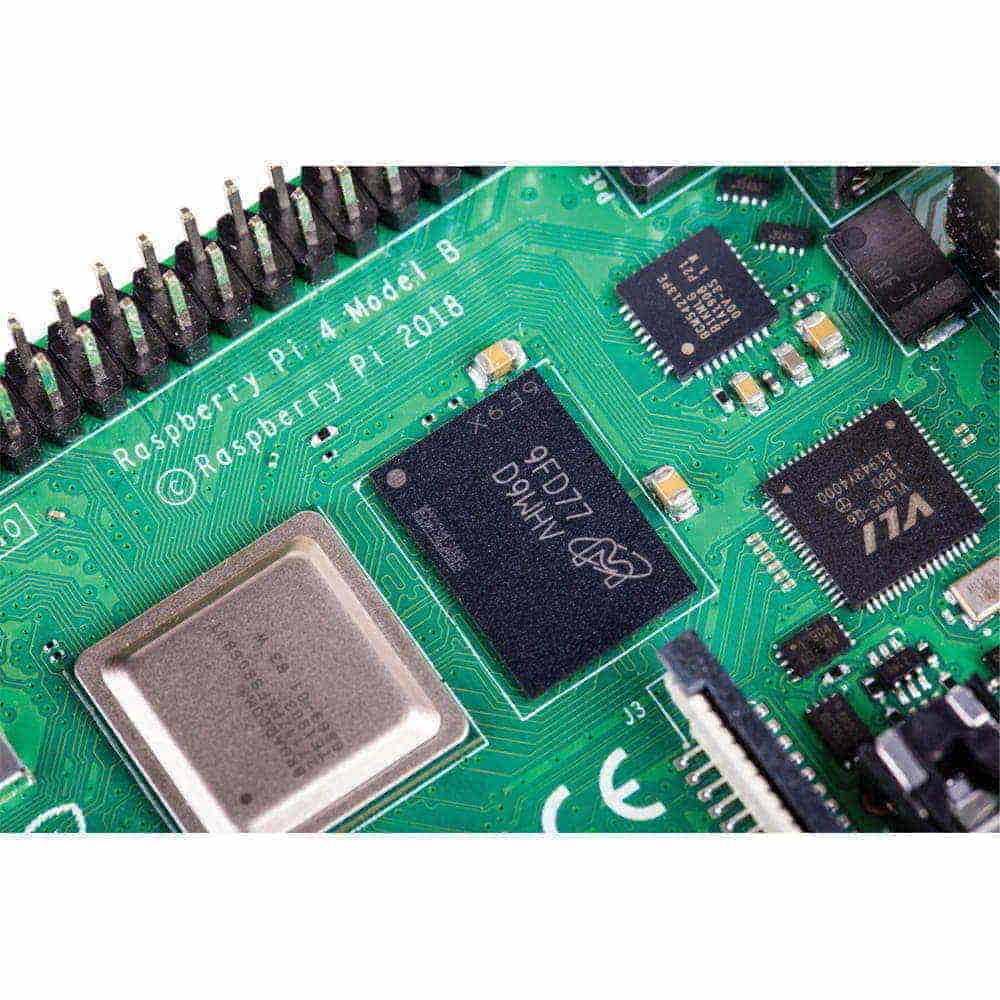

* 4GB LPDDR4-2400 SDRAM.
* Wireless LAN IEEE 802.11b / g / n / ac (2.4 GHz and 5.0 GHz), Bluetooth 5.0, BLE.
* Gigabit Ethernet.

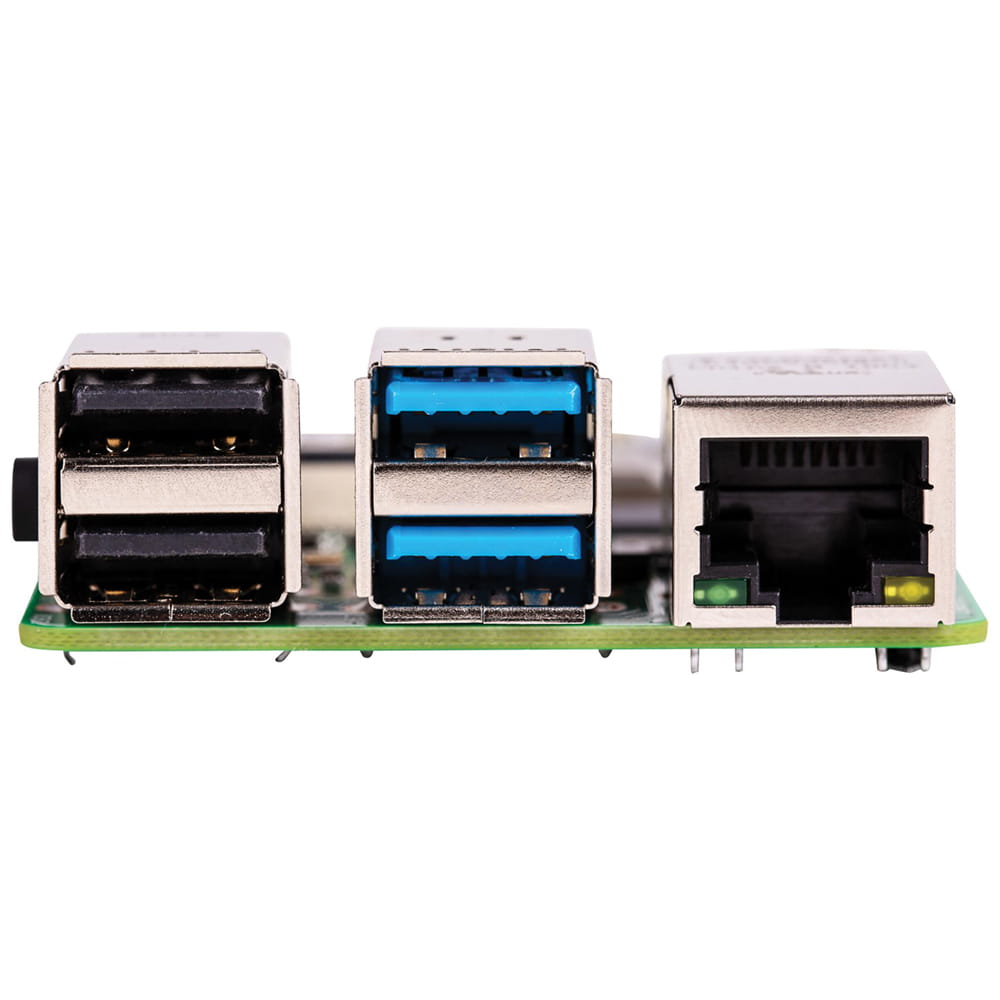

* 2 USB 3.0 ports, 2 USB 2.0 ports.
* 40-pin GPIO connector with full backward compatibility.

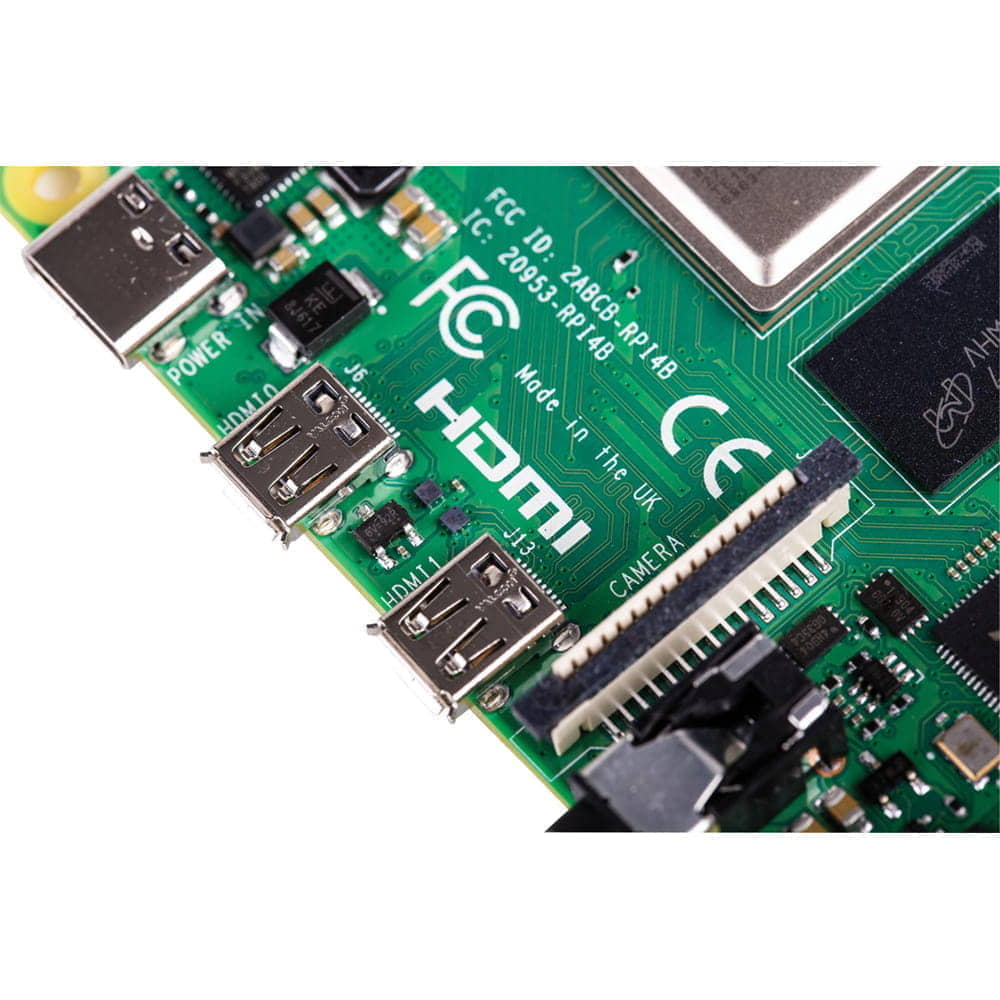

* 2 micro HDMI ports that support video resolution up to 4K 60Hz.
* 2-track DSI / CSI MIPI ports for camera and screen.
* 4-pole stereo audio and composite video port.

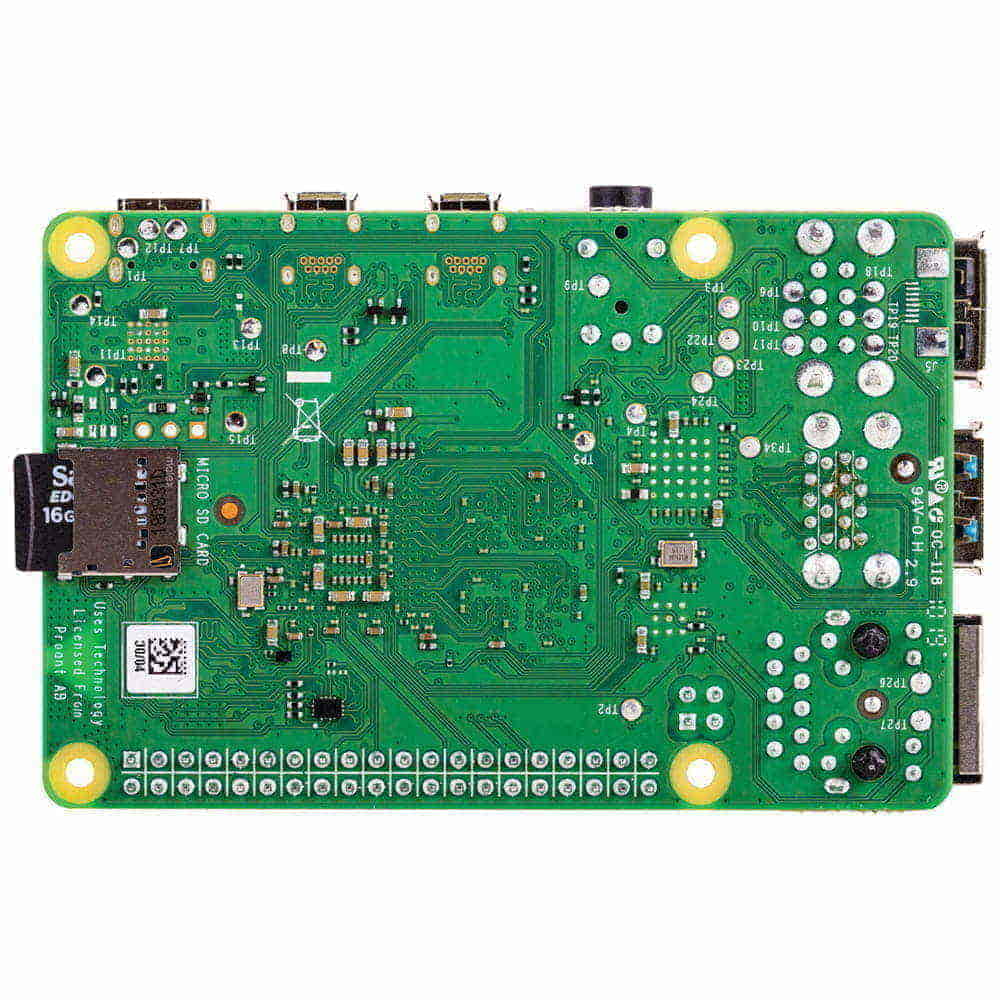

* MicroSD card slot for data storage and operating system load.

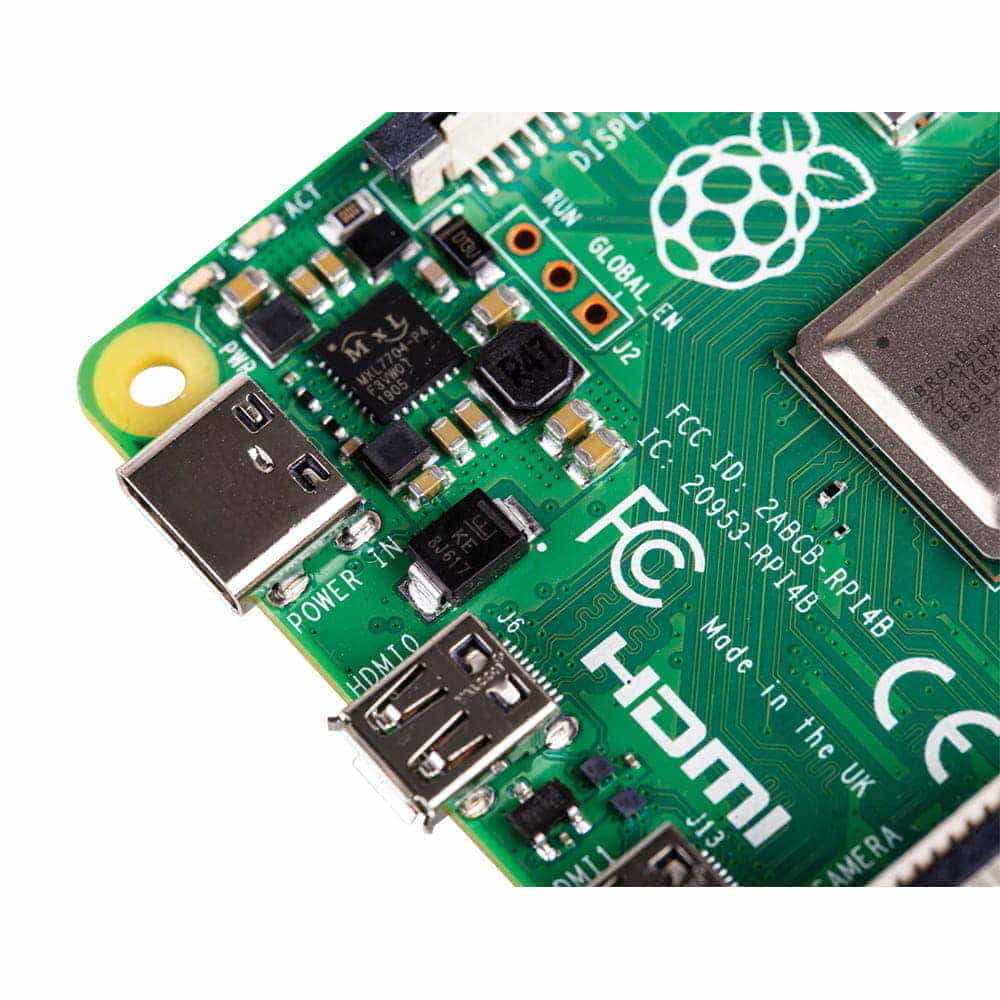

* Requires 5.1V / 3A supply via USB-C or GPIO.

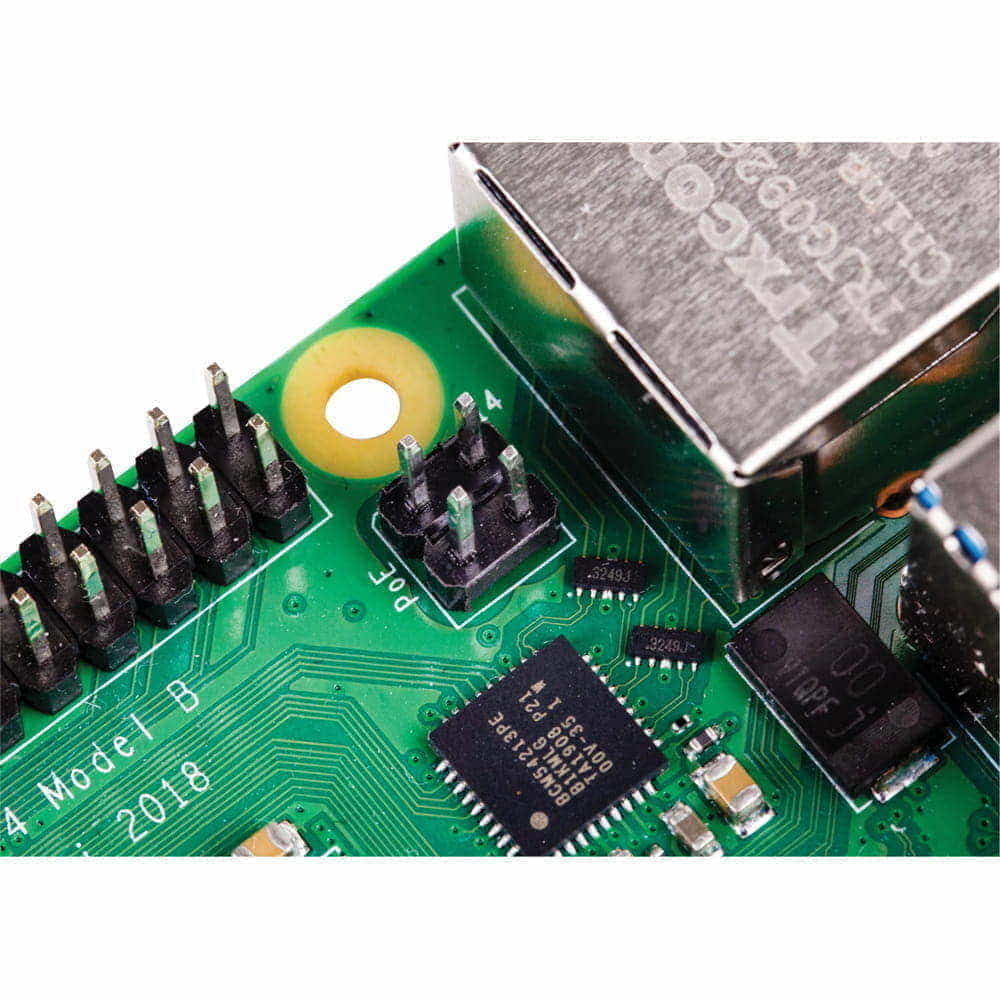

* PoE (power over Ethernet) enabled (requires PoE HAT).
