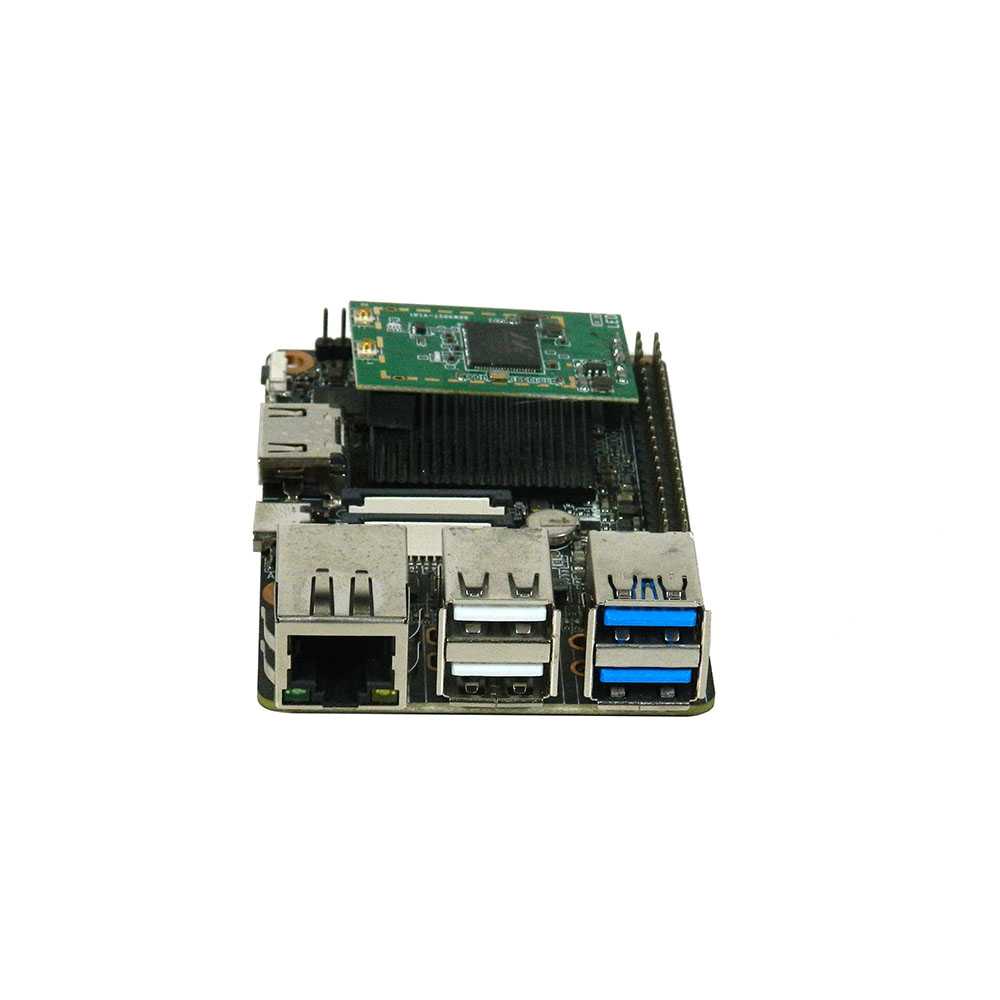

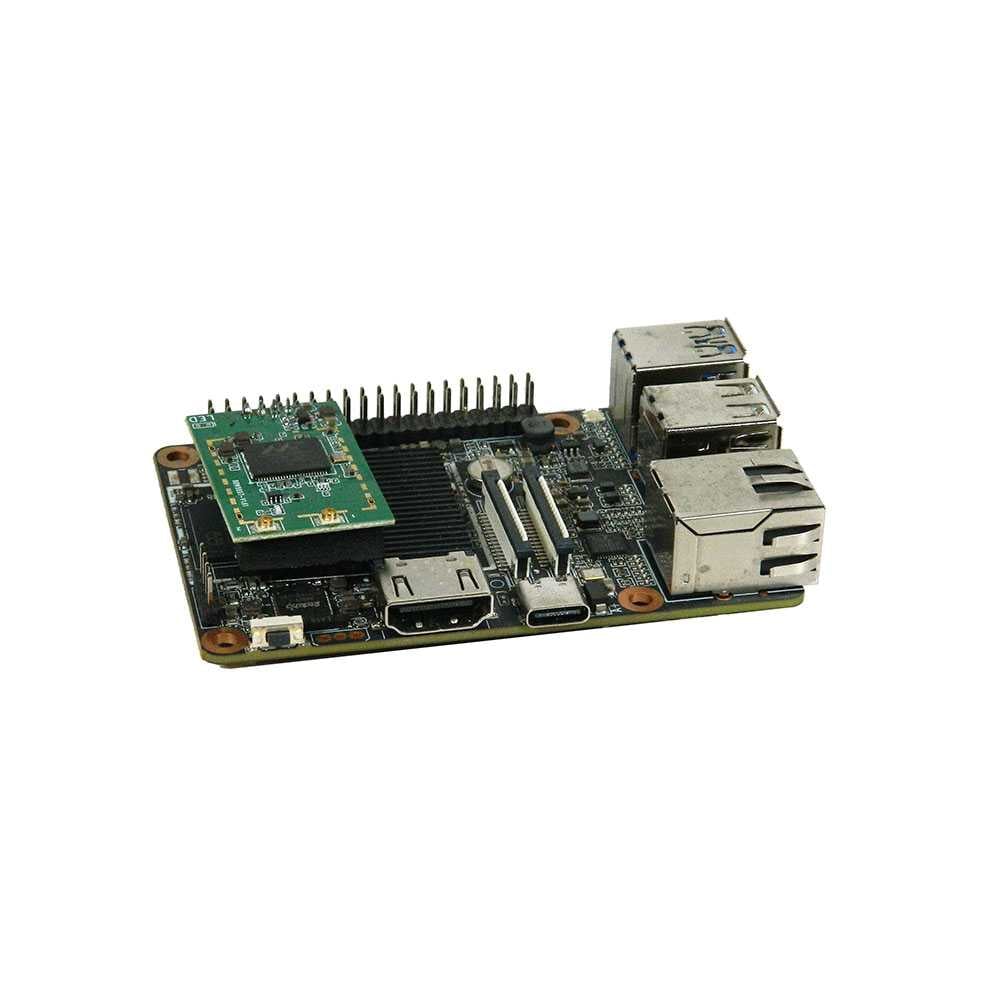

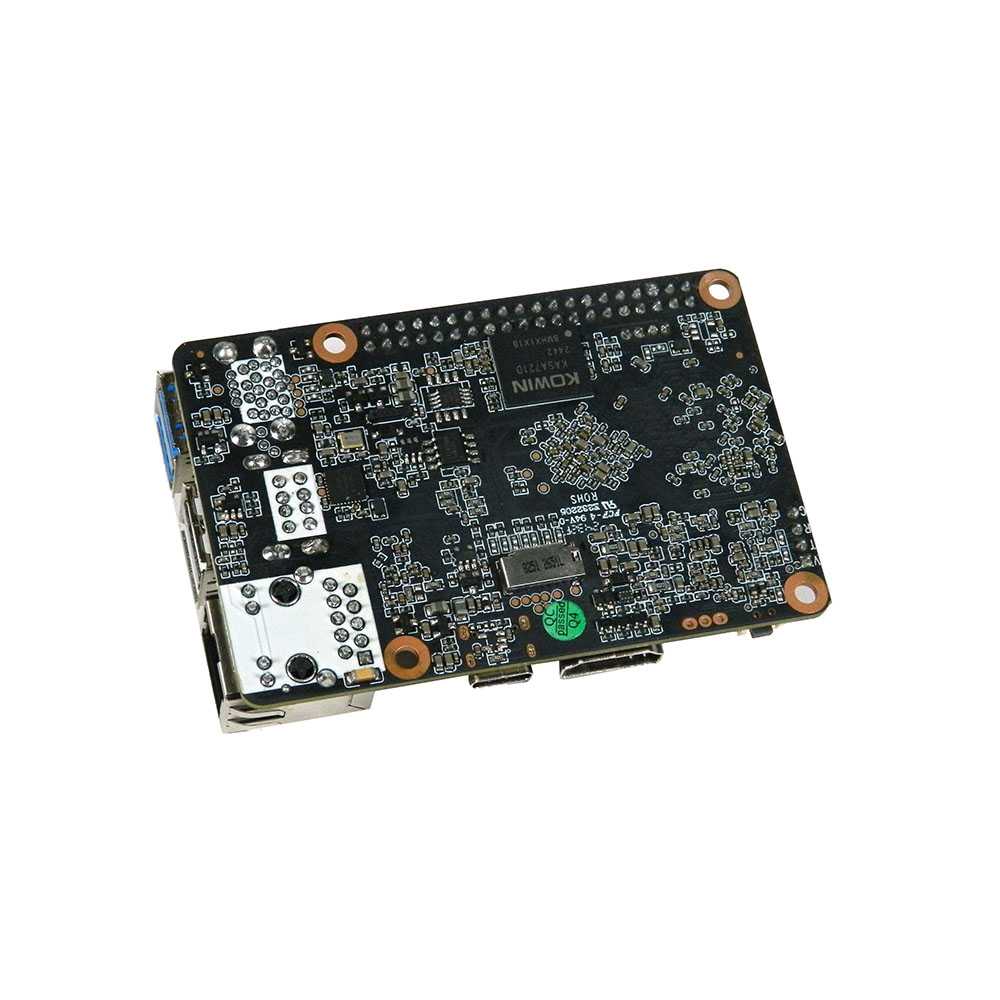

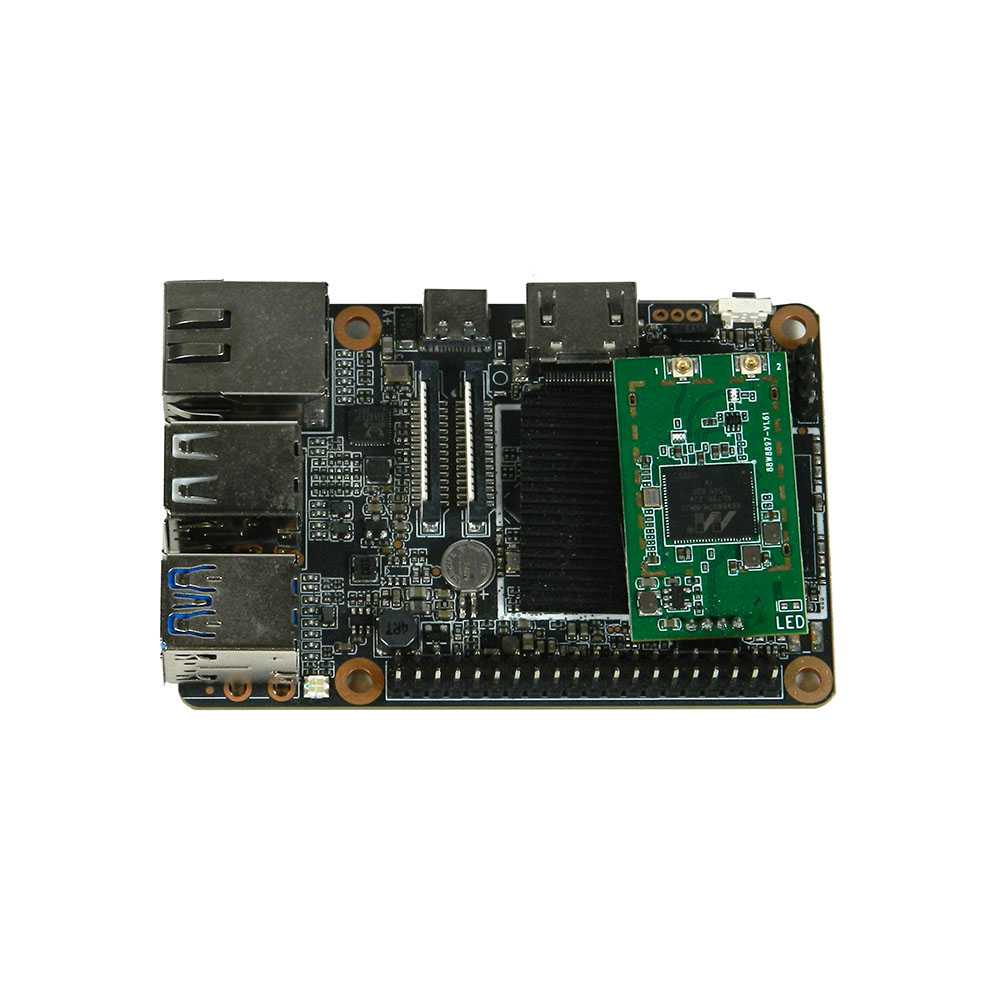

Placa Industrial Rasperry-like Appliot A3568 8GB / 64G

The Appliot A3568 is an advanced industrial-grade motherboard, designed in Raspberry Pi format, that combines high performance, durability, and extended support for extreme conditions. Equipped with the Rockchip RK3568J processor, this board offers 64-bit architecture with four Cortex-A55 cores up to 1.8GHz, ideal for embedded applications, robotics, digital signage, and multimedia systems.

With 8GB of LPDDR4 memory and 64GB of eMMC 5.1 storage, this board supports demanding tasks and advanced operating systems such as Android 11 or Linux (Debian/Raspbian), and allows for additional storage via a microSD card of up to 64GB. Its connectivity includes HDMI 4K, USB 3.0/2.0, a 40-pin GPIO header, Gigabit Ethernet, dual-band Wi-Fi (optional), and Bluetooth 4.0.

One of its key features is its resistance to harsh environments: the industrial version of the Appliot A3568 supports an operating temperature range of -40°C to 85°C, making it an ideal solution for automation environments, heavy machinery, or outdoor applications.

Its compact design (85 x 56 mm), advanced graphics performance, and support for AI acceleration via a 1 TOPS NPU make the Appliot A3568 a robust, versatile, and future-ready board for next-generation industrial applications.

Key Features...

* Rockchip RK3568J quad-core ARM Cortex-A55 processor up to 1.8GHz.
* ARM Mali-G52 GPU and integrated 1 TOPS NPU for AI acceleration.
* 8GB of LPDDR4 memory and 64GB of eMMC 5.1 storage.
* HDMI 2.0 output with 4K@60Hz support and H.265/H.264 video decoding/encoding. * Comprehensive connectivity: USB 3.0, USB 2.0, Gigabit Ethernet, Wi-Fi, and Bluetooth (optional).
* 40-pin GPIO expansion interface compatible with UART, SPI, I2C, and PWM.
* Industrial temperature operating range: -40°C to 85°C.
