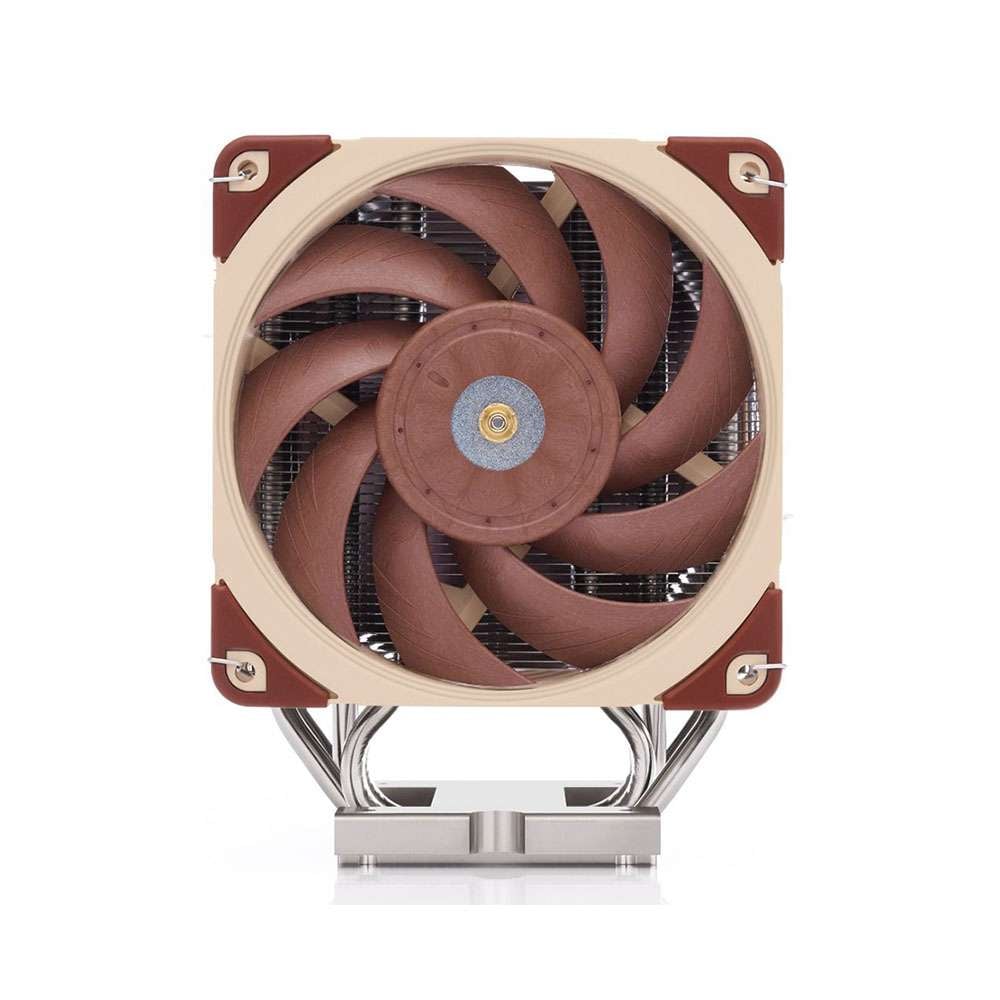

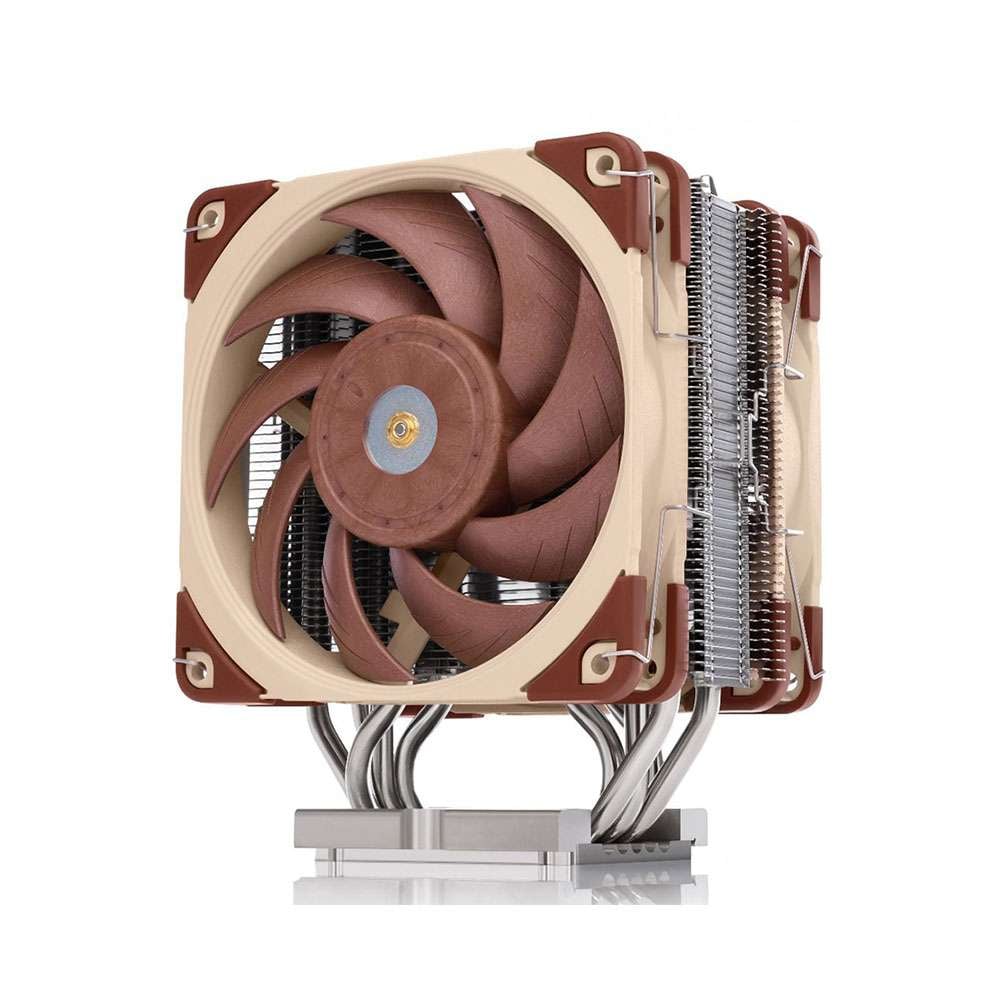

Noctua NH-U12S DX-4677

Noctua's DX range of coolers have become the default choice for high-quality, quiet cooling solutions for Intel Xeon processors. The NH-U12S DX-4677 features a larger contact surface customized for LGA4677 platforms. Based on the proven NH-U12S 120mm heatsink and equipped with two of Noctua's award-winning NF-A12x25 120mm PWM-controlled fans, it provides a great balance of performance, compatibility and quiet operation. With the professional SecuFirm2 mounting system and pre-applied NT-H1 thermal compound, the NH-U12S DX-4677 forms a complete, high-quality package for silent cooling of work environments and Xeon servers with LGA4677 socket.

Noctua DX Series CPU coolers were first introduced in 2008 and have become a top choice for high-quality, quiet air cooling solutions for Intel Xeon processors. Thanks to their high acoustic efficiency, they are ideal for work environments and servers that operate in noise-sensitive areas (e.g. audio/video production, content creation, engineering, etc.).

The new DX-4677 coolers are dedicated and customized solutions for the Intel LGA4677 professional platform, making them the ideal solution for both 4th generation Xeon Scalable CPUs (Platinum, Gold, Silver or Bronze) and Xeon workstation processors. from the w9, w7, w5 or w3 series.

With dimensions of 70x56mm, the copper contact surface of the heatsink is more than twice the size of the conventional model. Designed to fit the large integrated heat spreaders (IHS) of Intel socket-based LGA4677 processors, this custom design allows optimal heat flow from the base of the CPU, to the heatpipes and above. the cooling fins.

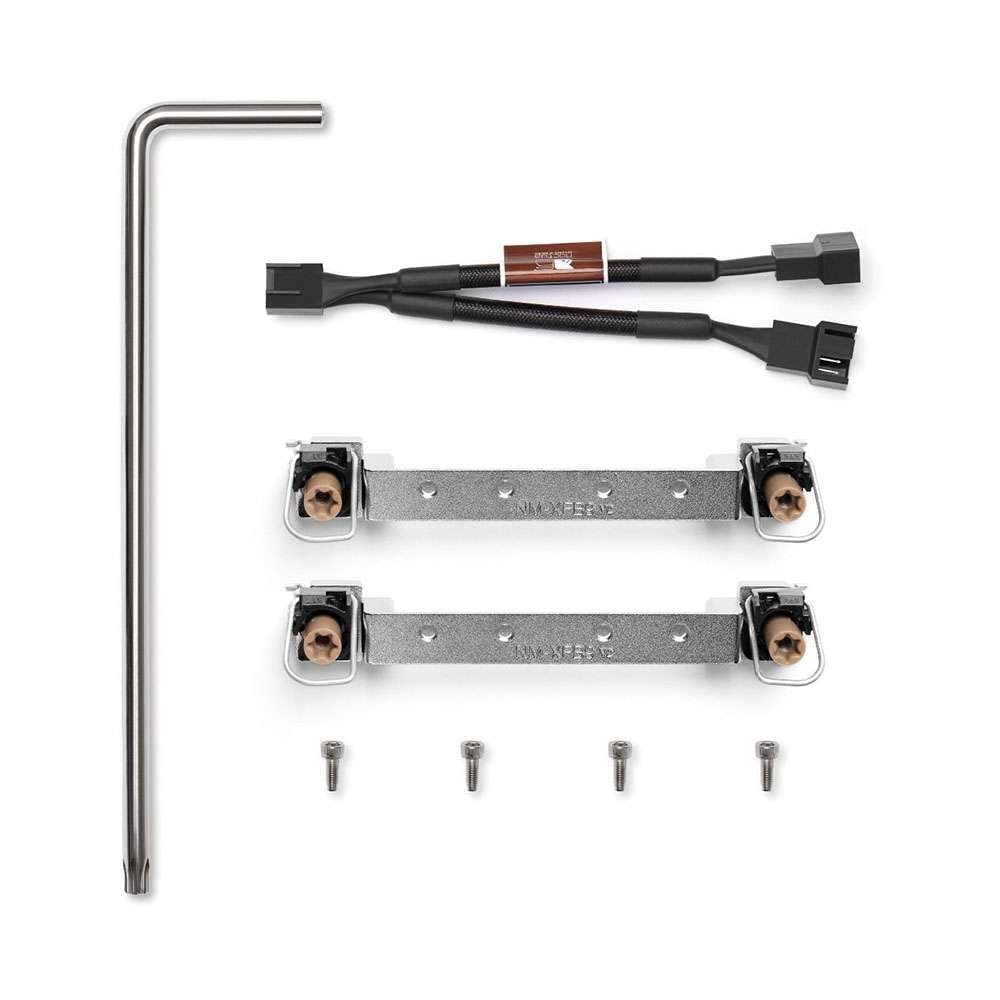

Integrates standard Intel parts such as anti-tip mechanism, Torx® T30 screwdriver bit, and CPU-specific mounting adapters (included with retail boxed CPUs, and available separately for trayed CPUs) ), so the heatsink mounting system fully conforms to Intel installation guidelines and offers an easy mounting procedure for experienced LGA4677 users. Torx® T30 mounting tool included.

For installation, LGA4677 processors require a plastic CPU mounting adapter. These adapters are included with the CPUs in retail box; and are available separately from our Intel sales partners for CPU trays. The SecuFirm2™ mounting system for LGA4677 is compatible with all adapter types (E1A, E1B, E1C).

Main features...

* CPU cooler.
* 4-Pin connection.
* 2x 120mm PWM Fan.
* Sound level, 22.6 dBA.
* Speed: 450 - 2000 rpm.
* Compatible with Intel Xeon LGA4677.
