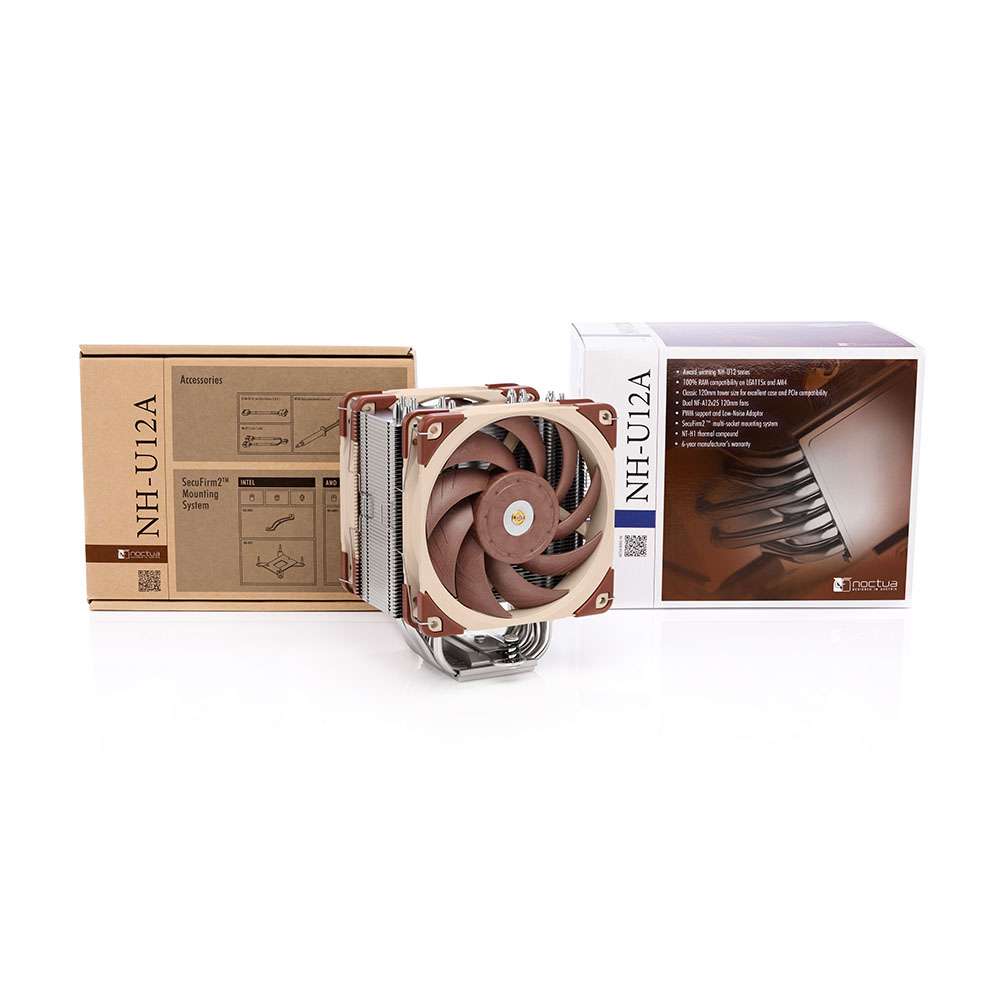

Noctua NH-U12A

The NH-U12A is the newest of the heatsinks, the 5th generation of CPU coolers from Noctua's award-winning NH-U12 series, 120 mm, silent and premium quality. Designed to push the limits of the 120mm form factor, it combines two 120mm NF-A12x25 PWM fans, one of Noctua's most characteristic models, with a 7-heatpipe heatsink and fins with an enlarged surface for greater thermal dissipation. In this way, the NH-U12A can compete with the performance of many 140mm coolers while maintaining a 120mm case and PCIe compatibility. It also includes the incredible and totally reliable SecuFirm2™ professional multi-socket mounting system, Noctua's proven NT-H1 thermal component and a 6-year manufacturing warranty, making the NH-U12A a luxury option. combining top-quality performance with excellent compatibility and surprisingly quiet operation.

The NH-U12 series was first introduced in 2005 and has been awarded with more than 600 awards and recommendations from international specialized websites and magazines. The NH-U12A is the latest addition to this prestigious series and has established itself as a reference among the best quality 120mm silent coolers.

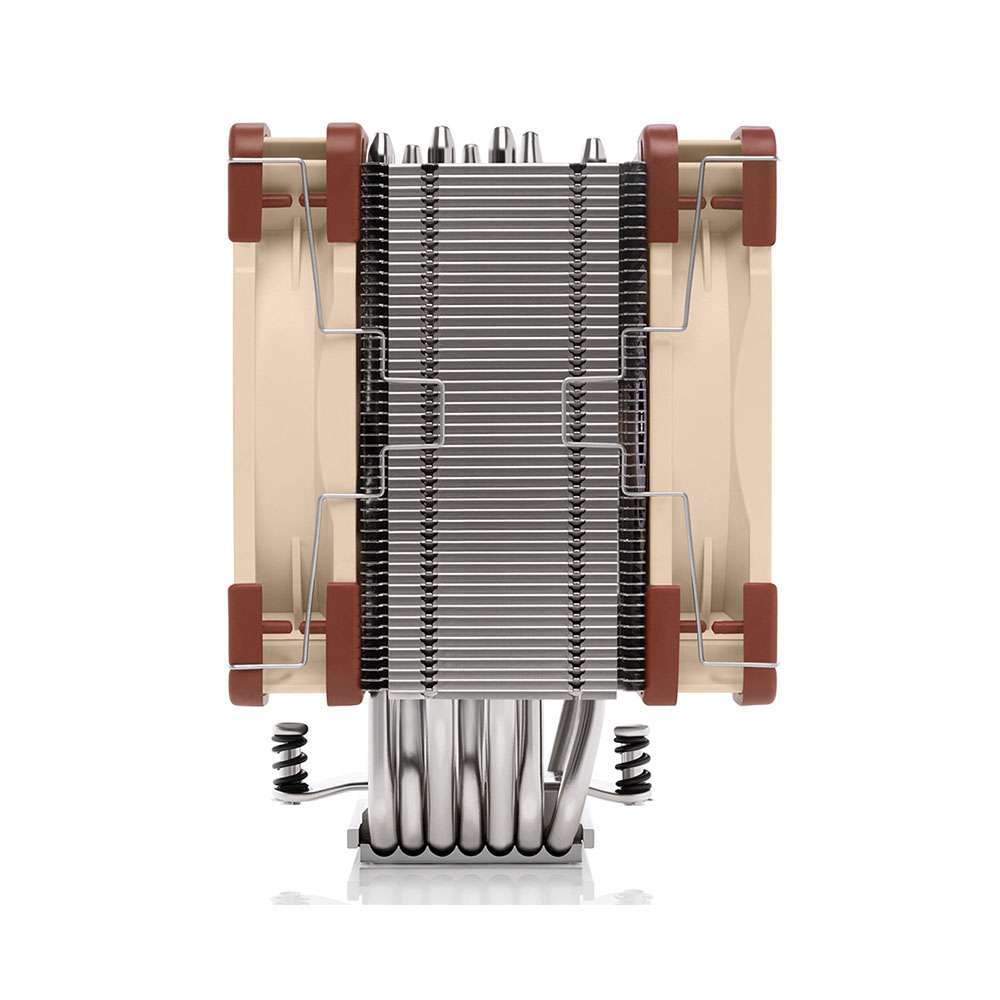

Thanks to the layout of the 7 heatpipes, completely updated and optimized, 37% more surface area in the fins (compared to the NH-U12S) and a dual-fan inlet and outlet configuration that uses the latest generation NF fans -At 12x25, the NH-U12A pushes the limits of 120mm coolers and can match or even surpass most 140mm coolers.

Due to its asymmetrical design, the NH-U12A does not protrude above the RAM slots of Intel LGA1851, LGA1700, LGA1200, LGA115x and AMD AM4/AM5 based boards, ensuring easy access and 100% compatibility. % with higher heat spreaders.

At 158mm tall, the NH-U12A is small enough to fit into most current mid- and large-sized tower cases. This 125mm wide cooler (including fan and its adjustment hooks) stays clear of the top of the PCIe slot on most standard ATX or Micro-ATX motherboards, ensuring the best possible compatibility with multi-GPU configurations .

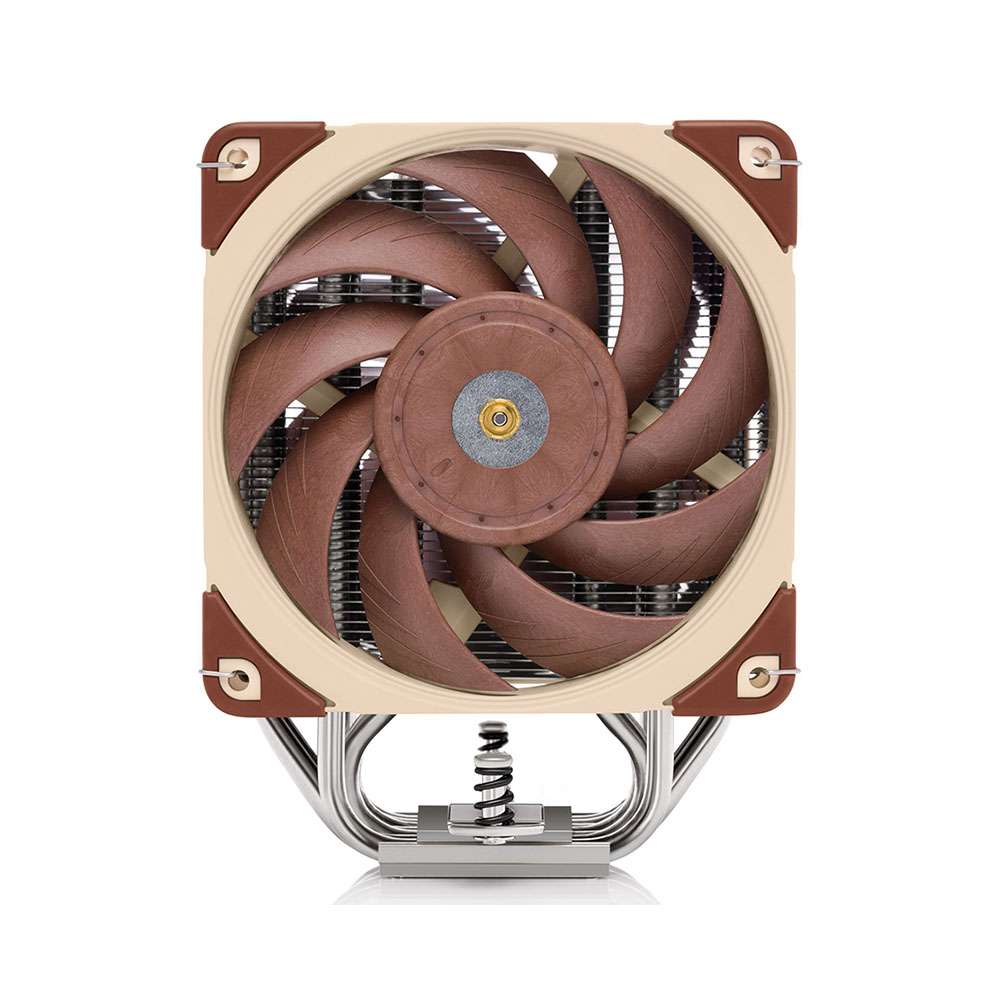

The NF-A12x25 is an optimized, next-generation 120mm fan that integrates Noctua's latest innovations in aerodynamic engineering for an unprecedented level of silent cooling. The use of this unique fan with a dual fan inlet and outlet configuration is one of the key points of the NH-U12A's superb performance and acoustic efficiency.

Main features...

* CPU cooler.
* 4-Pin connection.
* 2x 120mm PWM Fan.
* Sound level, 22.6 dBA.
* Speed: 450 - 2000 rpm.
* Compatible with AMD: AM5.
* Compatible with Intel: LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150.
