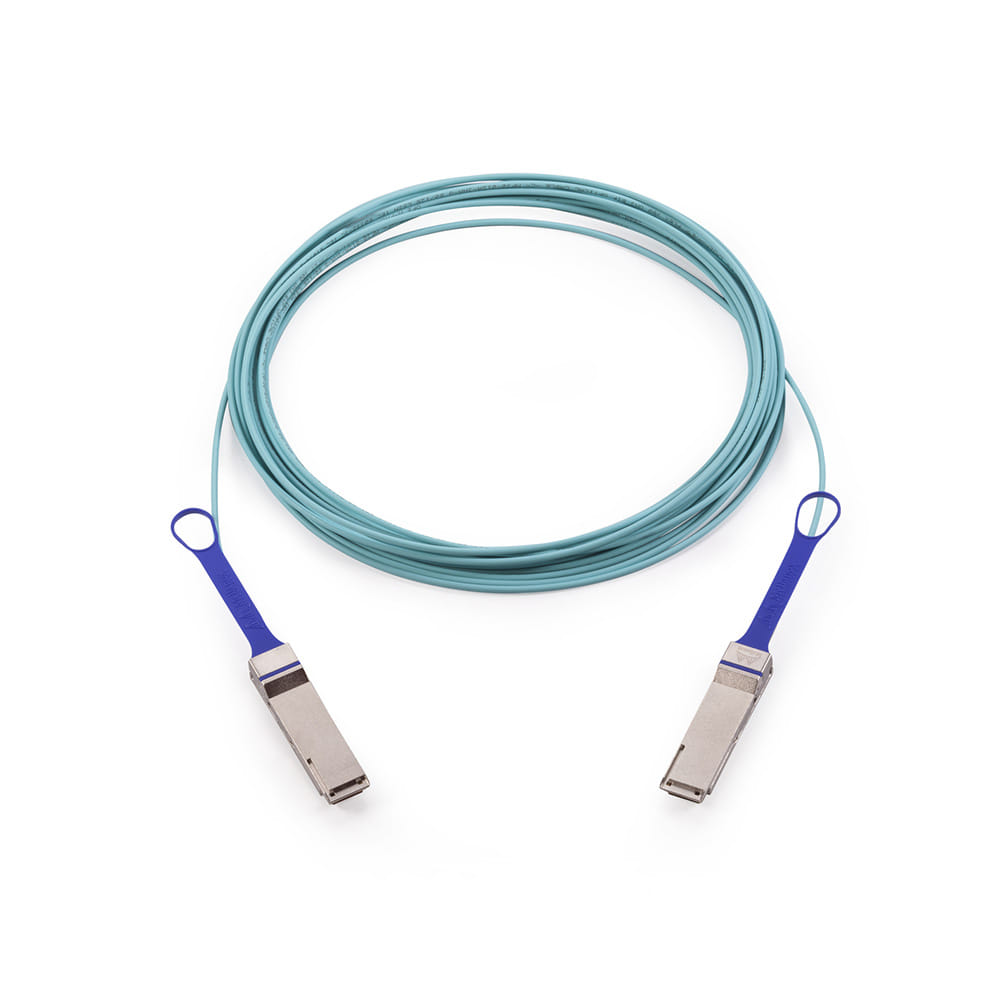

Mellanox MFA1A00-C005. Cable Ethernet 100GbE QSFP a QSFP. 5m.
- Data speed up to 100Gb/s
- Pre-emphasis and Rx output amplitude programmable
- Programmable Tx input equalizer
- Selectable reprogramming
- QSFP28 port compatible with SFF-8665
- Single 3.3V power supply
- 2.2 W power dissipation (typical, each end with retiming)
- low BER
- Up to 100m in length
- hot pluggable
- RoHS
- I2C management interface compatible with SFF-8636
NVIDIA Networking's QSFP28 VCSEL (Vertical Cavity Surface Emitting Laser)-based active optical cables are designed for use in 100 Gb/s Ethernet systems.
MFA1A00-Cxxx AOC offers high port density and configurability, and far greater reach than passive copper cables in data centers. Since the AOC is hot-pluggable, it is easy to install and replace.
MFA1A00-Cxxx has a standard SFF-8665 compliant QSFP28 port on the electrical side towards the host system. It contains four multimode fiber (MMF) optical transceivers per end, each operating at data rates of up to 25 Gb/s.
The MFA1A00-Cxxx offers lane-selectable reprogramming for its optical transmitters and receivers for speeds of 25 Gbp/s, but the AOC also supports lower bit rates without reprogramming. Transmitters have programmable input equalizers and input muting, while receivers have programmable output amplitude and pre-emphasis.
These unique quality active fiber cable solutions provide low power connectivity for data center interconnects. They enable higher bandwidth, density, and port configurability at low cost and reduced power requirement in data centers.
Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.
Main features...
* Data speed up to 100Gb/s.
* QSFP28 port compatible with SFF-8665.
* I2C management interface compatible with SFF-8636
* QSFP28 port compatible with SFF-8665
* hot pluggable.
