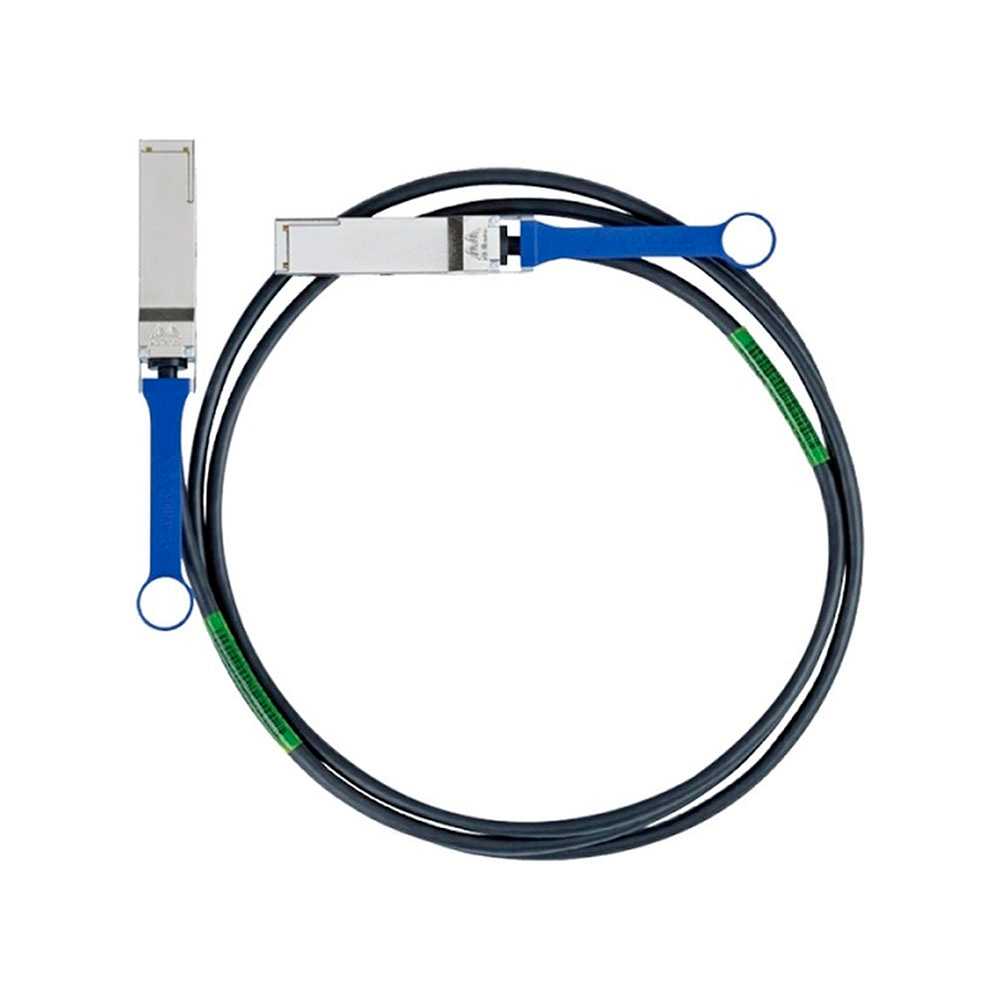

Mellanox MC2210130-002. Cable Ethernet 40GbE. QSFP a QSFP. 2m.

NVIDIA Networking QSFP+ Direct Attach Copper (DAC) cables provide robust connections for the latest generation 40GbE Ethernet systems. The cables consist of four lanes, each operating at data rates of up to 14.0625 Gb/s.

Passive copper cables require no additional power to ensure quality connectivity. The cables comply with SFF-8685 specifications and provide connectivity between devices using QSFP+ ports. Each QSFP+ port consists of an EEPROM that provides product information, which can be read by the host system.

This integrated cable solution provides reliable transport for aggregate data rates of up to 56 Gb/s Virtual Protocol Interconnect (VPI). Optimizing systems to operate with 56 Gb/s passive copper cables significantly reduces power consumption and EMI emission, eliminating the use of enterprise data center (EDC) hosts.

Unique quality passive copper cable solutions provide low power connectivity for short distance interconnections. They enable higher bandwidth, density, and port configurability at low cost and reduced power requirement in data centers.

Rigorous cable production testing ensures the best out-of-the-box installation experience, performance and durability.

Main features...

* Data rate up to 40Gb/s for MC22101xx
* QSFP+ compatible with SFF-8685.
* Case operating temperature from 0-70C.
* hot pluggable.
* I2C management interface compatible with SFF-8636
