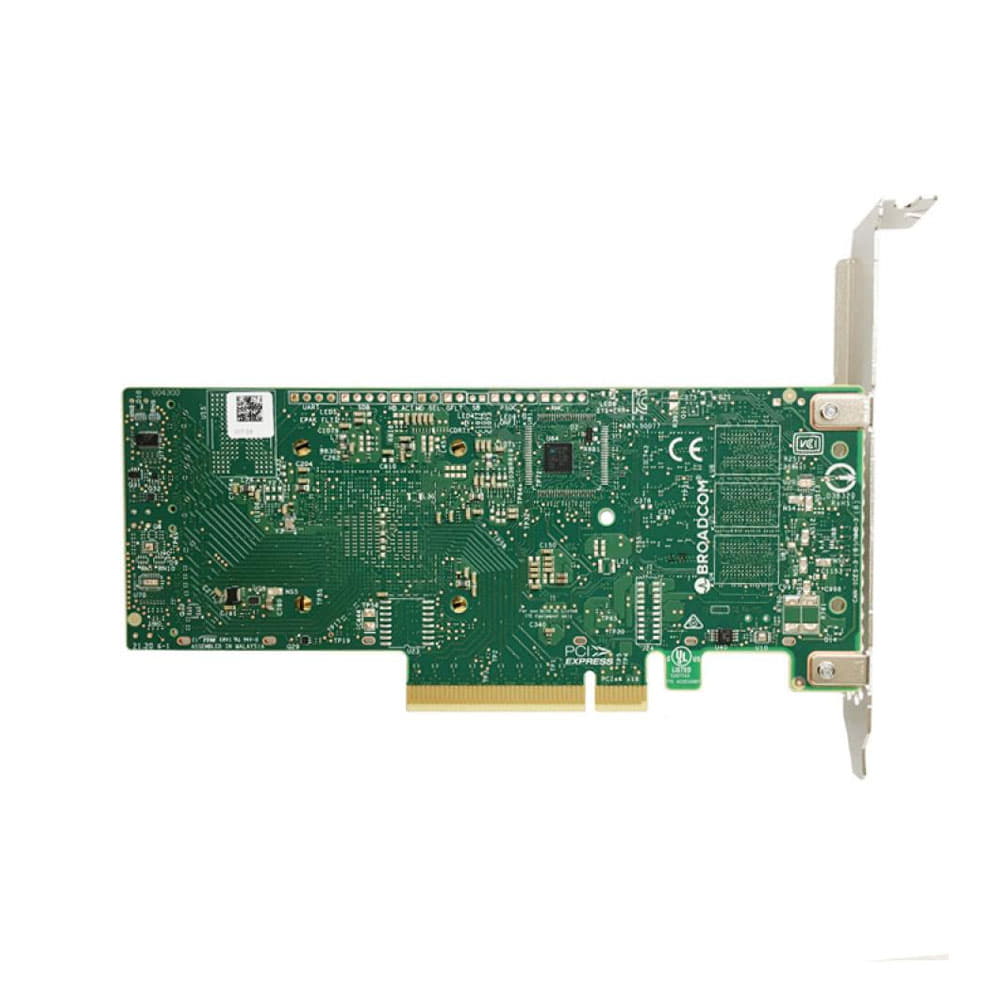

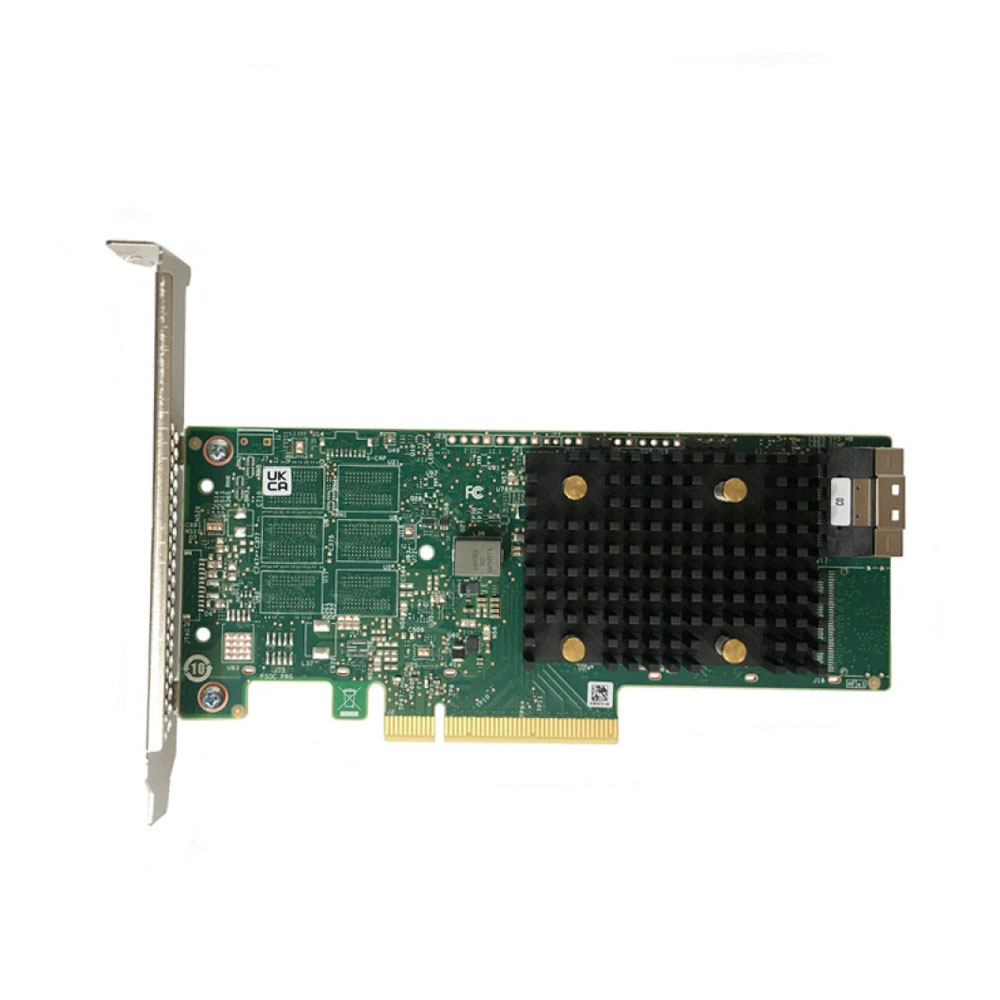

The Broadcom HBA 9500-8i controller is an advanced solution designed to deliver maximum connectivity and performance in enterprise data centers. Equipped with Tri-Mode SerDes technology, this adapter enables simultaneous operation of NVMe, SAS, and SATA devices in a single drive bay, providing unprecedented design flexibility. With the ability to connect up to 1024 SAS/SATA devices or 32 NVMe devices, the HBA 9500-8i perfectly meets the demands of high-performance, critical applications.
This controller uses the PCIe 4.0 x8 interface, ensuring higher bandwidth and a significant improvement in IOPS performance compared to previous generations. Its low-profile design and internal SlimLine SFF-8654 connectors facilitate integration into high-end servers and workstations, offering an ideal solution for data centers looking to maximize efficiency and scalability.
* Tri-Mode SerDes technology for compatibility with NVMe, SAS and SATA.
* Ability to connect up to 1024 SAS/SATA devices or 32 NVMe devices.
* PCIe 4.0 x8 host interface.
* Internal SlimLine SFF-8654 connectors.
* SAS3808 I/O controller.
* Low profile design (6.127” x 2.712”).
* Support for Windows, Linux and VMware operating systems.
