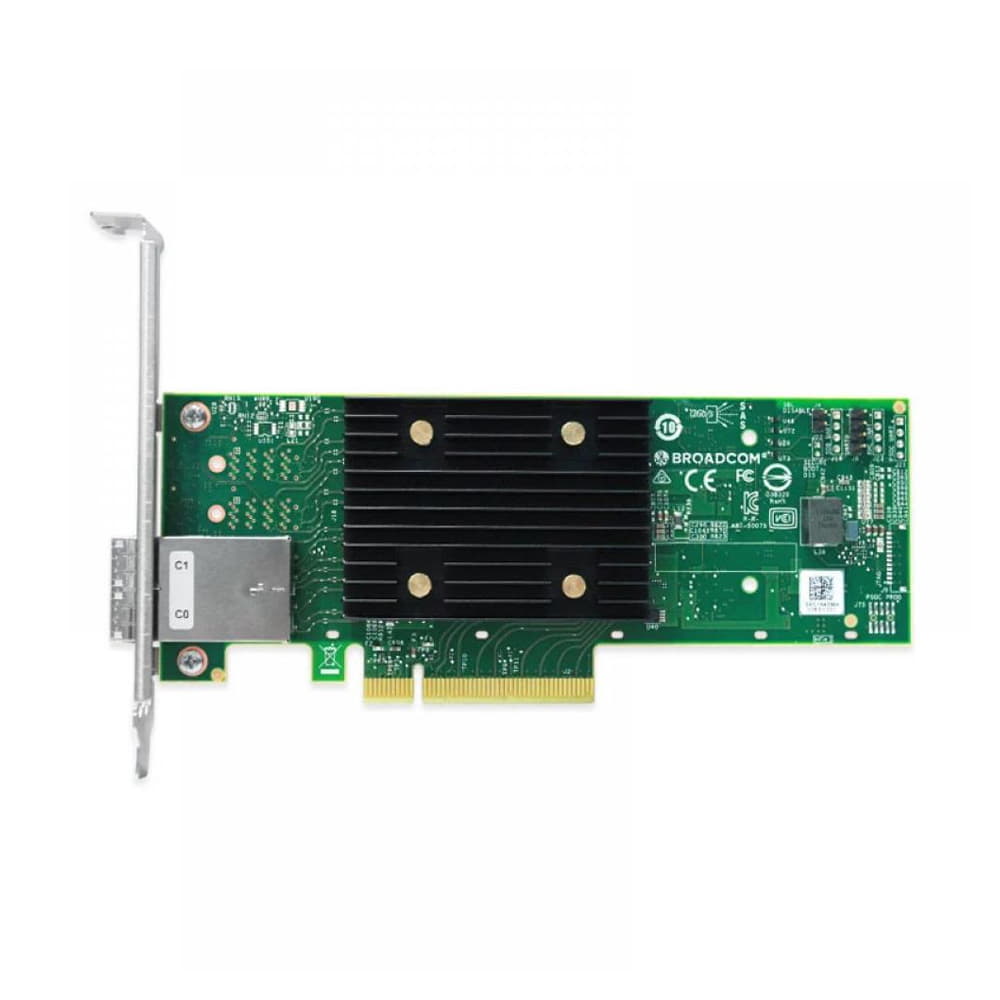

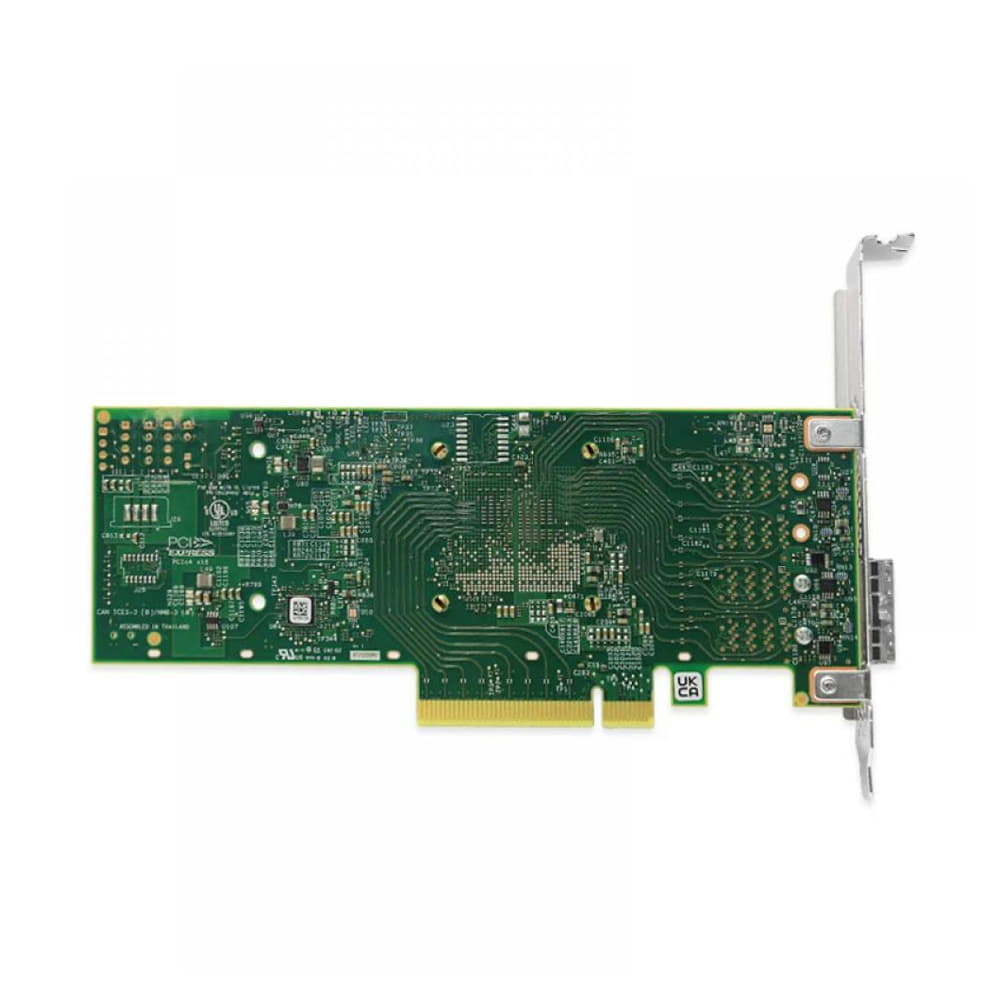

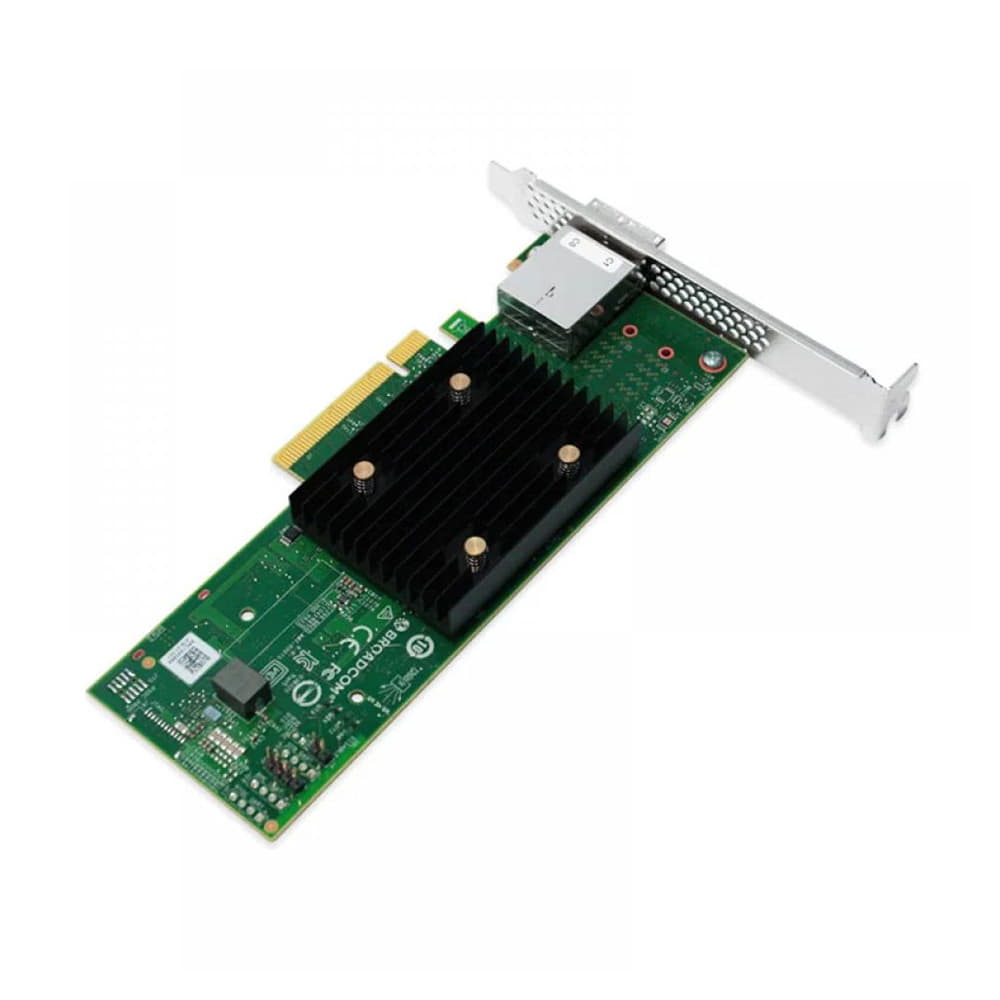

LSI HBA 9500-8e Tri-Mode 8 Puertos SAS/SATA/NVMe

The Broadcom HBA 9500-8e controller is a high-end storage solution designed to provide maximum flexibility and performance in enterprise data centers. Equipped with Tri-Mode SerDes technology, this adapter enables simultaneous operation of NVMe, SAS and SATA devices, delivering unprecedented connectivity and adaptability in a single controller. Featuring a PCIe 4.0 x8 interface, this HBA ensures higher bandwidth and significant improvement in IOPS performance compared to previous generations.

The 9500-8e supports up to 1024 SAS/SATA devices or 32 NVMe devices, making it an ideal choice for applications requiring high storage density and exceptional performance. Its design includes two external SFF-8644 connectors, providing robust and efficient connectivity for high-demand storage environments.

Main features...

* Tri-Mode SerDes technology for compatibility with NVMe, SAS and SATA.
* Ability to connect up to 1024 SAS/SATA devices or 32 NVMe devices.
* PCIe 4.0 x8 host interface.
* Two external SFF-8644 connectors.
* SAS3808 I/O controller.
* Support for 12 Gb/s SAS and 6 Gb/s SATA data transfer rates.
* Low profile design for easy integration into rack servers.
