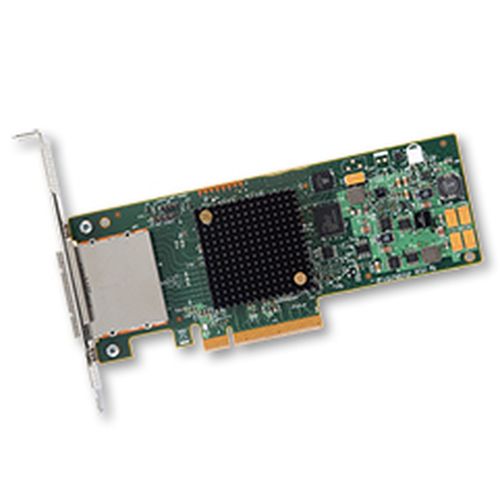

LSI HBA 9207-8e SAS/SATA
- Connect up to 1024 SAS and SATA devices with 8 external SAS ports.
- Fits low-profile 1U / 2U rack-mounted servers and workstations.
- Supports critical applications with the bandwidth provided by PCIe 3.0.
- High performance thanks to its 6 Gb / s data transfers.
The need for data storage continues to grow, driven by cloud applications, video, and other storage intensive applications. Prepare for that growth with the SAS 9207-8e 6Gb / s SAS host bus adapter. For connectivity to external storage and JBOD, the 9207-8e can connect to more than 1,000 SAS or SATA storage devices.
The SAS host bus adapter provides great performance for mid-range and high-end 1U and 2U servers to connect large, scaled storage environments. The SAS 9207-8e offers 8 lines of 6 Gb / s SAS together with 8 other PCIe 3.0 lines of 8 Gb / s. Performance is based on the 6Gb / s SAS 2038 IO controller that integrates all the latest advances in PCIe and SAS technology.
The SAS 9207-8e has two (x4) external mini-SAS connectors (SFF8088) that provide 1.5, 3, and 6 Gb / s SAS and SATA data transfers and is capable of more than 650,000 IOPS.
It is ideal for external JBODs and external RAID environments.
Highlights ...
* Maximum connectivity and performance for low form factor profiles.
* 8 PCIe 3.0 lines that provide a fast signal for large bandwidths.
* Compatible with the latest motherboards on the market.
* High performance thanks to its 6 Gb / s data transfers.
