Lex ANT 2I268A-HH con salida HDMI

Pn. 2I268A-HH

Compact 2.5-inch embedded board with 102mm x 73mm dimensions, suitable for small industrial and embedded systems.
Intel Cedarview-M N2600 dual-core processor operating at 1.6GHz with ultra-low 3.5W TDP.
Intel Cedarview-M and NM10 chipset combination designed for stable, efficient embedded platform performance.
Integrated 2GB memory for dependable operation without requiring additional memory modules.
Dual display output through HDMI and VGA, ideal for digital signage, terminals, and compact visualization systems.
Realtek RTL8111F Gigabit Ethernet controller with 10/100/1000 network support.
mSATA storage interface, two USB 2.0 rear ports, Intel High Definition Audio, and DC +12V power input.

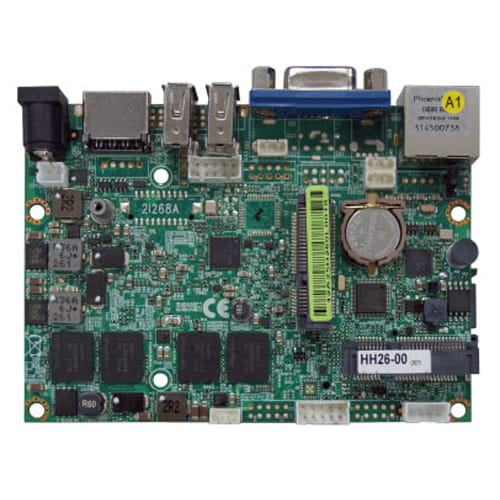

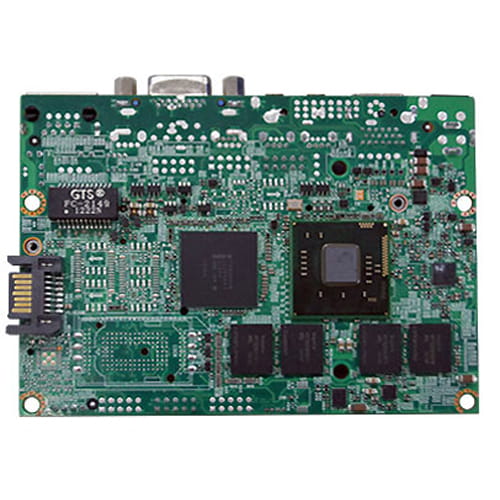

The LEX ANT 2I268A-HH is a compact embedded motherboard designed for industrial, commercial, and space-constrained computing environments. Built in a 2.5-inch form factor, it delivers reliable performance with low power consumption, making it ideal for embedded systems, digital signage, automation, and compact control solutions.

Powered by the Intel Cedarview-M N2600 dual-core processor at 1.6GHz, this board offers efficient processing with a low 3.5W TDP. Its integrated 2GB memory, Intel Cedarview-M graphics, and Intel NM10 chipset provide a balanced platform for stable everyday embedded computing workloads.

The LEX ANT 2I268A-HH includes practical connectivity options such as HDMI and VGA video outputs, one Gigabit Ethernet port powered by Realtek RTL8111F, two USB 2.0 ports, one mSATA port for storage, and a DC +12V power input. Its operating temperature range of 0–60ºC supports dependable use in controlled industrial environments.

Compact, efficient, and ready for embedded deployment, the LEX ANT 2I268A-HH is an excellent choice for projects requiring HDMI output, low-power operation, and reliable connectivity in a small footprint. Upgrade your embedded platform with a robust and versatile 2.5-inch solution today.

Main Features

* Compact 2.5-inch embedded motherboard measuring 102mm x 73mm.
* Intel Cedarview-M N2600 dual-core processor running at 1.6GHz with 3.5W TDP.
* Intel Cedarview-M and NM10 chipset platform for efficient embedded computing.
* Integrated 2GB memory for stable low-power operation.
* HDMI and VGA outputs for flexible display connectivity.
* Realtek RTL8111F Gigabit LAN controller for 10/100/1000 network connectivity.
* mSATA storage support, dual USB 2.0 ports, Intel HD Audio, and DC +12V power input.

Technical specifications

Product Name	LEX ANT 2I268A-HH embedded motherboard with HDMI output.
CPU	Intel Cedarview-M N2600 dual-core processor operating at 1.6GHz, designed for low-power embedded applications with a TDP of 3.5W.
Chipset	Intel Cedarview-M and Intel NM10 platform, providing a compact and efficient architecture for embedded computing environments.
Compatible Memory	2GB integrated memory. The onboard memory design supports compact deployments and helps reduce the need for external memory installation, making the board suitable for embedded systems where reliability and space optimization are important.
Graphics	Integrated Intel Cedarview-M graphics with support for VGA and HDMI display output.
Audio	Intel High Definition Audio integrated audio solution.
Network Card	1 x Realtek RTL8111F Gigabit Ethernet controller supporting 10/100/1000 Mbps network connectivity.
Expansion Slots	No expansion socket information specified in the provided technical data.
Storage	1 x mSATA port for compact solid-state storage integration.
RAID	RAID support is not specified in the provided technical data.
Internal I/O Connectors	Internal connector information is not specified in the provided technical data. The board is listed with mSATA storage support and rear I/O connectivity for external peripherals and display connections.

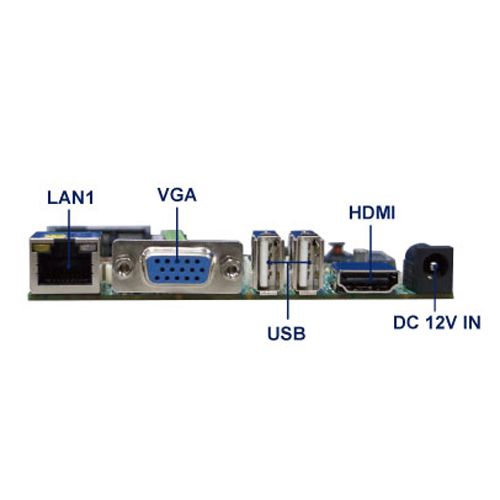

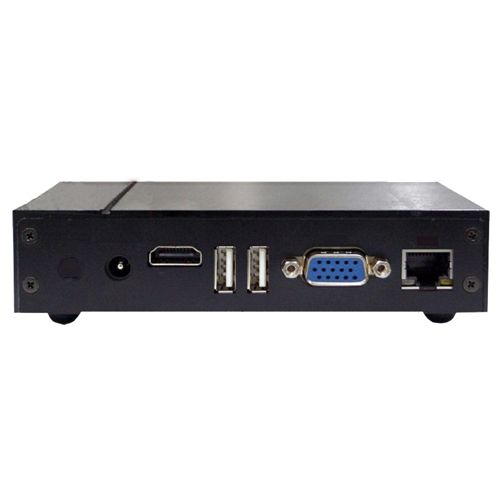

Rear I/O Connectors	1 x LAN port, 2 x USB 2.0 ports, 1 x VGA port, 1 x HDMI port, and 1 x DC +12V power input connector. These rear connections provide essential networking, peripheral, video, and power interfaces for embedded installations.
Compatible Operating Systems	Operating system compatibility is not specified in the provided technical data.
Form Factor	2.5-inch embedded board format with compact dimensions of 102mm x 73mm.
BIOS	BIOS information is not specified in the provided technical data.
Management Software	Management software information is not specified in the provided technical data.
System Monitoring	System monitoring features are not specified in the provided technical data.
Additional Features	Low-power embedded design with HDMI output, VGA output, Gigabit LAN, mSATA storage support, USB 2.0 connectivity, Intel HD Audio, and DC +12V power input.
Operating Environment	Operating temperature range from 0ºC to 60ºC, suitable for controlled industrial, commercial, and embedded environments where compact size and dependable thermal operation are required.
Weight	0.9 kg.

Optimizado para mejor precio

2 /ud

185,40 € /ud Excl. VAT

224,33 €

Incl. VAT
