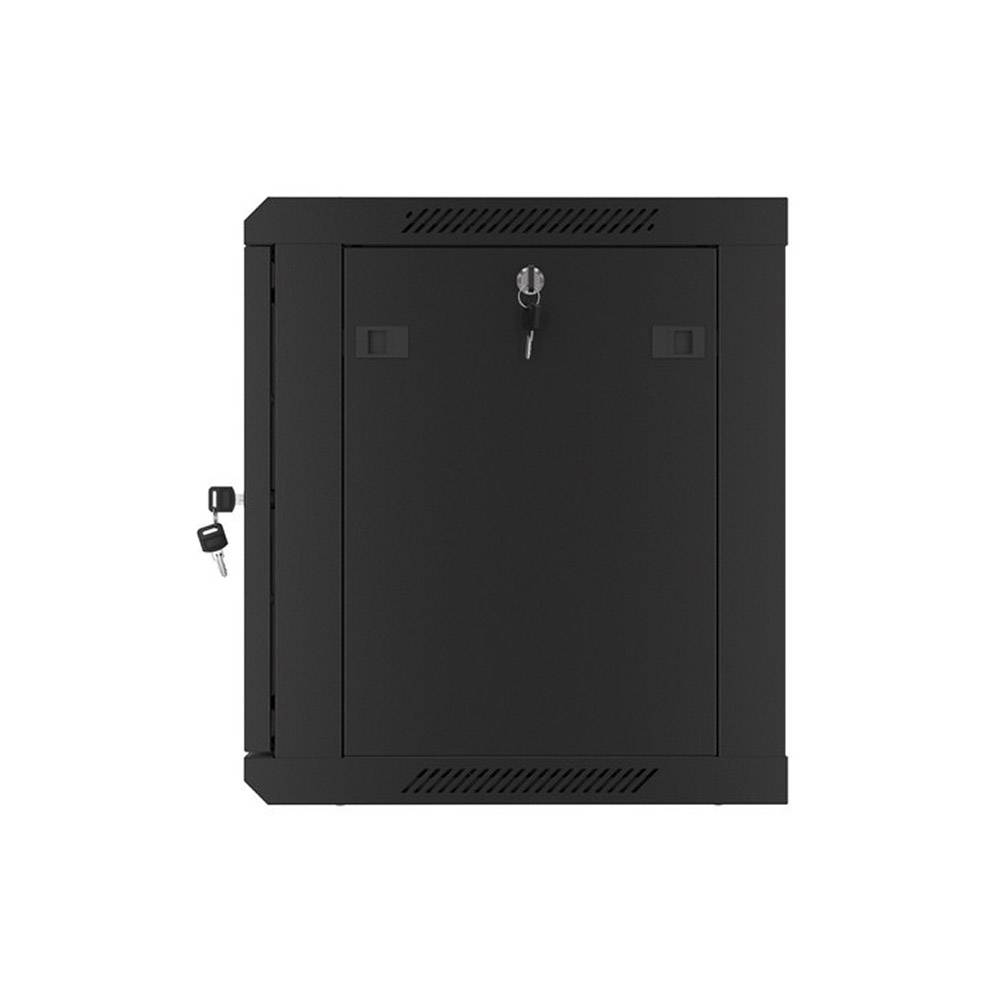

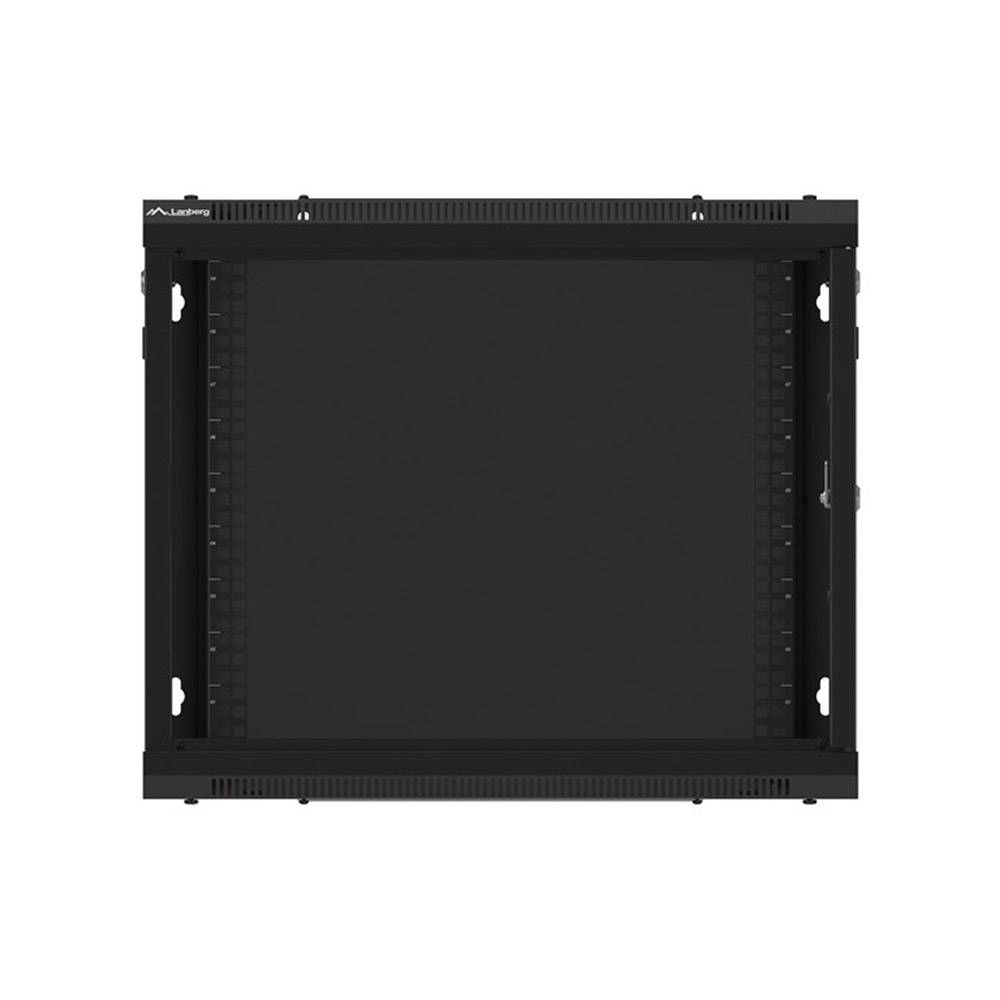

Lanberg Armario Rack Mural 19" 9U 600x450 puerta de metal WF01-6409-00B

Pn. WF01-6409-00BEan. 5901969430110

Height: 9U,
Cabinet dimensions (W x D x H) : 600x450x512.35 mm,
Height (top panel - bottom panel): 503.85 mm,
Height (top panel - floor including screws): 512.35 mm,
Internal width between rack rails: 450 mm,
Rack Rail Hole Spacing Width: 475mm,
Outside width between rack rails: 495 mm,
Load capacity: max. 60KG,
Degree of protection: IP20,
Type of doors: Metal front door,
Standard: ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART 1 AND PART 7, ETSI,
Material: high quality cold rolled steel, powder coated

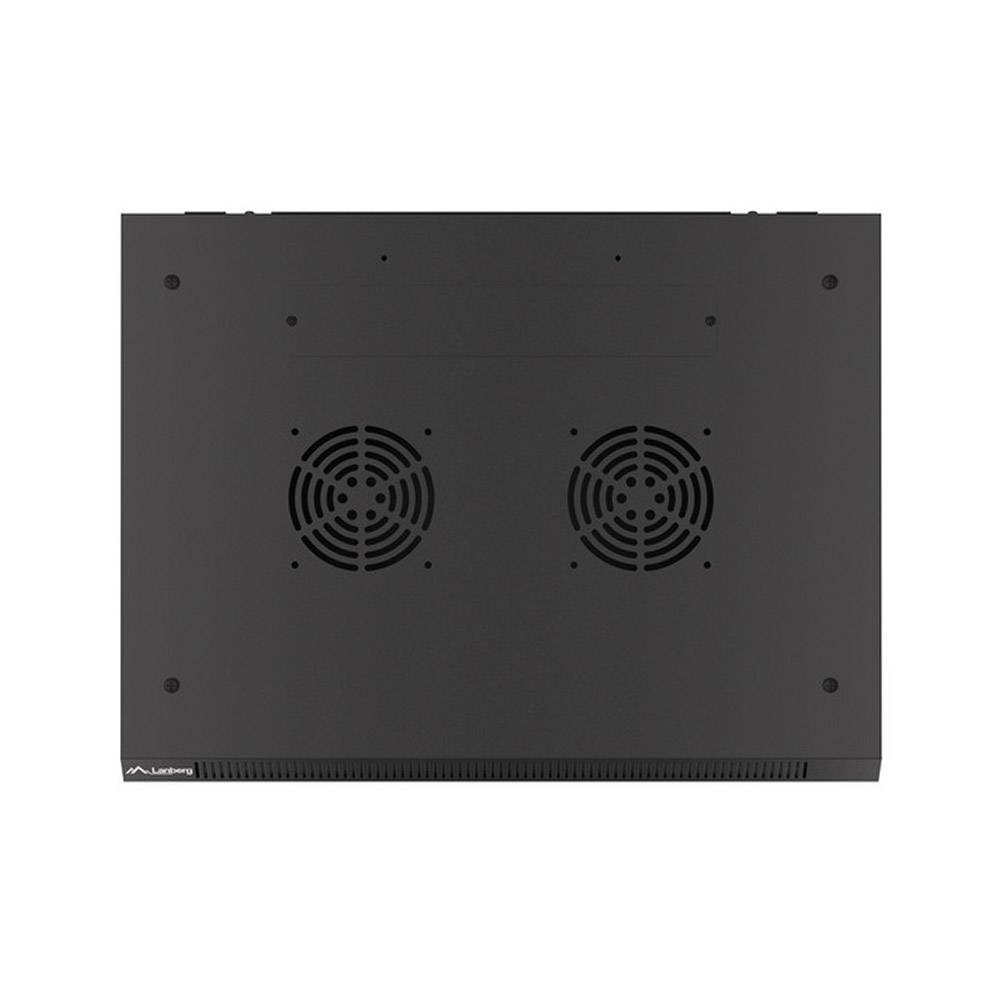

Fan mounting slots: yes, 120mm, 110V or 230V
Door thickness: 1.0mm
Sheet thickness: vertical mounting rails - 1.50 mm; mounting profile - 1.50 mm; others - 1.00 ~ 1.20mm; top and bottom and side panel - 1.00 mm,
Cable entry panel: Top, Bottom,

The Lanberg Single Section Wall Mount Cabinet WF01-6409-00B is a solution designed for expanding networks, cabling and equipment installation in 19” size with max. 60kg Loading capacity. It can be used in networks, server rooms, small and medium-sized businesses.

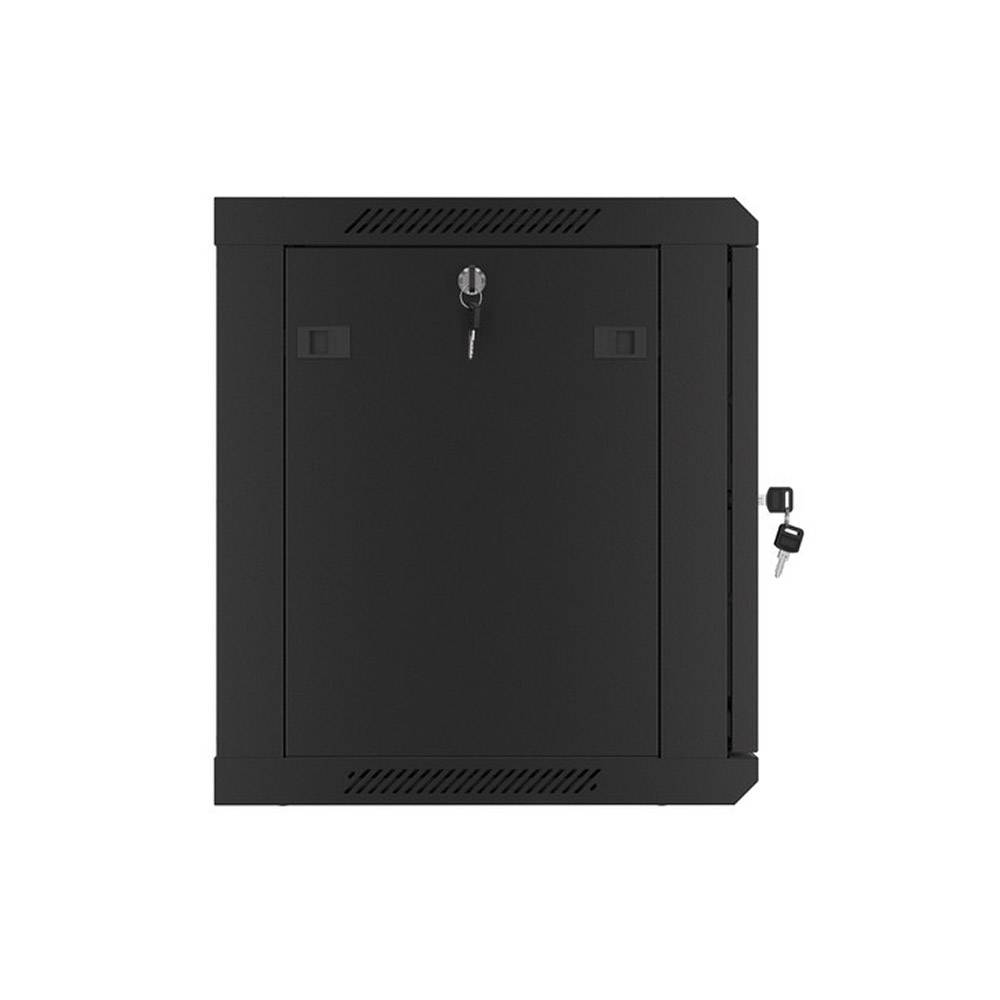

It can also work on low voltage systems such as cable TV networks, alarm systems, fire protection systems and access control systems, CCTV and IP surveillance. Proper design allows for easy self-assembly. The cabinet is characterized by the degree of protection IP20, opening front door with the possibility of turning 180 ° with lock, removable side panels (locks included).

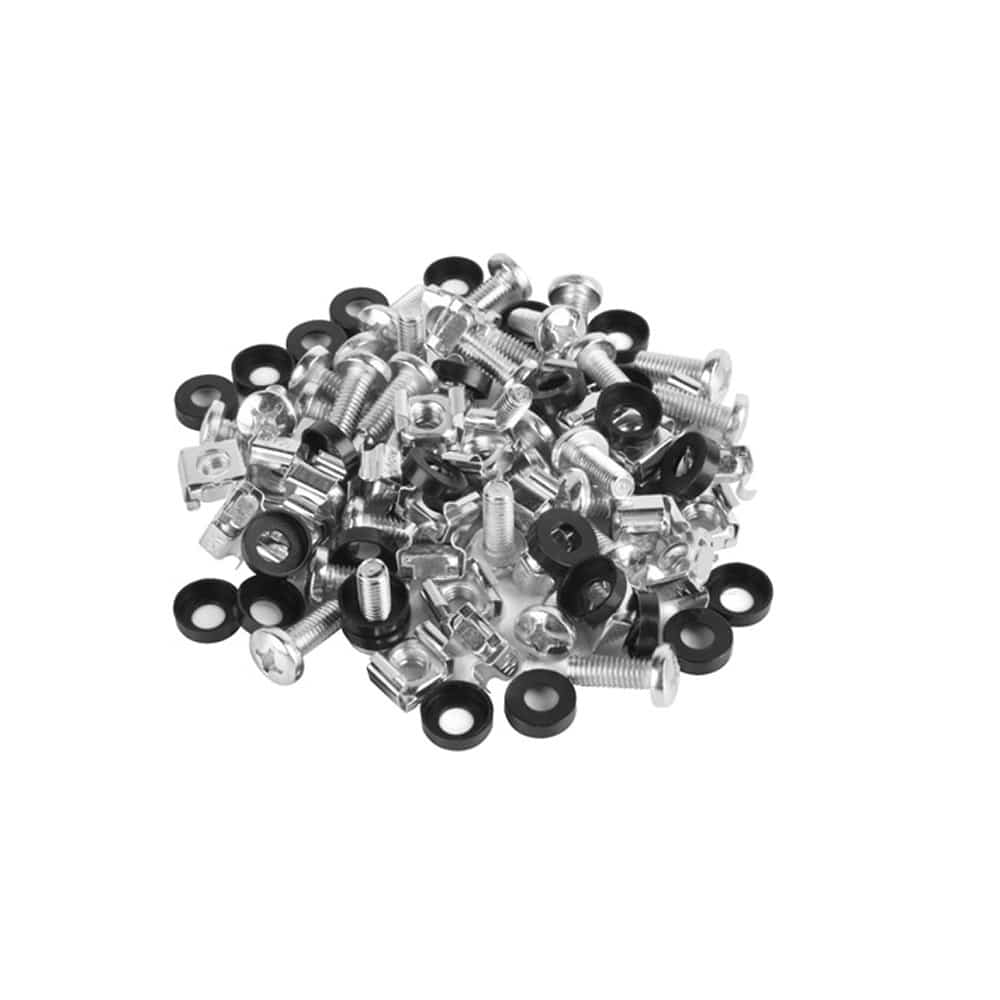

The cabinet has a cable entry panel on the top and bottom cover. This product is made of high quality cold rolled steel. The structure of the cabinet for self-assembly is flat packed, which facilitates transportation. In addition, the package includes additional hardware for rail mounting, M6 cage nuts, and blank entry panels.

Main features...

* Height: 9U.
* Type of doors: Metal front door.
* Material: High quality cold rolled steel, powder coated.
* Load capacity: max. 60KG,.
* Degree of protection: IP20.
