Lanberg Armario Rack Mural 10" 12U 280x310 WF10-2312-10B

Pn. WF10-2312-10BEan. 5901969424393
Lanberg
  • Height: 12U,
  • Cabinet dimensions (W x D x H): 280 x 310 x 603 mm,
  • Height (top panel - bottom panel): 596 mm,
  • Height (top panel - floor including screws): 603 mm,
  • Packaging dimensions (W x D x H): xx cm,
  • Load capacity: up to 20KG,
  • Tightness class: IP20,
  • Door type: Front - Tempered glass,
  • Standards Compliance: ANSI /EIA RS-310-D, IEC297-2, DIN41494; PART 1 and PART 7, ETSI,
  • Material: high quality rolled steel, powder coated,

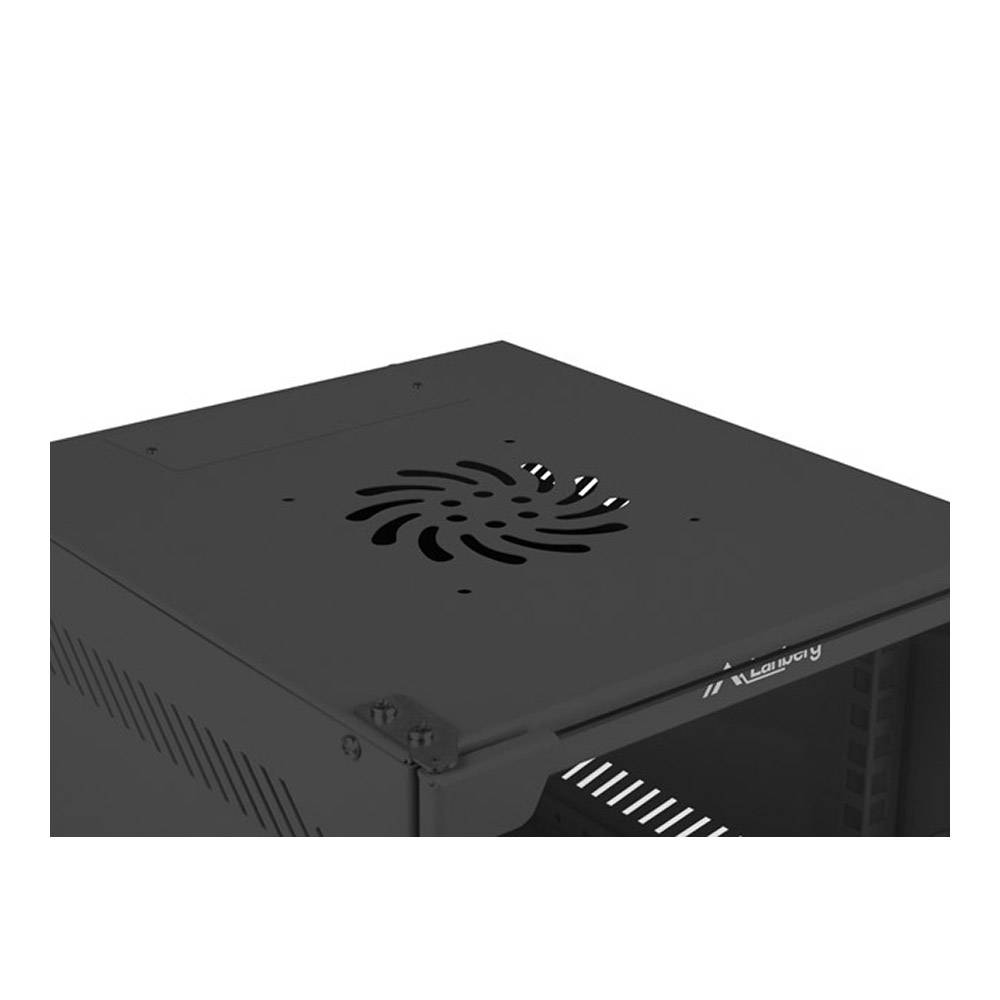

  • Vent hole: yes, 120mm, 110V or 230V,
  • Front door thickness: 5.0mm,
  • Sheet thickness: mounting profile: 1.0 mm, the rest 0.8 - 1.5 mm,
  • Cable entry panels: Top, Bottom,

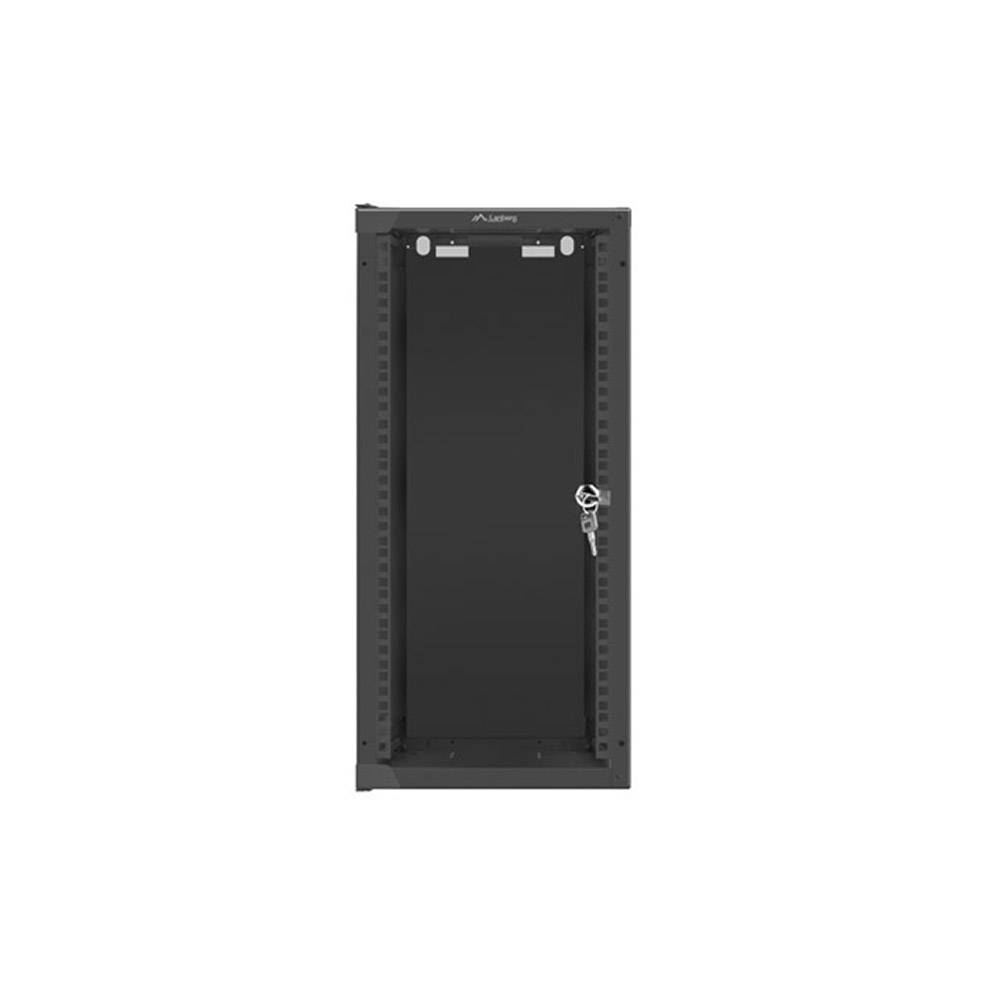

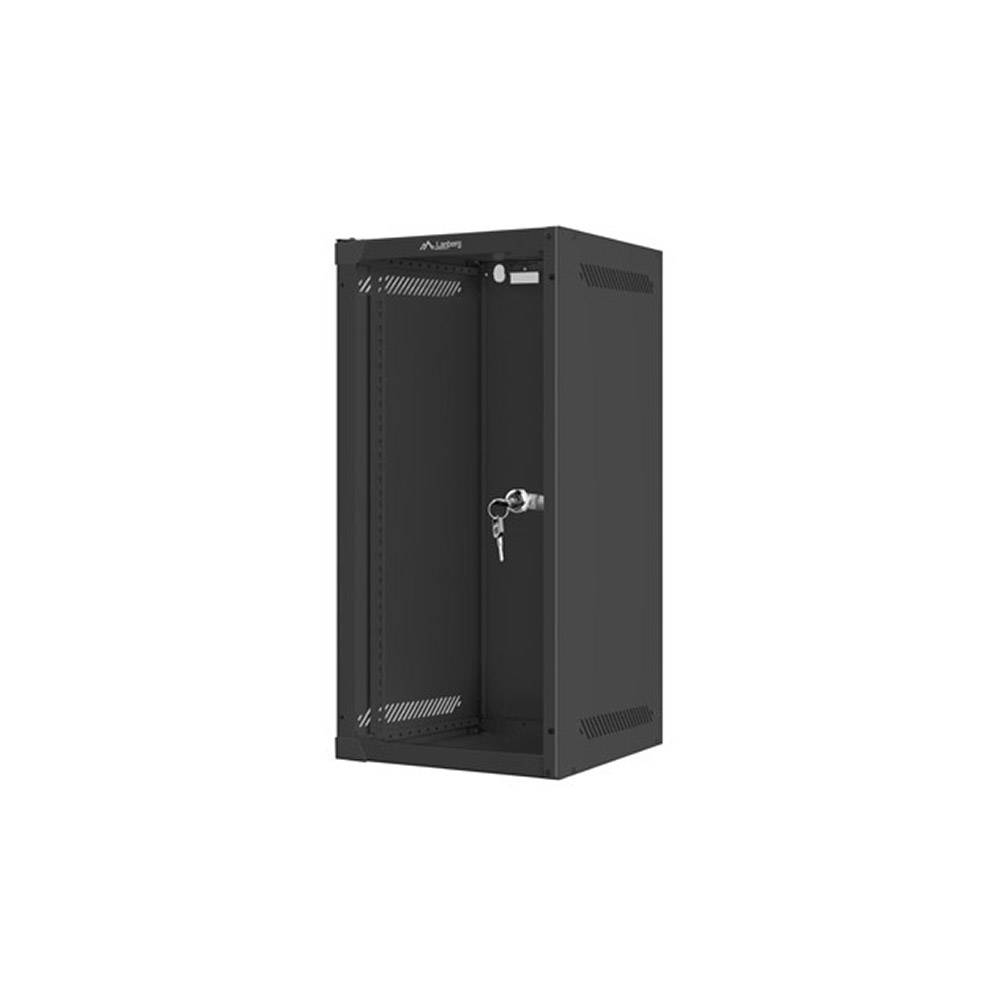

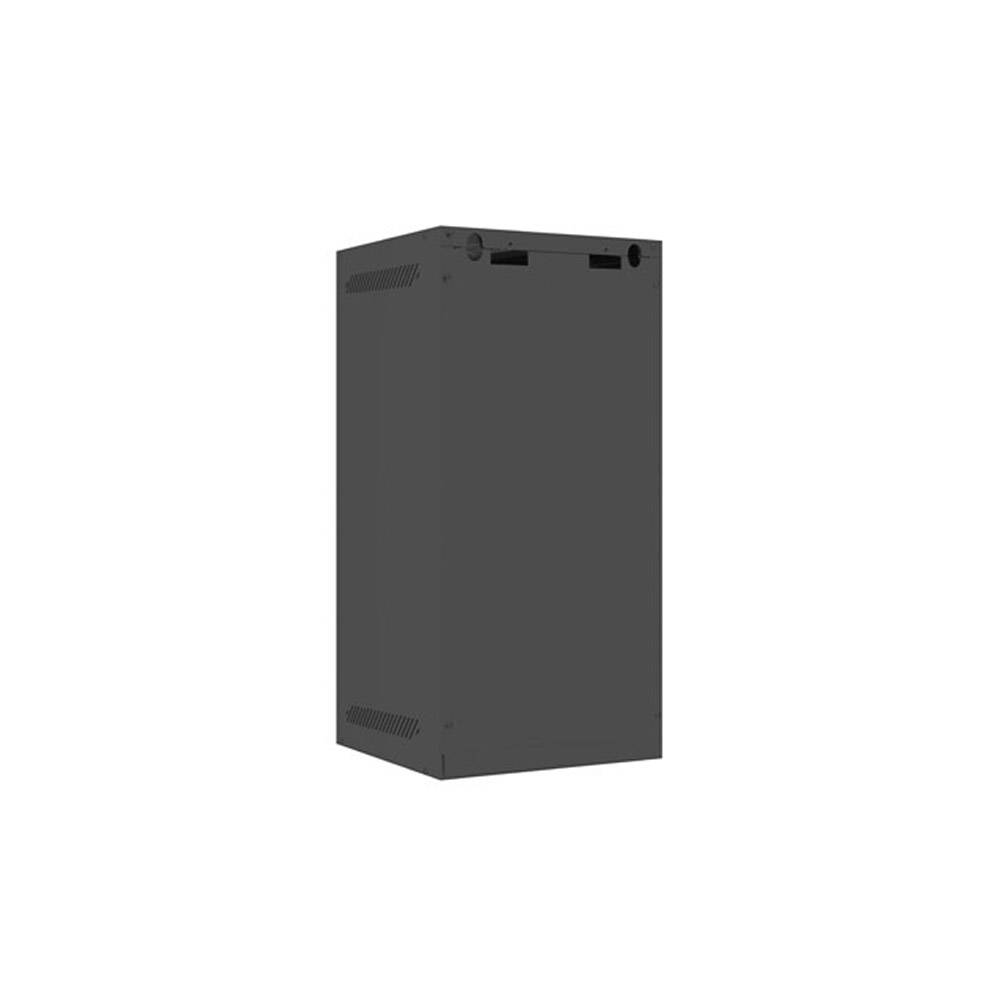

The Lanberg WF10-2312-10B 10" Compact Wall Mount Cabinet is an excellent solution designed for network construction, with 10" size cabling and equipment in mind, where the maximum combined load capacity does not exceed 20kg This particular product can be used for computer network system installations/deployments in small and medium-sized businesses (SMBs). In addition, the cabinet also works well, as an element of low-voltage installations, such as cable television networks, security systems (various alarms) and access control, as well as CCTV and IP surveillance systems.

Due to the appropriate design, the cabinet allows for easy self-assembly. This product is characterized by its IP20 protection degree, glass front door, equipped with a lock (included with the product) with the possibility of turning the door up to 180°. Also, you can run the wiring through the cable entry in the top and bottom panels (with blank entry panels).

This net kit is made of high quality rolled steel and due to the self-assembly (flat pack) construction, consisting of a single flat pack, transportation is much easier. Finally, the packaging includes additional accessories for wall mounting, M6 screws and blank entry plates.

Main features...

* Height: 12U.
* Load capacity: up to 20KG.
* Tightness class: IP20.
* Cable entry panels: Upper, Lower,.
* Type of door: Front - Tempered glass.


41,37 € /ud Excl. VAT
49,43 €
Incl. VAT
