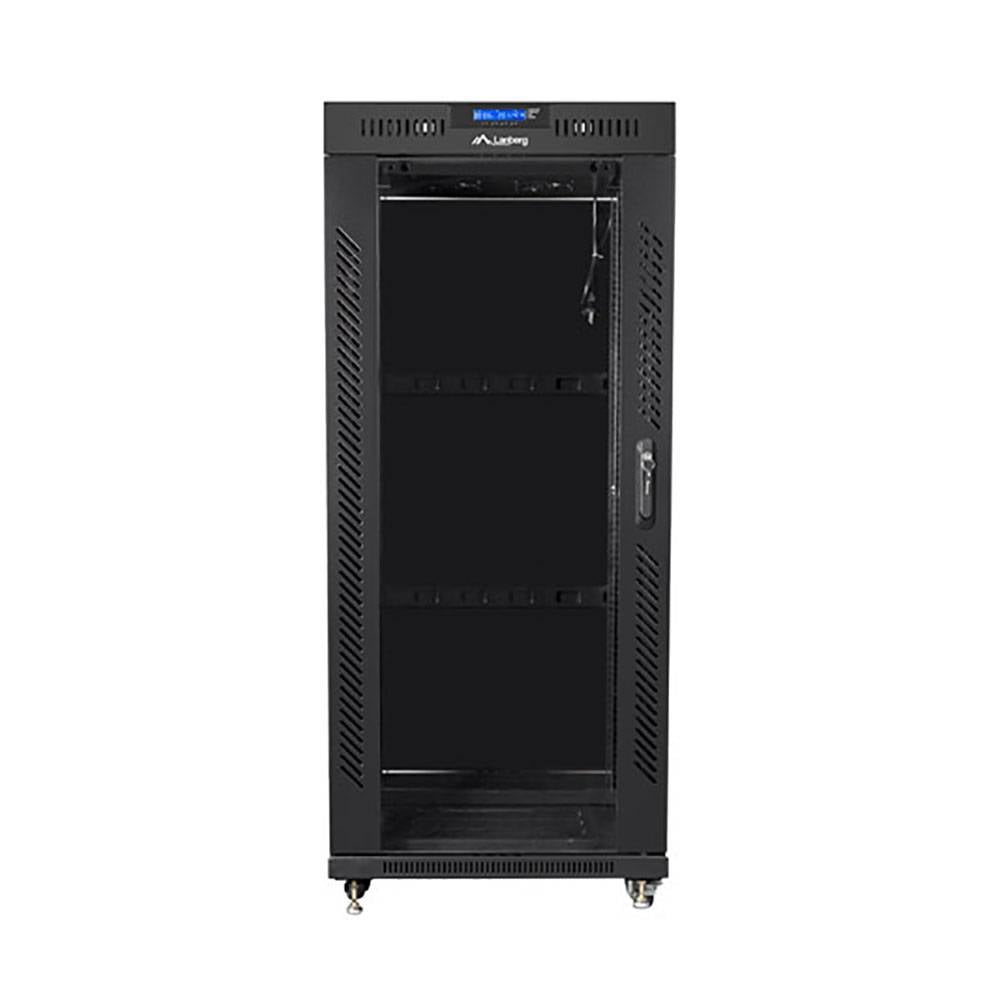

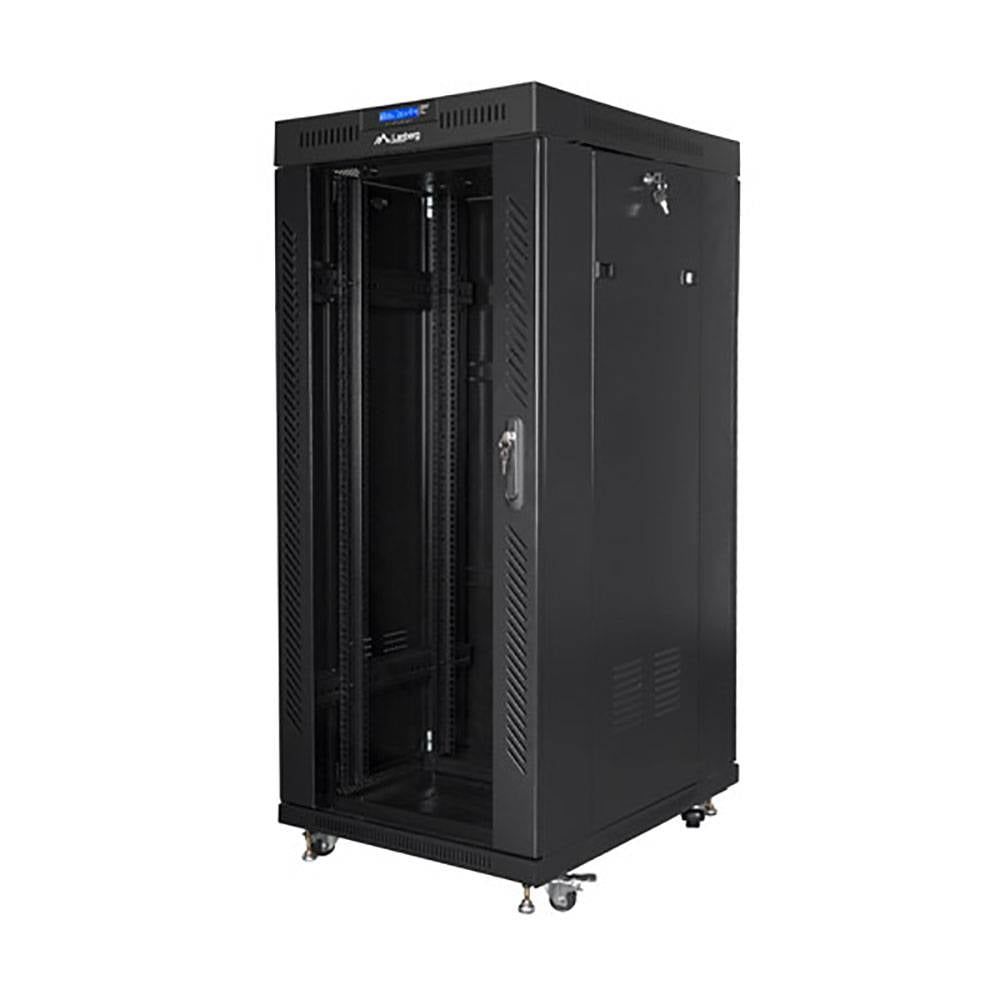

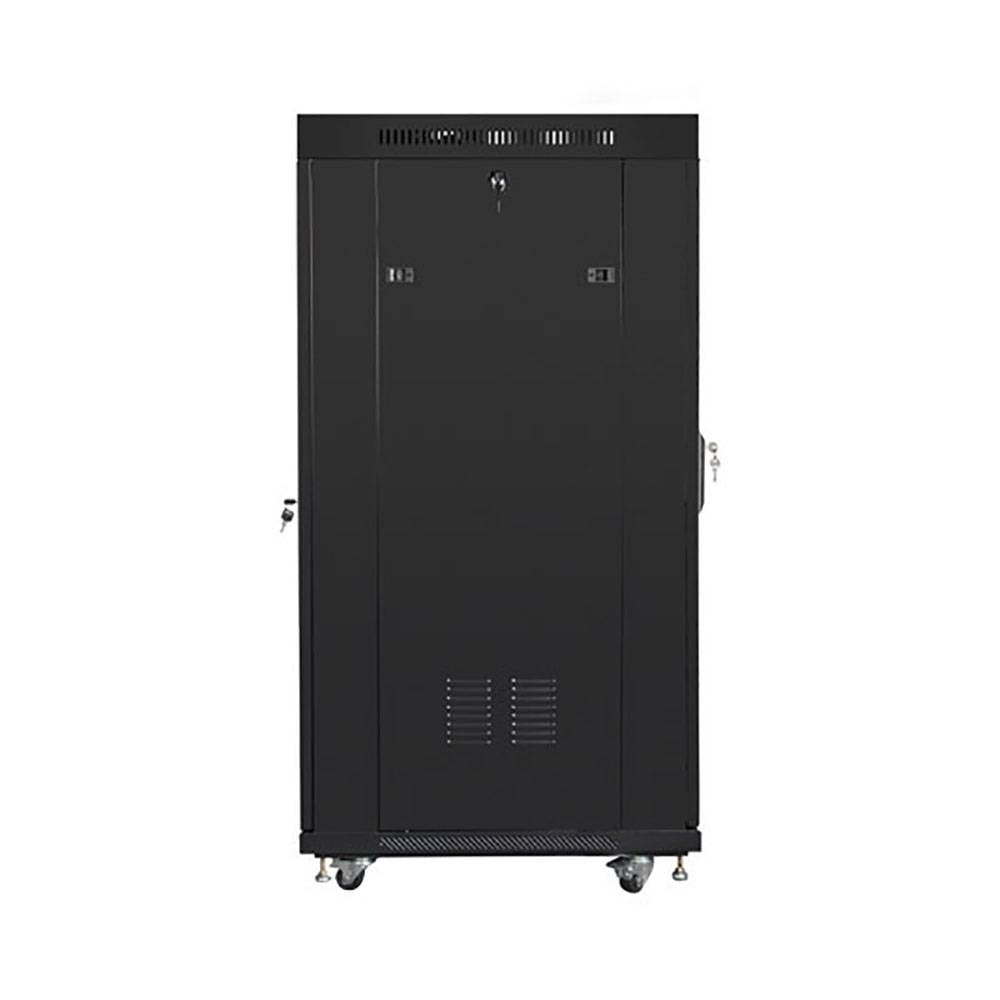

Lanberg Armario Rack 19" 37U 800x1000 FF01-8037-12BL

Pn. FF01-8037-12BLEan. 5901969433869
Lanberg
  • Height: 37U
  • Cabinet dimensions (W x D x H): 800x1000x1876 mm
  • Internal width of space between rack rails: 450 mm,
  • Rack Rail Hole Spacing Width: 465mm,
  • External width of space between rack rails: 500 mm,
  • Load capacity: Up to 800KG,
  • Degree of protection: IP20,
  • Lid with fan tray: including 4 230V fans in the upper lid,
  • Type of doors: Front - Tempered glass, Rear - Steel,
  • Standard: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART 1 AND PART 7, ETSI,
  • Material: high quality cold rolled steel, powder coated,
  • Glass thickness: 5.0mm,
  • Sheet thickness: vertical mounting rails - 2.00 mm; mounting profile - 2.00 mm; others - 1.50mm - 1.20mm,
  • Cable entry panel: Upper, Lower (adjustable),

Lanberg floor standing cabinet FF01-8037-12BL is a solution designed to expand networks, cabling and equipment installation in 19” size with max. 800kg Loading capacity.
It can be used in networks, server rooms, small and medium-sized businesses, and data centers that need a lot of cabinet space for network equipment. It can also work on low voltage systems such as cable TV networks, alarm systems, fire protection systems and access control systems, CCTV and IP surveillance.

The product's construction is made of high-quality cold-rolled steel that is characterized by excellent design and high-quality workmanship. The cabinet allows for full depth adjustment of the vertical mounting rails. In addition, it is equipped with a glass front door with a lock and the possibility of installing said doors on the right or left side.

The rack cabinet also includes a front-mounted LCD screen, which displays basic information (for example, the temperature inside the cabinet, the current time, and the current status of the fans) regarding the operating status of the device.

You can route the wiring through the top and bottom cable entries (with blank entry panels). The fan tray includes 4 230V fans. In addition, the package includes additional accessories for the installation of rails, M6 cage nuts and blank entry panels. The cabinet structure is self-assembling and consists of four flat packs, making it easy to transport.

Main features...

* Height: 37U.
* Cabinet dimensions (W x D x H): 800x1000x1876 mm.
* Cover with fan tray: 4 230V fans included in the top cover.
* Material: High quality cold rolled steel, powder coated.
* Glass door.


Optimizado para mejor precio
33 /ud
810,84 € /ud Excl. VAT
981,12 €
Incl. VAT

Approximate delivery on Monday, July 06

Please note that the delivery date is an estimate
