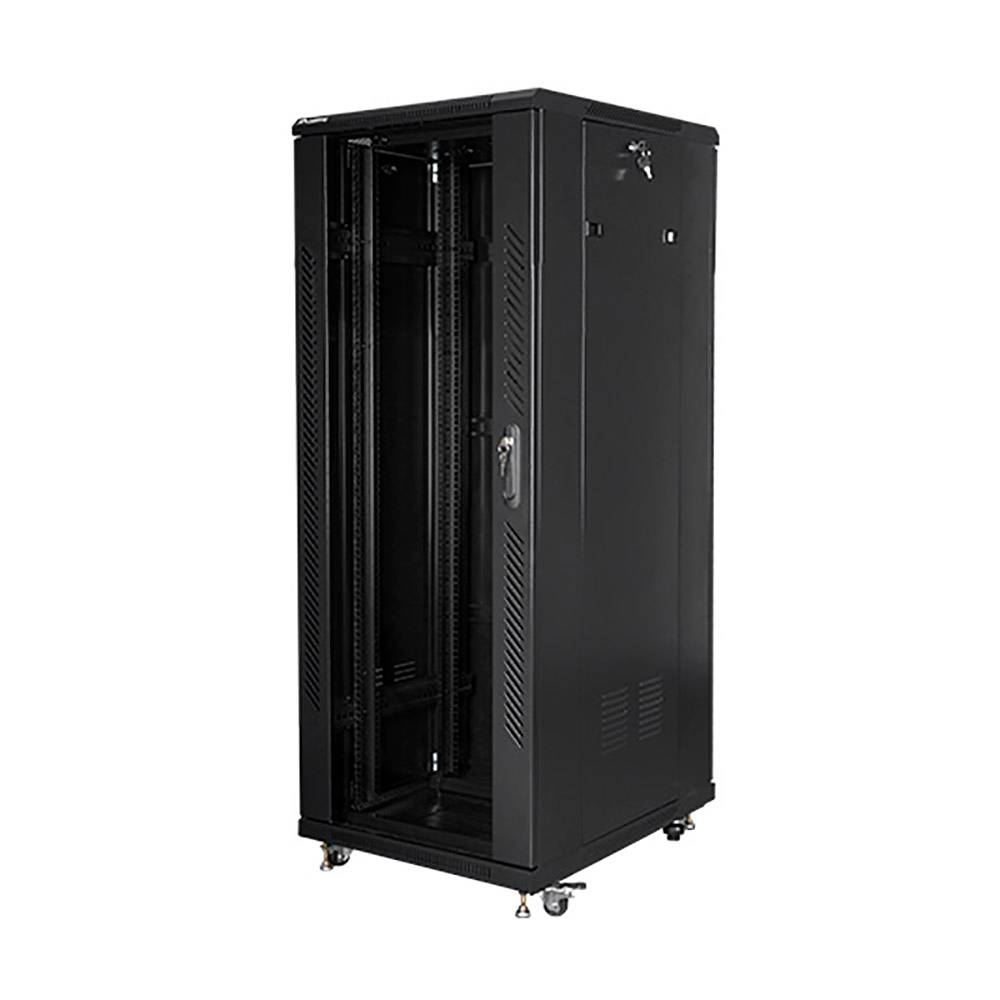

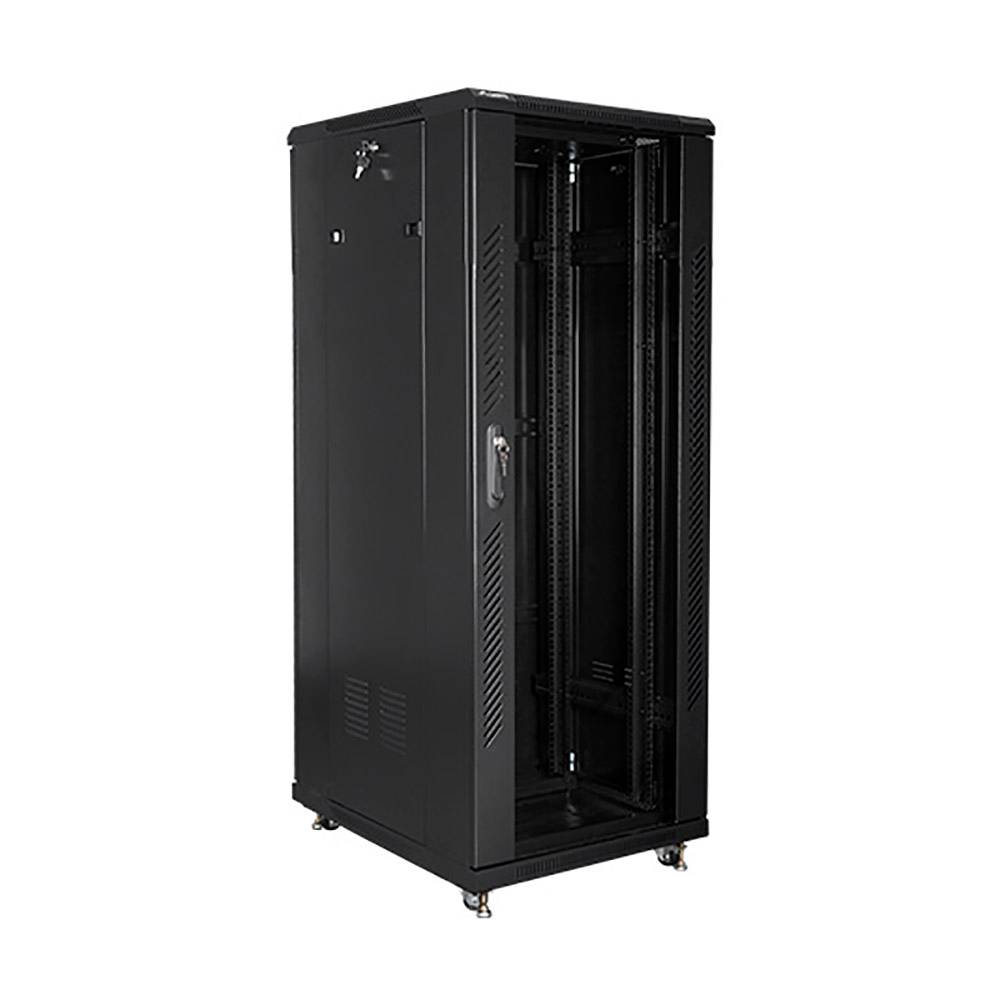

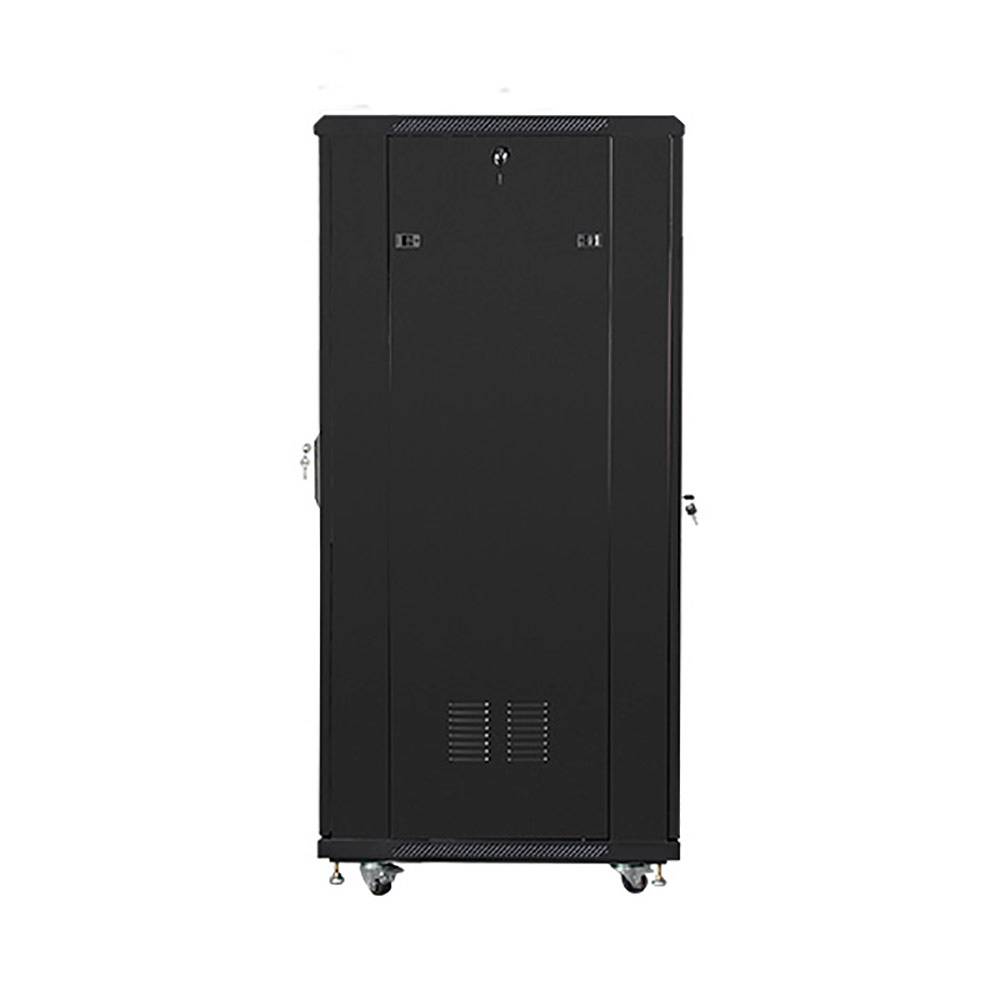

Lanberg Armario Rack 19" 32U 600x800 FF01-6832-12B

Pn. FF01-6832-12BEan. 5901969414950
Lanberg
  • Height: 32U,
  • Cabinet dimensions (W x D x H): 600x800x1603 mm,
  • Height (top panel - bottom panel): 1524 mm,
  • Height (top panel - floor): 1597 mm,
  • Height (top panel - floor including screws): 1603 mm,
  • Packaging dimensions (W x D x H): Top and bottom - 63x146x9.5 cm, Doors - 63.5x82x12 cm, Frame - 60.5x152x25 cm,
  • Floor panel: 4 wheels with brake + adjustable feet,
  • Internal width between rack rails: 450 mm,
  • Rack rail hole spacing width: 465mm,
  • Outer width distance between rack rails: 500 mm,
  • Load capacity: Up to 800KG,
  • Degree of protection: IP20,
  • Top with fan tray: including 4 230V fans in the top cover,
  • Type of doors: Front - Tempered glass, Rear - Steel,
  • Standard: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART 1 AND PART 7, ETSI,
  • Material: high quality cold rolled steel, powder coated,
  • Glass thickness: 5.0mm,
  • Sheet thickness: vertical mounting rails - 2.00 mm; mounting profile - 2.00 mm; others - 1.50mm - 1.20mm,
  • Cable entry panel: Upper, Lower (adjustable),

The Lanberg FF01-6832-12B freestanding cabinet is a solution designed for expanding networks, cabling installation and equipment in 19” size with max. 800kg Loading capacity. It can be used in networks, server rooms, small and medium-sized businesses, and data centers that need a lot of cabinet space for network equipment.

It can also work on low voltage systems such as cable TV networks, alarm systems, fire protection systems and access control systems, CCTV and IP surveillance. The construction is made of high-quality cold-rolled steel that is characterized by excellent design and high-quality workmanship. The cabinet allows for full depth adjustment of the vertical mounting rails.

It is equipped with a tempered glass front door with a lock and the possibility of installing it on the right or left side. It has removable side panels (includes locks) and a solid steel rear door with a lock. You can route the wiring through the entry cable in the top and bottom panels (with blank entry panels). The fan tray includes 4 230V fans. In addition, the package includes additional accessories for rail supports, M6 cage nuts and blank entry plates. The self-assembly cabinet frame comes in three flat packs for easy transportation.

Main features...

* Height: 32U.
* Cabinet dimensions (W x D x H): 600x800x1603 mm.
* Floor panel: 4 wheels with brake + adjustable feet,
* Load capacity: Up to 800KG.
* Degree of protection: IP20,.


Optimizado para mejor precio
4 /ud
469,22 € /ud Excl. VAT
567,76 €
Incl. VAT

Approximate delivery on Tuesday, June 09

Please note that the delivery date is an estimate
