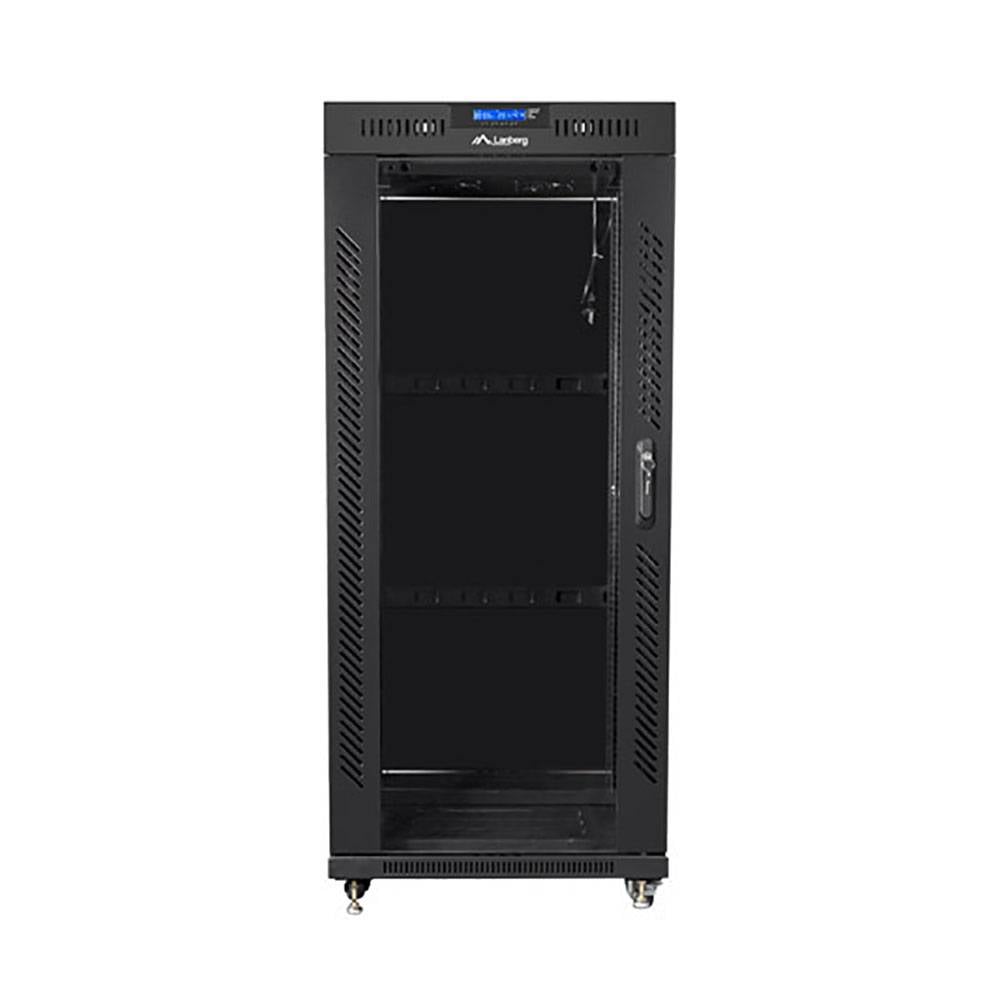

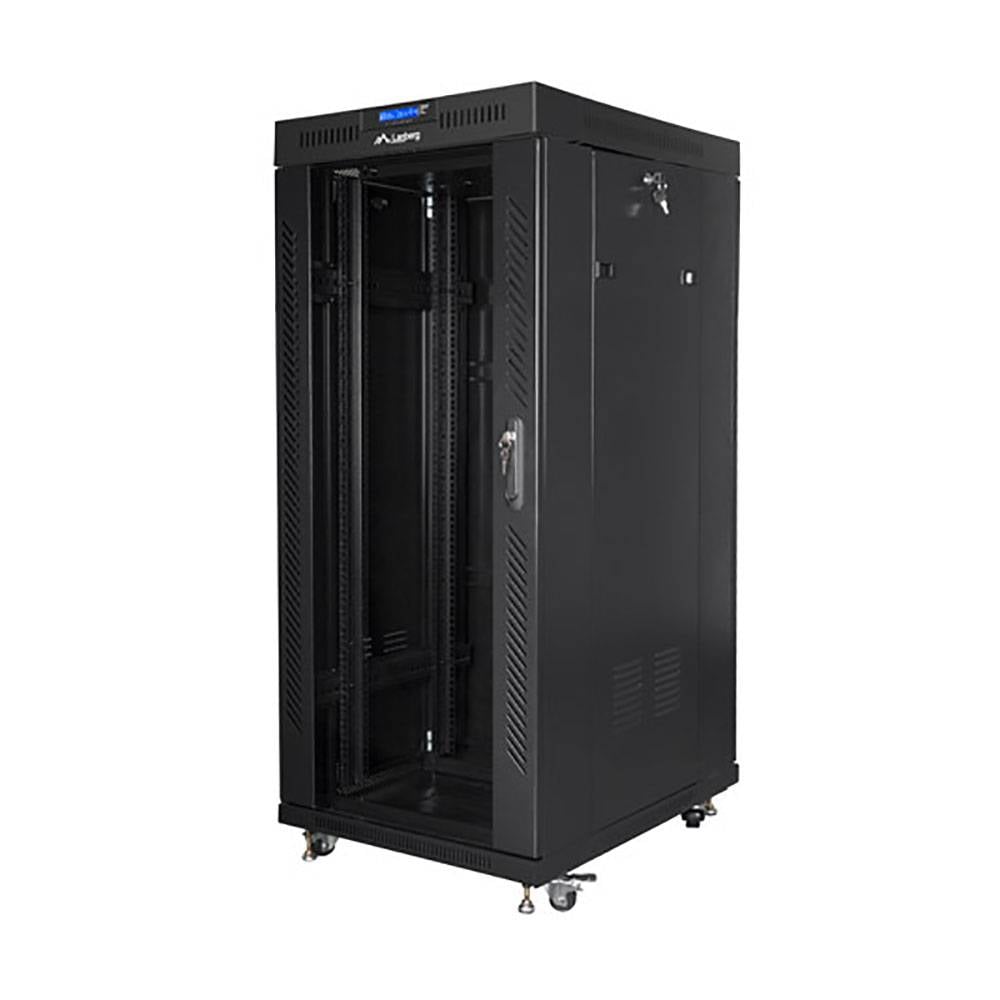

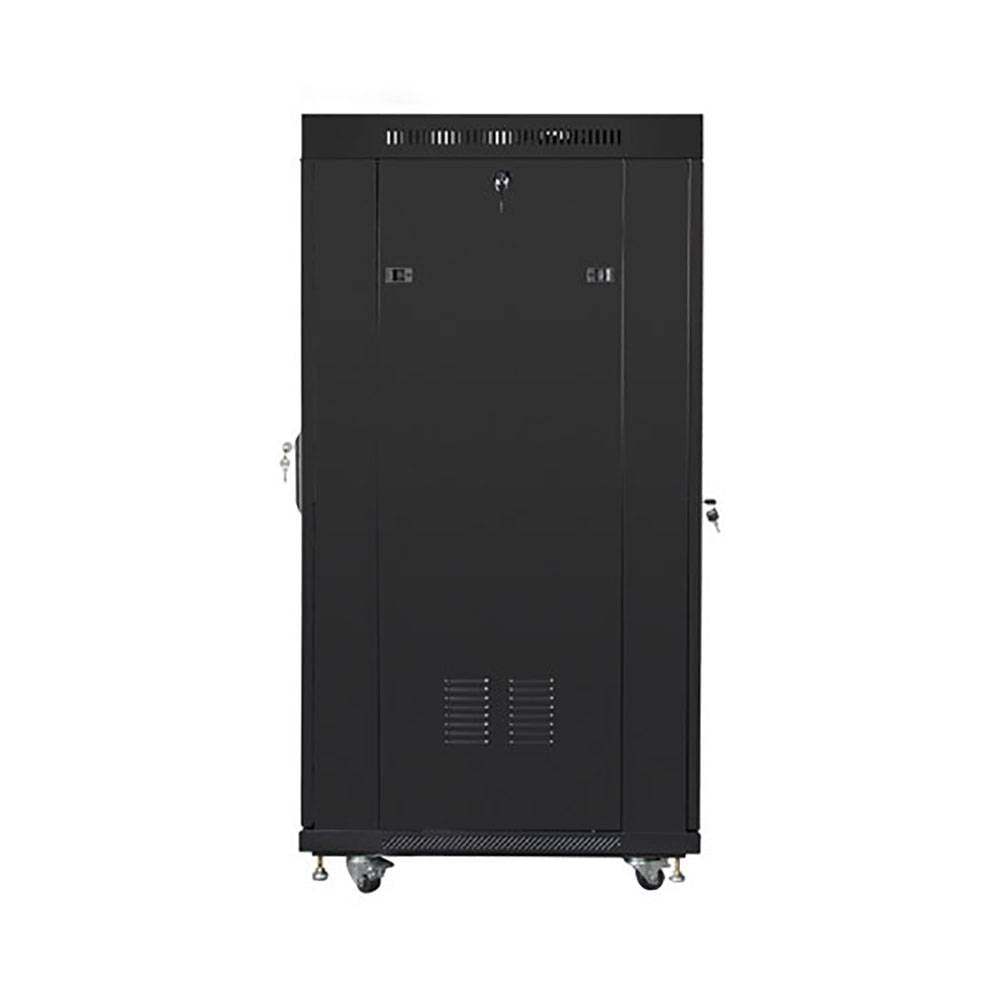

Lanberg Armario Rack 19" 27U 600x800 FF01-6827-12BL

Pn. FF01-6827-12BLEan. 5901969430387

Height: 27U
Floor panel: 4 wheels with brake + adjustable feet,
Internal width of space between rack rails: 450 mm,
Rack rail entry hole spacing width: 465mm,
External width of space between rack rails: 500 mm,
Load capacity: Up to 800KG,
Degree of protection: IP20,
Top with fan tray: including 4 230V fans on the top cover,
Type of doors: Front - Tempered glass, Rear - Steel,
Standard: ANSI /EIA RS-310D, IEC297-2, DIN41494; PART 1 AND PART 7, ETSI,
Material: high quality cold rolled steel, powder coated,
Glass thickness: 5.0mm,
Sheet thickness: vertical mounting rails - 2.00 mm; mounting profile - 2.00 mm; others - 1.50mm - 1.20mm,
Cable entry panel: Upper, Lower (adjustable),
Included Accessories: Bag, locks for front and rear doors and two side panels, 20 M6 cage nuts

The Lanberg FF01-6827-12BL freestanding cabinet is a solution designed for expanding networks, wiring installation and equipment in 19” size with max. 800kg Loading capacity.

It can be used in networks, server rooms, small and medium-sized businesses, and data centers that need a lot of cabinet space for network equipment. It can also work on low voltage systems such as cable TV networks, alarm systems, fire protection systems and access control systems, CCTV and IP surveillance.

The construction is made of high-quality cold-rolled steel that is characterized by excellent design and high-quality workmanship. The cabinet allows for full depth adjustment of the vertical mounting rails. It is equipped with a tempered glass front door with a lock and the possibility of installing it on the right or left side. It has removable side panels (includes locks) and a solid steel rear door with a lock.

The rack cabinet also includes a front-mounted LCD screen, which displays basic information (for example, the temperature inside the cabinet, the current time, and the current status of the fans) regarding the operating status of the device.

You can route the wiring through the top and bottom cable entries (with blank entry panels). The fan tray includes 4 230V fans. In addition, the package includes additional accessories for the installation of rails, M6 cage nuts and blank entry panels. The cabinet structure is self-assembling and consists of three flat packs, making it easy to transport.

Main features...

* Height: 27U.
* Internal width of space between rack rails: 450 mm.
* Rack rail entry hole spacing width: 465mm.
* Degree of protection: IP20,.
* Load capacity: Up to 800KG,
