Lanberg Armario Rack 19" 27U 600x600 FF01-6627-12B

Pn. FF01-6627-12BEan. 5901969414929
Lanberg
  • Height: 27U
  • Floor panel: 4 wheels with brake + adjustable feet,
  • Internal width between rack rails: 450 mm,
  • Rack rail hole spacing width: 465mm,
  • Outer width distance between rack rails: 500 mm,
  • Load capacity: Up to 800KG,
  • Degree of protection: IP20,
  • Top with fan tray: including 2 230V fans in the top cover,

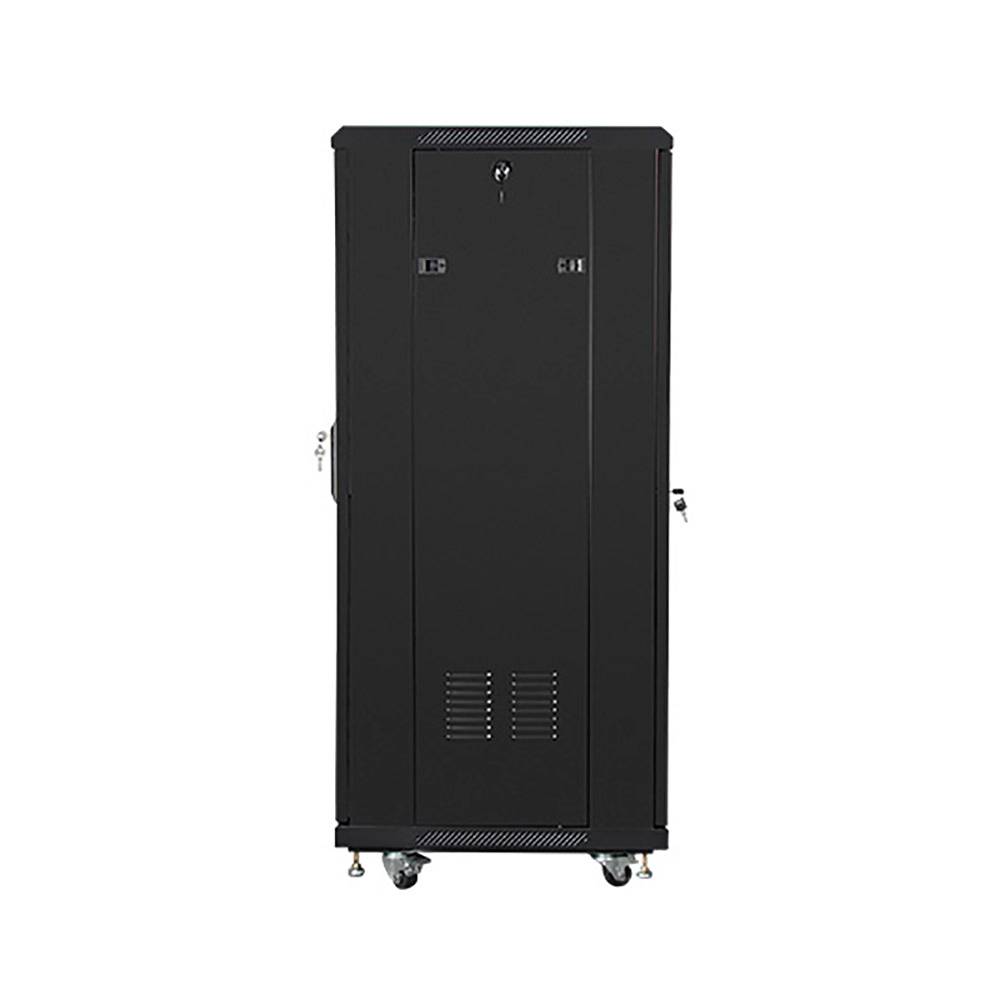

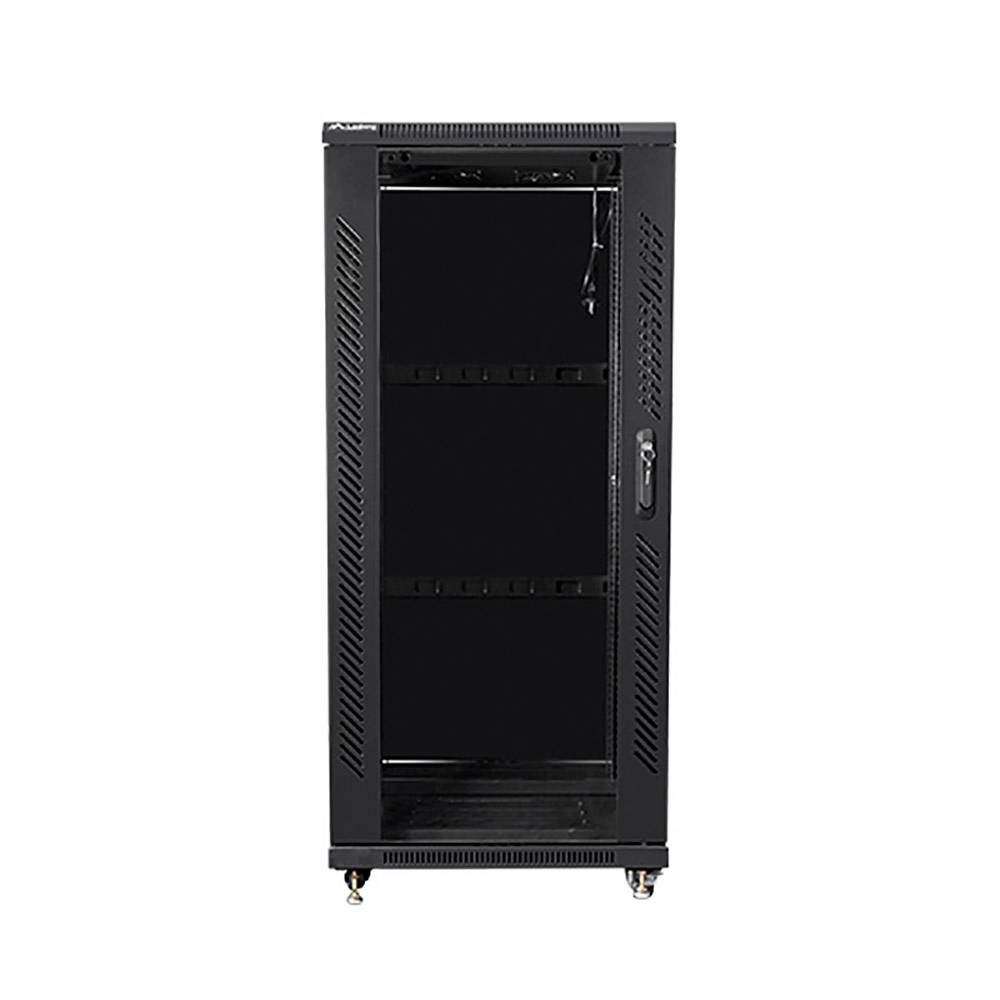

  • Type of doors: Front - Tempered glass, Rear - Steel,
  • Standard: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART 1 and PART 7, ETSI,
  • Material: high quality cold rolled steel, powder coated,
  • Glass thickness: 5.0mm,
  • Sheet thickness: vertical mounting rails - 2.00 mm; mounting profile - 2.00 mm; others - 1.50mm - 1.20mm,
  • Cable entry panel: Upper, Lower (adjustable),

The Lanberg FF01-6627-12B freestanding cabinet is a solution designed for expanding networks, cabling installation and equipment in 19” size with max. 800kg Loading capacity. It can be used in networks, server rooms, small and medium-sized businesses, and data centers that need a lot of cabinet space for network equipment.

It can also work on low voltage systems such as cable TV networks, alarm systems, fire protection systems and access control systems, CCTV and IP surveillance. The construction is made of high-quality cold-rolled steel that is characterized by excellent design and high-quality workmanship.

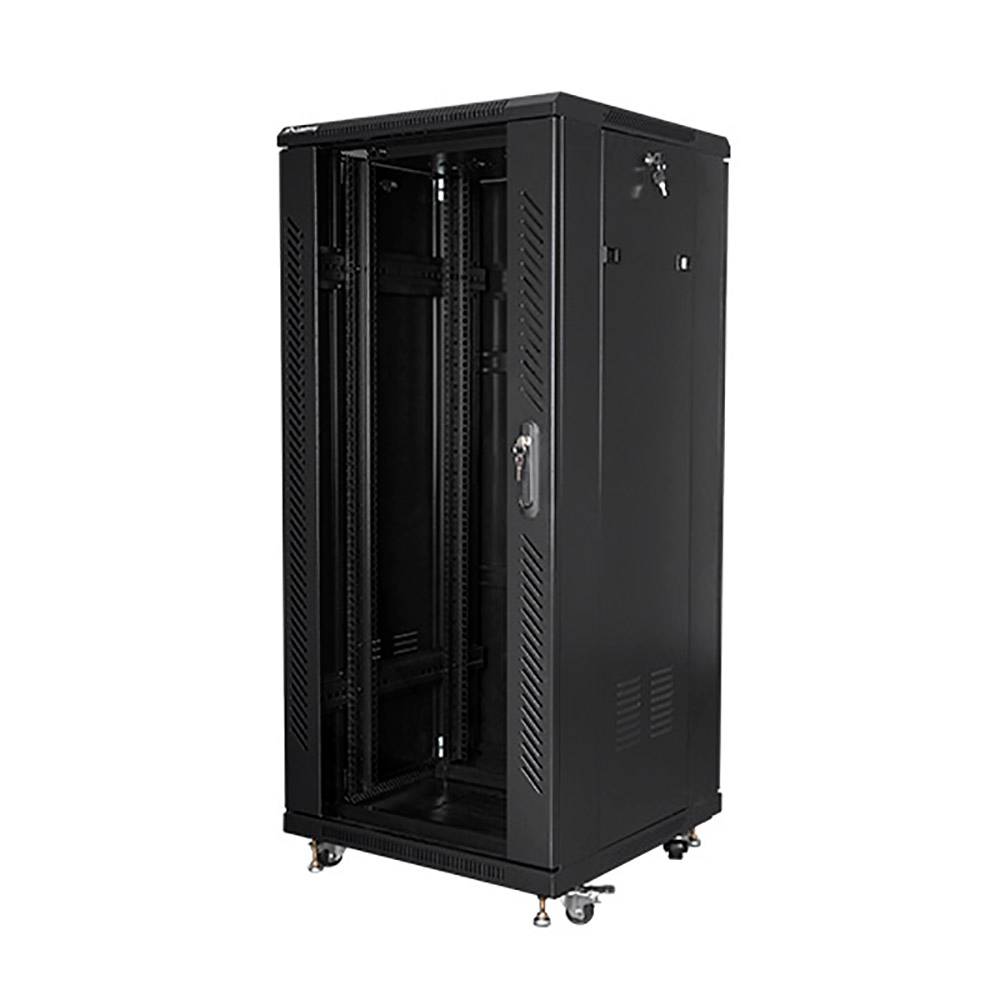

The cabinet allows for full depth adjustment of the vertical mounting rails. It is equipped with a tempered glass front door with a lock and the possibility of installing it on the right or left side. It has removable side panels (includes locks) and a solid steel rear door with a lock. You can run the wiring through the entry cable in the top and bottom panels (with blank entry panels). The fan tray includes 2 230V fans.

In addition, the package includes additional accessories for rail supports, M6 cage nuts and blank entry plates. The self-assembly cabinet frame comes in three flat packs for easy transportation.

Main features...

* Height: 27U.
* Floor panel: 4 wheels with brake + adjustable feet.
* Top with fan tray: 2 230V fans included in the top cover
* Material: High quality cold rolled steel, powder coated.
* Degree of protection: IP20,.
