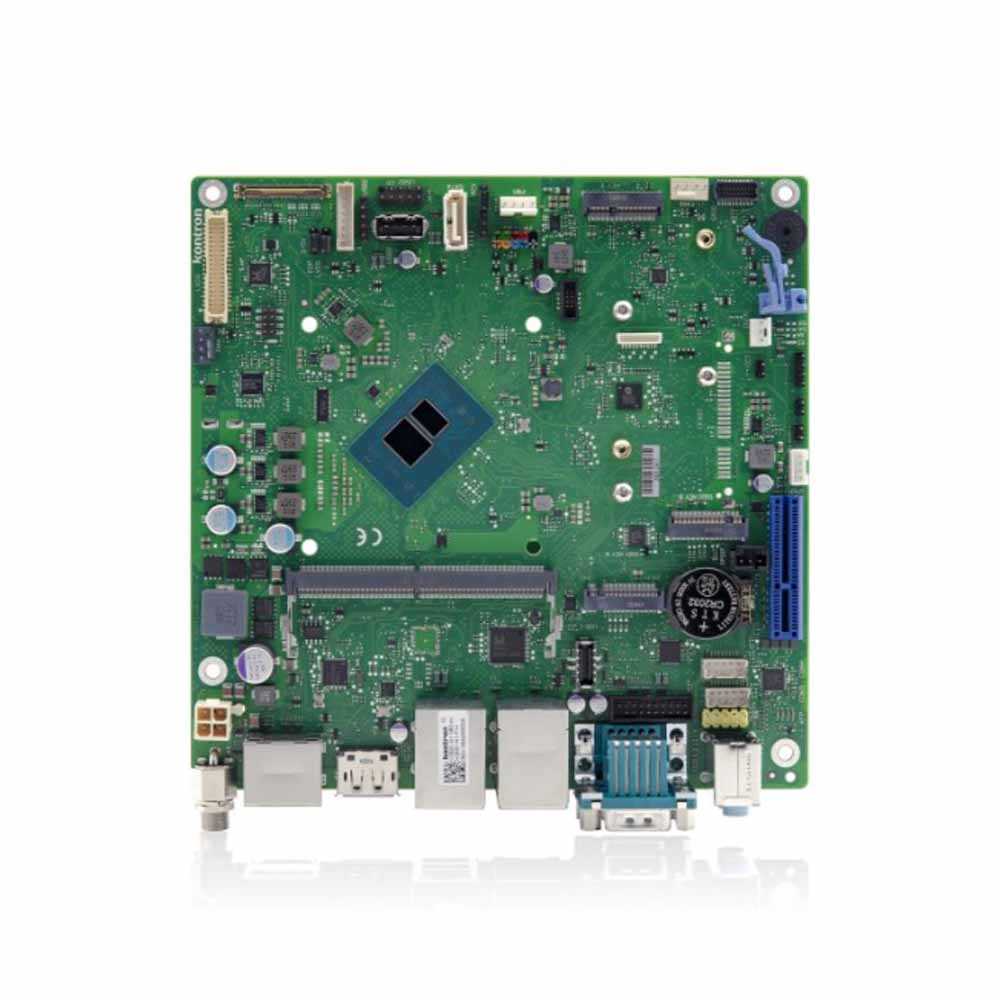

Kontron K3931-N4. Intel N200. Mini-ITX - So-DIMM DDR5

The Kontron K3931-N4 is a compact, high-performance Mini-ITX motherboard (170 x 170 mm), ideal for embedded applications, digital signage, and industrial systems. Powered by the Intel® N200 processor (4C/6W) and up to 32GB DDR5-4800 So-DIMM memory, it delivers power, efficiency, and stability in a small footprint.

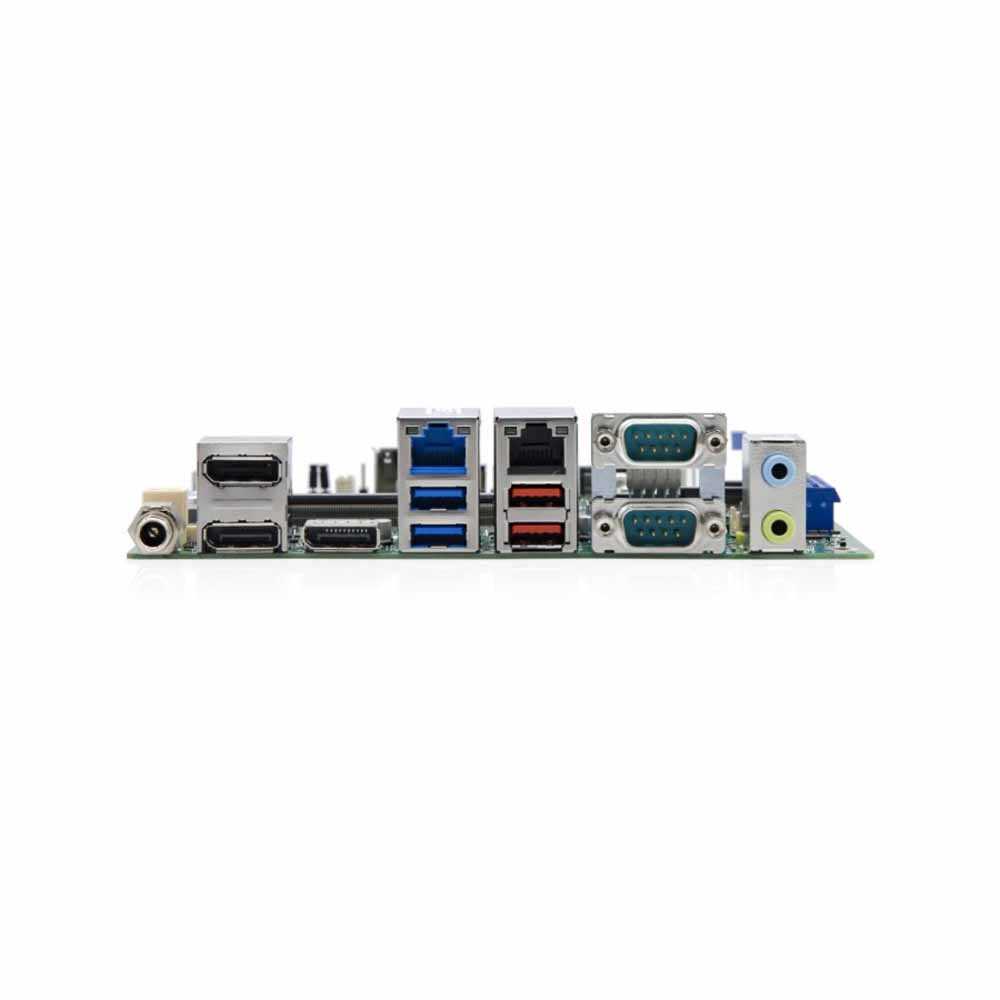

Integrated Intel UHD Graphics with Xe architecture enables up to three 4K displays via DisplayPort, eDP, and LVDS, providing versatile graphics solutions. Connectivity includes Intel® i226LM 2.5Gb/s Ethernet with TSN support and Realtek RTL8111H, plus multiple USB 3.2 Gen2 and Gen1 ports and M.2 expansion options for fast storage and wireless connectivity.

Its 8V-34V DC power supply, along with its cTÜVus, CE Class B, UKCA, and FCC-B industrial certifications, ensure reliability and adaptability in demanding environments. The combination of performance, versatility, and compact size makes the Kontron K3931-N4 the ideal solution for professionals seeking the best in embedded systems.

Key Features...

* Integrated Intel® N200 processor (4 cores, 6W) for energy efficiency and performance.
* Up to 32GB DDR5-4800 So-DIMM memory, non-ECC.
* Intel UHD Xe Graphics with support for up to three 4K displays via DPP, eDP, and LVDS.
* Connectivity with Intel® i226LM 2.5Gb/s TSN and Realtek RTL8111H.
* Storage with 2 M.2 slots (PCIe x2 and x1) and 1 SATA III port (6Gb/s).
* Expansion with PCIe x4 Gen3 and multiple M.2 options (Key-M, Key-B, Key-E).
* Industrial certifications, 8-34V DC power supply, and Windows/Linux system support.
