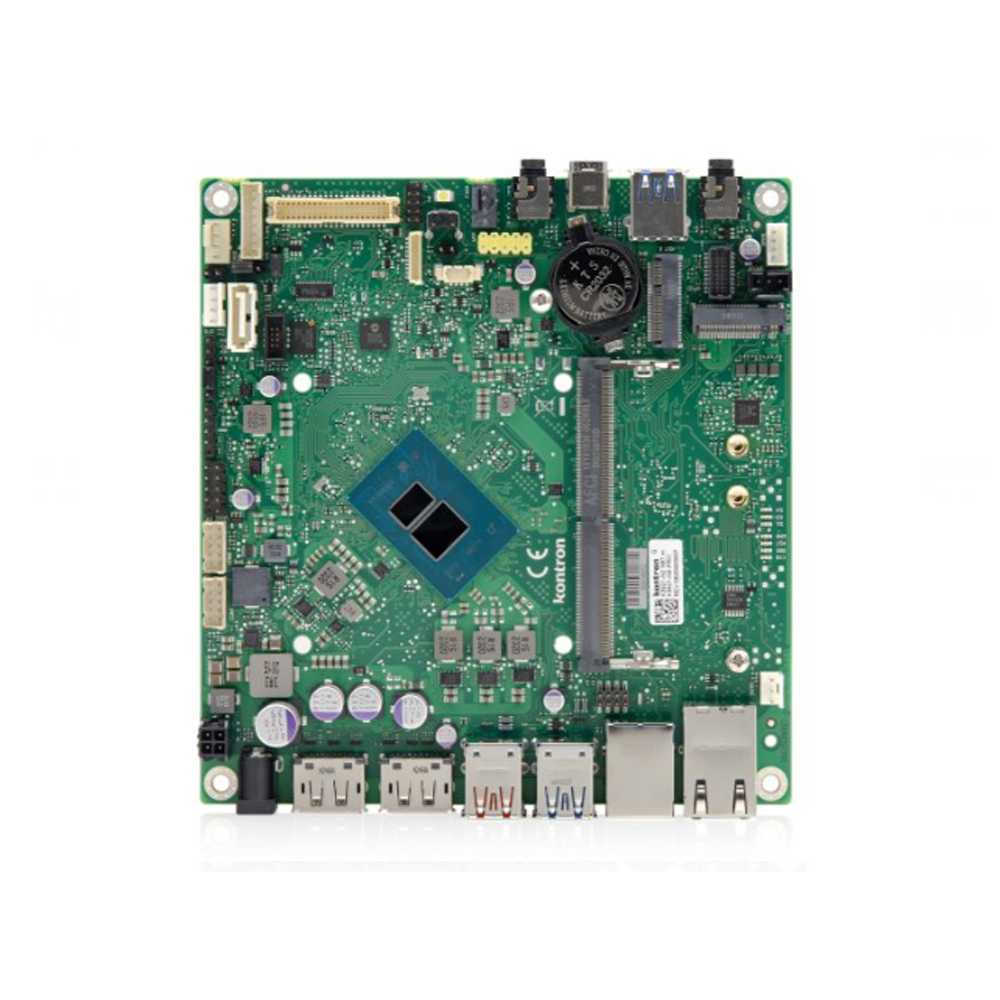

Kontron K3921-N6. Intel N305. Mini-STX - DDR5

The Kontron K3921-N6 is a compact Mini-STX motherboard, ideal for embedded systems integrators, IoT, interactive kiosks, and digital signage. Equipped with the 8-core Intel® Core™ i3-N305 processor, it combines excellent performance with efficient power consumption of only 15 W (SoC).

It supports up to 32 GB of DDR5 memory at 4800 MHz in SODIMM format, Intel® UHD Graphics based on Xe with up to 32 execution units, and compatibility with dual-channel eDP and LVDS displays, making it a perfect choice for embedded visual solutions.

In terms of connectivity, it offers dual Gigabit and 2.5GbE network interfaces with TSN and Teaming support, multiple USB 3.2 Gen1/Gen2 ports, USB-C with Power Delivery, and RS232/422/485 serial outputs. It also includes M.2 slots for NVMe storage and wireless connectivity, as well as GPIO and advanced system control features.

Designed to operate in demanding environments, the K3921-N6 is compatible with Windows 10/11, IoT, and Linux 64-bit in UEFI mode, without support for legacy systems. Versatile, compact, and powerful, the ultimate embedded solution from Kontron!

Key Features...

* 8-core Intel® Core™ i3-N305 processor with a TDP of only 15W.
* Up to 32GB DDR5-4800 in a single SODIMM slot, ideal for modern solutions.

* Dual LAN: 1x GbE + 1x 2.5GbE with TSN and Teaming support.

* eDP or LVDS video outputs (exclusive) with support for up to 4K.

* USB-C with Power Delivery (up to 100W) and USB 3.2 Gen1/Gen2.

* M.2 slots for NVMe storage and wireless connectivity.

* Watchdog timer for BIOS/BOOT/OS and 8-bit GPIO for industrial applications.
