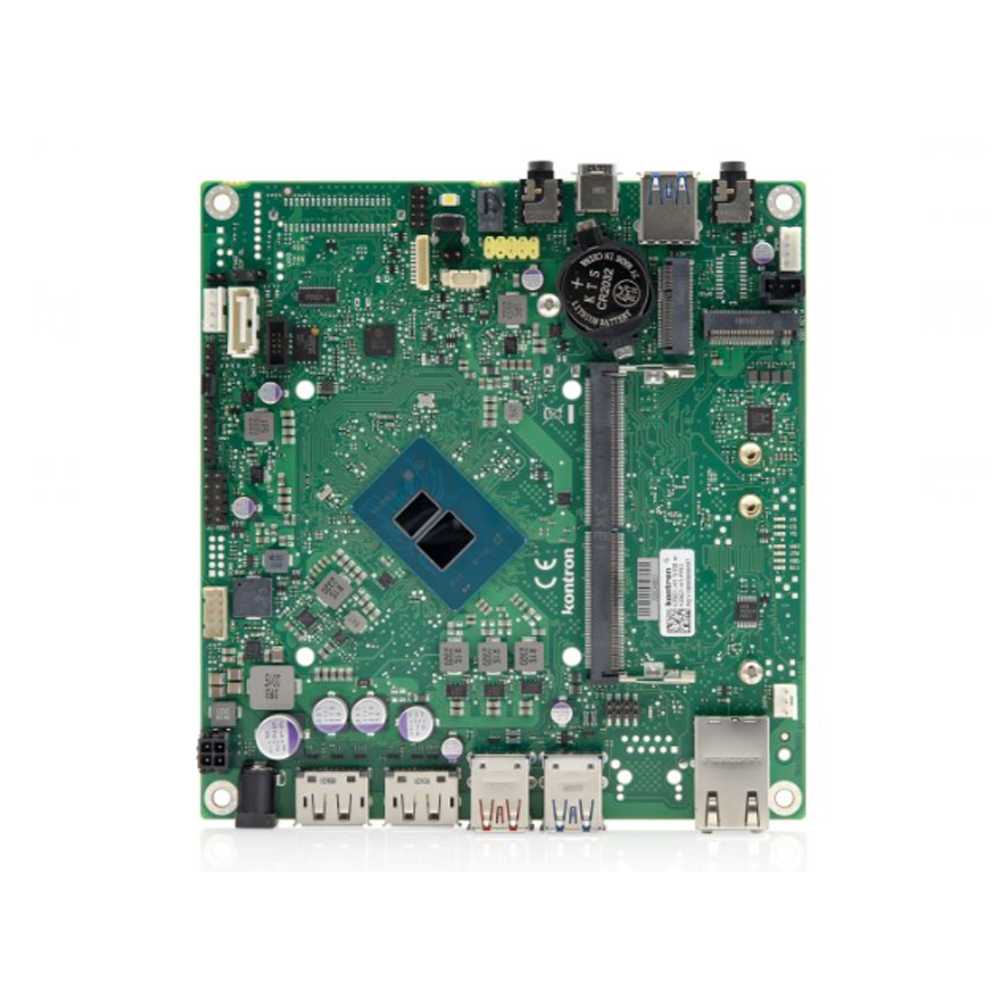

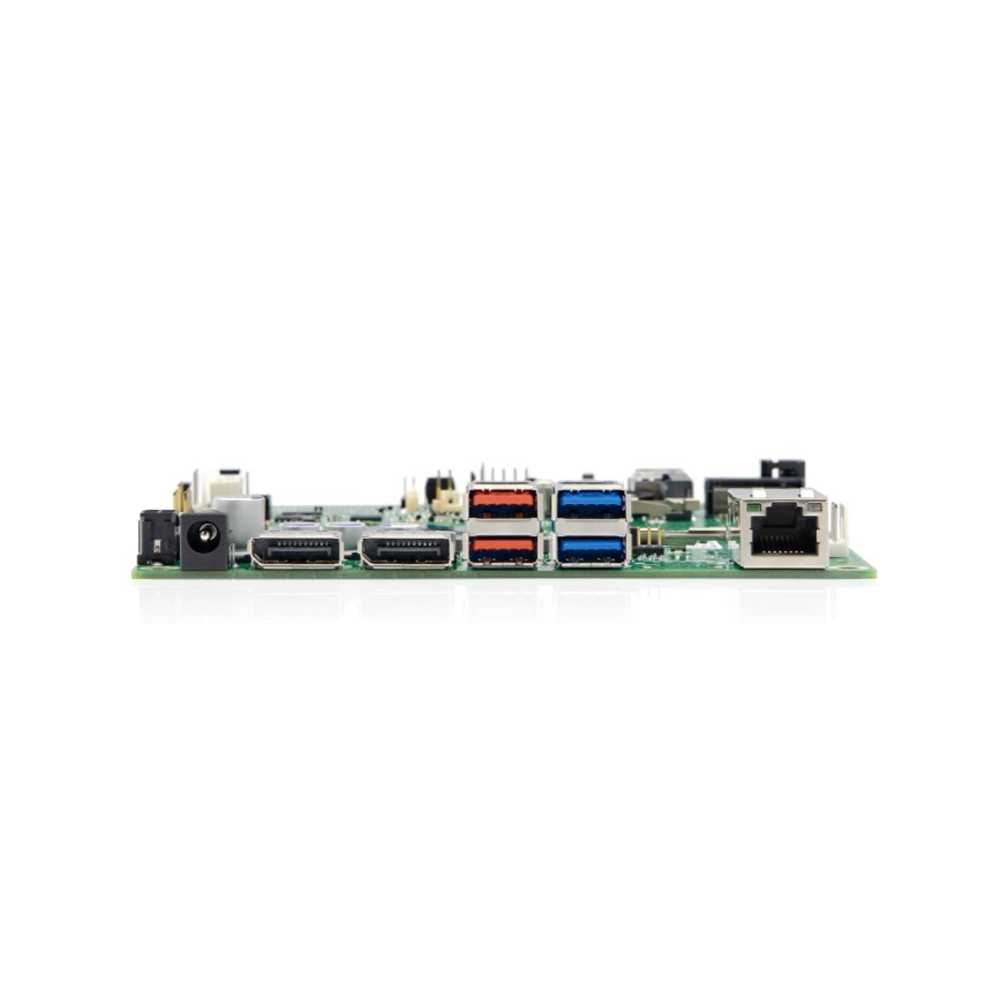

Kontron K3921-H6. Intel N305. Mini-STX - DDR5

The Kontron K3921-H6 is a highly integrated and efficient Mini-STX motherboard designed for embedded systems, thin clients, and compact industrial solutions. Equipped with the 8-core Intel® Core™ i3-N305 processor, it offers an excellent balance between low power consumption (15W) and modern performance.

It supports up to 32GB of DDR5 memory at 4800MHz via a single SODIMM slot, delivering high speed in an ultra-compact form factor. Its integrated Intel® UHD GPU, based on Xe architecture, enables 4K playback, with combined DisplayPort outputs and eDP support for embedded displays.

Connectivity highlights include a variety of USB 3.2 Gen1 and Gen2 ports, a USB-C port with Power Delivery up to 100W, Gigabit LAN, RS232, and dual M.2 slots for NVMe/SATA storage and wireless connectivity. Its design, which does not support legacy systems, ensures compatibility with the latest and most secure environments (UEFI only).

Robust, efficient, and designed for compact integrations, the Kontron K3921-H6 is ideal for digital signage projects, interactive kiosks, automation, and IoT systems. Maximize performance in minimal space!

Key Features...

* Intel® Core™ i3-N305 processor (8 cores, 15W TDP) with efficiency architecture.

* Supports up to 32 GB DDR5-4800 in SODIMM format (non-ECC).

* Intel® UHD Graphics with Xe architecture and up to 4K playback.

* Multiple video output options: eDP, DPP, DPoC.

* M.2 slots for NVMe/SATA storage and WLAN/Bluetooth modules.

* USB-C with Power Delivery (up to 100W), USB 3.2 Gen1/Gen2, and RS232.

* * Ultra-compact Mini-STX form factor and design without legacy support (UEFI Only).
