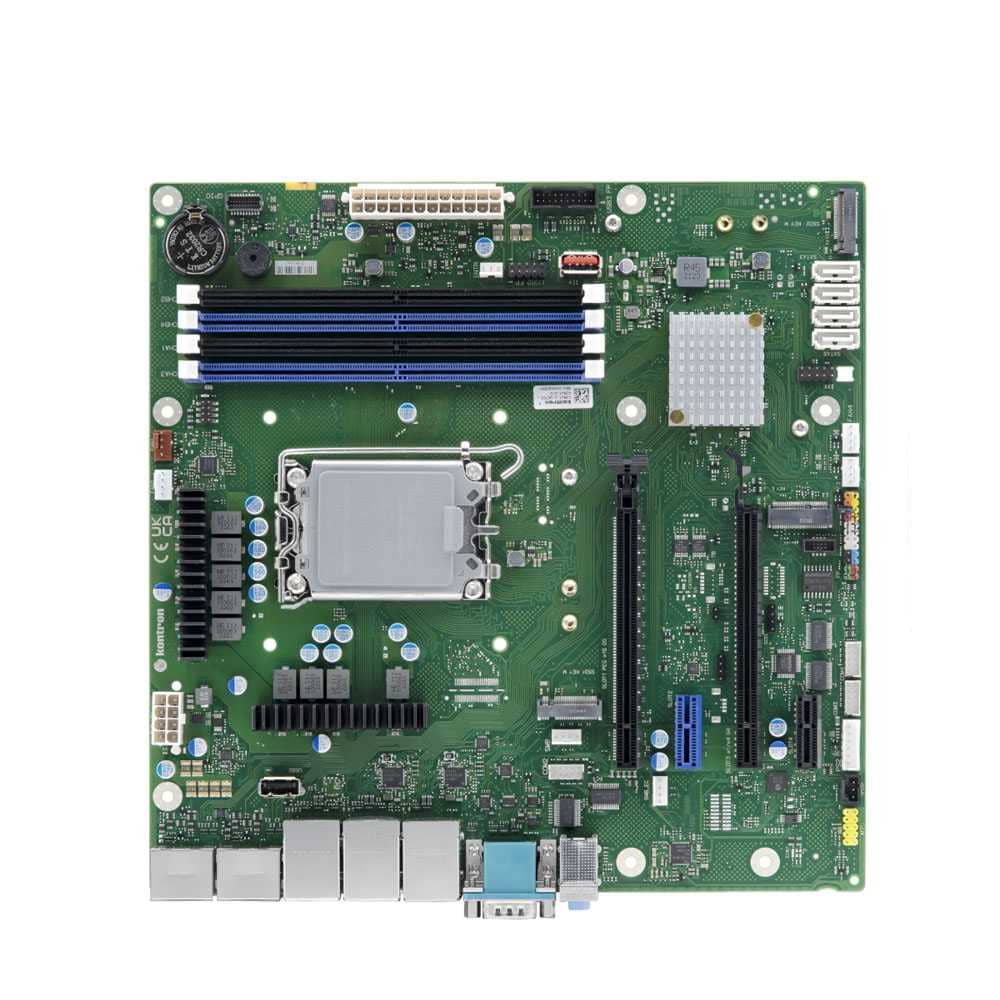

Kontron K3841-Q. Socket 1700. Micro-ATX - DDR5

The Kontron K3841-Q is an industrial-grade Micro-ATX motherboard supporting 12th, 13th, and 14th generation Intel® Core™ processors (LGA 1700), including the new 2 Series CPUs. It features the Intel Q670E chipset, designed for enterprise environments and demanding applications such as industrial automation, kiosks, embedded systems, digital signage, and more.

It supports up to 192 GB of DDR5-4800 memory in a dual-channel configuration and integrates Intel UHD 7xx graphics with DisplayPort 1.4a x4 outputs, enabling connectivity for up to four simultaneous displays. Its robust design includes three Intel LAN ports with support for 2.5GbE and TSN, ideal for real-time environments and mission-critical industrial applications.

It also integrates multiple USB ports, M.2 slots for NVMe SSDs and Wi-Fi/Bluetooth modules, SATA/NVMe RAID support, a watchdog timer, TPM 2.0, and a UEFI BIOS with advanced security features. All of this in a compact Micro-ATX form factor with industry certifications.

Key Features...

* Supports 12th to 14th Generation Intel® Core™ processors (LGA1700)
* Up to 192GB of DDR5-4800 memory, dual channel
* 3 Intel® LAN ports, including 2 x 2.5GbE with TSN
* 4 x DisplayPort 1.4a, integrated UHD graphics for up to 4 displays
* 2 x M.2 slots for NVMe SSDs (RAID supported) + 1 x M.2 Key-E slot for Wi-Fi
* Industrial-grade security: Watchdog, TPM 2.0, write-protected BIOS, EraseDisk
* CE Class B, FCC-B, UKCA, and cTÜVus certifications
