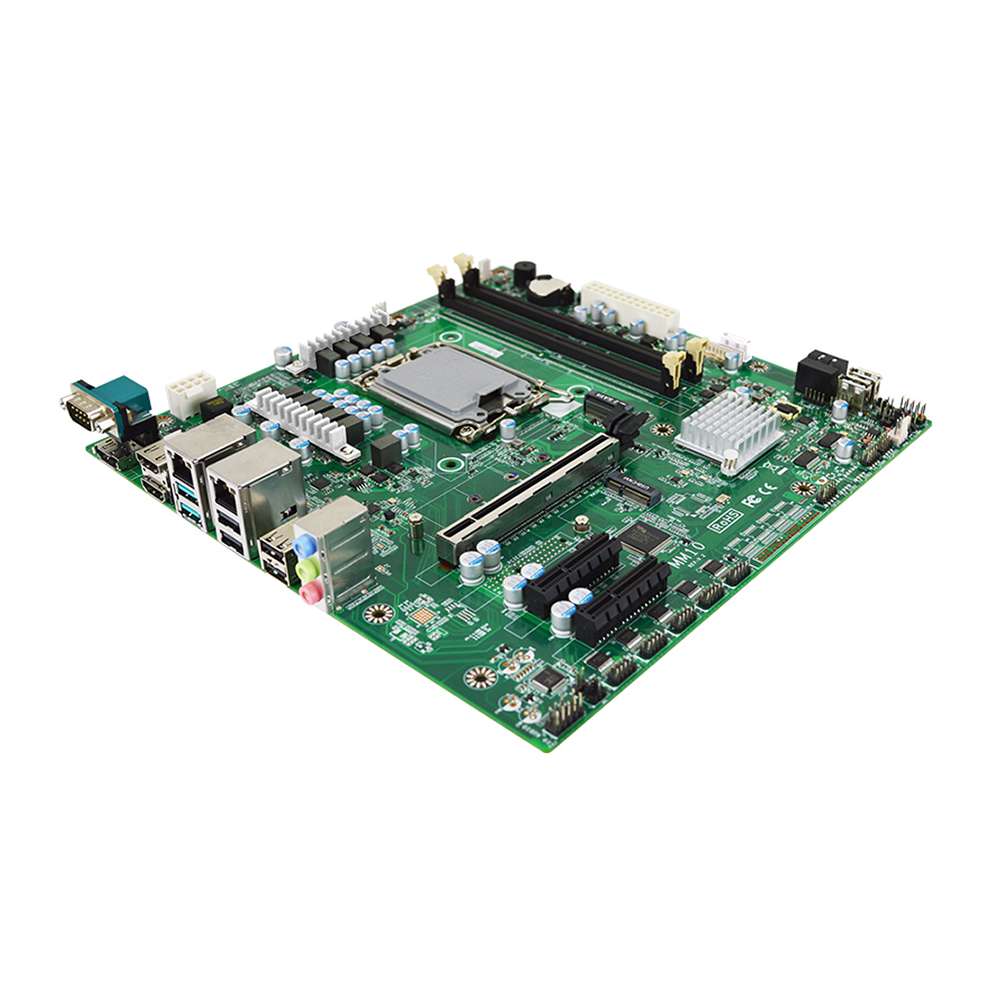

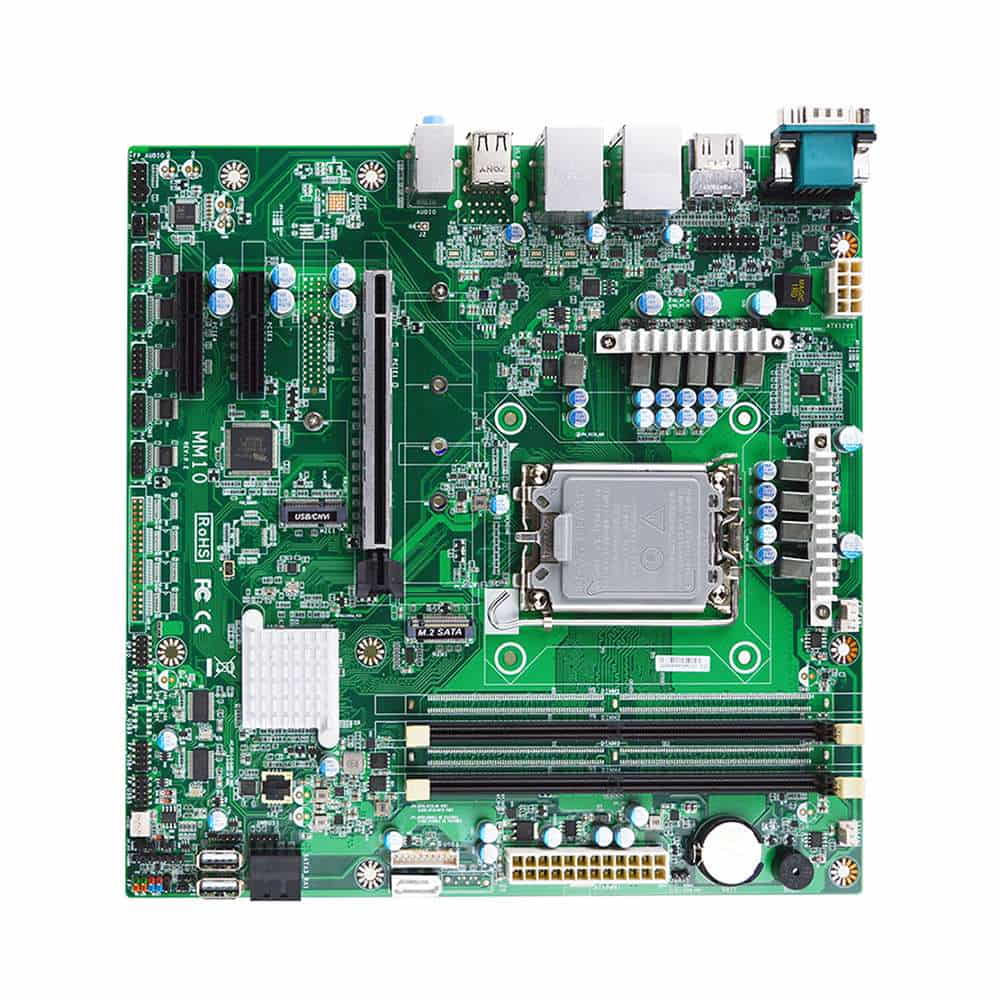

Jetway MM10-H6100 DDR5 MicroATX

The Jetway MM10-H6100 series represents a robust and adaptable solution for industrial and automation systems, taking advantage of the power and versatility of 12th and 13th Generation Intel® processors. This Micro-ATX motherboard not only stands out for its ability to support the latest processors with a TDP of up to 125W, but also for its support for high-speed DDR5 memory, up to 4800MHz, with a maximum capacity of 64GB, providing exceptional performance. for demanding applications.

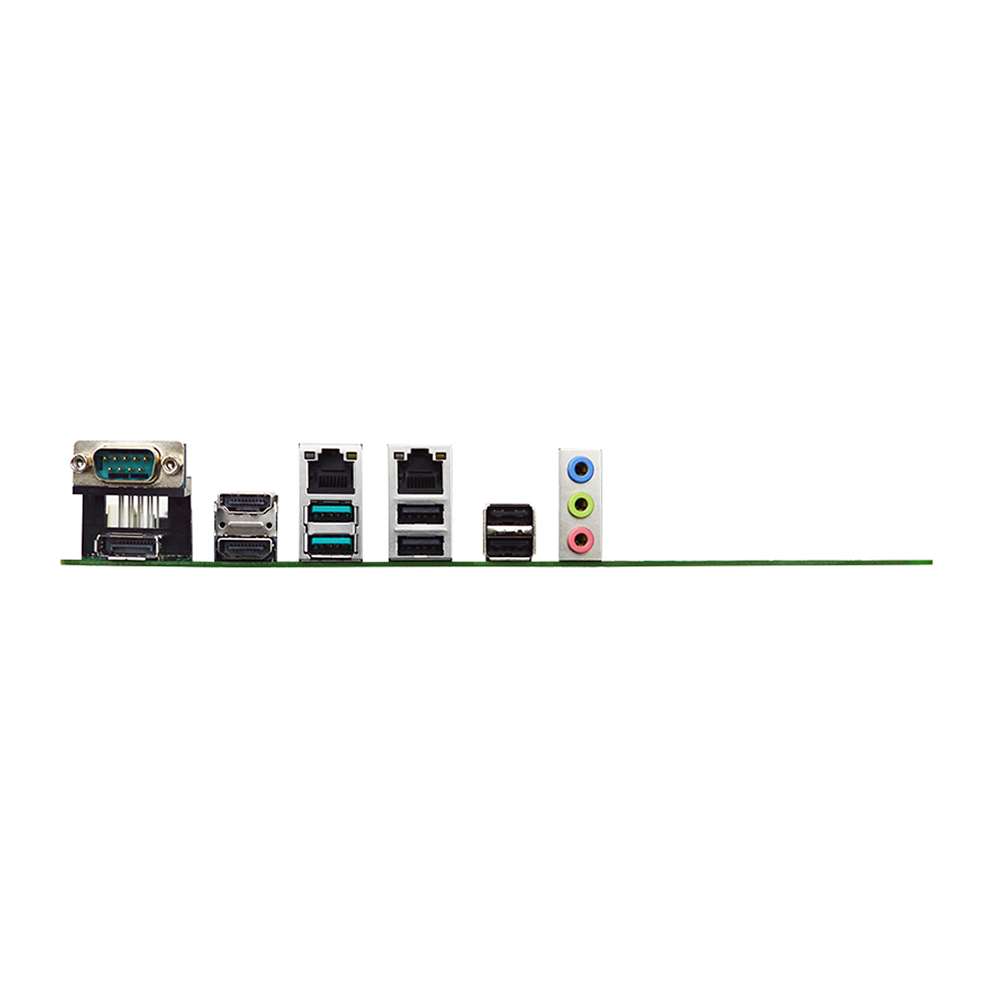

With features geared toward connectivity and expansion, it includes two 10/100/1000 Base-TX Ethernet ports, extensive USB options with two USB3.2 Gen.2 ports, one USB3.2 Gen.1 port, and eleven USB2 ports. 0, along with six COM ports for maximum versatility in connecting peripherals. Its display capabilities are also notable, with support for up to three independent displays via two HDMI 2.0 ports, a DP1.4 port, and a VGA port, making it ideal for environments that require multiple monitoring or advanced workstations.

This set of features makes the MM10-H6100 particularly suitable for a wide range of applications in industrial sectors, factory automation, the public sector, digital security and surveillance systems, providing a solid and flexible foundation for systems that require high reliability and performance.

Main features...

* Compatibility with 12th and 13th Generation Intel® Processors: Support for CPUs with a maximum TDP of 125W, ensuring powerful and efficient performance.
* High Speed DDR5 Memory: Support for up to 64GB of DDR5 memory at 4800MHz, optimizing speed and processing capacity.
* Advanced Network Connectivity: Two integrated 10/100/1000 Base-TX Ethernet ports, ensuring fast and reliable network connections.
* Expansion and Versatility: Extensive expansion options with one PCIe x16 slot, two PCIe x4, and M.2 slots to adapt to different expansion and storage needs.
* Multi-Display Support: Ability to drive up to three independent displays, ideal for applications requiring extensive display configurations.
* Rich Provision of USB Ports: It incorporates two USB3.2 Gen.2, one USB3.2 Gen.1 and eleven USB2.0, offering flexibility in connecting devices.
* TPM 2.0 Support: The MM10-H6102 variant includes support for TPM 2.0, improving system and data security.
