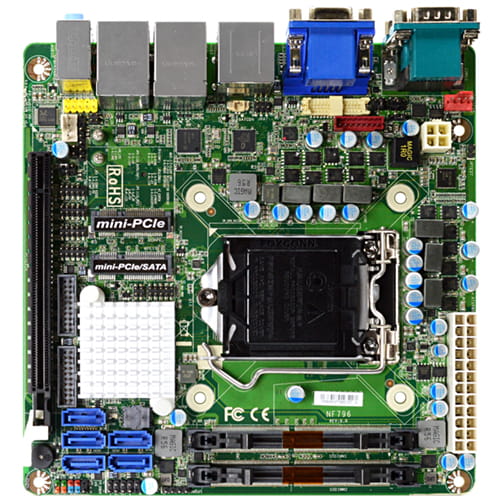

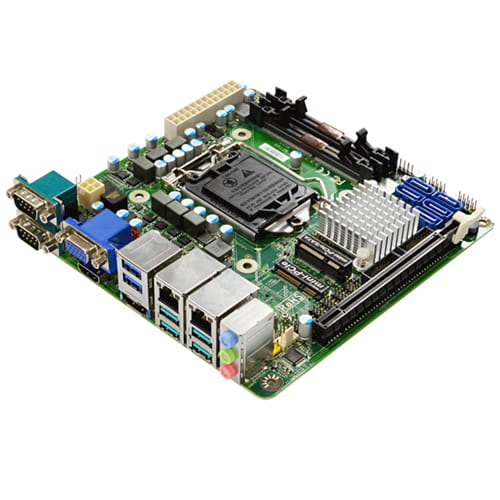

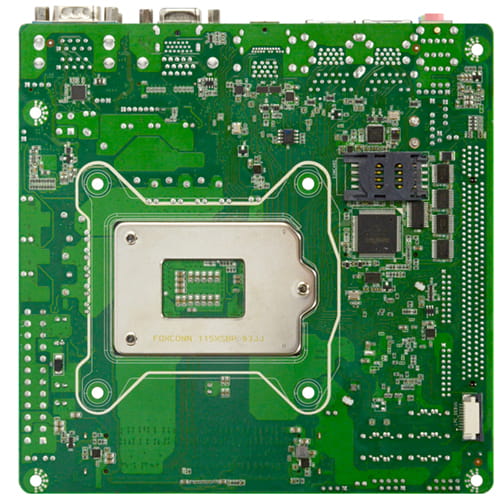

Jetway JNF796-Q370 Socket 1151. VGA + DP + HDMI - SoDIMM DD4

Pn. JNF796-Q370Ean. 4713072789747
Jetway
  • Supports i7, i5, i3 and Pentium processors.
  • 2 network cards.
  • Up to 32 GB of DDR4 So-DIMM memory.
  • 5x SATA III (6Gb/s) with RAID 0, 1, 5, 10 support.

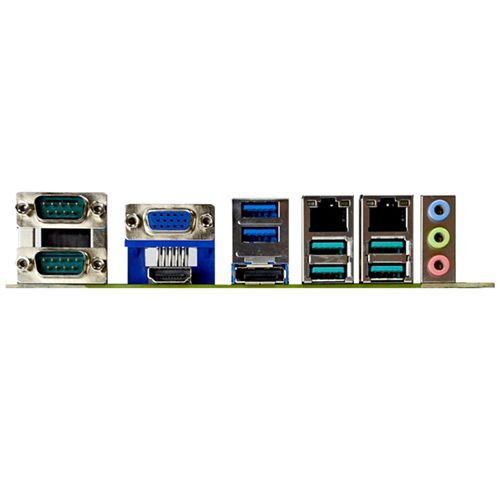

  • 1x HDMI, 1x DP, 1x VGA, 1x 24-bit Dual CH LVDS.
  • 6x COM (COM1/2 support RS232/422/485), 4x USB3.1 Gen.2, 6x USB3.1 Gen.1 & 2x USB2.0.
  • MINI ITX format (170 *170 mm).

The JNF796-Q370 motherboard with LGA 1151 socket supports 8th generation Intel Core i7, i5, i3 and Pentium processors. With a maximum TDP of 65W.

It also has 2 dual-channel DDR4 SODIMM memory slots with up to 32 GB of memory.

It integrates a total of 2 network cards, one with the Intel i219LM chip and the other with the Intel i211-AT chip.

Main features...

* Supports i7, i5, i3 and Pentium processors.
* 2 network cards.
* Up to 32 GB of DDR4 So-DIMM memory.
* 5x SATA III (6Gb/s) with RAID 0, 1, 5, 10 support.
* 1x HDMI, 1x DP, 1x VGA, 1x 24-bit Dual CH LVDS.
* 6x COM (COM1/2 support RS232/422/485), 4x USB3.1 Gen.2, 6x USB3.1 Gen.1 & 2x USB2.0.
* MINI ITX format (170 *170 mm).
