Jetway JNF695HV-3455 Apollo Lake. VGA+HDMI + 10Com+10USB+2Lan ThinMini-ITX con DCDC - SoDIMM DDR3
- Intel Apollo Lake J3455.
- 1x DDR3L 1866MHz SO-DIMM up to 8GB.
- 2x 10/100/1000 Base-TX Ethernet.
- Support HDMI/VGA/LVDS/eDP.
- 10x COM, 4x USB3.0, 6x USB2.0.
- 1x Mini PCIe.
- 1x SATAIII (6Gb/s), 1x M.2 (M-key, 2242/2260).

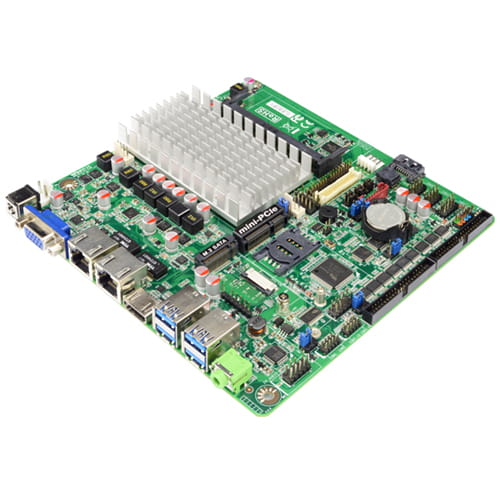

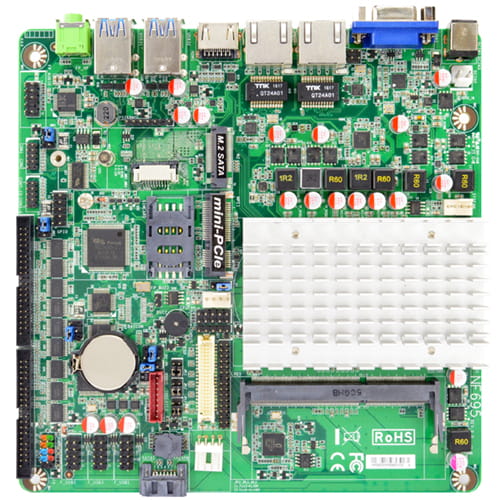

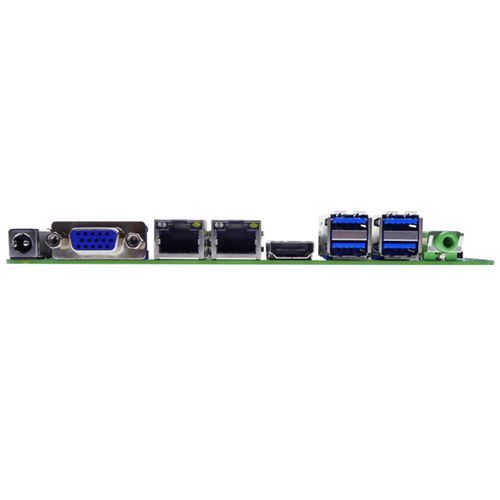

The Jetway JNF695 is a Slim Mini-ITX form factor board that adopts the Intel Apollo Lake SoC.
The board supports 1866 MHz DDR3L SO-DIMM memory, up to 8 GB.
With the integrated Realtek Gigabit Ethernet controller, the JNF695 offers 10/100/1000Base-TX Ethernet devices for network transmission.
The SATAIII interface (6 Gb/s) and one M.2 (M key, 2242/2260) offer storage devices. One Mini PCIe interface, four USB3.0 ports, two to six USB2.0 ports and two to ten COM ports provide versatile expansion.
The JNF695 offers an eDP interface that can support max. 4K resolution @ 60Hz. Due to the above features, JNF695 is one of the best selections for digital signage and automation applications.
Main features...
*Intel Apollo Lake J3455.
* 1x DDR3L 1866MHz SO-DIMM up to 8GB.
* 2x 10/100/1000 Base-TX Ethernet.
* Support HDMI/VGA/LVDS/eDP.
* 10x COM, 4x USB3.0, 6x USB2.0.
* 1x Mini PCIe.
* 1x SATAIII (6Gb/s), 1x M.2 (M-key, 2242/2260).
