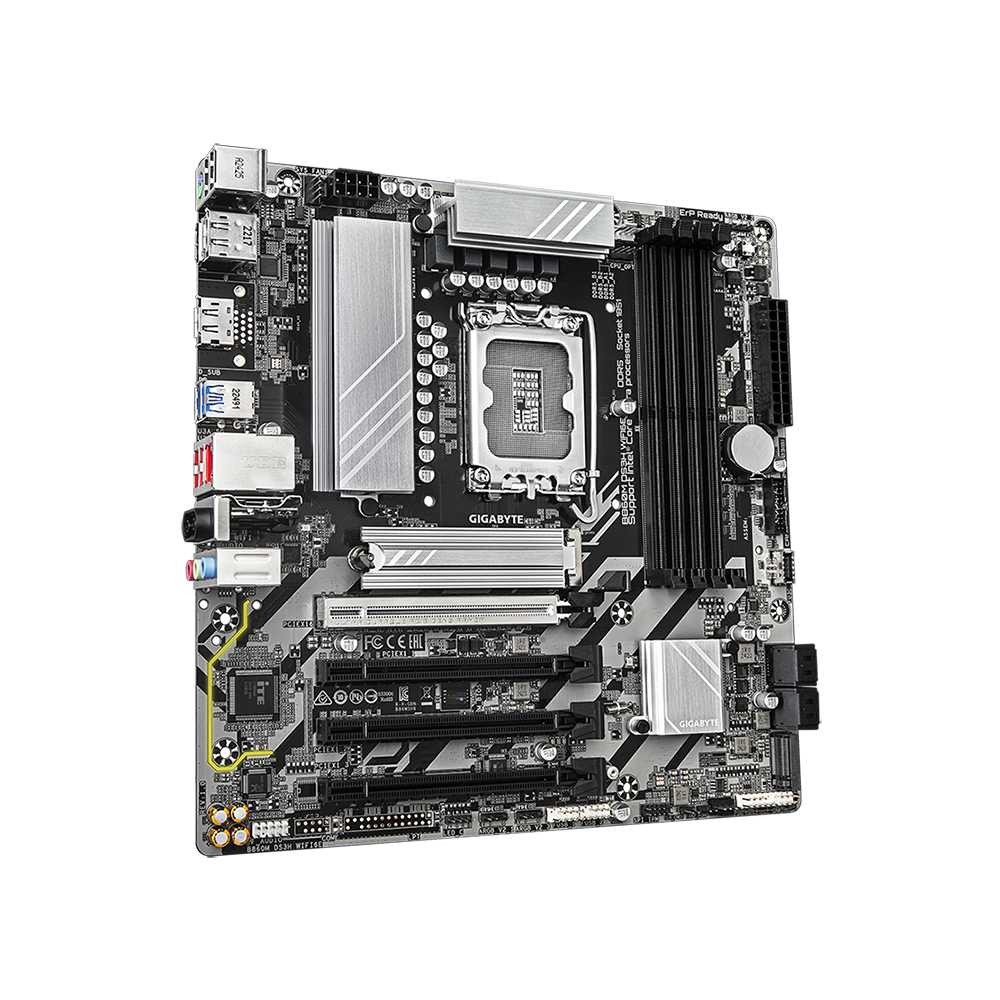

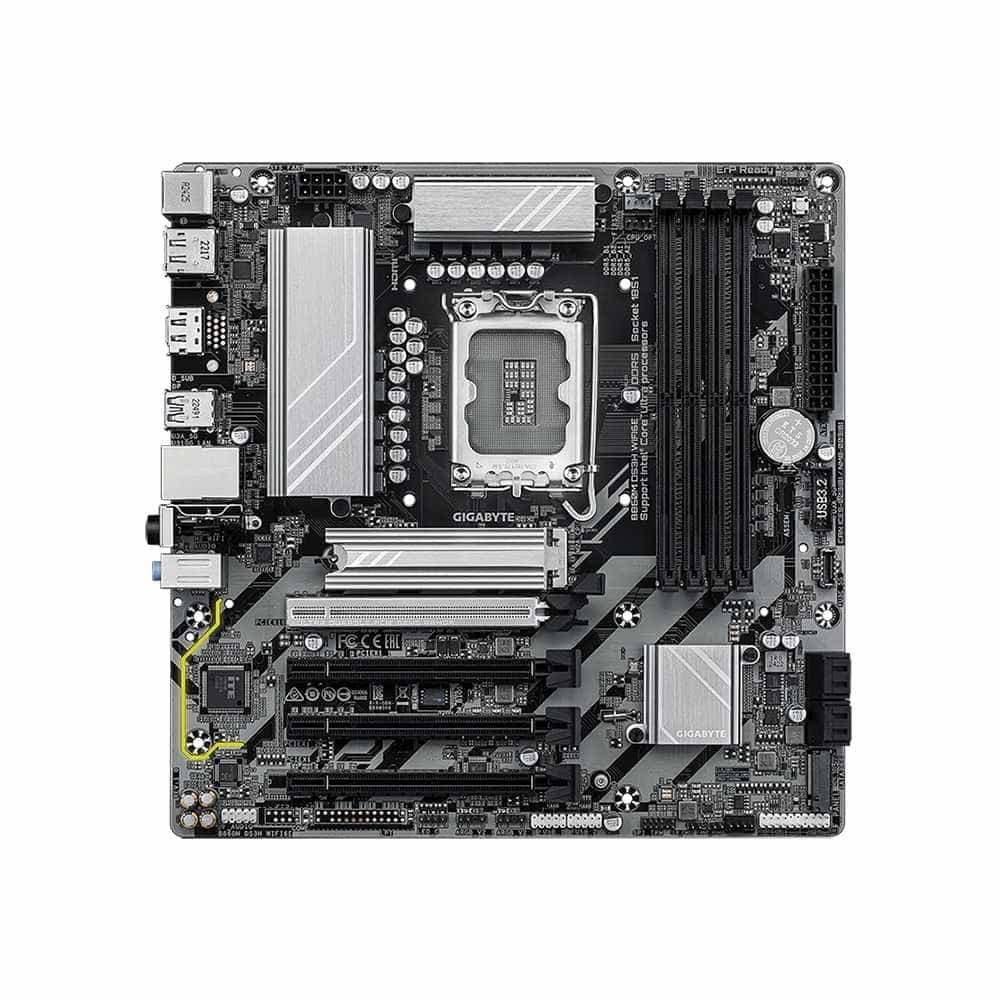

Gigabyte B860M DS3H WiFi6E. Socket 1851. Micro-ATX - DDR5

The Gigabyte B860M DS3H WIFI6E is a high-performance Micro ATX motherboard, designed for Intel® Core™ Ultra processors in socket LGA1851, with the powerful Intel® B860 Express chipset. Thanks to its support for DDR5 memory up to 9066 MT/s (O.C.) and a maximum capacity of 256GB, this motherboard is ideal for gaming, productivity and advanced multitasking.

Equipped with integrated Intel® HD graphics, the B860M DS3H WIFI6E allows a configuration of up to three simultaneous screens, with two DisplayPort 2.1 (4K@144Hz) and one HDMI 2.1 (4K@60Hz). Its high-definition audio with Realtek® Audio CODEC offers surround sound with 7.1 channel support and S/PDIF output.

In terms of storage, it features two M.2 PCIe slots (one 5.0 and one 4.0) and 4 SATA 6Gb/s ports, supporting RAID 0, 1, 5 and 10, providing flexible, high-performance options. In addition, its PCIe 5.0 x16 slot is perfect for next-generation graphics cards, while its three PCIe 4.0 x1 slots offer additional expansion capacity.

With Wi-Fi 6E, Bluetooth 5.3 and 2.5GbE LAN, the Gigabyte B860M DS3H WIFI6E is an excellent choice for users looking for performance, advanced connectivity and compatibility with the latest technologies.

Key Features...

* Supports Intel® Core™ Ultra (LGA1851) and Intel® B860 chipset
* DDR5 memory up to 9066 MT/s (O.C.) with capacity up to 256GB
* Integrated Intel® HD Graphics with 2 DisplayPorts 2.1 (4K@144Hz) and 1 HDMI 2.1 (4K@60Hz)
* Wi-Fi 6E and Bluetooth 5.3 for next-generation wireless connectivity
* 2.5GbE LAN for a stable and fast connection
* 1 PCIe 5.0 x16 slot for graphics cards and 3 PCIe 4.0 x1 for expansion
* 2 M.2 slots (PCIe 5.0 and 4.0) and 4 SATA 6Gb/s ports with RAID support
* Micro ATX form factor, ideal for compact and high-performance configurations
