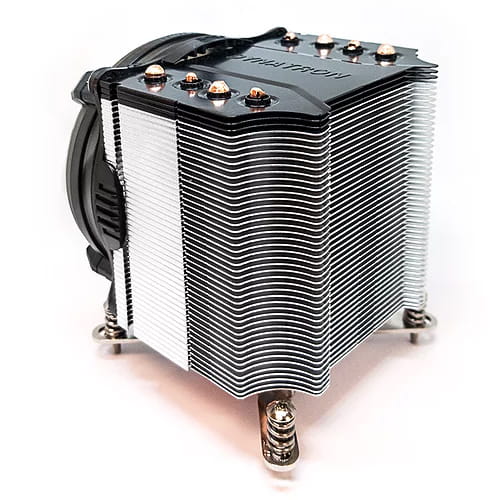

Dynatron R17 2011 Rack 3U Activo

Dynatron R17, designed to be used in rack-type or special format boxes, which due to their dimensions require the use of a cooler that provides efficient performance in little space. This cooler is suitable for 3U rack boxes and is compatible with socket 2011.

In addition, it can also be used in 4U rack equipment and Workstation and Tower Desktop Solution equipment (such as the Inwin PE series boxes).

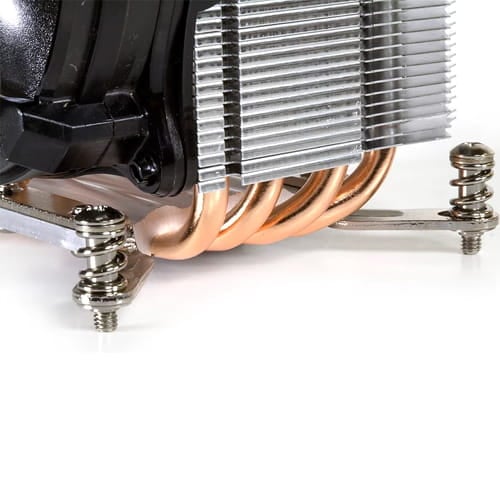

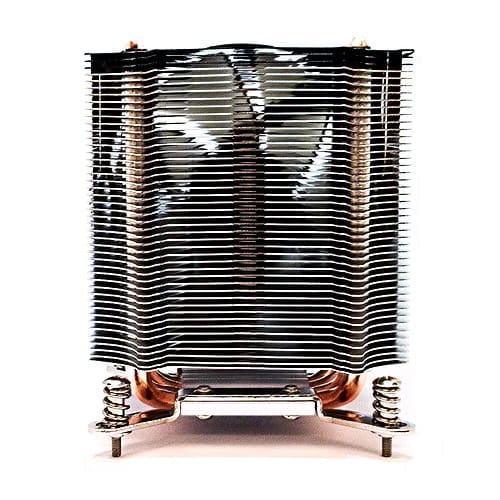

The base of the Dynatron R17 is made of copper, with high-density aluminum sheets, between which four heat-pipe tubes circulate in direct contact with the microphone, located in a U shape.

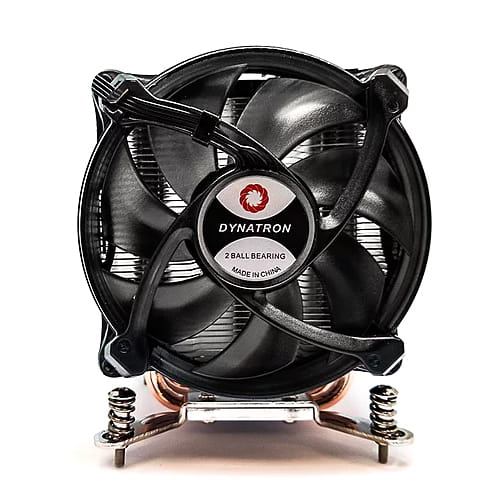

Includes a 92mm diameter and 25mm wide silent fan, regulated by PWM.

The set achieves a dissipation power of 160W. It does not include the rear support, backplate, its fixation is done using screws and complies with Rohs regulations.

For its installation, it is necessary that the motherboard includes the backplate installed by default.

Main features...

* Efficient performance for 3U rack.
* Dissipation power of 160W.
* Direct contact heat-pipe technology.
*PWM regulated fan included.
* Requires backplate for installation, not included.
*Includes pre-installed Shin-Etsu G751 thermal paste.
