Cyberpower PDU31406

Pn. PDU31406Ean. 4712856277180

0U vertical rackmount monitored PDU designed to maximize usable rack space.
32A IEC 60309 single-phase input supporting 200–240V AC operation.
42 front outlets: 36 × IEC C13 and 6 × IEC C19 distributed across two 20A protected banks.
High-precision ±1% power metering with color LCD display and automatic orientation.
Advanced remote management with SNMPv1/v3, IPv4/v6, HTTP/HTTPS, SSH, SSL/TLS, and Syslog support.
Environmental monitoring support with ENVIROSENSOR compatibility and daisy-chain ports.
Compatible with PowerPanel Business and PowerPanel Enterprise management software.

The CyberPower PDU31406 is a high-density monitored Power Distribution Unit designed for professional data centers and enterprise IT environments. With a 0U vertical rackmount form factor and robust steel construction, it maximizes rack space while delivering reliable and intelligent power distribution.

Operating on 200–240V single-phase power with a 32A IEC 60309 input connector, this PDU provides exceptional capacity for demanding infrastructures. It features 42 front-facing outlets (36 × IEC C13 and 6 × IEC C19) across two load banks, each protected by a 20A circuit breaker for enhanced electrical safety.

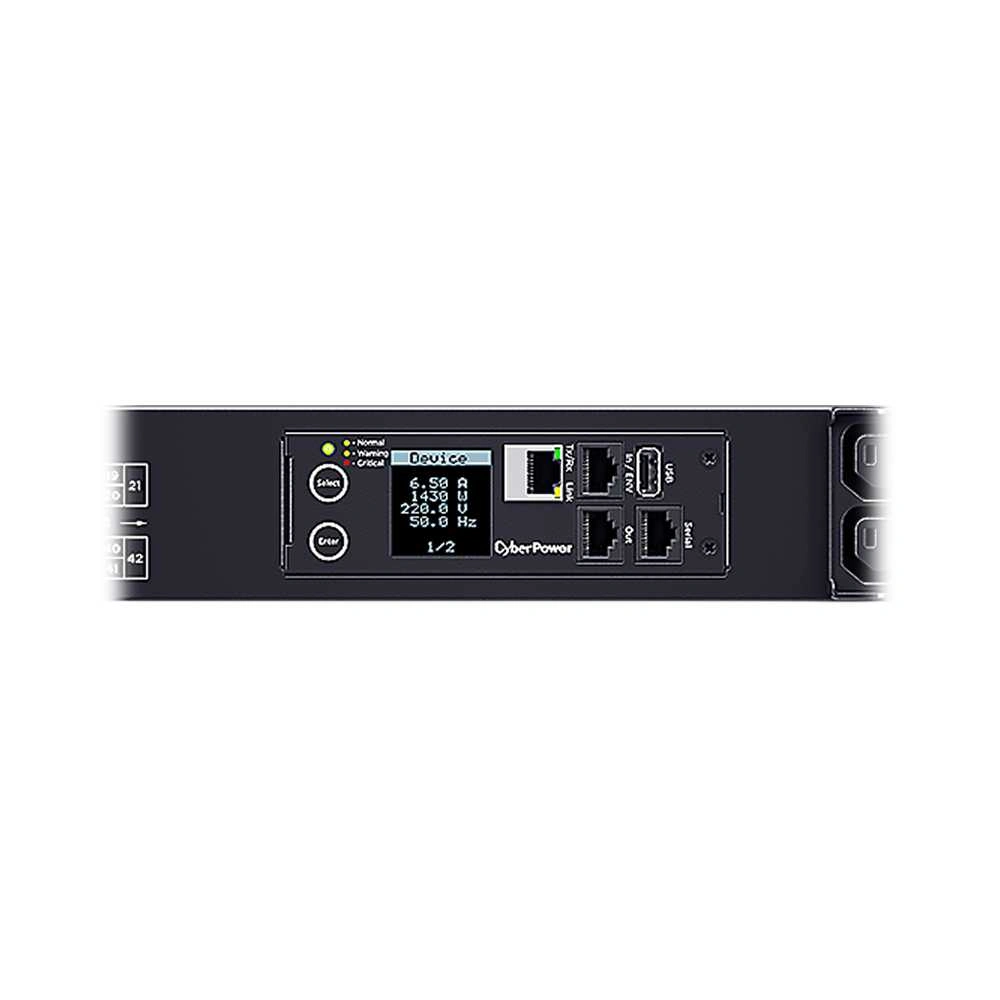

The integrated color LCD display offers ±1% metering accuracy and real-time monitoring of voltage, frequency, current, energy consumption, and network information. With full network connectivity, IPv4/IPv6 support, SNMP, secure protocols, environmental sensor compatibility, and daisy-chain capability, it enables advanced remote management and infrastructure visibility.

Engineered for performance, scalability, and precision, the CyberPower PDU31406 is the ideal solution for high-density rack deployments. Optimize your power management with intelligent monitoring and enterprise-grade reliability.

Main Features

* 0U vertical monitored PDU for high-density rack environments.
* 32A single-phase input via IEC 60309 connector (200–240V).
* 42 total outlets: 36 × IEC C13 and 6 × IEC C19 across two protected banks.
* ±1% metering accuracy with real-time LCD monitoring.
* Full network management with SNMP, HTTP/HTTPS, SSH, and IPv4/IPv6 support.
* Compatible with environmental sensors and daisy-chain connectivity.
* High-temperature operation up to 55°C for demanding data center conditions.

Product Name	CyberPower PDU31406
Type	Monitored PDU
Phase	Single-phase
Nominal Input Voltage	200 ~ 240 VAC
Input Frequency	50 / 60 Hz
Maximum Input Current	32 A (CE)
Input Connector	1 × IEC 60309 32A
Power Cord Length	3.05 m (10 ft)
Total Outlets	42 front outlets (36 × IEC C13, 6 × IEC C19)
Outlet Banks	2 banks
Overload Protection	Circuit breaker; 20A overcurrent protection per bank
Metering Accuracy	±1%
LCD Display	Color LCD with automatic orientation displaying voltage, frequency, current, energy consumption, network info, serial number, environmental status, hardware and firmware versions
Connectivity Ports	RJ45 (network), RJ45 (serial), RJ45 (ENVIROSENSOR/daisy-chain in), RJ45 (daisy-chain out), USB Type-A
Supported Protocols	IPv4/v6, SNMPv1/v3, HTTP/HTTPS, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, Syslog
Authentication	RADIUS, LDAP, LDAPS, Windows AD
Management Software	PowerPanel Business; PowerPanel Enterprise
Form Factor	0U vertical rackmount
Construction	Steel enclosure, black finish
Dimensions	56 × 1665 × 48 mm (2.2 × 65.5 × 1.9 in)
Weight	5.6 kg (12.4 lbs)
Operating Temperature	0 ~ 55 °C (32 ~ 131 °F)
Operating Humidity	0 ~ 95% non-condensing
Operating Altitude	0 – 3,500 m (0 – 11,480 ft)
Certifications	CE, EN 55032 Class A, EN 55035, RoHS compliant
