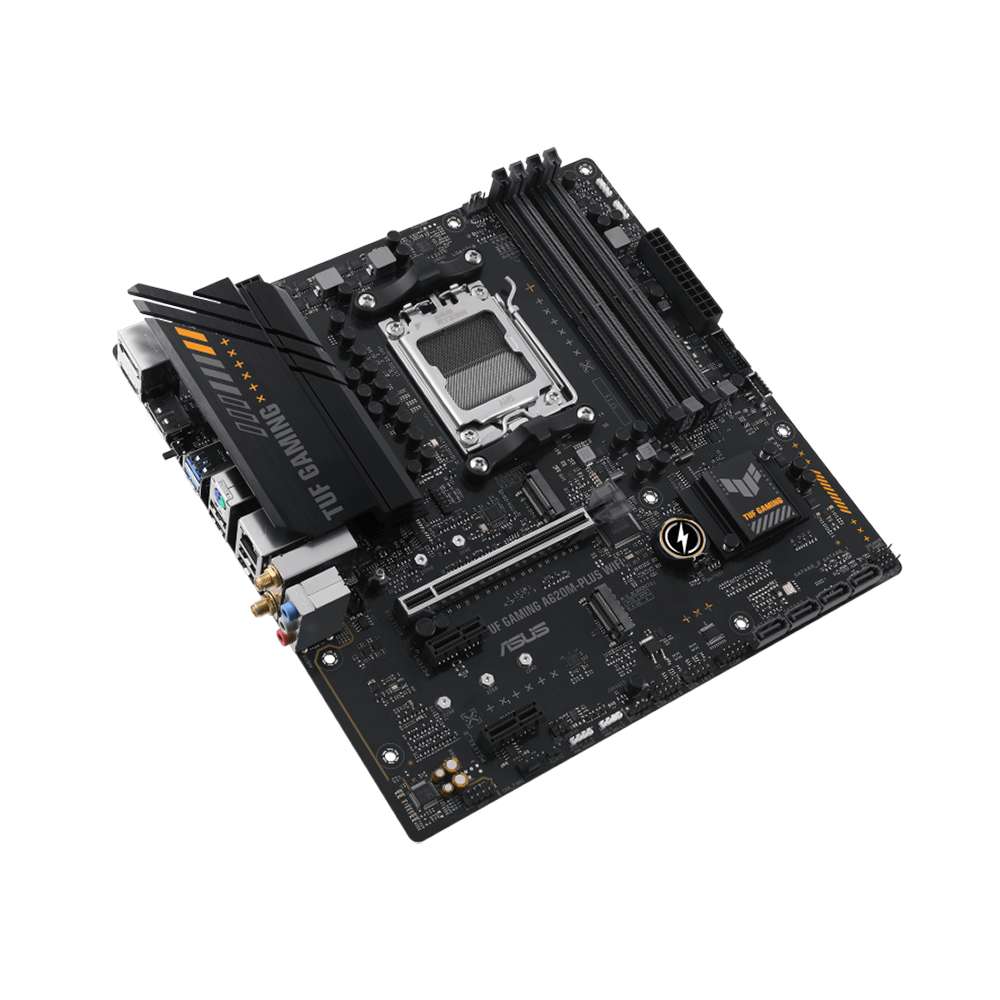

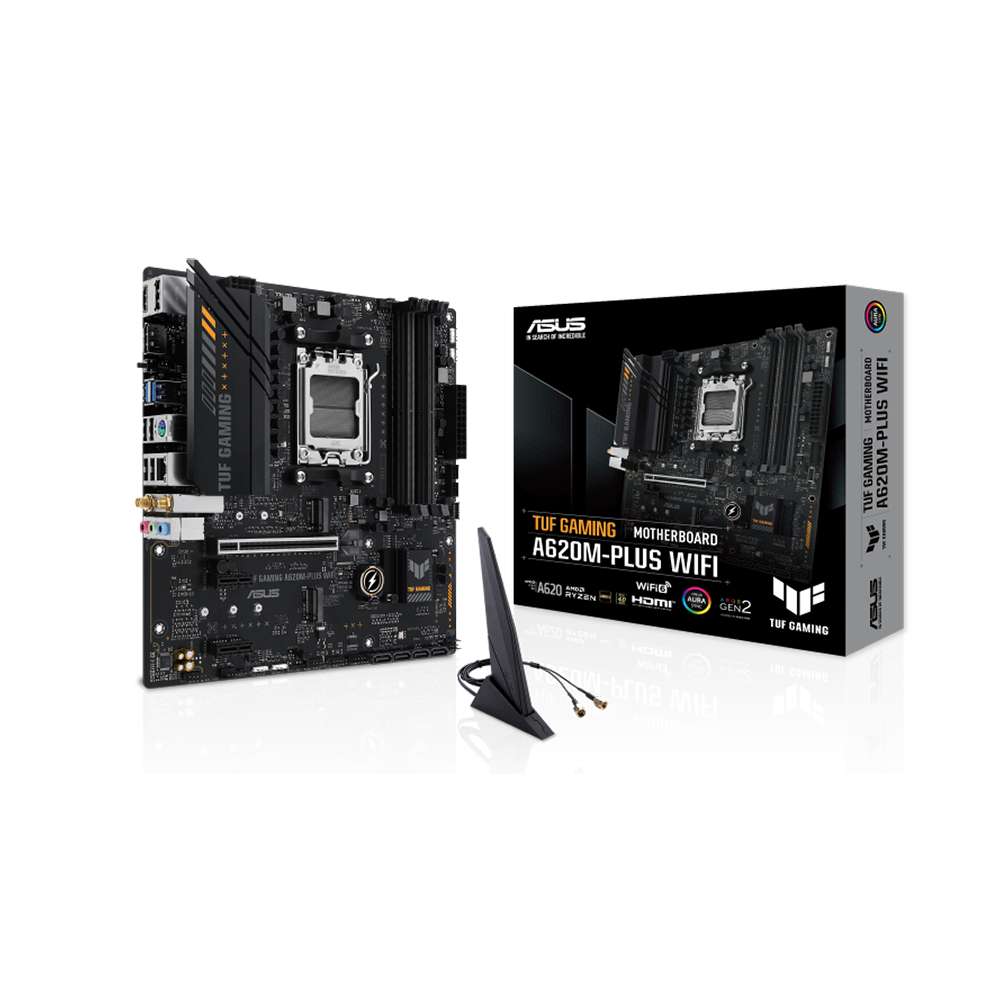

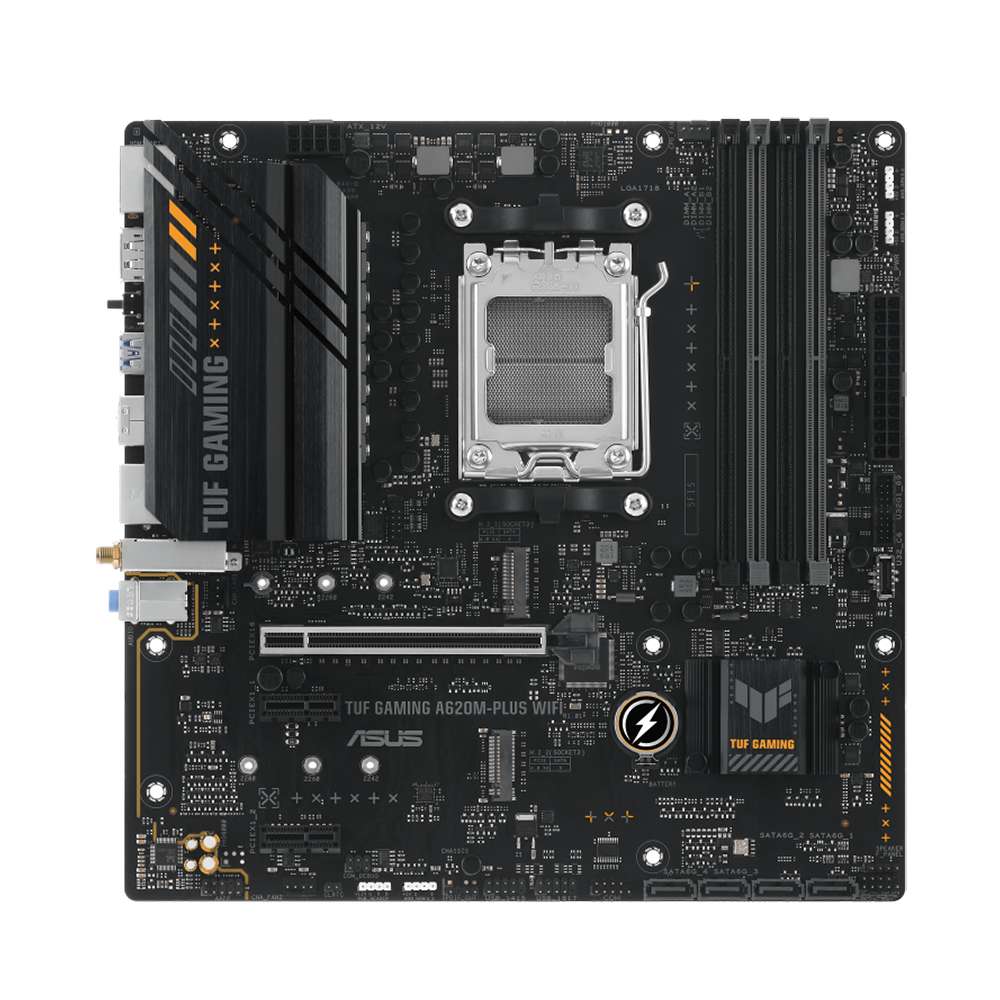

Asus TUF Gaming A620M-Plus WiFi. Socket AM5. Micro-ATX. - DDR5
- Socket de procesador: Zócalo AM5.
- Procesador compatible: AMD Ryzen 5 7th Gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen.
- Tipos de memoria compatibles: DDR5-SDRAM.
- Memoria interna máxima: 128 GB.
- Interfaces de disco de almacenamiento soportados: M.2, SATA III.
- Niveles RAID: 0, 1, 10.
- Formato: Micro-ATX.
de garantía
asegurado
pago seguro
Motherboard AMD A620 (Ryzen AM5) micro-ATX con DDR5, PCIe 4.0, dos puertos M.2, 2 x DisplayPort, HDMI™, Realtek 2.5Gb Ethernet, Wi-Fi 6, USB 3.2 Gen 1 Type-C® frontal, SATA 6 Gbps, BIOS FlashBack™, M.2 Q-Latch, cancelación de ruido AI bidireccional e iluminación Aura Sync RGB.
Socket AMD AM5: Listo para procesadores de escritorio AMD Ryzen™ Serie 7000.
Solución de alimentación mejorada: PCB de seis capas, chokes de aleación, componentes TUF de grado militar y DIGI+ VRM para máxima durabilidad.
ASUS OptiMem II: Enrutamiento cuidadoso de trazas y vías, además de optimizaciones de la capa base para preservar la integridad de la señal para mejorar el overclocking de la memoria.
Enfriamiento integral: Disipador de calor VRM mejorado, disipador de calor PCH, puertos de ventilador híbrido y Fan Xpert 2+.
Conectividad ultrarrápida: PCIe 4.0, dos puertos M.2, USB 3.2 Gen 1 Tipo-A y USB 3.2 Gen 1 Tipo-C® frontal.
Hecha para juegos en línea: Wi-Fi 6, Realtek 2.5Gb Ethernet, TUF LANGuard.
Iluminación Aura Sync RGB: Puertos Gen 2 direccionables incorporados para tiras de LED RGB, sincronizados fácilmente con hardware compatible con Aura Sync.
Cancelación de ruido de IA bidireccional: Reduce el ruido de fondo del micrófono y la salida de audio para una comunicación nítida en juegos o videoconferencias.
Principales características...
* Socket de procesador: Zócalo AM5.
* Procesador compatible: AMD Ryzen 5 7th Gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen.
* Tipos de memoria compatibles: DDR5-SDRAM.
* Memoria interna máxima: 128 GB.
* Interfaces de disco de almacenamiento soportados: M.2, SATA III.
* Niveles RAID: 0, 1, 10.
* Formato: Micro-ATX.
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors |
| Chipset | AMD A620 Chipset |
| Memoria | 4 x DIMM slots, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Gráficos | 2 x DisplayPort** 1 x HDMI™ port*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Support max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| LAN | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Ranuras de expansión | AMD Ryzen™ 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot AMD A620 Chipset 2 x PCIe 3.0 x1 slots * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Almacenamiento | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD A620 Chipset 4 x SATA 6Gb/s ports |
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
| Conectores E/S internos | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |

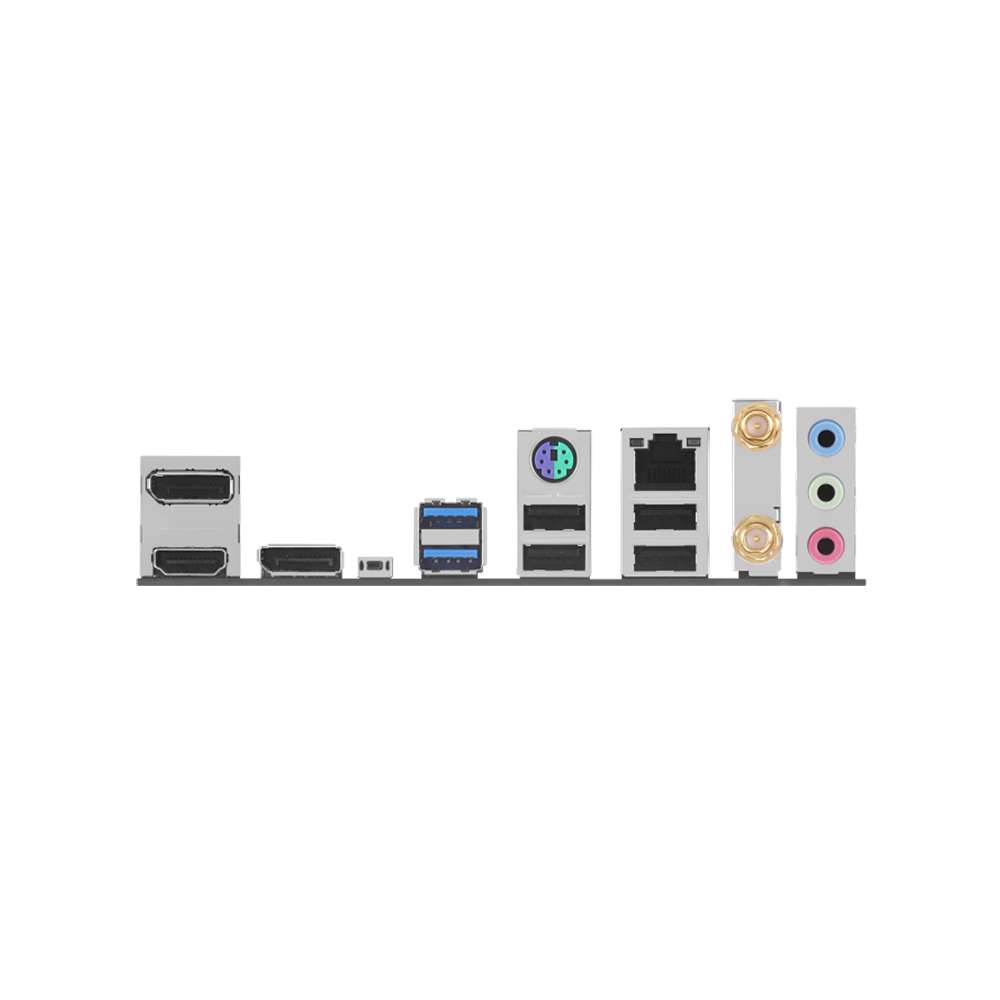

| Conectores E/S traseros | 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 2 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x PS/2 Keyboard/Mouse combo port |
| S.O. soportado | Windows® 11, Windows® 10 64-bit |
| Formato | Micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Motherboard AMD A620 (Ryzen AM5) micro-ATX con DDR5, PCIe 4.0, dos puertos M.2, 2 x DisplayPort, HDMI™, Realtek 2.5Gb Ethernet, Wi-Fi 6, USB 3.2 Gen 1 Type-C® frontal, SATA 6 Gbps, BIOS FlashBack™, M.2 Q-Latch, cancelación de ruido AI bidireccional e iluminación Aura Sync RGB.
Socket AMD AM5: Listo para procesadores de escritorio AMD Ryzen™ Serie 7000.
Solución de alimentación mejorada: PCB de seis capas, chokes de aleación, componentes TUF de grado militar y DIGI+ VRM para máxima durabilidad.
ASUS OptiMem II: Enrutamiento cuidadoso de trazas y vías, además de optimizaciones de la capa base para preservar la integridad de la señal para mejorar el overclocking de la memoria.
Enfriamiento integral: Disipador de calor VRM mejorado, disipador de calor PCH, puertos de ventilador híbrido y Fan Xpert 2+.
Conectividad ultrarrápida: PCIe 4.0, dos puertos M.2, USB 3.2 Gen 1 Tipo-A y USB 3.2 Gen 1 Tipo-C® frontal.
Hecha para juegos en línea: Wi-Fi 6, Realtek 2.5Gb Ethernet, TUF LANGuard.
Iluminación Aura Sync RGB: Puertos Gen 2 direccionables incorporados para tiras de LED RGB, sincronizados fácilmente con hardware compatible con Aura Sync.
Cancelación de ruido de IA bidireccional: Reduce el ruido de fondo del micrófono y la salida de audio para una comunicación nítida en juegos o videoconferencias.
Principales características...
* Socket de procesador: Zócalo AM5.
* Procesador compatible: AMD Ryzen 5 7th Gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen.
* Tipos de memoria compatibles: DDR5-SDRAM.
* Memoria interna máxima: 128 GB.
* Interfaces de disco de almacenamiento soportados: M.2, SATA III.
* Niveles RAID: 0, 1, 10.
* Formato: Micro-ATX.
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors |
| Chipset | AMD A620 Chipset |
| Memoria | 4 x DIMM slots, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Gráficos | 2 x DisplayPort** 1 x HDMI™ port*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Support max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| LAN | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Ranuras de expansión | AMD Ryzen™ 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot AMD A620 Chipset 2 x PCIe 3.0 x1 slots * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Almacenamiento | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD A620 Chipset 4 x SATA 6Gb/s ports |
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
| Conectores E/S internos | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
| Conectores E/S traseros | 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 2 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x PS/2 Keyboard/Mouse combo port |
| S.O. soportado | Windows® 11, Windows® 10 64-bit |
| Formato | Micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
