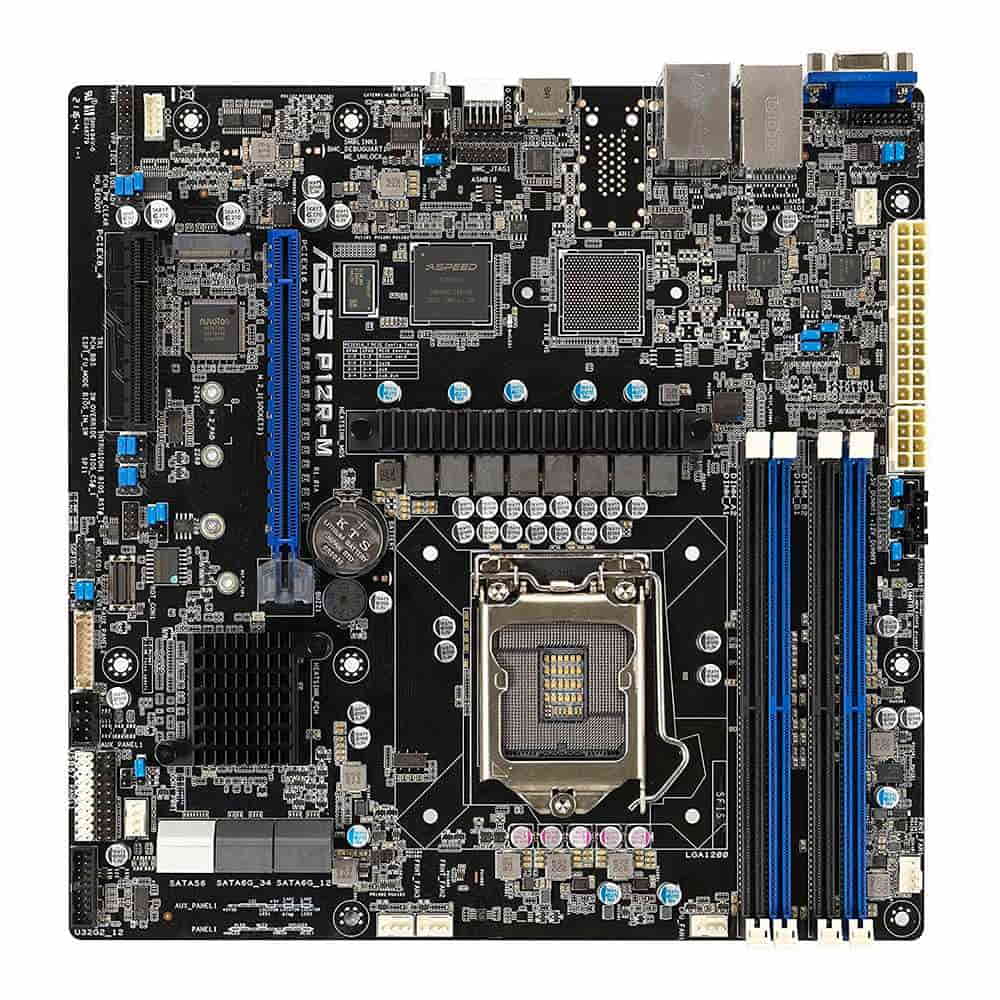

Asus P12R-M. Socket 1200. Micro-ATX.

PCI Express® (PCIe® ) 4.0 offers a bandwidth of 16 GT/s, which is twice the speed of PCIe 3.0, offering lower power consumption, better lane scalability, and backward compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a wide range of graphics, storage, and networking, enabling flexible scalability for demanding or growing workloads.

Small businesses require reliability and security to support their critical customer and business data needs. Available with up to eight cores and a TDP of up to 95 watts, Intel Xeon E-2300 processors bring essential server performance, expandability, and reliability to small businesses to support critical customer and business data needs.

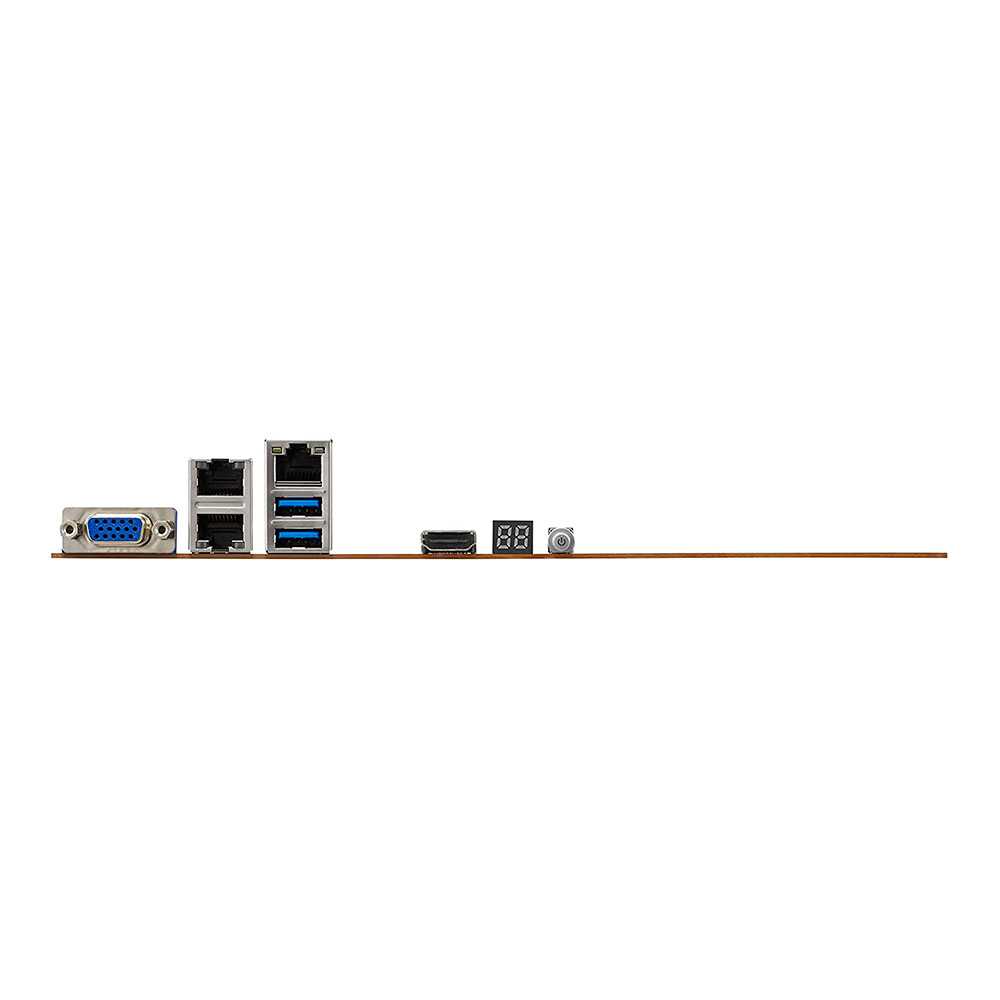

ASUS P12R server motherboards feature an HDMI 1.4 port routed from the CPU to offer higher resolution monitoring and easier maintenance for IT administrators in business environments. A VGA port routed from the BMC is also available for dual screen monitoring.

With integrated dual 10G LAN powered by an Intel X710AT Ethernet controller, P12R server motherboards provide enterprise-grade connectivity and support high-density, high-bandwidth, and low-latency access layer networks to ensure faster data file transfers. large size used in data. -Intensive applications.

ASUS ASMB10-iKVM is the latest server management solution from ASUS, based on the ASPEED 2600 chipset running on the latest MegaRAC SP-X AMI. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI), and Redfish ® API.

ASUS P12R server motherboards integrate PFR FPGA as the Root-of-Trust platform solution for firmware resiliency to prevent hackers from gaining access to infrastructure. ASUS security solutions fully comply with the 2018 National Institute of Standards and Technology (NIST) specification SP 800 193.

Main features...

* Ideal for use in remote/branch offices and everyday business environments.
* Flexible expansion with six native SATA hard drives and two PCI Express 4.0 slots.
* Dual Intel I210AT Gigabit Ethernet with team support.
*ASUS ASMB10-iKVM integrated with ASPEED AST2600 controller for out-of-band management.
* Form Factor: Micro-ATX.
