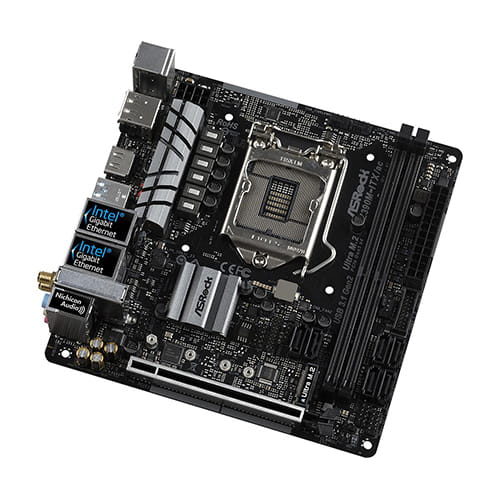

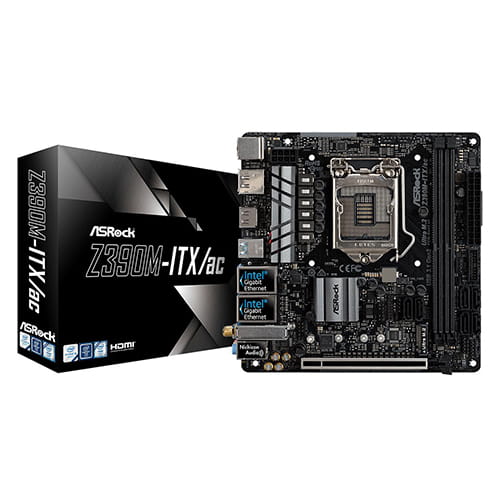

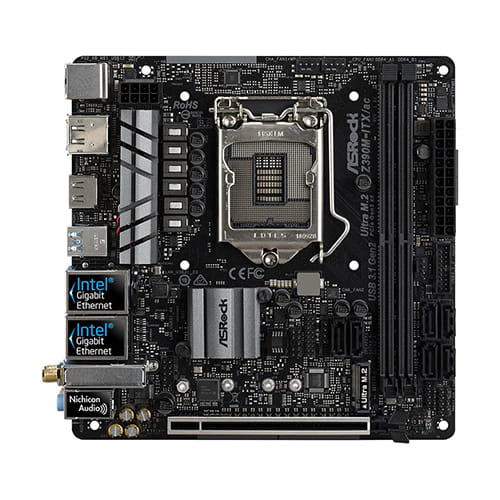

Asrock Z390M-ITX/ac. Socket 1151. Mini-ITX. - DDR4

The Asrock Z390M-ITX/ac board supports the 9th and 8th generation of Intel Core processors with socket 1151.

Equipped with Dual Intel LAN, users will be able to connect two LAN cables to the back of this board. Thanks to the Group Work function enabled, you will be able to have two independent connections that function as a single connection, with double bandwidth, making data transmission more efficient.

In addition, the Asrock Z390M-ITX/ac includes an 802.11ac WiFi connection module (2.4g/5G WiFi) that supports wireless networks and Bluetooth v4.2.

It comes equipped with an M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that achieves data transfer speeds of up to 32 Gb/s, and is compatible with the ASRock U.2 Kit to install some of the world's fastest U.2 PCIe Gen3 x4 SSDs.

Supports Intel Optane memory technology and Intel Optane storage technology, redefining a new standard for responsiveness.

Charts, charts and even more charts! You have demanded more image, so this motherboard supports triple monitor. You can choose a maximum of three display interfaces to connect monitors and use them simultaneously without installing another graphics card.

Main features...

* Supports 9th and 8th Gen Intel Core processors (Socket 1151).
* Supports DDR4 4000MHz+ (OC) memory.
* 1 PCIe 3.0 x16.

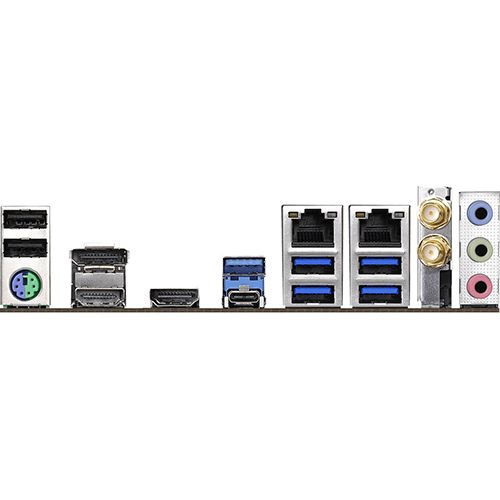

* Graphics output options: 2 x HDMI, DisplayPort.
* 7.1 channel HD audio (Realtek ALC892 audio codec), Nichicon Gold Series Fine Audio Capacitors.
* 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3).
* 6 USB 3.1 Gen2 10Gb/s (5 Rear Type-A, 1 Rear Type-C).
* 2 USB 3.1 Gen1 (2 Front).
* Dual Intel Gigabit LAN.
* Intel 802.11ac WiFi + BT 4.2.
