Asrock Rack EPYC4000D4U. Socket AM5. Micro-ATX.

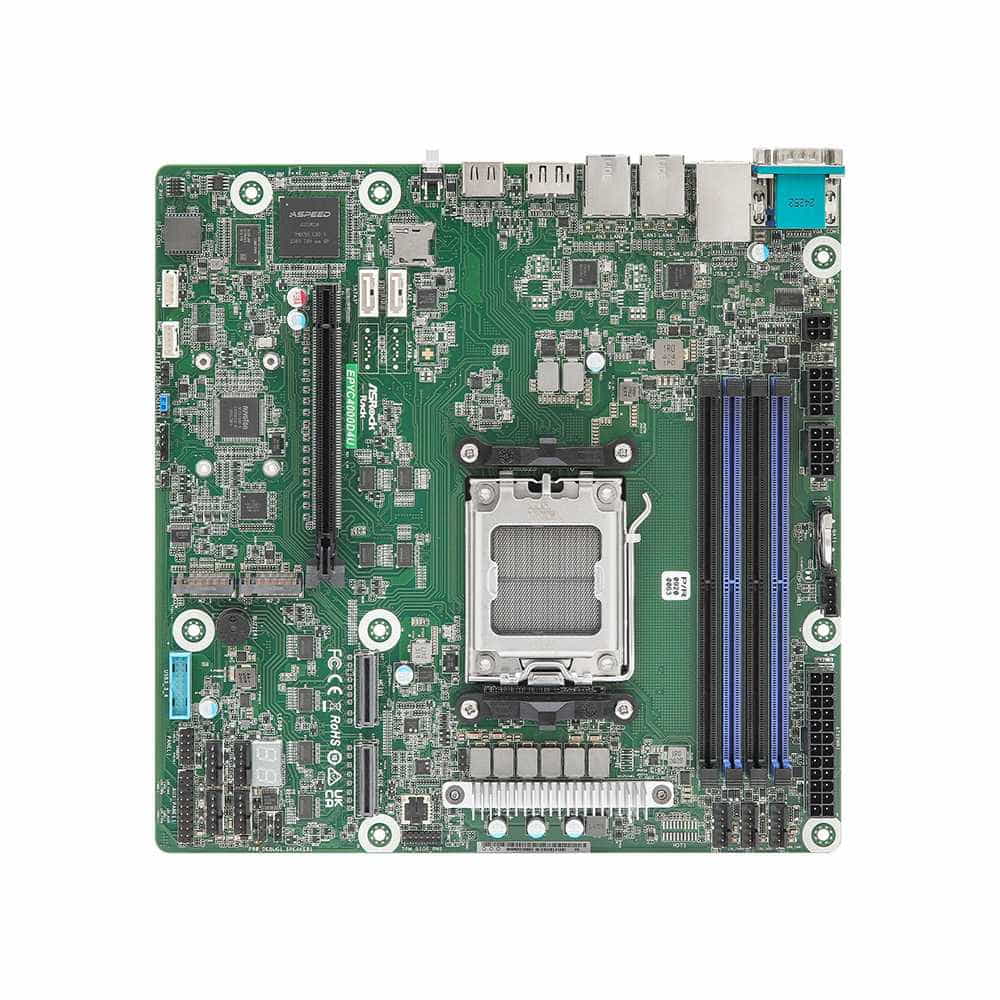

The Asrock EPYC4000D4U is a Micro-ATX motherboard designed for high-performance workstations and servers. Compatible with AMD EPYC 4004 and AMD Ryzen 9000/8000/7000 processors, it offers exceptional power thanks to its support for the AM5 (LGA 1718) socket and a TDP of up to 170W with liquid cooling. Its KNOLL3 X600 chipset provides stability and energy efficiency for the most demanding tasks.

Equipped with 4 DDR5 ECC/Non-ECC DIMM slots, it supports up to 48 GB per module and speeds of up to 5600 MHz (1DPC), ensuring optimal performance in memory-intensive applications. In addition, it offers a PCIe 5.0 x16 slot for graphics or expansion cards, with adjustable compatibility depending on the installed processor. For storage, it features two M.2 PCIe 5.0 x4 slots and 2 SATA 6Gb/s ports, ensuring speed and flexibility in configuration.

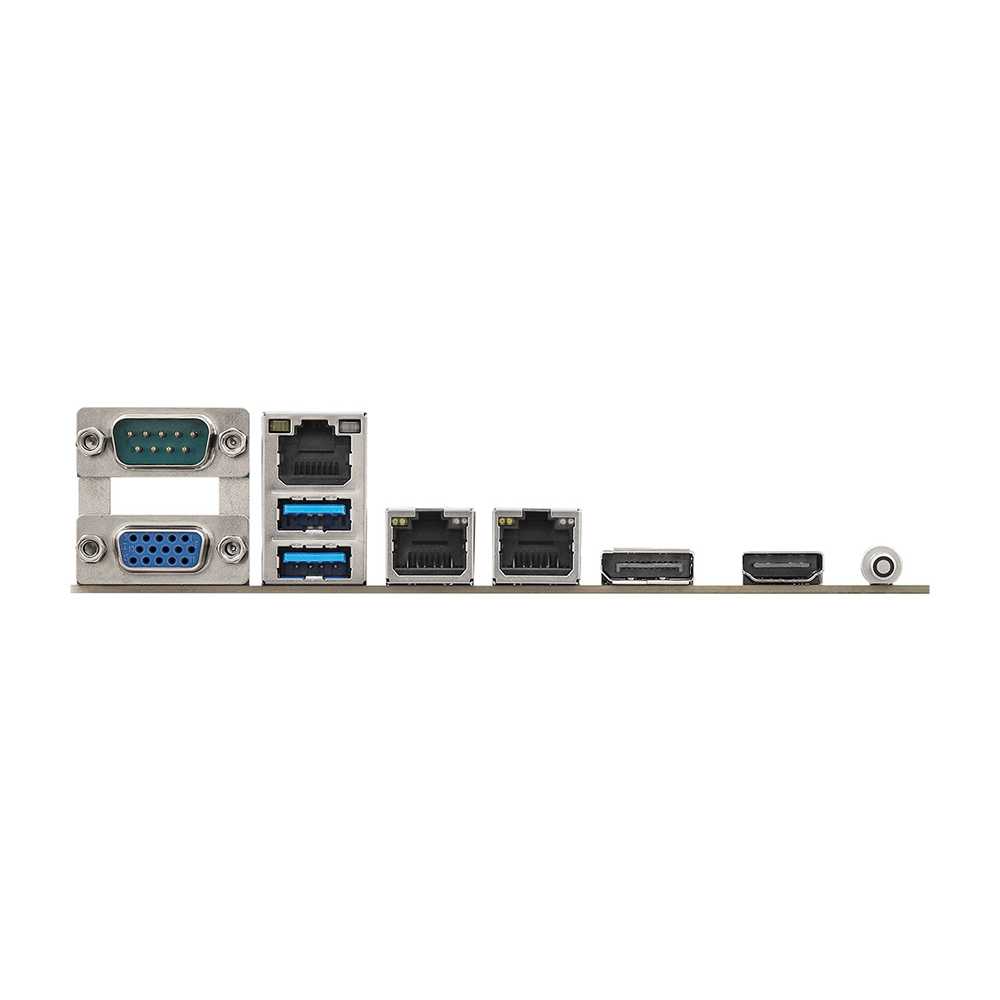

As for connectivity, it has two Intel i210 Ethernet ports (1 GbE) and a dedicated IPMI port with BMC ASPEED AST2600, providing advanced remote management. The motherboard also includes VGA, HDMI and DisplayPort video outputs, allowing for multiple display options. In addition, its rear panel features USB 3.2 Gen1, RJ45 and a DB9 serial port for greater versatility in industrial environments.

Optimized for servers and workstations, the Asrock EPYC4000D4U offers stability, performance and great expandability. Its combination of power, connectivity and advanced management makes it the ideal choice for demanding projects. Equip your system with the best technology for superior performance!

Key Features...

* Support for AMD EPYC 4004 and Ryzen 9000/8000/7000 processors with AM5 (LGA 1718) socket.
* 4x ECC/Non-ECC DDR5 DIMM slots, maximum capacity per module of 48GB and speed up to 5600MHz.
* 1x PCIe 5.0 x16 and 2x M.2 PCIe 5.0 x4 slot for ultra-fast storage.
* 2x Intel i210 Ethernet (1GbE) + IPMI dedicated ports for advanced remote management.
* ASPEED AST2600 graphics chipset with VGA, HDMI, and DisplayPort outputs.
* Extensive connectivity with USB 3.2 Gen1, SATA 6Gb/s, RJ45, and DB9 (COM).
* Advanced temperature, voltage, and fan monitoring for stability and security.
