English Asrock Rack EPC621D8A. Socket 3647.
prev
next

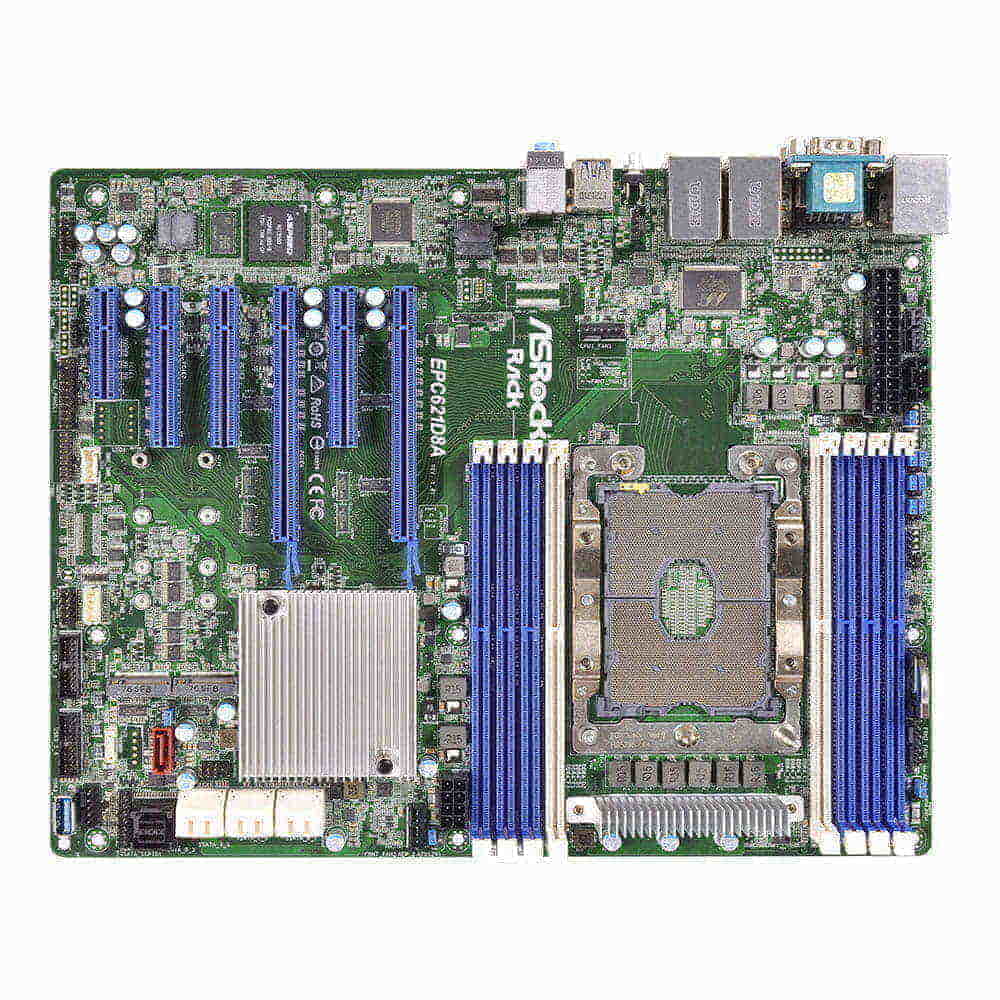

Asrock Rack EPC621D8A. Socket 3647.
- ATX 12 '' x 9,6 ''.
- Admite procesadores escalables Intel Xeon de segunda generación / procesadores escalables Intel Xeon.
- Admite seis canales DDR4 2933/2666/2400/2133 RDIMM / LR DIMM, memoria persistente Intel Optane ™ DC en modo de memoria (solo Cascade Lake).
- Admite 13 x SATA3 6.0 Gb / s por Intel C621 (incluidos 1x puertos SATA DOM y 2x puertos M.2).
- Admite 2 PCIe3.0x 16, 3 PCIe 3.0x8, 1 PCIe 3.0 x4.
P/N: EPC621D8A - EAN/UPC: 4717677334579
384,96 € Sin IVA
465,80 € Con IVA
Entrega aproximada entre el 08 diciembre y el 08 diciembre
Asistencia
personalizada
personalizada
Envío
asegurado
asegurado
100%
pago seguro
pago seguro
En estos momentos, no disponemos en catálogo de ningún producto con características idénticas a: Asrock EPC621D8A. Sin embargo, podemos mostrarle productos muy similares, si nos indica que es lo que busca:
| Socket | |
| Formato | |
| Chipset | |
| Número de sockets | |
| Tipo de producto |
Placa base para servidores y estaciones de trabajo con socket 3647 en formato ATX.
Principales Características...
* Admite procesadores escalables Intel Xeon de segunda generación / procesadores escalables Intel Xeon.
* Admite seis canales DDR4 2933/2666/2400/2133 RDIMM / LR DIMM, memoria persistente Intel Optane ™.
* Admite 13 x SATA3 6.0 Gb / s por Intel C621 (incluidos 1x puertos SATA DOM y 2x puertos M.2).
* Admite 2 PCIe3.0x 16, 3 PCIe 3.0x8, 1 PCIe 3.0 x4.
| MB Physical Status | |
| Form Factor | - ATX |
| Dimensions | - 12''x9.6'' |
| Processor System | |
| CPU | - Supports 2nd Gen. Intel® Xeon® Scalable Processors / Intel® Xeon® Scalable Processors |
| Socket | - Single Socket P, LGA3647 |
| Chipset | - Intel C621 |
| System Memory | |
| Capacity | - 8 x 288-pin DDR4 DIMM slots |
| Type | - Six Channel memory technology - Support DDR4 2933/2666/2400/2133 RDIMM/LR DIMM, Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only) |
| Voltage | - 1.2V |
| Expansion Slot | |
| PCIe 3.0 x 16 | - 2 slots (slot4: share with slot3, X16/x8, Slot6: share with slot5, X16/x8) |
| PCIe 3.0 x 8 | - 3 slots (slot2: x8, slot3: share with slot3, X0/x8, Slot5: share with slot6, X0/x8) |
| PCIe 3.0 x 4 | - 1 slot |
| Storage | |
| SATA Controller | - Intel C621 : 13 x SATA3 (including 1 SATA DOM ports and 2 M.2 ports) |
| Ethernet | |
| Interface | - 1000 Mbps (1GbE) |
| LAN Controller | - 4 x RJ45 by Marvell 88E1543 for 4 ports GbE |
| Management | |
| BMC Controller | - ASPEED AST2500 |
| IPMI Dedicated GLAN | - 1 x Realtek RTL8211E for dedicated management GLAN |
| Features | - Watch Dog - NMI |
| Graphics | |
| Controller | - ASPEED AST2500 |
| VRAM | - DDR4 256MB |
| Audio | |
| Audio Codec | - Realtek ALC1150 |
| Rear Panel I/O | |
| VGA Port | - 1 x D-Sub |
| USB 3.1 Gen1 Port | - 4 |
| Lan Port | - 4+1 RJ45 Gigabit Ethernet LAN port - LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Serial Port | - 1 x COM port |
| Audio | - 3 hole |
| Internal Connector | |
| SATA DOM | - 1 |
| M.2 | - 2 (up to 2280, SATA and PCIe x1) |
| Auxiliary Panel Header | - 1 (includes chassis intrusion, location button & LED, front LAN LED) |
| TPM Header | - 1 |
| IPMB Header | - 1 |
| Buzzer | - 1 |
| Fan Header | - 1 x CPU Fan, 4 x system Fan (3 front, 1 rear) |
| ATX Power | - 1 (24-pin) + 1 (8-pin) |
| USB 3.1 (Gen1) Header | - 2 (support 4 ports USB 3.0) |
| Type A USB 3.1 (Gen1) Port | - 1 |
| System BIOS | |
| BIOS Type | - 256MB AMI UEFI Legal BIOS |
| BIOS Features | - Plug and Play (PnP) - ACPI 2.0 Compliance Wake Up Events - SMBIOS 2.8 Support - ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | - CPU Temperature Sensing - System Temperature Sensing |
| Fan | - CPU/Rear/Front Fan Tachometer - CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) - CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB |
| Support OS | |
| OS | Microsoft® Windows® - Windows® 10 (64 bit) - Server 2012 R2 (64 bit) - Server 2016 (64 bit) Linux - CentOS 6.8 (64 bit) / 7. 2 (64 bit) - SUSE Enterprise Linux Server 11 SP4 (64 bit) /12 SP1 (64 bit) - FreeBSD 11 (64 bit) - Fedora Core 24 (64 bit) - Ubuntu 16.04/15.10 (64 bit) - RedHat Enterprise Linux Server 6.8 (64 bit) / 7.2 (64 bit) Virtual: - VMWare® ESXi 6.0 |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
Placa base para servidores y estaciones de trabajo con socket 3647 en formato ATX.
Principales Características...
* Admite procesadores escalables Intel Xeon de segunda generación / procesadores escalables Intel Xeon.
* Admite seis canales DDR4 2933/2666/2400/2133 RDIMM / LR DIMM, memoria persistente Intel Optane ™.
* Admite 13 x SATA3 6.0 Gb / s por Intel C621 (incluidos 1x puertos SATA DOM y 2x puertos M.2).
* Admite 2 PCIe3.0x 16, 3 PCIe 3.0x8, 1 PCIe 3.0 x4.
| MB Physical Status | |
| Form Factor | - ATX |
| Dimensions | - 12''x9.6'' |
| Processor System | |
| CPU | - Supports 2nd Gen. Intel® Xeon® Scalable Processors / Intel® Xeon® Scalable Processors |
| Socket | - Single Socket P, LGA3647 |
| Chipset | - Intel C621 |
| System Memory | |
| Capacity | - 8 x 288-pin DDR4 DIMM slots |
| Type | - Six Channel memory technology - Support DDR4 2933/2666/2400/2133 RDIMM/LR DIMM, Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only) |
| Voltage | - 1.2V |
| Expansion Slot | |
| PCIe 3.0 x 16 | - 2 slots (slot4: share with slot3, X16/x8, Slot6: share with slot5, X16/x8) |
| PCIe 3.0 x 8 | - 3 slots (slot2: x8, slot3: share with slot3, X0/x8, Slot5: share with slot6, X0/x8) |
| PCIe 3.0 x 4 | - 1 slot |
| Storage | |
| SATA Controller | - Intel C621 : 13 x SATA3 (including 1 SATA DOM ports and 2 M.2 ports) |
| Ethernet | |
| Interface | - 1000 Mbps (1GbE) |
| LAN Controller | - 4 x RJ45 by Marvell 88E1543 for 4 ports GbE |
| Management | |
| BMC Controller | - ASPEED AST2500 |
| IPMI Dedicated GLAN | - 1 x Realtek RTL8211E for dedicated management GLAN |
| Features | - Watch Dog - NMI |
| Graphics | |
| Controller | - ASPEED AST2500 |
| VRAM | - DDR4 256MB |
| Audio | |
| Audio Codec | - Realtek ALC1150 |
| Rear Panel I/O | |
| VGA Port | - 1 x D-Sub |
| USB 3.1 Gen1 Port | - 4 |
| Lan Port | - 4+1 RJ45 Gigabit Ethernet LAN port - LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Serial Port | - 1 x COM port |
| Audio | - 3 hole |
| Internal Connector | |
| SATA DOM | - 1 |
| M.2 | - 2 (up to 2280, SATA and PCIe x1) |
| Auxiliary Panel Header | - 1 (includes chassis intrusion, location button & LED, front LAN LED) |
| TPM Header | - 1 |
| IPMB Header | - 1 |
| Buzzer | - 1 |
| Fan Header | - 1 x CPU Fan, 4 x system Fan (3 front, 1 rear) |
| ATX Power | - 1 (24-pin) + 1 (8-pin) |
| USB 3.1 (Gen1) Header | - 2 (support 4 ports USB 3.0) |
| Type A USB 3.1 (Gen1) Port | - 1 |
| System BIOS | |
| BIOS Type | - 256MB AMI UEFI Legal BIOS |
| BIOS Features | - Plug and Play (PnP) - ACPI 2.0 Compliance Wake Up Events - SMBIOS 2.8 Support - ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | - CPU Temperature Sensing - System Temperature Sensing |
| Fan | - CPU/Rear/Front Fan Tachometer - CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) - CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB |
| Support OS | |
| OS | Microsoft® Windows® - Windows® 10 (64 bit) - Server 2012 R2 (64 bit) - Server 2016 (64 bit) Linux - CentOS 6.8 (64 bit) / 7. 2 (64 bit) - SUSE Enterprise Linux Server 11 SP4 (64 bit) /12 SP1 (64 bit) - FreeBSD 11 (64 bit) - Fedora Core 24 (64 bit) - Ubuntu 16.04/15.10 (64 bit) - RedHat Enterprise Linux Server 6.8 (64 bit) / 7.2 (64 bit) Virtual: - VMWare® ESXi 6.0 |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
