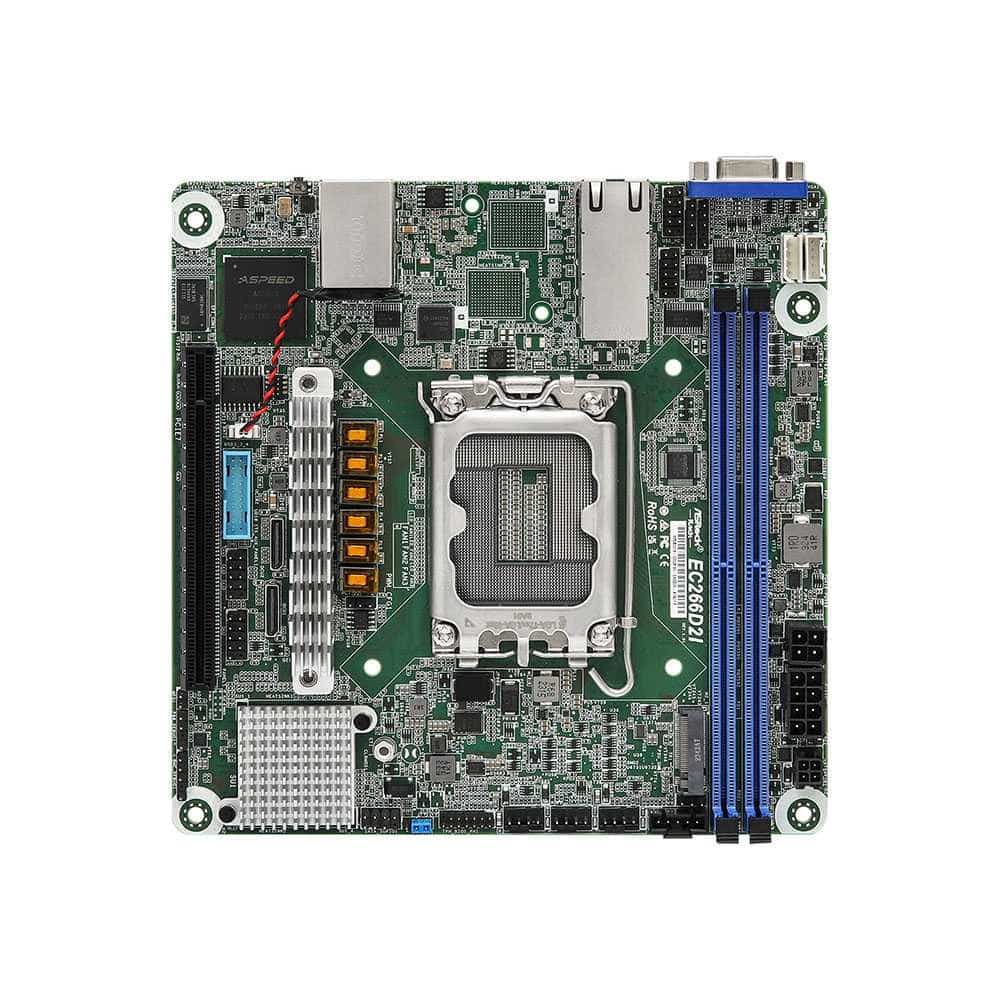

Asrock Rack EC266D2I. Socket 1700. Mini-ITX.

The ASRock EC266D2I is a Mini-ITX motherboard designed specifically for servers, delivering robust performance and advanced capabilities for business applications. Compatible with Intel Xeon E-2400 series and Pentium Gold G7400/G7400T processors, this motherboard provides a solid foundation for small form factor servers.

Equipped with two DIMM slots, it supports up to 64GB of DDR5 ECC UDIMM memory, ensuring stable and reliable operation, crucial for server environments. The inclusion of a PCIe 5.0 x16 slot allows for expansion with high-performance cards, such as GPUs or additional network cards.

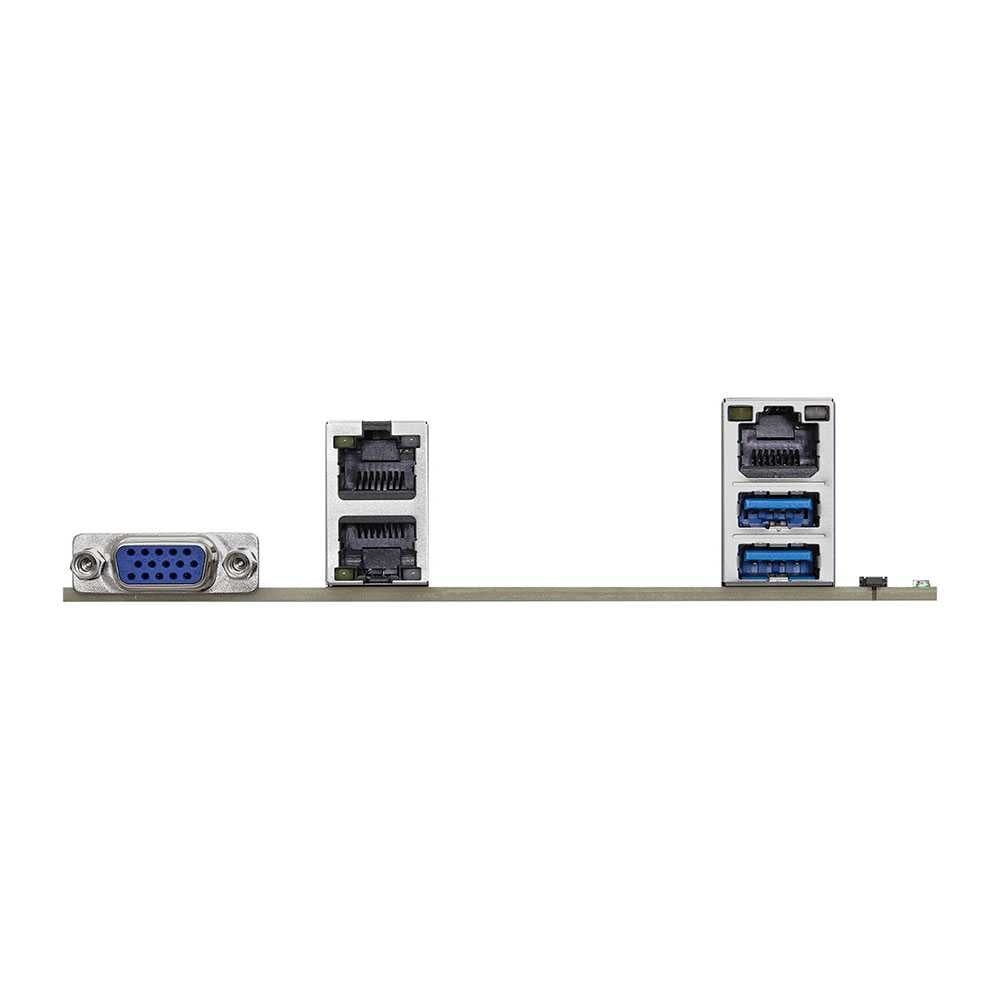

In terms of connectivity, the ASRock EC266D2I doesn't disappoint. It features two OCuLink ports that can be configured for PCIe 4.0 x4 or SATA 6Gb/s, and one M.2 (PCIe 4.0 x4) port for ultra-fast storage. It also offers up to eight SATA 6Gb/s ports for ample storage capacity. For networking, it includes two 1GbE LAN ports provided by Intel i210 and a dedicated IPMI port for remote management.

In short, the ASRock EC266D2I is an excellent choice for small servers and business applications that require high efficiency and robust expansion options. Its support for the latest technologies and compact design make it an ideal solution for demanding environments.

Key Features...

* Support for Intel Xeon E-2400 series and Pentium Gold G7400/G7400T processors
* Support for up to 64GB DDR5 ECC UDIMM memory
* PCIe 5.0 x16 slot for high-performance expansions
* Two OCuLink ports configurable for PCIe 4.0 x4 or SATA 6Gb/s
* One M.2 (PCIe 4.0 x4) port for fast storage
* Up to eight SATA 6Gb/s ports for extensive storage
* Network connectivity with two 1GbE LAN ports and one dedicated IPMI port
