English Asrock Rack E3C246D2I. Socket 1151. Mini-ITX.
prev
next

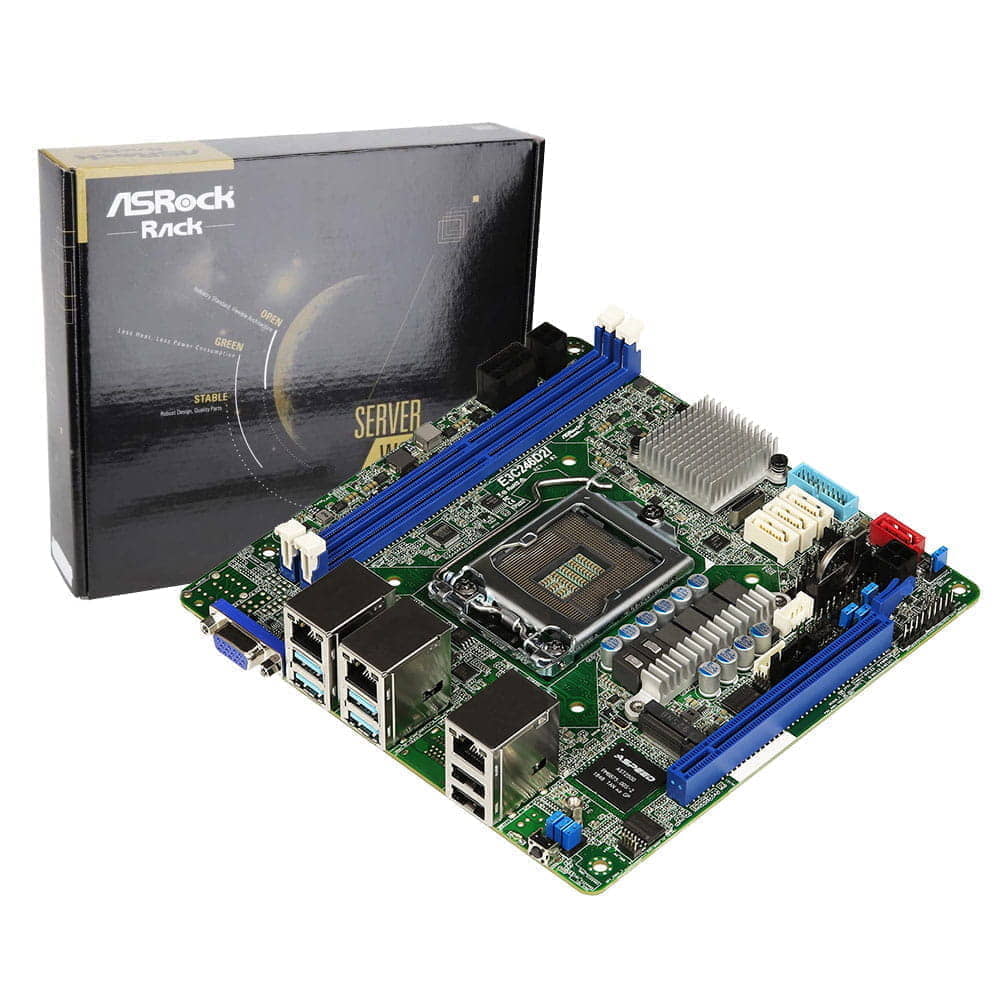

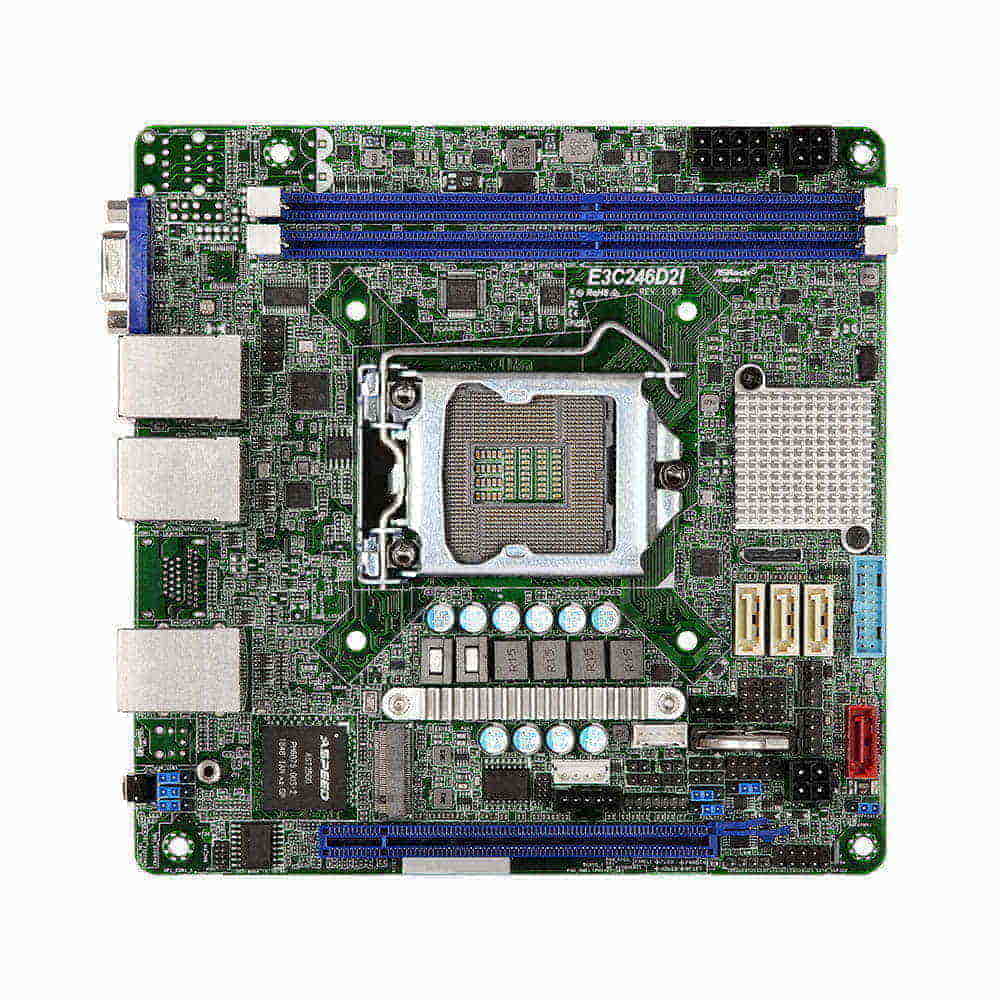

Asrock Rack E3C246D2I. Socket 1151. Mini-ITX.
- Admite procesadores Intel Xeon E-2100 / E-2200.
- Admite DDR4 2666/2400 ECC de doble canal y DIMM U no ECC de 32 GB como máximo.
- 4 SATA3 (1 SATA DOM incluido), 1 conector OCuLink con 4 puertos SATA.
- Admite 1x PCIe 3.0 x16, 1 x M.2.
- IPMI 2.0 integrado con KVM y LAN dedicada (RTL8211E).
- Compatible con Intel I210 e Intel i219LM.
P/N: E3C246D2I - EAN/UPC: 4717677335569
285,49 € Sin IVA
345,44 € Con IVA
Entrega aproximada entre el 12 noviembre y el 13 noviembre
3 años
de garantía
de garantía
Envío
asegurado
asegurado
100%
pago seguro
pago seguro
Placa base para servidores y estaciones de trabajo con socket 1151 en formato Mini-ITX.
Principales Características...
* Admite procesadores Intel Xeon E-2100 / E-2200.* Admite DDR4 2666/2400 ECC de doble canal y DIMM U no ECC de 32 GB como máximo.
* 4 SATA3 (1 SATA DOM incluido), 1 conector OCuLink con 4 puertos SATA.
* Admite 1x PCIe 3.0 x16, 1 x M.2.
* Flujo de aire: 33.50CFM.
* IPMI 2.0 integrado con KVM y LAN dedicada (RTL8211E).
* Compatible con Intel I210 e Intel i219LM.
| MB Physical Status | |
| Form Factor | - mini-ITX |
| Dimensions | - 6.7'' x 6.7'' (17.02 cm x17.02 cm) |
| Processor System | |
| CPU | - Supports Intel® Xeon® E-2100/E-2200 Processors (Max. 95W) |
| Chipset | - Intel® C246 |
| System Memory | |
| Capacity | - 2 x DDR4 DIMM slots |
| Type | - Dual Channel memory technology - Supports DDR4 2133/2400/2666 ECC UDIMM* *The non-ECC UDIMMs support Client OS only. |
| DIMM Size Per DIMM | ECC and non-ECC UDIMM : 4GB, 8GB, 16GB, 32GB |
| Voltage | - 1.2V |
| Expansion Slot | |
| PCIe 3.0 x 16 | - SLOT7: Gen3 x16 link |
| Storage | |
| SATA Controller | - Intel® C246: 1 x OCuLINK (SATA_0,1,2,3)*; 4 x SATA3 6Gb/s (SATA_4,5,6,7), 1 x SATA DOM included *Please contact sales to buy the OCuLink to 4x SATA cable |
| NVMe Device | - NVMe SSDs PCIEx4 (Share with SATA_0,1,2,3) |
| M.2 slot | - 1 x M.2 (NGFF 2242, PCI-E Gen3 x4 link or SATA signal)* *SATA 1 will be disable when M.2 is SATA signal |
| Ethernet | |
| Interface | - 1000 /100 /10 Mbps |
| LAN Controller | - 2 x RJ45 GLAN by Intel® i210+Intel® i219LM - Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az - Supports Dual LAN with Teaming function(TBD) - Supports PXE - LAN1 supports NCSI |
| Management | - 1 |
| Management | |
| BMC Controller | - ASPEED AST2500 |
| IPMI Dedicated GLAN | - 1 x Realtek RTL8211E for dedicated management GLAN |
| Features | - Watch Dog - NMI |
| Graphics | |
| Controller | - ASPEED AST2500 |
| VRAM | - DDR4 16MB |

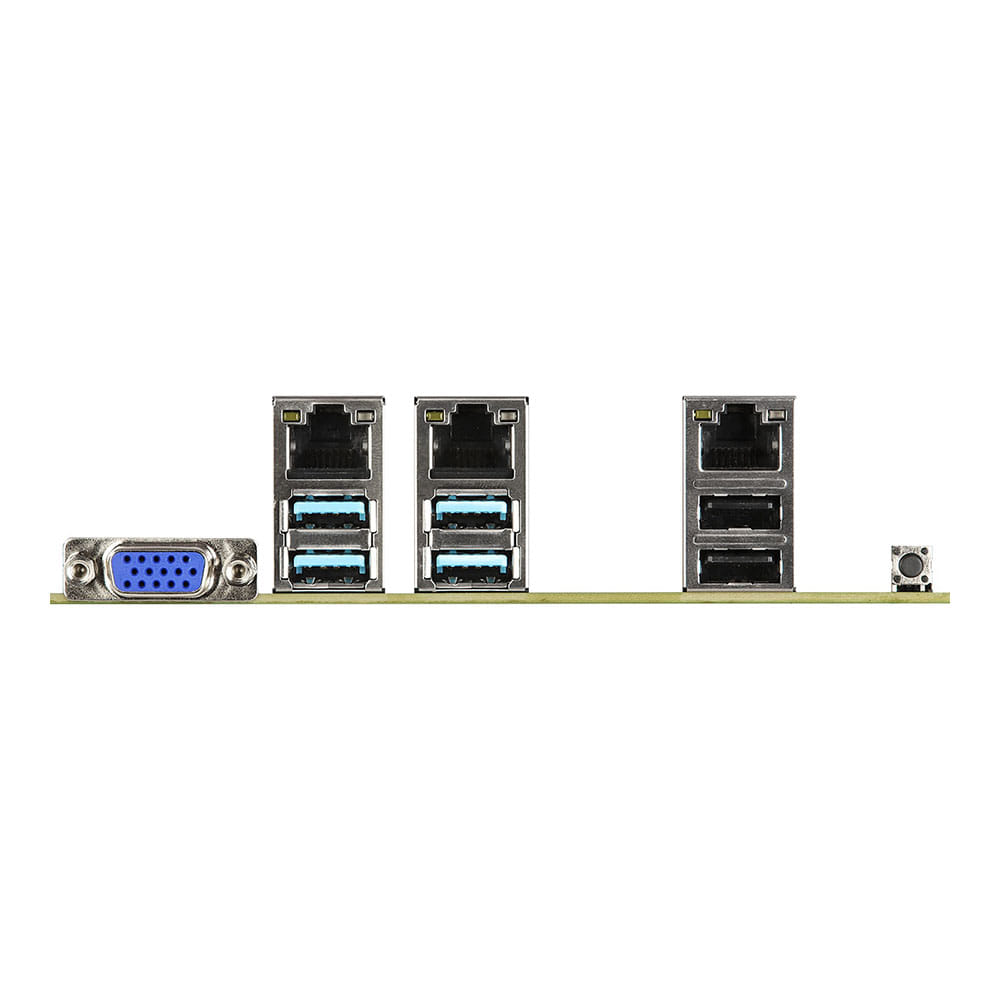

| Rear Panel I/O | |
| VGA Port | - 1 x D-Sub |
| USB 2.0 Port | - 2 |
| USB 3.1 Gen1 Port | - N/A |
| USB 3.1 Gen2 Port | - 4 (Type A Gen2 x4) |
| Lan Port | - RJ45: 2x GLAN(by Intel® i210+ Intel® i219LM) - LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| UID Button/UID LED | - 1 |
| Audio | - N/A |
| Internal Connector | |
| COM Header | - 1 |
| SATA DOM | - 1 |
| M.2 | - 1(2242, PCIE(x4)/SATA3 6Gb/s(SATA 1)) |
| OCuLink | - 1 |
| Auxiliary Panel Header | - 1 (include chassis intrusion, location button & LED, front LAN LED, event log LED) |
| TR1 Header | - 1 |
| TPM Header | - 1 |
| IPMB Header | - 1 |
| Buzzer | - N/A |
| Fan Header | - 3(1CPU/1Front/1Rear) |
| ATX Power | - 1x (4-pin) |
| DC IN | - 1x (8-pin) |
| USB 3.1 (Gen1) Header | - 1 (support 2 USB 3.0) |
| USB 2.0 Header | - N/A |
| PWR SMB Header | - 1 |
| Front Panel | - 1 (RST, HDLED, PLED, PERBTN) |
| Serial ATA3 Connector | - 3 |
| SATA Power Connector | - 1x (4-pin) |
| Speaker Header | - 1(4pin) |
| SGPIO Header | - 2 |
| SMBUS from BMC | - 1 |
| Clear CMOS | - 1 (short pad) |
| Onboard LED | |
| 80 Debug Port LED | - N/A |
| System BIOS | |
| BIOS Type | - 128Mb AMI UEFI Legal BIOS |
| BIOS Features | - Plug and Play (PnP) - ACPI 2.0 Compliance Wake Up Events - SMBIOS 2.8.0 Support - ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | - CPU Temperature Sensing - System Temperature Sensing - System Inlet Temperature Sensing |
| Fan | - CPU/Rear/Front Fan Tachometer - CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) - CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | - +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB |
| Support OS | |
| OS | Microsoft® Windows® - Server 2016 (64 bit) - Server 2019 (64 bit) Linux - RedHat Enterprise Linux Server 6.10 (64 bit) / 7.5 (64 bit) - SUSE Enterprise Linux Server 11 SP4 (64 bit) / 12 SP3 (64 bit) - Ubuntu 16.04 (64 bit)/ 18.04 (64 bit) Virtual - VMWare® ESXi 6.5 u1 - Win hyper-V Server 2016 |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
