Asrock PAUL. Tarjeta LP IPMI PCIe.

Pn. PAULEan. 4711430523248

Low-profile PCIe add-in-card designed to add IPMI remote management functionality to compatible server systems.
ASPEED AST2500 controller providing Baseboard Management Controller features with IPMI 2.0 and iKVM support.
Dedicated RJ45 management LAN using Realtek RTL8211E with 10/100/1000 Mbps network connectivity.
Integrated DB-15 VGA output supporting up to 1920 x 1200 resolution at 60Hz and 32bpp color depth.
Onboard memory configuration with 2 SPI flash ROM 32MB and 1 DDR4 SDRAM 4Gb for BMC operation.
Comprehensive internal connectivity including SMBus, PMBus, IPMB, LPC, SPI, GPIO, NCSI, COM, USB 2.0, fan headers, and micro-SD.
Efficient 7.54W power consumption with input through 5VSB USB 2.0 header and +12V PCIe goldfinger.

The ASRock Rack PAUL is a low-profile PCIe IPMI add-in card designed to provide advanced remote server management for professional IT infrastructures. Built around the ASPEED AST2500 controller, it enables reliable Baseboard Management Controller functionality with IPMI 2.0 and iKVM support.

This card integrates dedicated management connectivity through a Gigabit RJ45 LAN port powered by the Realtek RTL8211E controller, allowing administrators to monitor and manage systems remotely. It also includes DB-15 VGA output with support for resolutions up to 1920 x 1200 at 60Hz and 32bpp.

The PAUL card is equipped with onboard memory resources, including 2 SPI flash ROMs of 32MB and 1 DDR4 SDRAM 4Gb module. Its wide range of internal headers supports SMBus, PMBus, IPMB, BMC reset, debug, fan, LPC, SPI, GPIO, NCSI, COM, USB 2.0, and micro-SD connectivity for flexible system integration.

Compact, powerful, and purpose-built for remote management, the ASRock Rack PAUL is an ideal solution for adding IPMI and iKVM capabilities to compatible server platforms. Enhance system control, monitoring, and maintenance with a professional low-profile management card today.

Main Features

* Low-profile PCIe IPMI add-in card for professional server management.
* ASPEED AST2500 Baseboard Management Controller with IPMI 2.0 and iKVM support.
* Dedicated Gigabit IPMI LAN via Realtek RTL8211E RJ45 interface.
* VGA output through DB-15 connector supporting up to 1920 x 1200 at 60Hz and 32bpp.
* Onboard memory with 2 x 32MB SPI flash ROM and 1 x DDR4 SDRAM 4Gb.
* Extensive internal connectors for SMBus, PMBus, IPMB, LPC, SPI, GPIO, NCSI, USB, COM, fans, and micro-SD.
* Low power consumption of 7.54W with 5VSB USB header and +12V goldfinger input.

Technical specifications

Product Name	ASRock Rack PAUL
Product Type	Low-profile PCIe IPMI add-in card designed to provide remote server management, monitoring, and iKVM functionality for compatible systems.
Controller	ASPEED AST2500 Baseboard Management Controller, engineered for server management applications with IPMI and remote access capabilities.
Management Features	Baseboard Management Controller functionality with IPMI 2.0 support and iKVM support, enabling remote system monitoring, control, and maintenance.
Graphics Output	Integrated VGA output through DB-15 connector with support for resolutions up to 1920 x 1200 at 60Hz and 32bpp color depth.
Memory	Includes 2 SPI flash ROMs of 32MB and 1 DDR4 SDRAM 4Gb module to support BMC firmware, management operations, and system-level remote functionality.
Form Factor	Low-profile PCIe add-in-card format, suitable for space-constrained server platforms and rackmount systems.
Dimensions	168.45 x 68.9 mm, offering a compact layout for integration into compatible server chassis.
Upstream Interface	PCI Express 2.0 x1 interface for connection to the host server platform.

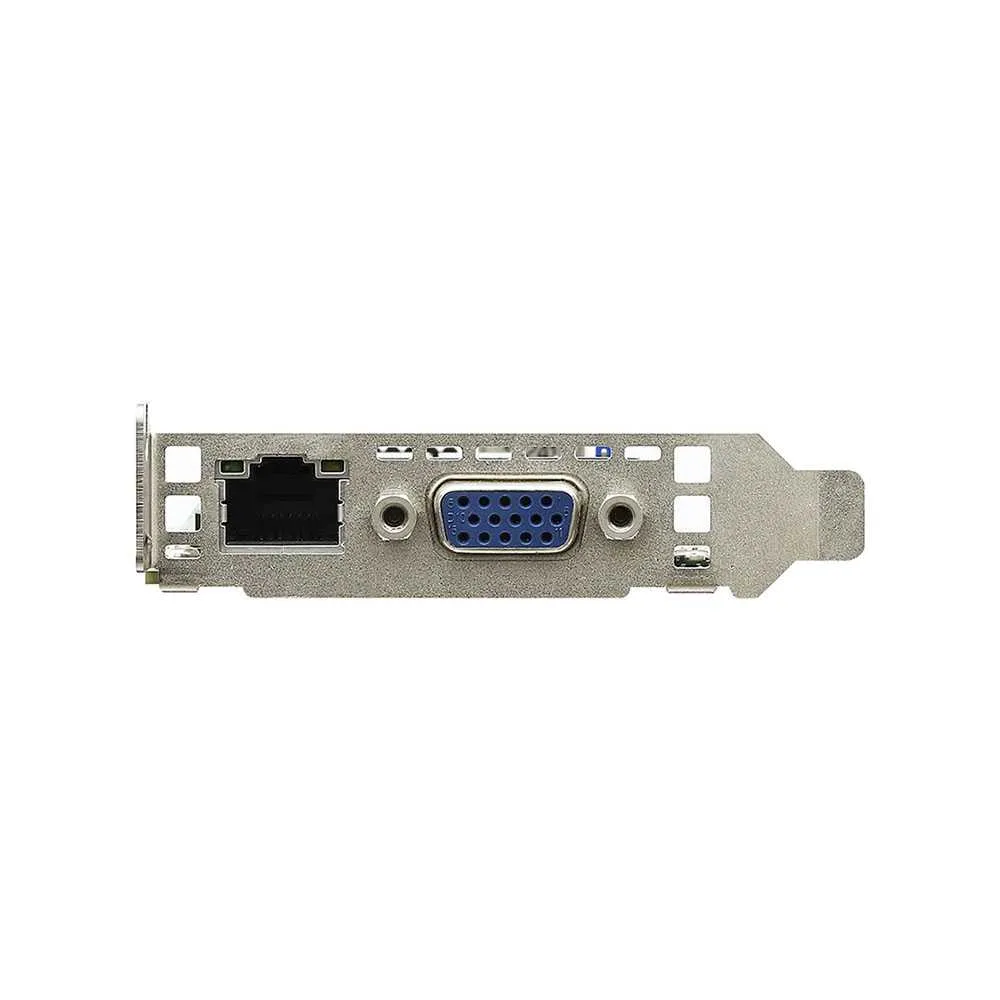

External Interfaces	1 x RJ45 dedicated IPMI LAN port via Realtek RTL8211E with 10/100/1000 Mbps support, and 1 x DB-15 VGA connector for display output.
Internal Connectors	Includes 2 SMBus headers, 1 PMBus header, 1 IPMB header, 1 BMC reset, 1 BMC debug header, 1 V BIOS or system BIOS ROM, 2 BMC ROM, 1 dual ROM select header, 1 SPI header 13-pin, 2 LPC headers 13-pin, 2 fan headers, 1 USB 2.0 5-pin header for KVM and standby power, 1 18-pin header for GPIO and NCSI, 1 18-pin header for case open, system fail, GPIO, SMBus, PECI and voltage monitoring, 1 COM port 9-pin, 1 micro-SD connector, and 1 USB Type-A USB 2.0 port.
Network Controller	Realtek RTL8211E controller for dedicated IPMI LAN connectivity at 10/100/1000 Mbps.
Power Consumption	7.54W typical power consumption, designed for efficient operation in server management environments.
Power Input	Power input through 1 USB 2.0 5-pin header with 5VSB standby power and PCIe goldfinger with +12V input.
Operating Environment	Operating temperature range from 10°C to 35°C. Non-operating temperature range from -40°C to 70°C.
