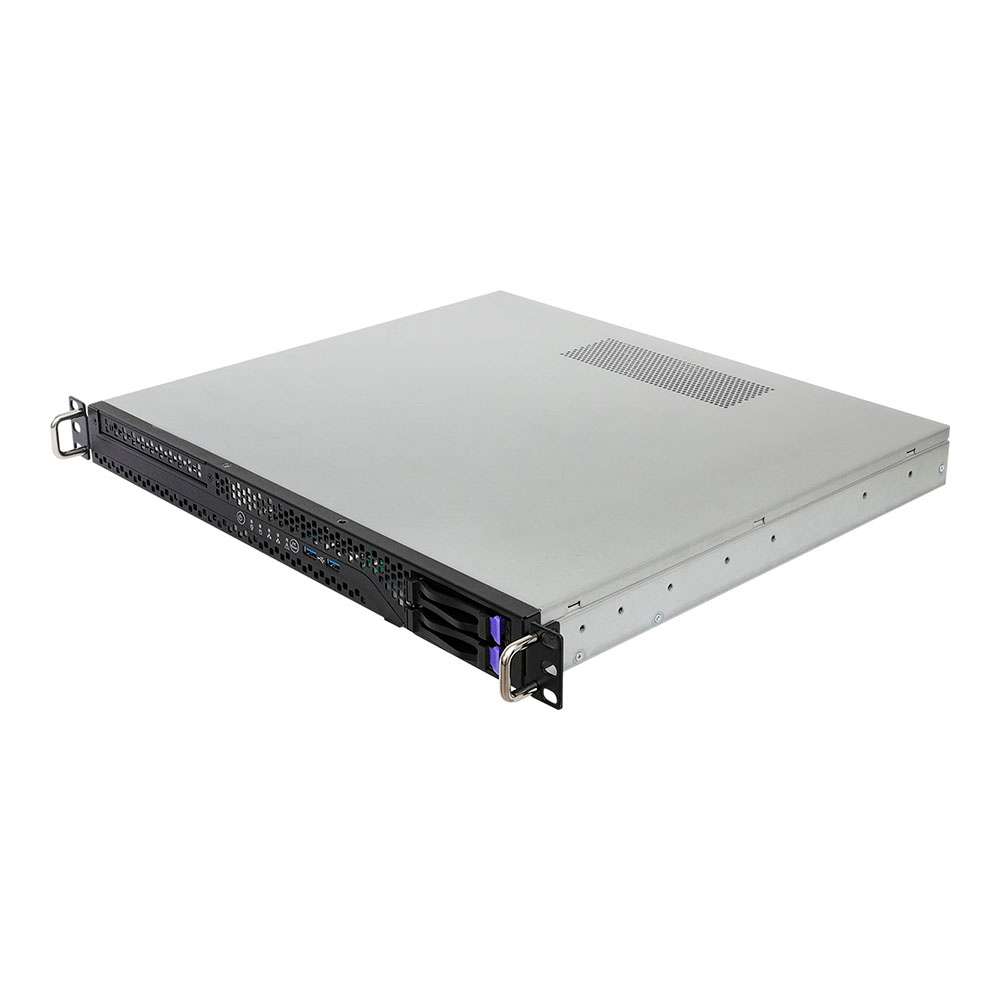

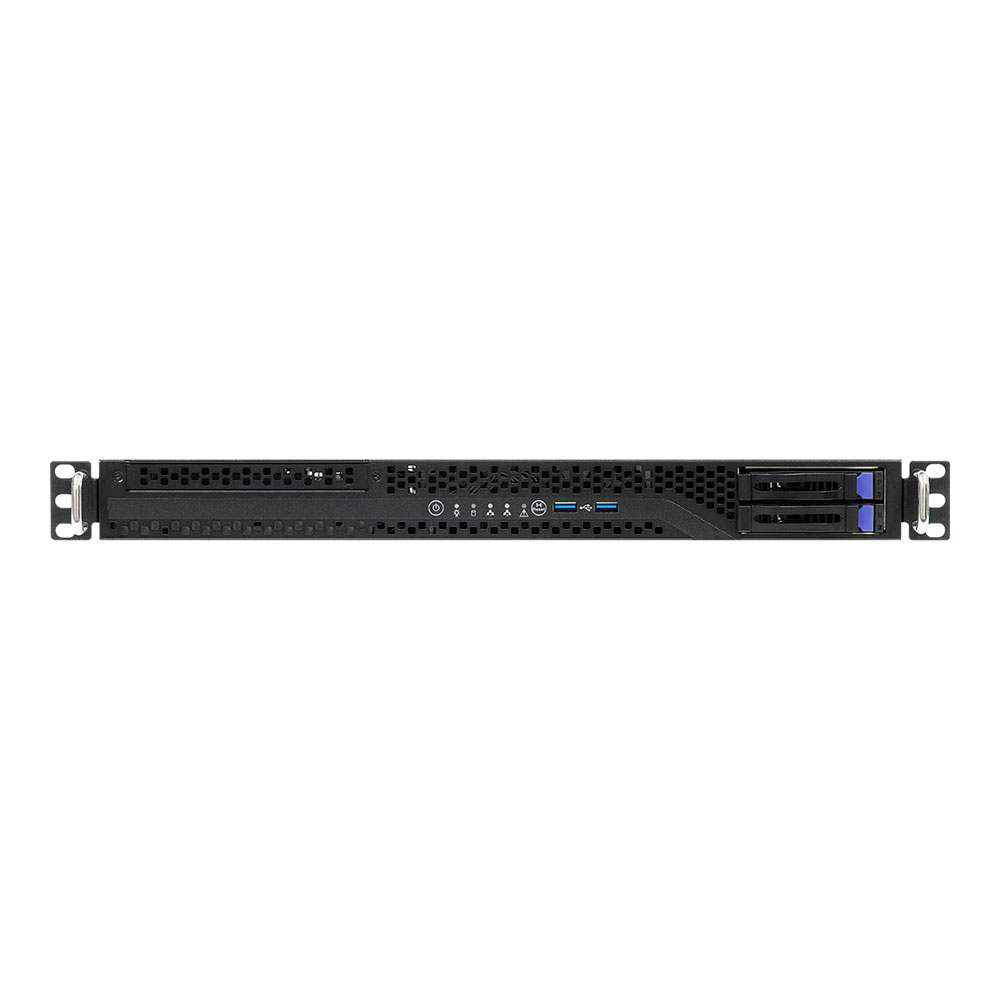

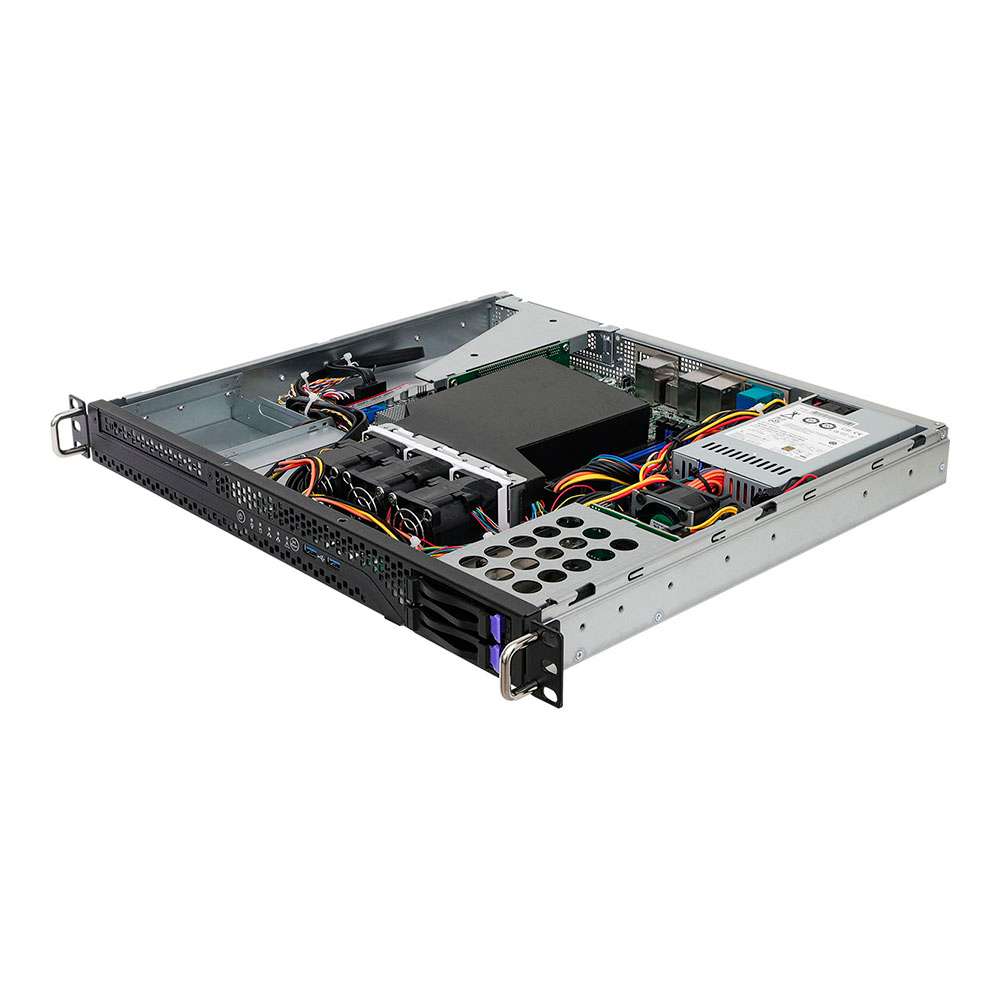

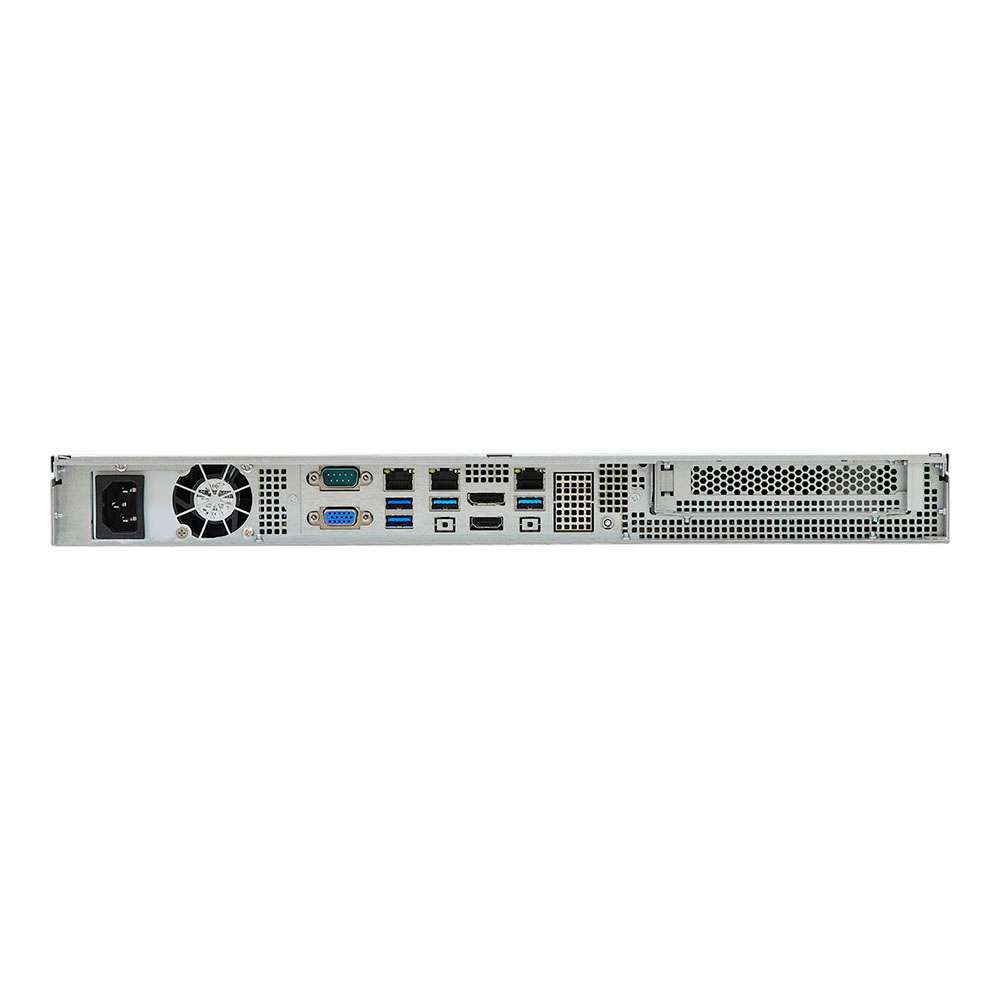

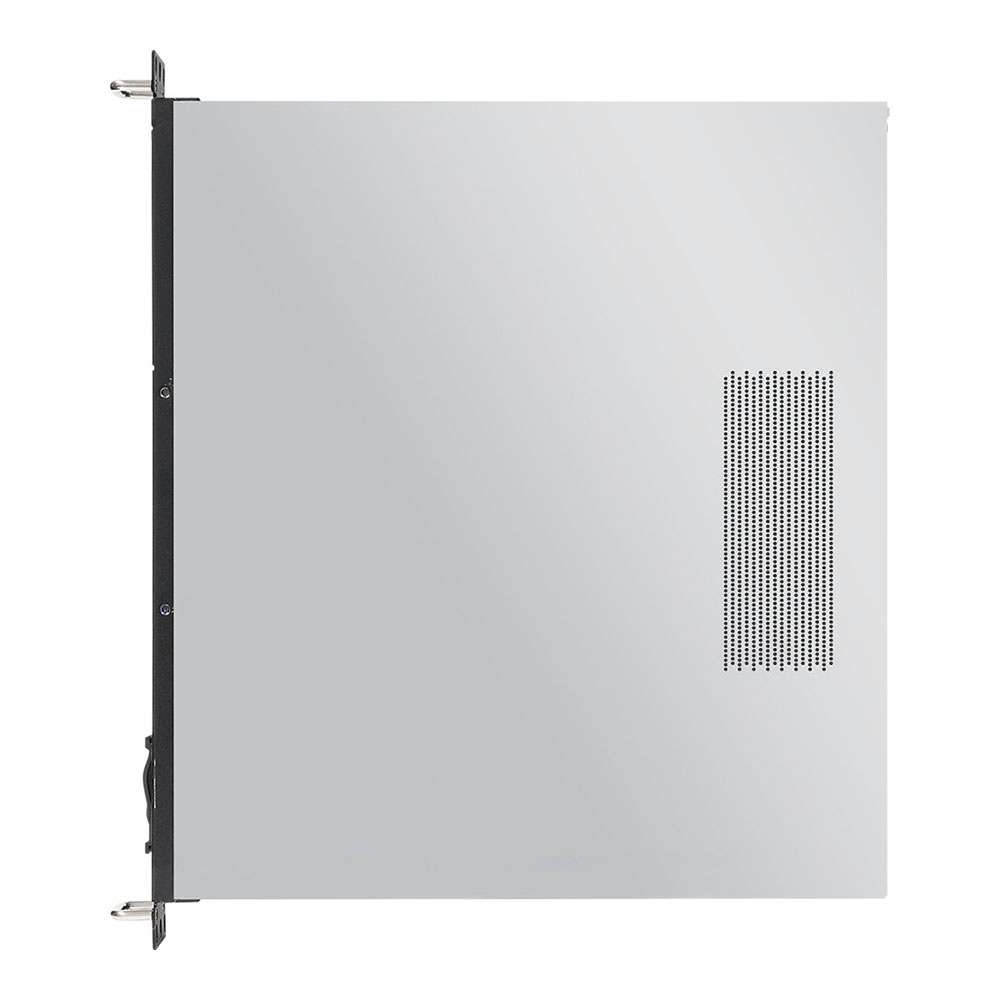

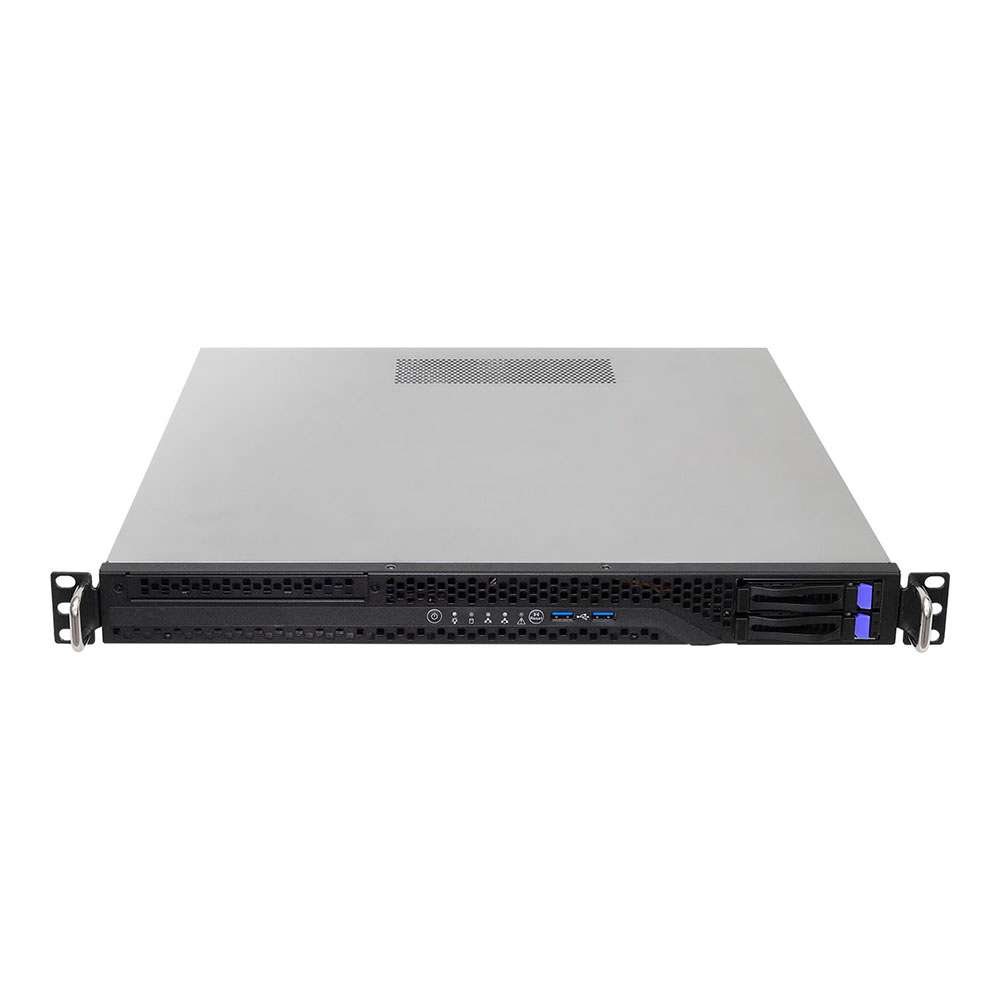

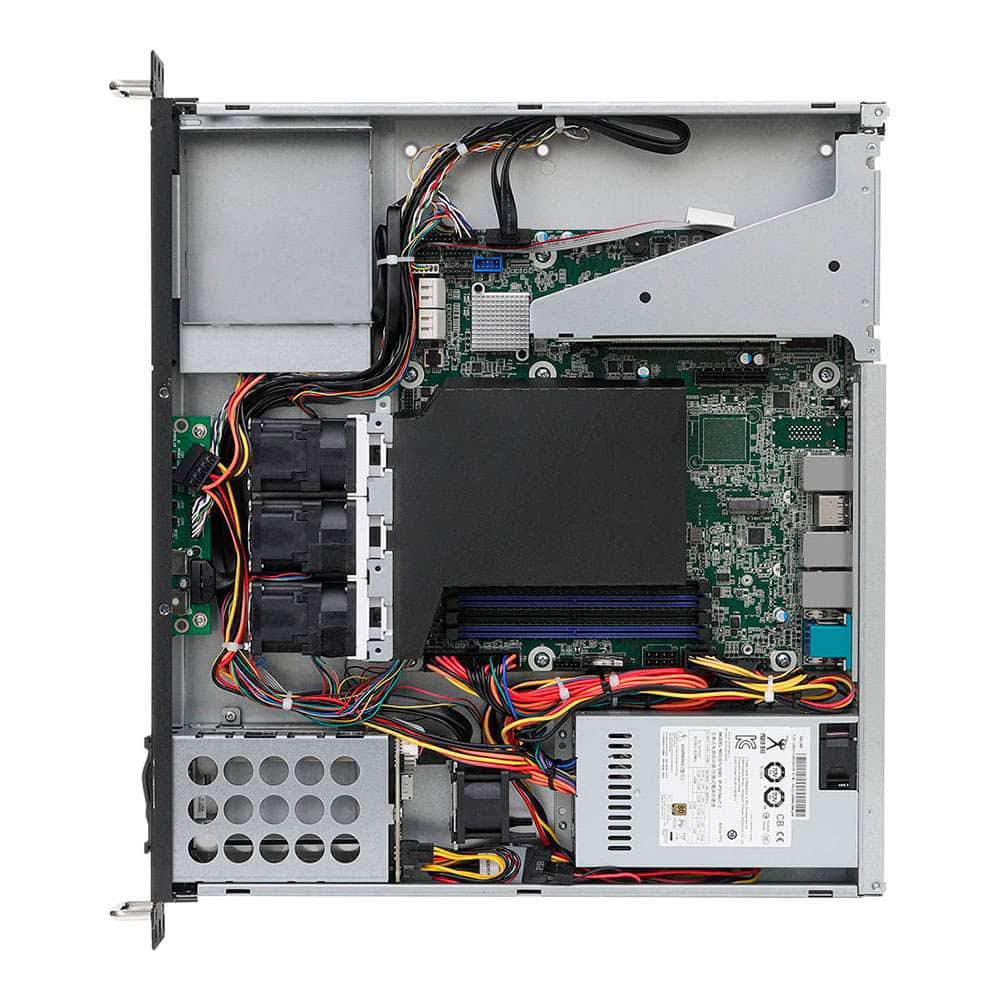

Asrock 1U2S-B650
- 1U Rack Server.
- Compatible with AMD Ryzen 7000 series processors.
- Socket AM5.
- 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMMs.
- 2 Hot-Swap 2.5" SATA drive bays.
- 1 fixed bay for 3.5" SATA drives or 1 ODD Slim.
- 1 FHHL PCIe4.0 x16.
- Supports 1 M.2 (PCIe5.0 x4), 1 M.2 (PCIe4.0 x4).
- 2 RJ45 (1GbE) from Intel i210.
- 1 HDMI, 1 DisplayPort.
- 80+ Gold 315W power supply.
Asrock 1U2S-B650. Built around the AMD Ryzen 7000 Series processor, it features two RJ45 LANs and a dedicated management LAN port.
Ideal for a general purpose server, networking or hybrid cloud. Storage options from two 2.5" SATA drive bays and two M.2 NVMe slots for a bootable drive.
It is also compatible with DDR5 ECC/Non-ECC UDIMMs for faster speeds.
Main features...
* 1U rack mountable with 1x 80-PLUS Gold 315W power supply.
* Single Socket AM5 (LGA 1718), compatible with AMD Ryzen 7000 series processors.
* 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMMs.
* 2 hot-swappable 2.5" SATA drive bays.
* 1 fixed bay for 3.5" SATA drives or 1 slim ODD.
* 1 FHHL PCIe4.0 x16.
* Supports 1 M.2 (PCIe5.0 x4), 1 M.2 (PCIe4.0 x4).
* 2 RJ45 (1GbE) from Intel® i210.
* 1 HDMI, 1 DisplayPort.
* Remote management (IPMI).
