Asrock 1U12E-TURIN2/EVAC

The Asrock 1U12E-TURIN2/EVAC is a high-performance server designed for data centers and mission-critical environments that require maximum density, power, and efficiency. Its 1U rackmount form factor allows for the integration of high processing and storage capacity in a minimal footprint, making it ideal for AI, virtualization, or data analytics workloads.

Equipped with dual SP5 sockets (LGA 6096), it supports AMD EPYC™ 9005/9004 and 97x4 series processors, including models with AMD 3D V-Cache™. It supports up to 360 W TDP per CPU and 24 DDR5 RDIMM or 3DS (1DPC) modules with frequencies up to 6400 MHz, guaranteeing exceptional memory capacity and bandwidth for demanding environments.

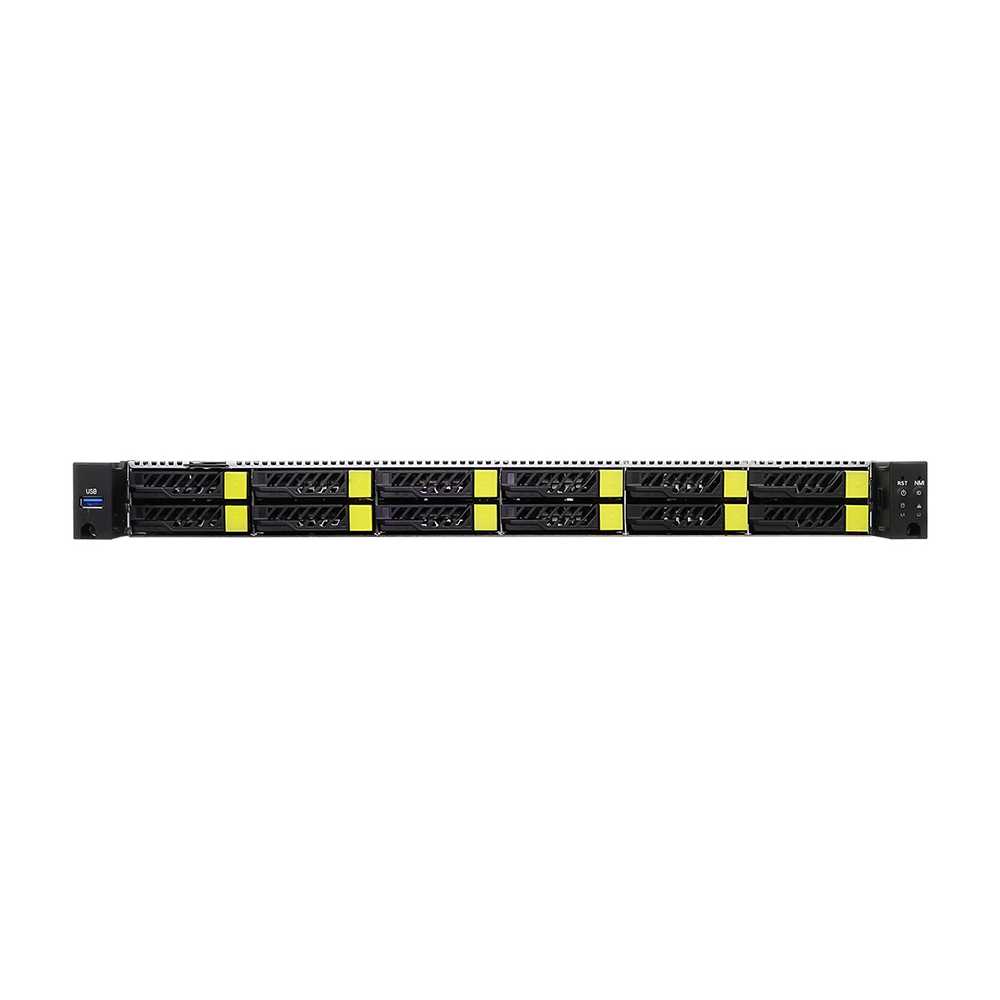

For storage, it offers 12 hot-swap 2.5” NVMe PCIe 5.0 x4 bays with a 12-port passive backplane, plus 2 internal M-Key PCIe 3.0 slots and 3 expansion slots (FHHL PCIe 5.0 x16 ×2 + OCP 3.0 x16). This configuration allows for building ultra-fast NVMe infrastructures with low latency and high I/O performance.

The system integrates 8 hot-swap PWM fans and a redundant 1+1 CRPS power supply 2000W 80 PLUS Platinum for maximum efficiency and reliability. Remote management is ensured by the BMC ASPEED AST2600 controller with IPMI and dedicated LAN, allowing for complete remote monitoring and control. Overall, the Asrock 1U12E-TURIN2/EVAC offers a powerful, scalable, and future-proof computing solution.

Key Features...

* 1U rackmount form factor for high-density data center environments.
* Compatible with AMD EPYC™ 9005/9004 processors and AMD 3D V-Cache™ technology.
* Up to 24 DDR5 RDIMM/RDIMM-3DS slots at 6400 MHz (1DPC).
* 12 hot-swap 2.5” NVMe PCIe 5.0 x4 bays with backplane Passive cooling.
* PCIe 5.0 x16 FHHL expansion slots and OCP NIC 3.0.
* BMC ASPEED AST2600 remote management with IPMI and dedicated GLAN.
* Redundant 2000W 80 PLUS Platinum CRPS 1+1 power supply.
* 8 hot-swap PWM fans for efficient cooling.
