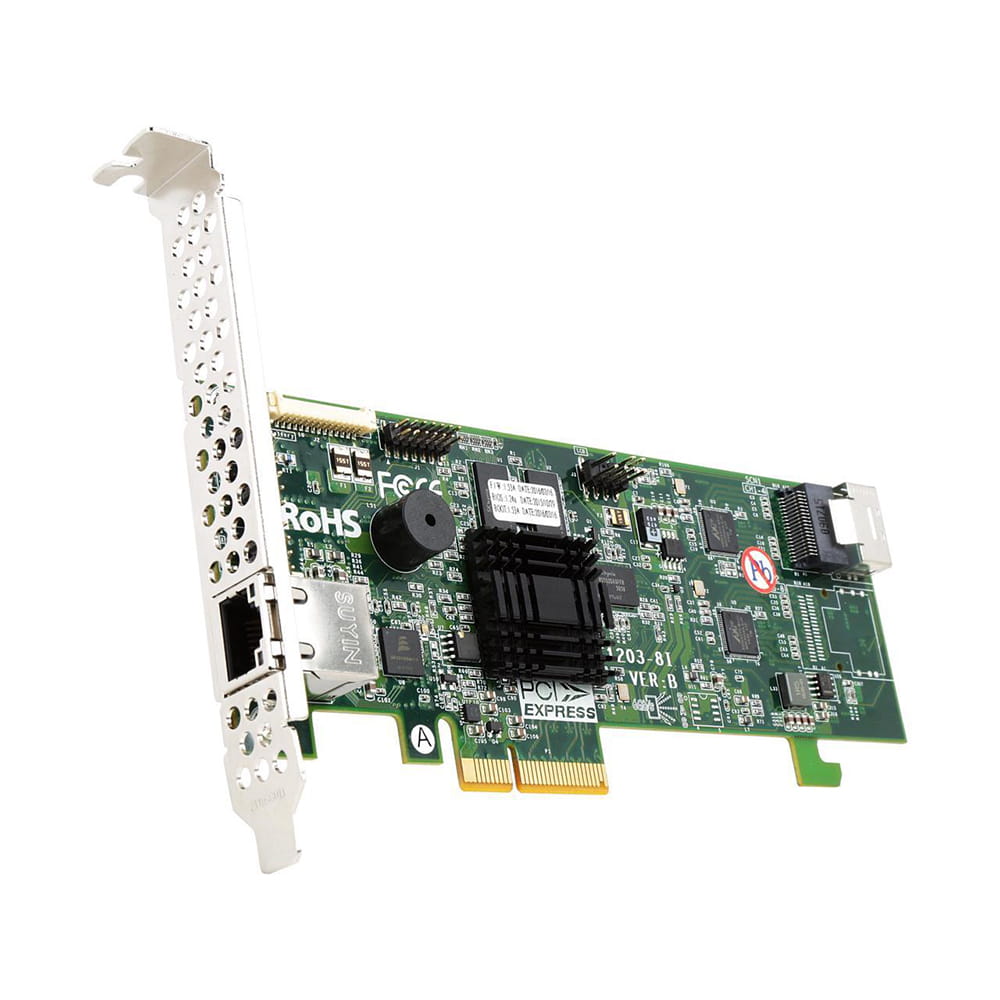

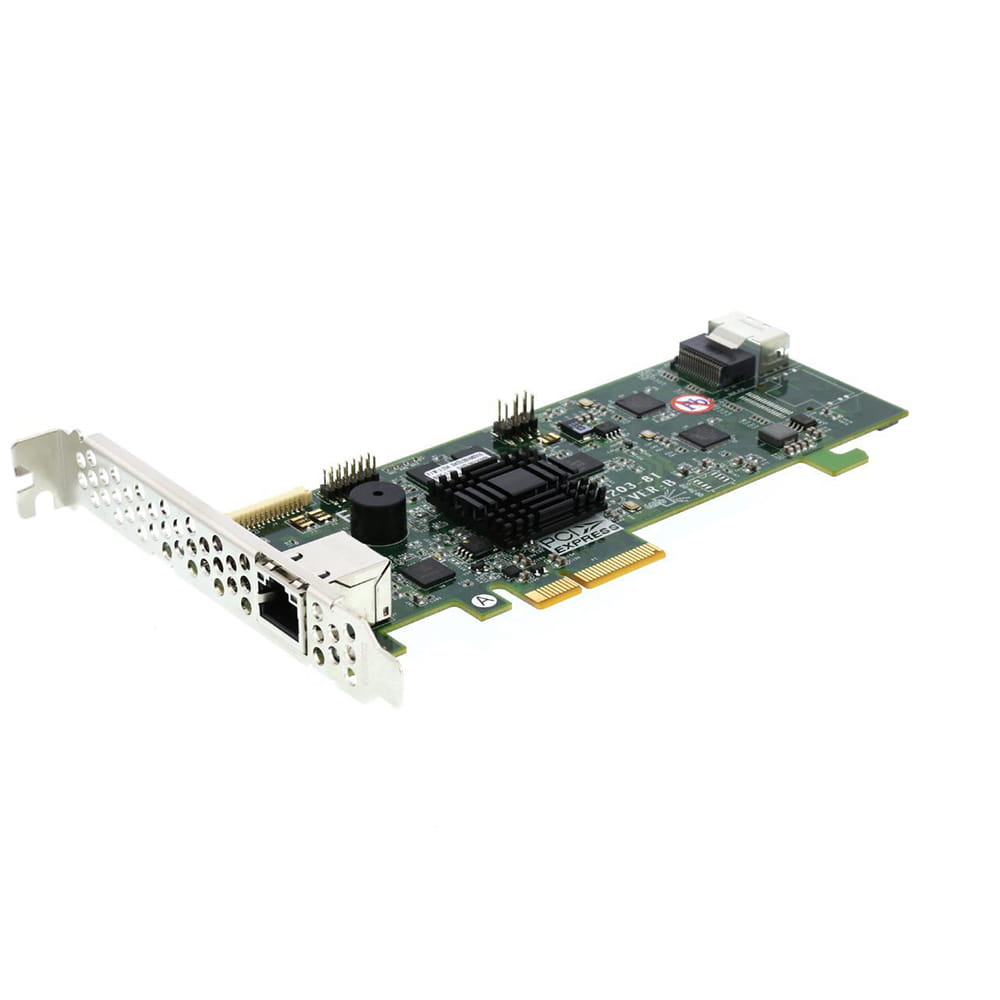

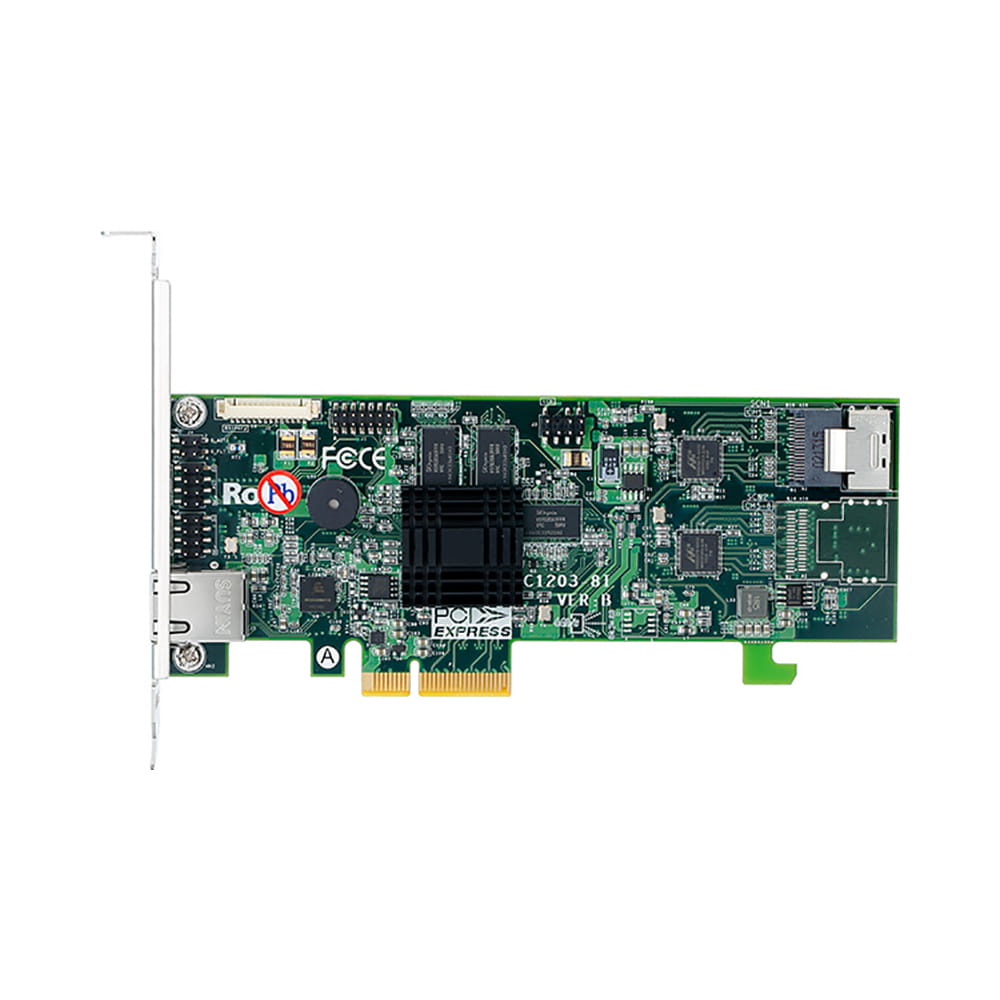

Areca ARC-1203-4I. 4 Puertos SATA RAID.

ARC-1203 series PCIe 2.0 internal host RAID controllers are the cost-effective solutions for connecting SATA 2/4/8 6Gb/s peripheral devices.

Areca's ARC-1203 series entry-level RAID controllers cover the spectrum of wild-range storage requirements for cost-sensitive applications that require robust data protection. Port 2/4/8 configurations are intended for high-availability and capacity-oriented applications such as security systems, surveillance, media generation, high-volume data capture, mail servers, and database systems basic level.

Integrated with ARM-based storage I/O processor, the ARC-1203-4I is a pure hardware RAID controller and they raise the standard to higher performance levels with several enhancements including SATA 6Gb/s ports, memory Integrated 1GB SDRAM and high-performance PCIe 2.0 x8 host. interface bus interconnection.

With a dedicated processor and cache memory that offloads parity calculations from the CPU, it can be paired with a slow, lower-powered processor, the cost/benefit ratio for this cost-effective RAID adapter is negligible. ARC-1203 series RAIDs can be easily integrated into a variety of hardware and software platforms, and are ideal for the cost-effective, high-capacity NAS, DVR, and cold storage market.

Main features...

* Interface and Connectivity: PCIe 2.0 x4, 1 internal Mini SAS HD port (SFF-8087) for 4 SATA devices.
* Transfer Capacity: Up to 6 Gb/s per port.
* RAID support: RAID 0, 1, 1E, 3, 5, 6, 10, 30, 50, 60, Single Disk and JBOD.
* Cache Memory: 512 MB DDR3-1066 with ECC protection.
* Supported Devices: Up to 4 SATA devices.
* Additional Features: Support for optional backup battery, self-encrypting drive (SED) management, and SGPIO interlock management.
* Operating Systems Compatibility: Windows, Red Hat Linux, SUSE Linux, Fedora, Debian, Ubuntu, Solaris, FreeBSD, macOS and VMware ESXi.
* Management and Monitoring: McRAID web management tools, McRAID command line utility, and support for monitoring and notification via SNMP and SMTP.
