Appliot AMP103

Pn. ORDAMP103Ean. 642968298862

There are no configurations available for this product.

Appliot AM103 is specially designed for applications such as Digital Signage, Set Top Box, POS / POI, among others ...

It will allow you to access 4K resolutions through the DisplayPort and HDMI interface, to support two high-definition screens simultaneously.

Its totally fanless system (without fans) guarantees a long and uneventful life cycle.

Extensive connectivity, up to 4 COM ports, 2 GigaLAN and Wifi.

To support approvals and long-term projects guarantees a life cycle until 2030.

* Small size equipment that adapts to your space needs.
* Totally fanless.
* Wireless
* Unbeatable connectivity.

CPU	Intel Celeron N3160 SoC Quad-core 6W TDP
Memory	Onboard 4GB DDR3L-1600, non-expandable
VGA	Intel HD Graphics
LAN	2x Intel I211-AT Gigabit LAN
Audio	Realtek ALC662 HD Audio
Storage	1x 2.5' SATA3 6Gb/s for HDD or SSD 1x M.2 slot (M-key, 2242 SATA only)
Wireless	1x Wireless 802.11 b/g/n
Motherboard Form Factor
Dimensions	185 (W) * 142 (D) * 48 (H) mm
Material
Color	Black

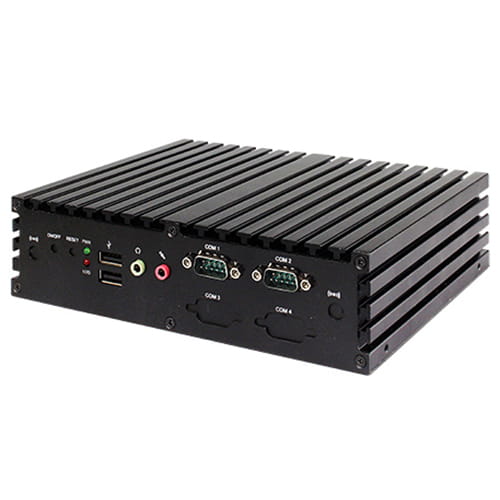

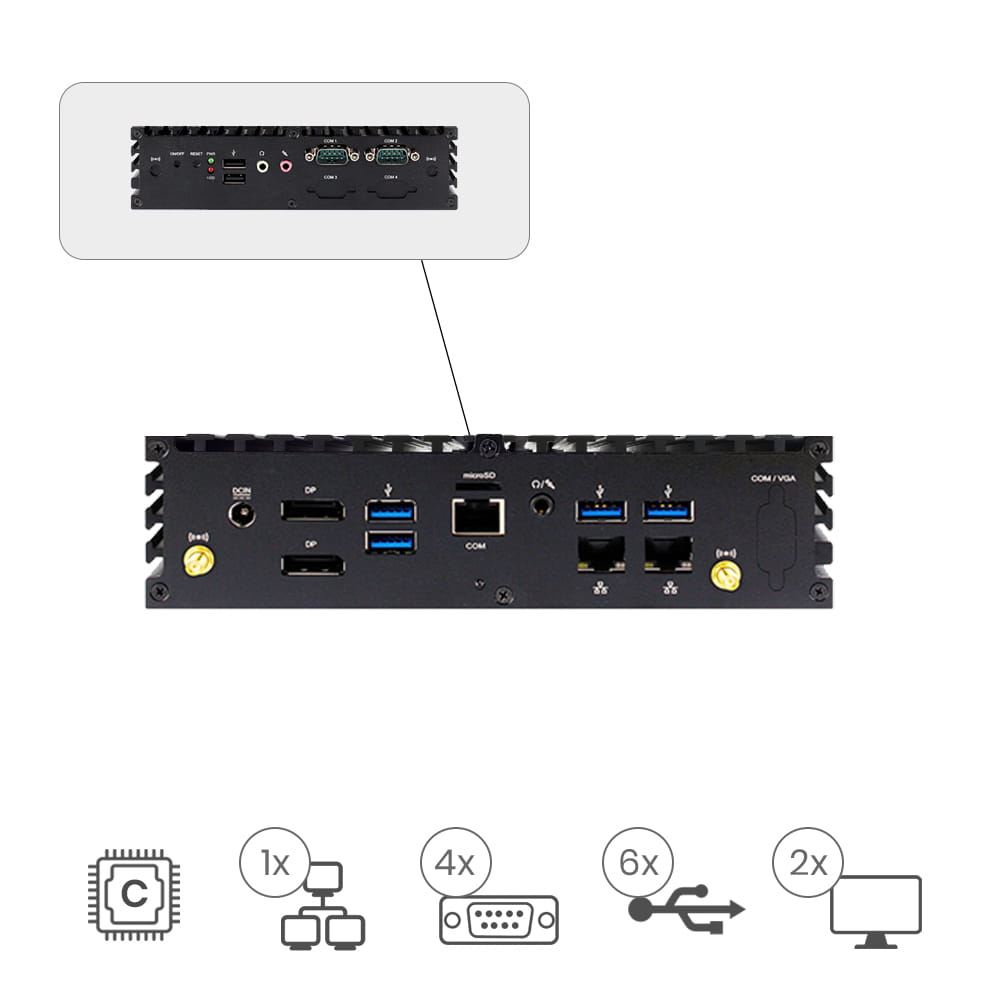

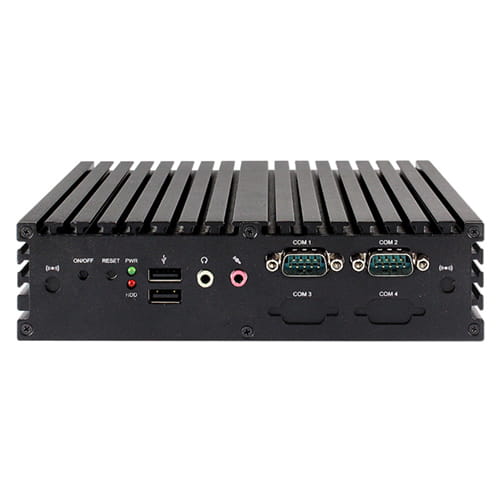

Front Ports	1x Power Button 1x Reset Button 2x USB 2.0 ports 1x Line Out Jack 1x Microphone Jack 4x RS232 Serial Ports (2 * installed & 2 * cables included in accessory box) 2x WIFI Antenna holes

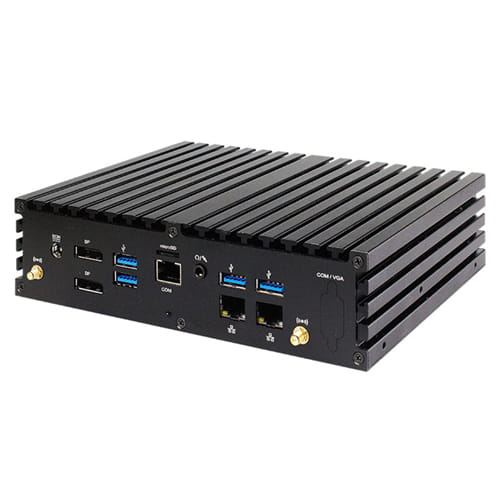

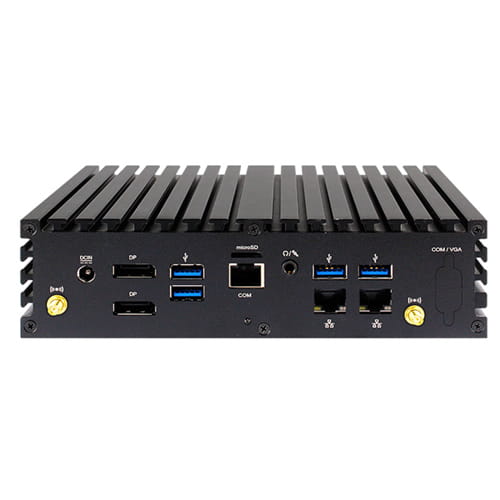

Rear Ports	1x +9V ~ +36V Locking DC-in jack 1x HDMI 1.4b (2560 x 1600 @ 60Hz or 3840 x 2160 @ 30Hz) 1x Display Port 1.1 (2560 x 1600 @ 60Hz or 3840 x 2160 @ 30Hz) 4x USB 3.0 ports 2x RJ-45 ports 1x RJ45 Type Serial port 2x SMA Connector for WiFi Antenna 1x Kensington Lock Hole
Power
Temperatures	Operating: 0 ~ 40°C Storage: -20 ~ 85°C
Aplications	Set Top Box, Digital Signage, Surveillance, Smart Fanless PC, POS/POI, KIOSK/ATM
Certificates	CE,FCC,ErP For Barebone CE,FCC,TUV,UL,CCC,CB,ErP For Power Adapter

124,20 €/ud Excl. VAT

139,79 €

Incl. VAT

Product not availableThe displayed price is indicative and non-binding
