Buy Appliot AMP102 - Ibertronica

There are no configurations available for this product.

Ideal for any industrial control application, kiosk, digital signage or multimedia playback. It integrates an Intel Celeron N2930 processor at 1.83Ghz, with the Intel SoC chipset.

This equipment incorporates two Gigalan RJ45 network cards and WiFi network.

Highlights ...

* Small size equipment that adapts to your space needs.
* Maximum connectivity, minimum space.
* Intel Celeron Bay Trail N2930.
* Voltage range + 9V - 24V DC jack.
* Dual Gigabit Lan with protection system.
* Wireless
* Passive cooling.
* Prepared for hostile environments.
* Low consumption.

Technical specifications

CPU	Intel Celeron N2930 SoC, 1.83GHz – 2.16GHz Burst, Quad-Core, 7.5W TDP/4.5W SDP
Memory	1x DDR3L-1333 SO-DIMM hasta 8GB (1.35V)
VGA	Intel HD Graphics, 313MHz - 854MHz
LAN	2x Realtek RTL8111G PCI-E Gigabit LAN
Audio	Realtek ALC662 HD Audio
Storage	1x 2.5' SATA2 3Gb/s drive bay for HDD or SSD 1x Shared mSATA/mini-PCI Express Combo slot (Full-size)
Wireless	Wireless 802.11 b/g/n
Motherboard Form Factor	3.5' SBC (148mm x 102mm)
Dimensions	152.6 (W) x 110 (D) x 34.8 (H) mm
Material
Color	Black

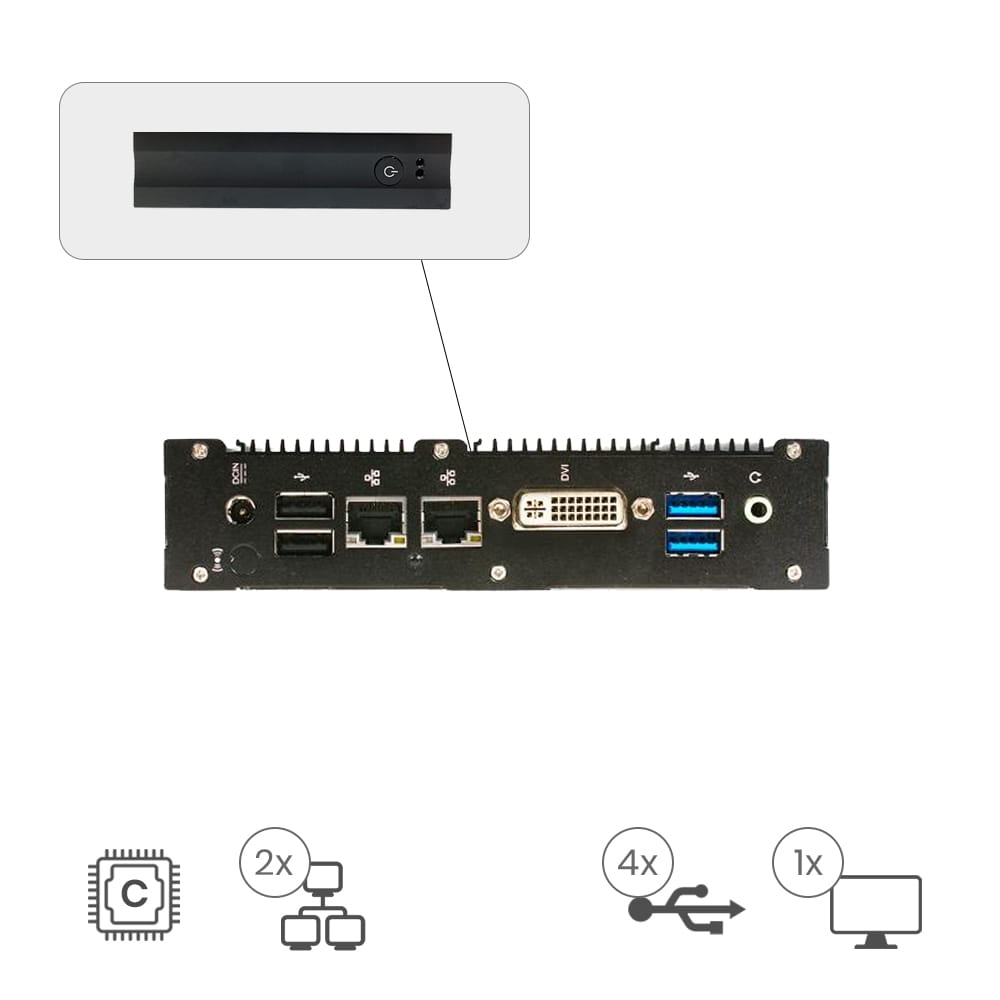

Front Ports	1x Power Button 1x Power LED 2x HDD LED

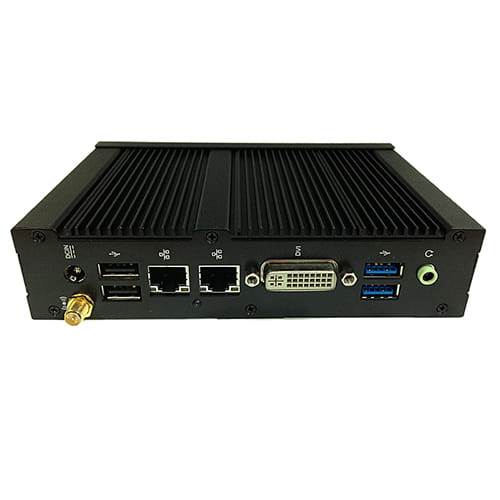

Rear Ports	1x USB 3.0 ports 3x USB 2.0 ports 2x RJ-45 ports 1x DVI-I port 1x SMA Connector for WiFi Antenna 1x Line Out jack 1x +9V ~ +24V DC-in jack
Power
Temperatures	Operating: 0 ~ 40°C Storage: -20 ~ 85°C
Aplications	Set Top Box, Thin Client, Car Entertainment, Smart Mini PC, POS/POI, KIOSK
Certificates
