Alphacool Core Ocean T38 AIO 240mm

With Core Ocean AiO, Alphacool presents an all-in-one solution that, thanks to its excellent price-performance ratio, allows entry into performance-oriented CPU water cooling. The difference with the Eisbaer AiO CPU is that the Ocean All-in-One cannot be expanded. There is no intention here to add more components, such as GPU coolers, radiators or expansion tanks. But it's not necessary either! Core Ocean's choice of components and design allow for long life with low maintenance for water cooling all common AMD and Intel main sockets.

aluminum radiator
Compared to Alphacool's full copper models, the T38 aluminum radiator has additional cooling channels. This technical design allows a significant increase in cooling capacity without restricting the flow of water inside the radiator. Due to the low height of 38mm, the single-sided fan radiator assembly fits into the narrowest case and enables high-performance water cooling of the CPU.

center fan
The fan can be regulated from 0 to 2500 rpm via the 4-pin PWM connection. The cable is 40 cm long. This allows the fan to be connected to the motherboard or a special controller without the need for additional adapter cables or extensions. At 2,500 rpm, it provides an airflow of 62.8 CFM, along with a high static pressure of 2.13 mm/H2O. This makes the fan perfect for mounting on radiators of a water cooling system.

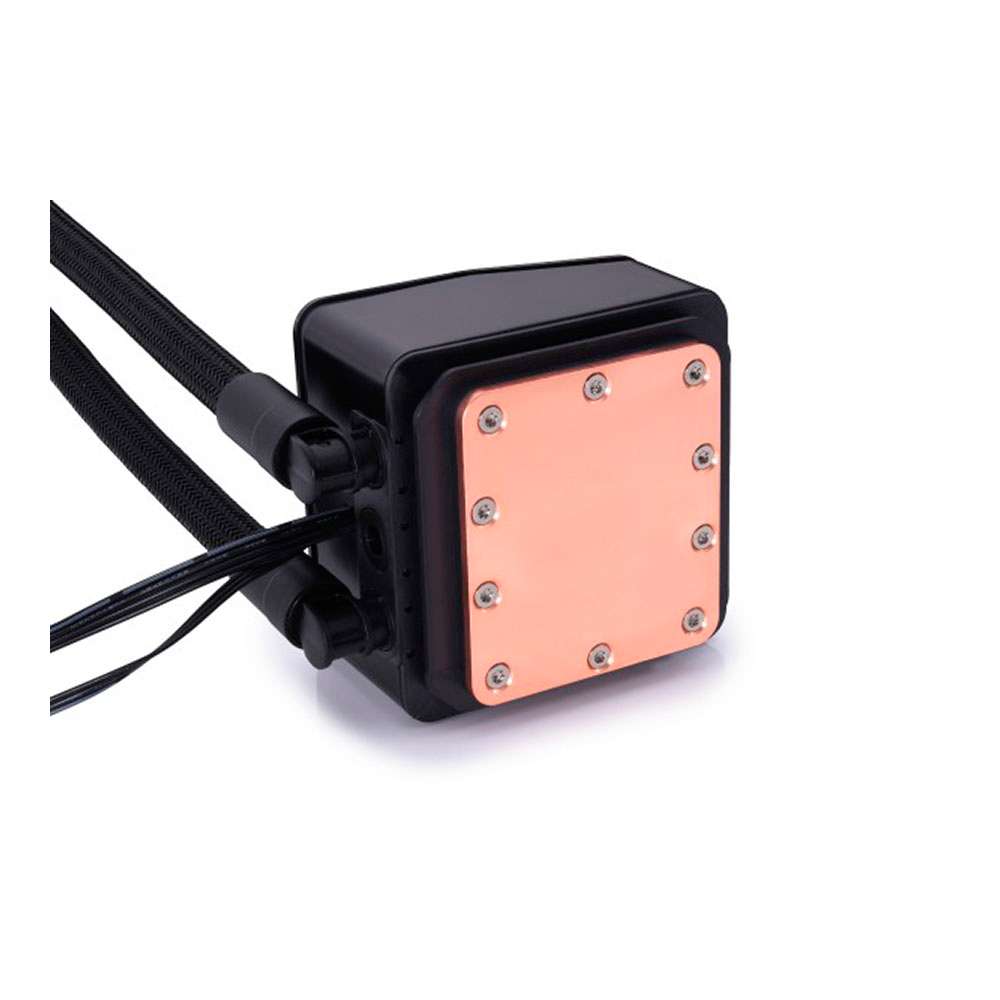

chiller and pump
Like all Alphacool products, the base of the radiator is made of copper and is equipped with very thin cooling fins distributed throughout the base. A nozzle plate ensures accelerated flow over the cooling fins, increasing cooling performance. The water flow is optimized so that all areas of the cooler base are evenly cooled. The cooler is compatible with all common main sockets from AMD and Intel. The built-in pump has a speed range of 2500 - 3500 RPM (+/- 10%) and can be controlled via PWM. The pump is connected to the motherboard or an external controller via the existing 4-pin fan header. This allows control and monitoring of the speed range of the pump.

Hoses and Connections
FEP hoses are 40 cm long, have sleeves and are highly flexible. The 360° swivel connections to the cooler and radiator are permanently installed and cannot be replaced. However, the combination of hoses and connectors allows highly variable positioning of the AiO even in the narrowest PC case.

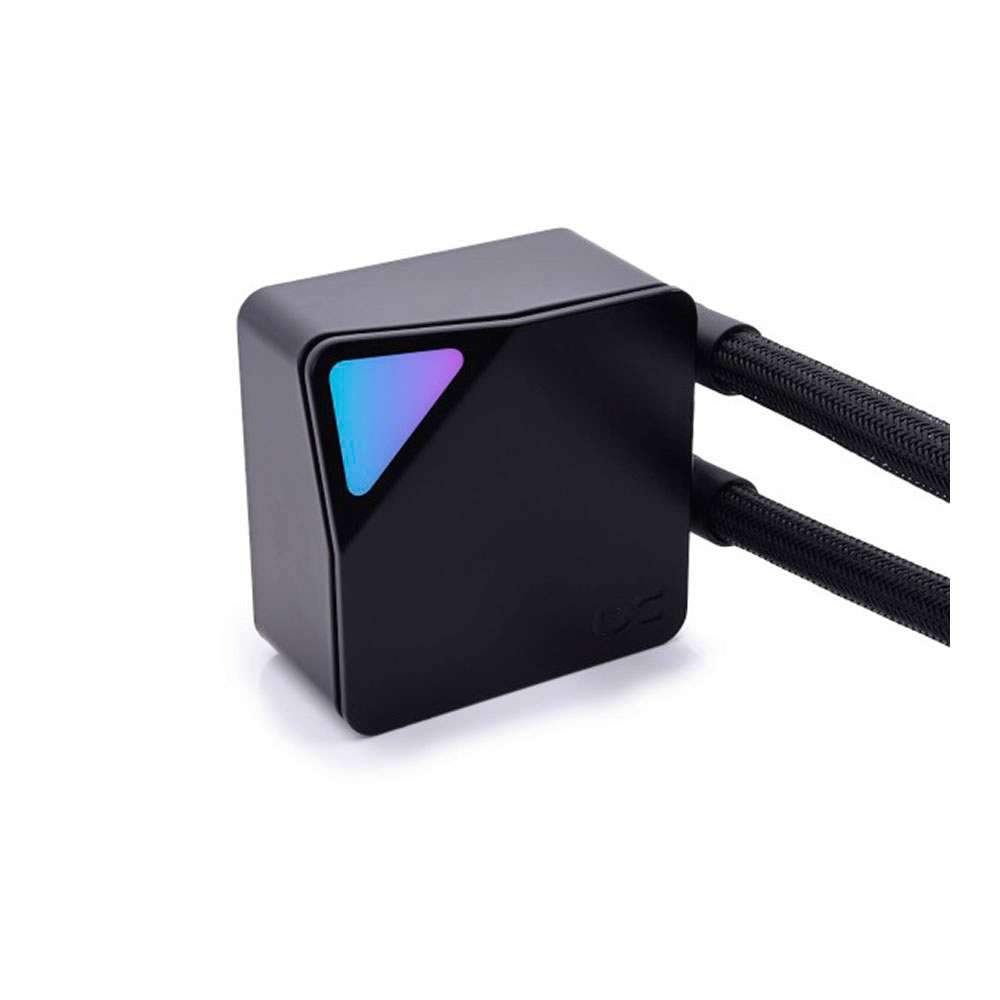

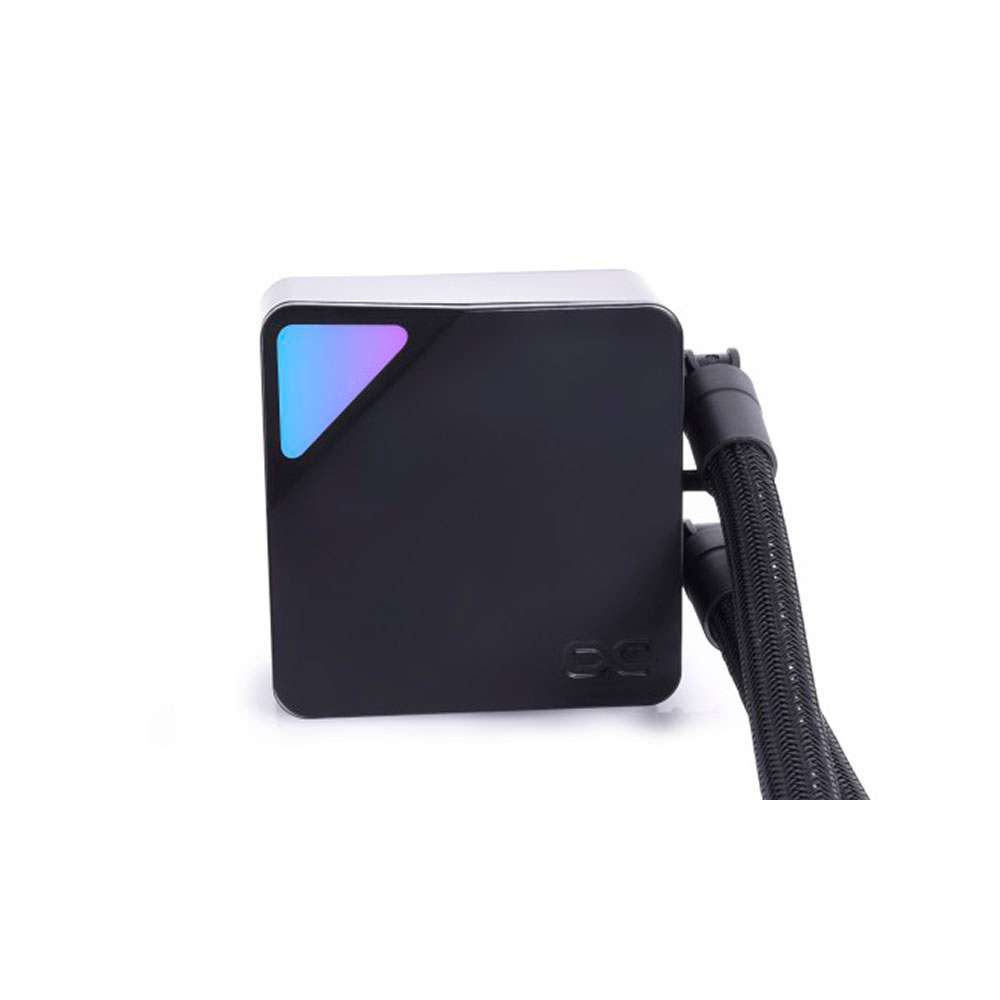

Lightning
12 digitally addressable 5V RGB LEDs are installed in the pump casing, creating a very noble-looking and unique lighting. Digital aRGB LED lighting connects via a 3-pin JST connector. To control the lighting, the 3-pin female connector must be connected to a digital RGB controller (not included) or a digital RGB compatible motherboard. Additional digital RGB LEDs can be connected to the remaining 3-pin male connector.

thermal compound
The included thermal paste has a thermal conductivity of 7.5 W/mK. The thermal grease does not harden, is particularly suitable for high contact pressures and can be applied perfectly due to the optimally selected viscosity.

Main features...

* Compatibility: Intel LGA 115x / LGA 1200 / LGA 1700 / LGA 2066. AMD AM4/ AM5.
* Material: Aluminum.
* No. fans: 2 (2x 120mm)
* Distance from flexible tube: 400mm.
* Compatibility: Intel LGA 115x / LGA 1200 / LGA 1700 / LGA 2066. AMD AM4/ AM5
